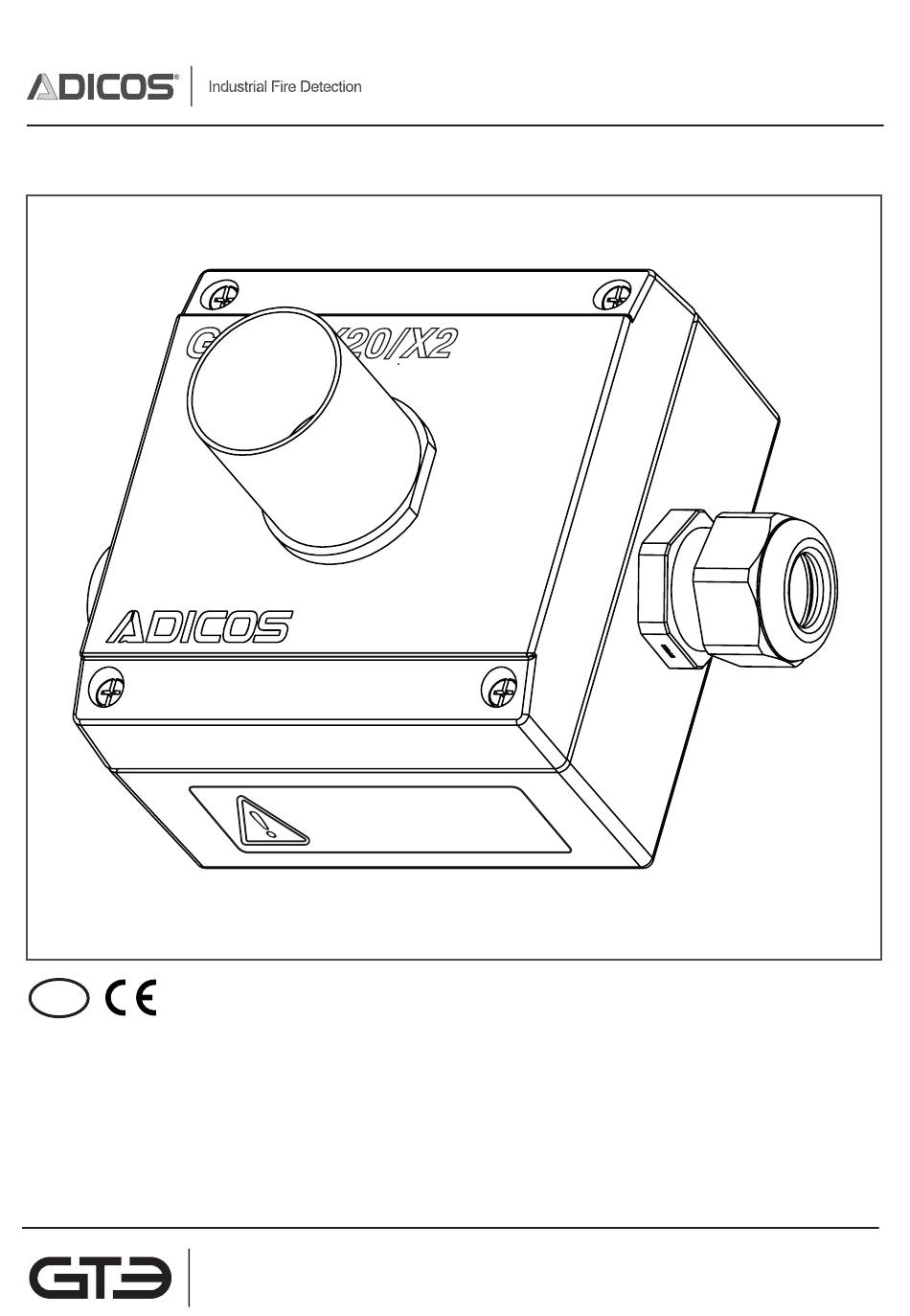

- Page 1 GSME-X20/X2 DO NOT OPEN IN GAS LOADED ATMOSPHERE Supplementary Instruction Manual for GSME-X20/X2 Fire Gas Detector GTE Industrieelektronik GmbH | Helmholtzstr. 21, 38 – 40 41747 Viersen | Germany | +49 2162 3703-0 | info@gte.de...
- Page 2 Helmholtzstr. 21, 38-40 41747 Viersen GERMANY Support hotline: +49 2162 3703-0 E-Mail: support.adicos@gte.de © 2023 GTE Industrieelektronik GmbH – This document and all figures contained may not be copied, changed, or distributed without explicit approval by the manufacturer! Subject to technical changes!
- Page 3 COS system ensures reliable early detection of embers and smoldering fires even in adverse environments. ADICOS GSME fire gas detectors detect at an early stage gases that are characteristic for developing fires. They detect both open and concealed smoldering fires. Highly sensitive and at the same time robust, they are ideal for fire gas detection in industrial environments –...
-
Page 4: Table Of Contents
ADICOS Mounting Plate ........ -
Page 5: About This Manual
Objective This manual describes the special requirements on installation, wiring, commissioning, and operation of ADICOS detectors for explosive atmospheres up to ATEX zones 20, 21, 22 and 2. They are exclusively addressed to knowledgeable specialist personnel (–› Chap. 2, Safety instructions). -
Page 6: Safety Instructions
SAfeTy inSTRuCTionS Safety Instructions ADICOS GSME-X20/X2 detectors for explosive atmospheres in ATEX zones 20, 21, 22 and 2 ensure operational safety assuming proper installation, commissioning, operation, and maintenance. For this purpose, it is absolutely required to completely read, understand, and follow this manual and the safety information contained. -
Page 7: Personnel Qualification
SAfeTy inSTRuCTionS Personnel Qualification Any work on ADICOS systems may only be performed by qualified personnel. Persons, who can perform work on electrical systems and recognize possible dangers based on their pro- fessional education, knowledge, and experience as well as knowledge of the applicable provi- sions, are considered qualified personnel. -
Page 8: Structure
STRuCTuRe Structure Overview GSME-X20/X2 Description Detector enclosure Signal dome Spray protection Sinter metal filter Explosion protection cable gland 408-2410-005 EN21 ADICOS GSME-X20/X2... -
Page 9: Cable Assignment
Display Elements Signal dome The signal dome is a translucent element, through which the status LED of the ADICOS GSME-X20/X2 detectors located inside the enclosure can be seen. The light signals of the ADICOS GSME-X20/X2 detectors are identical to the signals of the non-Ex ADICOS detectors. -
Page 10: Installation
DANGER! Risk of explosion due to electrical voltage in hazardous areas. The electronics of ADICOS GSME-X22 works with an electrical voltage that can trigger an explosion in potentially explosive atmospheres. • Do not open enclosure! Mount the device with closed housing! •... -
Page 11: Wiring
DANGER! Risk of explosion due to electrical voltage in hazardous areas. The electronics of ADICOS GSME-X20/X2 works with an electrical voltage that can trigger an explosion in potentially explosive atmospheres. • Do not open enclosure! Mount the device with closed enclosure •... -
Page 12: Maintenance
Detector Replacement DANGER! Risk of explosion due to electrical voltage in hazardous areas. The electronics of ADICOS GSME-X20/X2 works with an electrical voltage that can trigger an explosion in potentially explosive atmospheres. • Do not open enclosure! • De-energize the entire detector system and secure against unintentionally reactivation for all wiring work! •... -
Page 13: Technical Data
Maximum input voltage (Ui): Maximum input current (Ii): Maximum input power (Pi): Maximum internal capacitance (Ci): negligible Maximum internal inductance (Li): negligible Thermal, Physical Data Ambient Temperature: °C –20 ... +50 Relative Humidity: ≤ 95 (non condensing) ADICOS GSME-X20/X2 408-2410-005 EN21... -
Page 14: Id Plate
(variable) (variable) ART-Nr: Article number TEMP: Ambient Degree of (variable) temperature protection COM-Nr: Communication /VA: Voltage range / Internal fusing number (variabel) maximum pow- (Short-circuit er consumption current) (heating incl.) CE marking Information on explosion protection 408-2410-005 EN21 ADICOS GSME-X20/X2... -
Page 15: 10 Appendix
AppenDix 10 Appendix 10.1 ADICOS Mounting Plate 1 5 0 1 3 0 6 . 4 A - A ADICOS GSME-X20/X2 408-2410-005 EN21...
