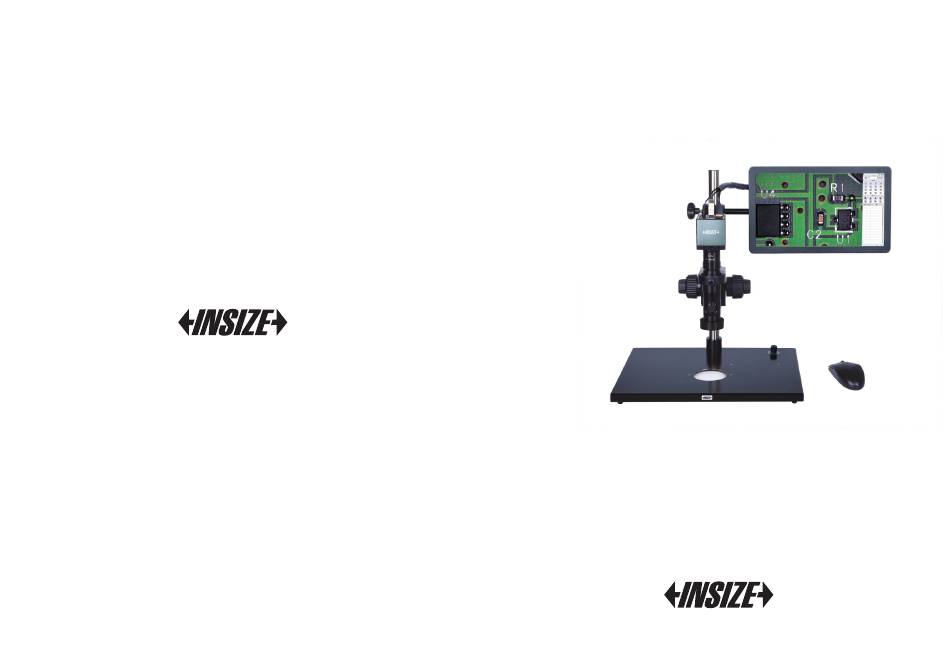

- Page 1 MN-ISM-DL301-E www.insize.com ISM-DL301 DIGITAL MEASURING MICROSCOPE (WITH DISPLAY) OPERATION MANUAL...
- Page 2 Structure Attention Name： To avoid danger or damage incurred to the lens, do not touch the lens or sensor directly with your fingers. To avoid failure or electric shock hazard and so on, do not disassemble or modify the internal structure of the device. Do not plug in or unplug the anything port when hands are wet.
-
Page 3: Operation
Operation Camera： HDMI port Calibration: power USB ports Click the icon in the upper right corner of the menu. You can choose the line segment calibration or the three-point circle calibration. The line segment calibration is that you can choose two dots to demarcate the lens. - Page 4 assist tools: Pictorial information selection. A dialog box appears after the click. The user can set the line width, color, the font size,color and label of Adjust the camera Parameters. Select the camera Parameter key the image, etc. and appear as shown below. The current image can be set Screen freeze button.
- Page 5 the required Select the format Measure Distance Between Two Parallel Lines: basictools for the image measurement items draw a line through two points, and then find another line, the second line will be automatically drawn, and the system will automatically measure the distance between the two lines. Measure Distance Between Three Parallel Lines.
- Page 6 技术参数 Measure Maximum Distance Between Point And Circle: Parameter Select a point, and then draw a circle through three dots, and Specification: the system automatically measures the maximum distance between the first point and the circle. Measuring accuracy Measure Minimum Distance Between Line And Circle: Measuring accuracy Magnification Draw a line through two points, then draw a circle by three...
