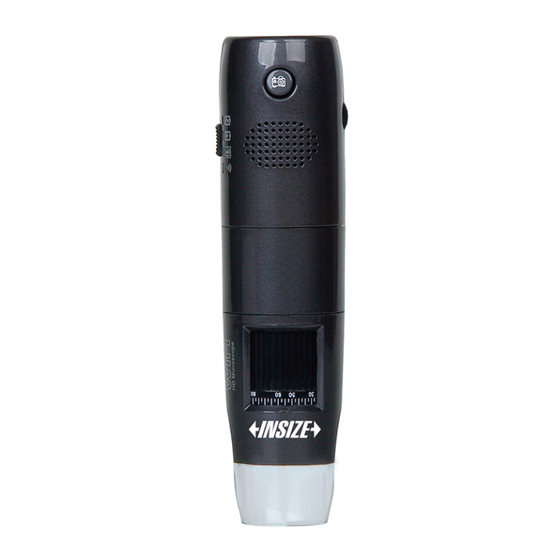

- Page 1 MN ISM-WF200 www.insize.com ISM-WF200 WIFI DIGITAL MEASURING MICROSCOPE OPERATION MANUAL...
- Page 2 5. Store and operate ISM-WF200 microscope at Temp: -20 ~ 45°C, WiFi. The ISM-WF200 has a wide scope of applications, such as, Humidity: 45% ~ 85%, storing ...
- Page 3 “ WiFi2SCOPE_xxxxxx” network from the list to connect; the The Power “OFF/USB—WiFi” Switch: network “WiFi2SCOPE_xxxxxx” requires a password: enter the WiFi: ISM-WF200 Microscope works in WiFi mode when switch is password “12345678” and click Ok. moved to “WiFi” side. 4. Once connected, open the “ ISM-PAD” application to see OFF/USB: Power-off WiFi Microscope when switch is moved to your images.
- Page 4 Input the actual length of the line; click “ ok” and on the live Photos folder or videos folder. video to pop-up this below screen: Navigation icon—moving a dot left/up/down/right for calibration or measurement operation. Calibration and measurement icon. Switch between photo taking and video. Resolution Setting When changing the resolution, you must wait until the illumination LED is off and lights up again Now the calibration is completed, you can make measurement...
- Page 5 Click “ Preview ” icon and the ISM‐ WF200 main screen will display video as below: (it waits about 5 seconds to display video; if the frame rate of live video is slow, please click “Preview” icon once again to try.) When you change the resolution, you must wait until the illumination LED is off and lights up again before clicking OK-it takes about 5 seconds.
- Page 6 Language: The language selection allows you to select the Video Processing ISM‐WF200 interface language. Please click “Preview” to resume the live video after finished Capture operation of video processing below. Take Picture: You can capture a photo by clicking the snapshot Horizontal Mirror Button Vertical Mirror...
- Page 7 Now the calibration is completed, you can make measurement In the live video window click on the calibration button , and then features accurately on taken photos or real‐ time video at this click and drag to 2mm length, a small window pop up, enter the actual length(The example is 2mm) to click “OK”...
- Page 8 Three Point Arc Measurement :Open a photo for measure from a folder. This allows a measurement of an arc. Click on three consecutive : Save as points on an arc to measure. Three Point Angle Measurement : Print this photo. This allows the measurement of an angle.
