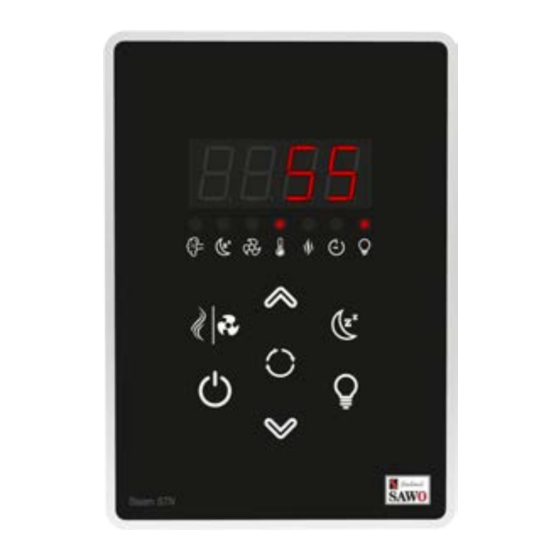

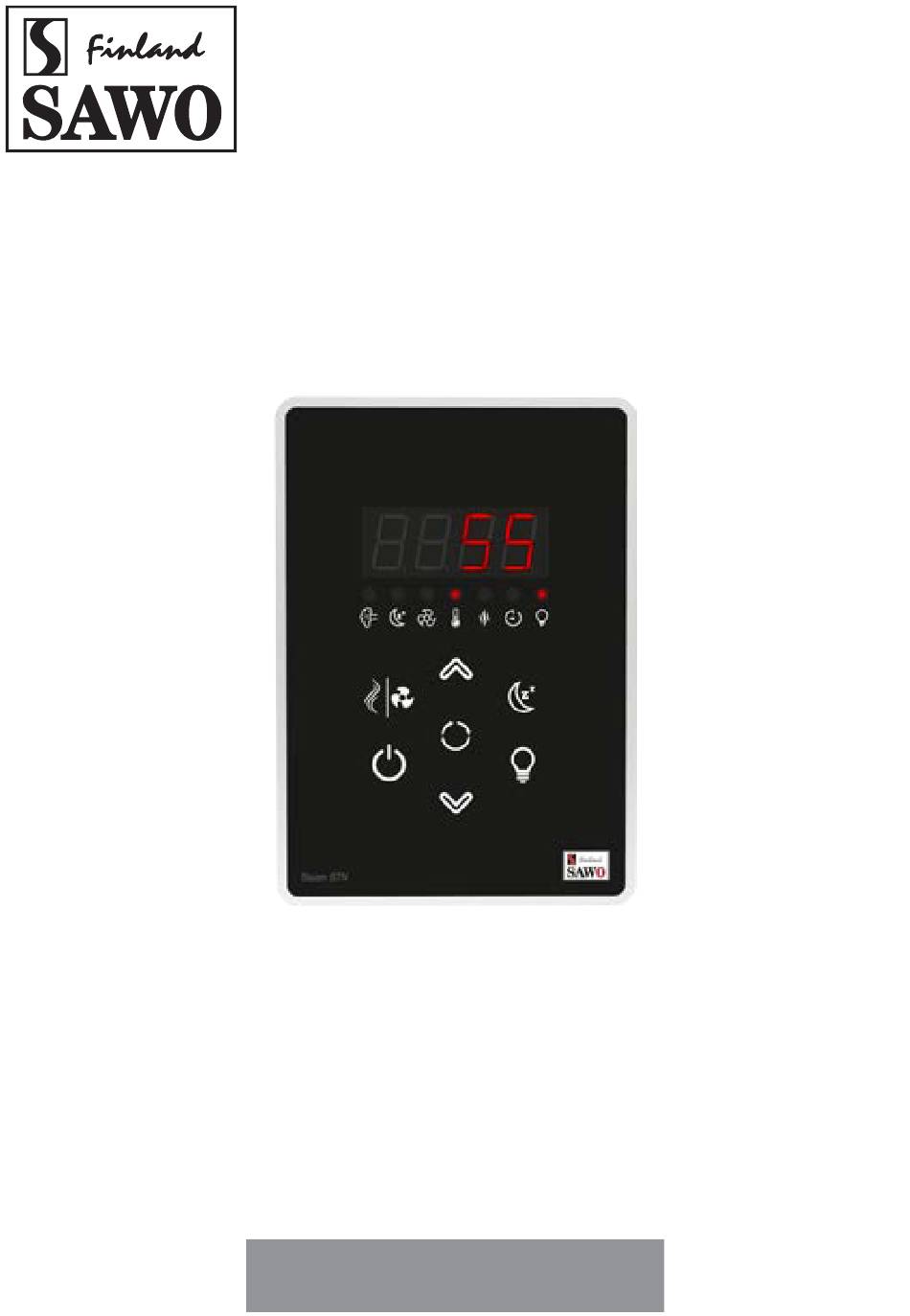

- Page 1 MANUAL CLASSIC 2.0 CONTROL FOR STP and STN STEAM GENERATORS Congratulations on your purchase of Classic 2.0 Control Unit! Please read the manual carefully before using the steam generator. Not for use in the USA, Canada and Mexico. ENGLISH...
-
Page 2: Table Of Contents
TABLE OF CONTENTS INTRODUCTION ....................3 INSTALLING THE CONTROL UNIT ..............4 ON/OFF Mode ....................5 Standby Mode ....................5 Autodrain Mode ....................6 Temperature / Timer ..................6 Key Lock ......................6 Changing the values ...................7 Cabin Light / Dimmer ..................7 Fan ........................7 Scent Pump .......................8 Demand Button ....................9 Switching Between Different Modes ..............9 MAINTENANCE .................... -
Page 3: Introduction
INTRODUCTION There are four different operation modes in the unit: Off, On, Standby and Drain. The user can easily switch between different modes, making the steam bathing more convenient with less energy consumption. To use steam room the control unit needs to be in the On mode. In the On mode, the steamer is active, the temperature in the steam room will be kept in the preferred, set temperature, with occasional discharge of steam. -
Page 4: Installing The Control Unit
INSTALLING THE CONTROL UNIT SAWO Steam Control sets the temperature of your steam room. Mount the steam control unit on an accessible area outside the steam room. It is recommended not to place the steam control near to showers or similar wet places. -
Page 5: On/Off Mode
On/Off Mode When the power switch is turned “On” the software versions of the control board and the user interface will be displayed for 1 second each. Then the control unit will go to “Off” mode. In the “Off” mode, the display is blank. The auto drain can be disabled or enabled in the “Off”... -
Page 6: Autodrain Mode
Auto drain Mode The auto drain feature automatically drains the water system after every use. The tank is flushed and will remain empty until the steam generator is used again. After the Standby time runs out, control unit automatically goes to Autodrain mode. When the drain cycle is activated, the generator’s tank will be filled first. -
Page 7: Changing The Values
Changing the values Pressing the up or down button in the settings menu will in- or decrease the currently displayed value. A value cannot be in- or decreased above or below its maximum or minimum value, if it is tried low tone buzzer alarms the user. -
Page 8: Scent Pump
Scent Pump Before switching scent pump on make sure there is enough aroma in the aroma container. Never run the scent pump dry. Scent pump can be operated in “On” mode only. In order to switch scent pump on/off short press “Fan/Scent” button. The Scent pump is allowed to be turned on only when the water in the tank is boiling. -
Page 9: Demand Button
Demand Button A separate demand button can be installed on any desired location including inside the steam room. Press of the demand button will immediately release extra steam for 30 seconds. Pressing the “Demand” button when the steam generator is in “Off” or Standby” mode will switch the control unit to “On”... -
Page 10: Maintenance
They are connected to the water source of the steam generator’s water inlet. SAWO Decalcifying Solution can be used for decalcification. Follow these guidelines to perform preventative maintenance of the steam generator. -
Page 11: Troubleshooting
TROUBLESHOOTING If an error occurs, the steam generator will be switched off. There will be a warning beep to alarm the user every 2 seconds. The code for the error will be displayed blinking in the control panel, see the table below. Please note, only a qualified electrician or maintenance personnel are allowed to make the service operations and repairs! If an error occurs in one of the slave units, error message is followed by slave... - Page 12 No master steam Dip switch setting is incorrect. Check dip generator connected. switch settings. Check RJ12 for loose contact. Replace RJ12. If no problem can be found, contact the retailer. Subject to change without notice. www.sawo.com | info@sawo.com...
