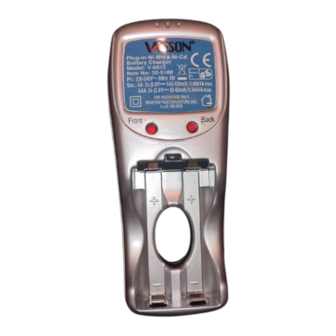

Clas Ohlson 18-2003/36-1591 Quick Start Manual

Battery Charger for Ni-Cd & Ni-MH batteries
Article number 18-2003 / 36-1591
18-2002 / 32-5100
Please read the entire instruction manual before using and save it for future use. We apologise for any text or photo
errors and any changes of technical data. If you have any questions concerning technical problems please contact
our Customer Service Department.
For safety...
1. Read the entire instruction manual before use.
2. The charger is only intended for charging rechargeable nickel-cadmium and nickel-metal hydride batteries.
Attempts to charge other types of battery could result in personal injury and damage to the charger.
3. Only charge one type of battery at a time, either Ni-Cd or Ni-MH.
4. Do not charge the batteries for longer than stated in the above table.
Overcharging can damage both charger and battery.
5. Do not expose the charger to rain or moisture. The charger is only intended for indoor use.
6. Unplug the charger when it is not in use.
Use
1. Insert 2 or 4 rechargeable LR6 (= AA) or LR03 (= AAA) Ni-Cd or Ni-MH batteries into the battery
compartment. NOTE! The batteries must be charged in pairs.
2. Insert the batteries, observing the correct polarity (+ or –) marked in the battery compartment.
3. When charging just two batteries, they should be placed at the front of the compartment.
4. When charging LR03 batteries the removable terminal plates must be positioned before inserting the
batteries. The LR03 batteries will then fit the compartment. The charger will then automatically switch to
a suitable current for the batteries.
5. Connect the charger to a normal 230 V wall socket. The LED will come on straight away to indicate that
charging has begun.
6. Keep track of the charging time. Unplug the charger from the mains and plug it in again each time
the batteries are recharged.
Charging Times
Type Capacity
LR6/AA 600–800 mAh
LR6/AA 800–1000 mAh
LR6/AA 1000–1200 mAh
LR6/AA 1200–1400 mAh
LR6/AA 1400–2100 mAh
After about 15 hours of charging the charger shuts itself off and the LED goes out.
Disposal
Follow local ordinances when disposing of this product. If you are unsure about how to dispose of this product
contact your municipality.
GREAT BRITAIN For consumer contact, please visit www.clasohlson.
co.uk and click on customer service.
ENGLISH
Model V - 6833
Charging time h
Type
5–7 LR03/AAA
7–8
LR03/AAA
8–10
LR03/AAA
10–12
LR03/AAA
12–15
Capacity Charging time h
240–320 mAh 5–7
320–400 mAh 7–8
500–600 mAh 10–12
600–850 mAh 12–15
