Clas Ohlson MSC2009 Quick Start Manual

Solar Powered Charger
Art. no 38-3632 Model MSC2009
Please read the entire instruction manual before using the product and
save it for future reference. We reserve the right for any errors in text
or images and any necessary changes made to technical data. If you
have any questions regarding technical problems please contact
Customer Services.

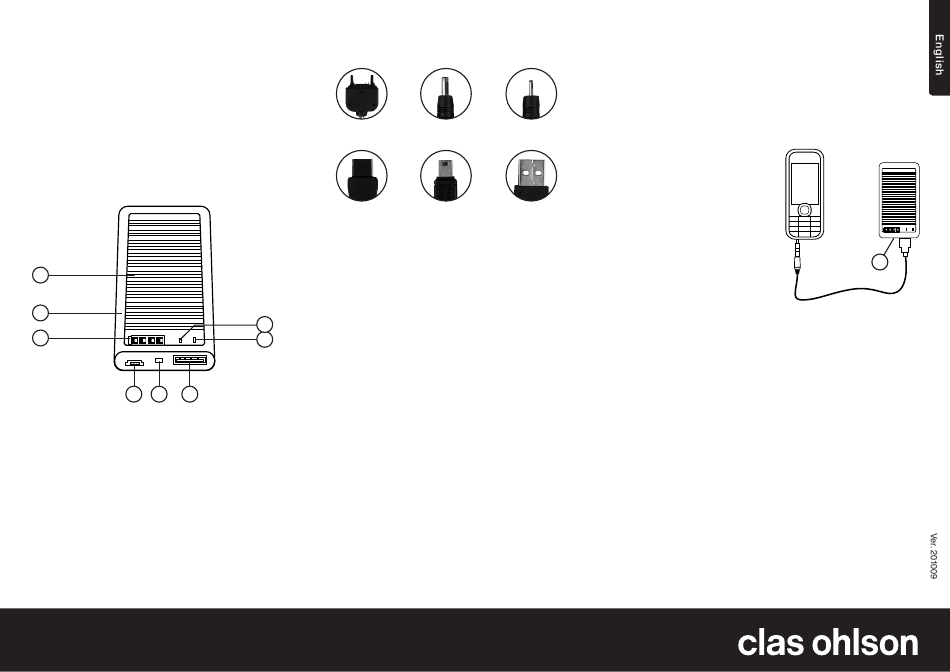

Product description

1
2
3
4 5 6
1. Solar cell panel
2. Aluminium case
3. Red LED battery level indicators for the solar charger's built-in
battery. The LEDs also function as indicator lamps when charging
the built-in battery.
4. External energy source connection for the built-in battery.
5. Push button. Press once to check the charge level of the built-in battery.
6. The USB connection is for charging mobile phones, MP3 players,
digital cameras, etc.
7. Green LED that indicates when it is possible to charge an
external device.
8. Blue LED that indicates charging via the solar panel.
GREAT BRITAIN • for consumer contact, please visit www.clasohlson.co.uk and click on customer service.
6 adapters:
Sony Ericsson Nokia 3.5 mm
fastport
Samsung Mini-USB
• 1 charger cable

Charge level

Check the charge level of the built-in battery when the charger is not
connected to any other device. Press the button (5).
• 1 LED indicates 25 %
• 2 LEDs indicates 50 %
8
• 3 LEDs indicates 75 %
7
• 4 LEDs indicates 100%

Use

Charging the solar charger from an external
power source
N.B. Before the solar-powered charger is used for the first time, it must
be charged via a computer USB port or similar for at least 10 hours.
The charger's built-in battery can be charged via a USB port using
external power sources such as computers, adaptors or car chargers.
1. Connect the external charging source to the solar charger's
input (4) using the included cable.
2. The red LEDs indicate the battery charge level.
3. When all 4 LEDs are lit the battery is fully charged.

Charging the solar charger via the solar panel

N.B. Before the solar-powered charger is used for the first time, it must
be charged via a computer USB port or similar for at least 10 hours.
Point the solar panel directly at the sun to start charging the solar
charger's built-in battery.
The charger requires at least 400 LUX of sunlight to charge. This is the
equivalent of dawn/dusk on a day with good weather. In ideal condi-
tions, with the solar cell directed towards strong sunlight, the battery
will take 20 hours to charge.

Charging an external device via the solar charger

1. Select the appropriate adaptor and connect it according
Nokia 2.0 mm
to the picture.
2. Press the button (5) and
the green LED on the solar
charger will come on to
indicate that charging has
begun.
3. If you press the button (5)
USB
without having an external
device connected, the solar
charger will automatically stop
charging after 30 seconds.
4. If the solar charger's built-in battery becomes weak the red LEDs
will start to flash. After 5 minutes of flashing all charging will cease.

Disposal

Follow local ordinances when disposing of this product. If you are un-
sure of how to dispose of this product, please contact your municipality.

Specifications

Solar cell panel
Battery
Input voltage
Output voltage
Operating environment
Storage environment
USB charging time (90 %)
Discharge time
Size
Weight
Self-discharge on standby
5
0.3 W, 5.5 V
1100 mAh lithium polymer battery
4.5–5.5 V DC/350–650 mA
5.3 V ± 0.2 V/650–750 mA
-20 °C to +50 °C
-20 °C to +55 °C
0–2 hours
0–85 minutes
43 x 94 x 10.5 mm
46 g
less than 25 mA
