EMAC PPC-E4 User Manual

Arm9 som-9307m based panel pc
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

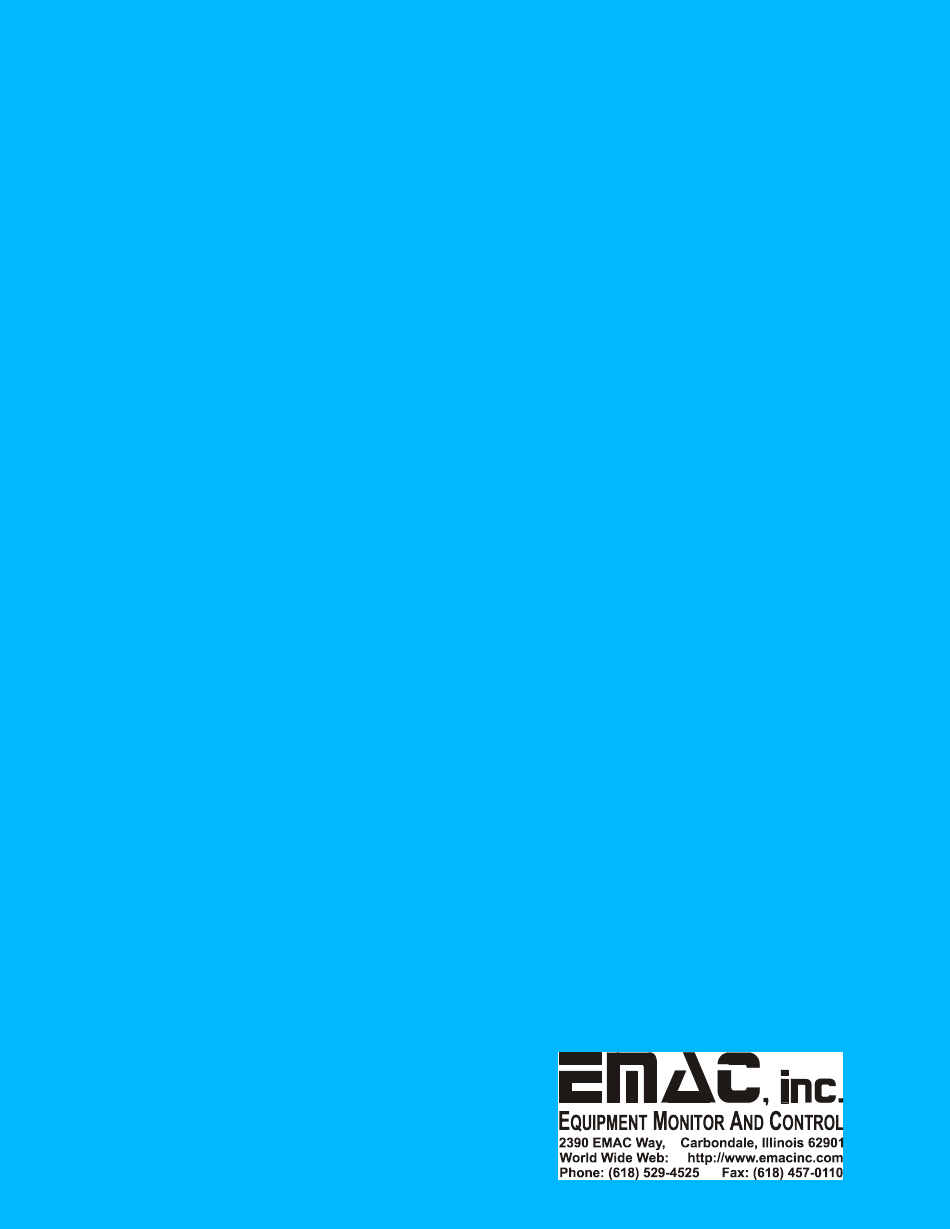

PPC-E4
ARM9 SOM-9307M Based Panel PC
User Manual
REV. 1.0
Copyright 2013,
EMAC, Inc.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PPC-E4 and is the answer not in the manual?

Questions and answers

Related Manuals for EMAC PPC-E4

Summary of Contents for EMAC PPC-E4

  • Page 1 PPC-E4 ARM9 SOM-9307M Based Panel PC User Manual REV. 1.0 Copyright 2013, EMAC, Inc.

  • Page 2: Table Of Contents

    Table of Contents Disclaimer ..............................1 PPC-E4 Product Summary ....................... 2 Features ..................................2 Standard PPC Specifications ............................3 PPC-E4 Product Details........................5 Jumper Configuration & Connector Descriptions ......................5 Power Connectors ................................ 6 Ethernet ..................................6 Serial Ports ................................... 6 USB Host Ports ................................

  • Page 3: Disclaimer

    Disclaimer EMAC Inc. does not assume any liability arising out of the application or use of any of its products or designs. Products designed or distributed by EMAC Inc. are not intended for, or authorized to be used in, applications such as life support systems or for any other use in which the failure of the product could potentially result in personal injury, death or property damage.

  • Page 4: Ppc-E4 Product Summary

    WQVGA LCD (480 x 272) Resolution with LED Backlight  Touchscreen Interface and Software Controlled Backlight On/Off & Brightness  FREE Eclipse IDE with GCC & GDB development tools  WinCE 6.0 BSP and SDK available ENG-00161-10P-PPC-E4_User_Manual.doc Rev 0.0 © 2009 EMAC, Inc.

  • Page 5: Standard Ppc Specifications

    Durability: Over one million touches Ethernet interface  Ethernet MAC: Built-In  Ethernet PHY: Intel/Cortina LXT927ALC with software PHY shutdown control  Ethernet Type: 10/100 Base-T Ethernet  Ethernet Interface: On-Board RJ-45 connector ENG-00161-10P-PPC-E4_User_Manual.doc Rev 0.0 © 2009 EMAC, Inc.
  • Page 6 Power Consumption: typical <~1.0A. @ 5V DC.  Operating Temperature: 0 ~ 60° C (32 ~ 140° F) Standard Parts Inventory  PPC-E4 Assembly with 4.3” Touchscreen  Molded plastic LCD mounting bracket and standoffs  SoM-9307-130 System on Module ...

  • Page 7: Ppc-E4 Product Details

    2 PPC-E4 Product Details Jumper Configuration & Connector Descriptions The PPC-E4 comes factory configured. In the event that jumpers need to be verified or modified this section provides the information required, including instructions on setting jumpers and connecting peripherals, switches and indicators.

  • Page 8: Power Connectors

    Serial Ports The PPC-E4 is equipped with three serial ports, all of which terminate to 10-pin header connectors (see table 2, 3, & 4 below). Three 10-pin header to male DB9 connector cables are provided, giving easy access to these ports.
  • Page 9 Pin Description for 10-Pin Pin Description for DB9 Header Connector 422/485 TX- 422/485 TX- 232 RX, 422/485 TX+ 232 RX, 422/485 TX+ 232 TX, 422/485 RX+ 422/485 RX- 232 TX, 422/485 RX+ 422/485 RX- ENG-00161-10P-PPC-E4_User_Manual.doc Rev 0.0 © 2009 EMAC, Inc.

  • Page 10: Usb Host Ports

    USB Host Ports The PPC-E4 provides two, USB 2.0 full speed host ports. USB PortA and PortC can be accessed from the on- board USB connectors JK3 and JK2. In addition to the two USB PortA and PortC Host ports, the PPC-E4 provides access to an additional, USB 2.0 Host port.

  • Page 11: I/O Expansion

    2.11 I/O Expansion The Processor used by the PPC-E4 provides a number of unused I/O lines. The PPC-E4 provides access to these lines on connector HDR2. This 30-pin dual row header contains GPIO lines, SPI bus, I C bus, A/D lineS, interrupts and power pins.

  • Page 12: Software

    3 Software Introduction The PPC-E4 can be programmed in a variety of languages and utilize a variety of Operating Systems. There are a number of Free compilers, interpreters, and assemblers available allowing the PPC-E4 to be programmed in C, BASIC or Assembly languages. EMAC has Board Support Packages available for Linux and Windows CE. For more information on these particular Operating Systems, contact EMAC, Inc.

  • Page 13: Linux Tools

    3.3.1 Eclipse EMAC provides sample code for the PPC-E4 as CDT projects within the free Eclipse IDE. Eclipse is a powerful open-source Java based IDE. It has plug-ins for development and debugging in Java and C, as well as several other languages.

  • Page 14: Linux Operating System

    The PPC-E4 will work out of the box with EMAC’s Embedded Linux distribution, and EMAC provides the most up to date distribution via ftp. It comes preinstalled with a 2.6.20 or later Linux kernel.

  • Page 15: Windows Ce 6.0

    In addition to EMAC’s Linux distribution, a Windows CE 6.0 BSP for the PPC-E4 is available. When using Windows CE 6.0, development and debugging can be done using Visual Studio with the PPC-E4 SDK installed.. Note: All of the links in this document are subject to change. Please contact EMAC for updated link locations if necessary.

  • Page 16: Appendix A: Connector Pinouts

    USB Dual Host header connector (HDR6) Signal Signal USB_A _ VBUS USB_B _VBUS USB_A _HOST- USB_B _HOST- USB_A _HOST+ USB_B _HOST+ Power Jack (JK4) Signal Center 5V DC Barrel GND Power Connector (HDR1) Signal 5V DC +Vin -14- ENG-00161-10P-PPC-E4_User_Manual.doc Rev 0.0 © 2009 EMAC, Inc.

  • Page 17: Micro Sd Socket (Sok2)

    Signal DAT2 CD/DAT3 VCC (3.3V) SCLK DAT0 DAT1 SD Card Detect LCD/Touch/Backlight (SOK3) Signal LED- LED+ DISP ON/OFF DATA ENABLE TCHSCR X1 [RE] TCHSCR Y1 [BE] TCHSCR X2 [LE] TCHSCR Y2 [TE] -15- ENG-00161-10P-PPC-E4_User_Manual.doc Rev 0.0 © 2009 EMAC, Inc.

  • Page 18: Com A Rs-232 Serial Port (Hdr5)

    4.11 Misc. I/O (HDR2) Signal Signal 3.3V CANRX CANTX I2DAT I2CLK RESET_OUT SPI_MI SPI_CK SPI_MO SPI_CS1 SPI_CS0 SPI_CS3/FRM 14 SPI_CS2 AUD_DOUT AUD_MCLK ANALG_05 AUD_SCLK ANALG_07 AUD_DIN ANALG_04 AUD_LRCLK GPIO12 GPIO11 ANALG_06 GPIO13 GPIO15 IRQA 3.3V -16- ENG-00161-10P-PPC-E4_User_Manual.doc Rev 0.0 © 2009 EMAC, Inc.

  • Page 19: Appendix B: Jumper Settings

    Pins 2 & 3* Normal Boot from NOR Flash * Default setting Boot Option Selection Jumper Position Setting Pins 1 & 2 Not Used Pins 2 & 3* Not Used * Default Setting -17- ENG-00161-10P-PPC-E4_User_Manual.doc Rev 0.0 © 2009 EMAC, Inc.

  • Page 20: Appendix C: Mechanical Drawing With Dimensions

    6 Appendix C: Mechanical drawing with dimensions -18- ENG-00161-10P-PPC-E4_User_Manual.doc Rev 0.0 © 2009 EMAC, Inc.
