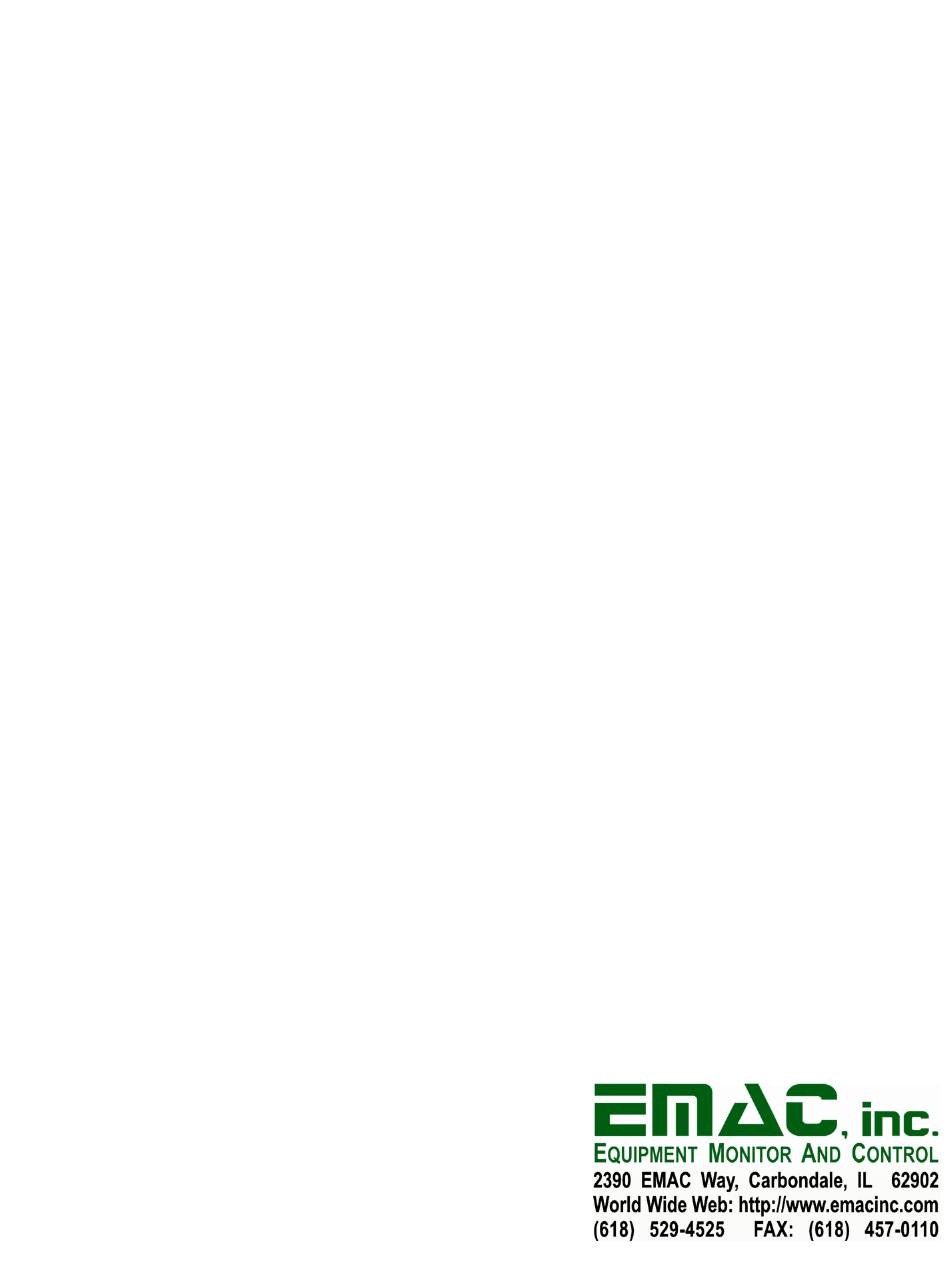

- Page 1 PPC-E4+ ARM9 SOM-9G45M Based Panel PC User Manual REV. 1.4 Copyright 2012, 2015 EMAC, Inc.
-
Page 2: Table Of Contents
Table of Contents PPC-E4+ Product Summary ....................2 Features ...............................2 Standard PPC Specifications ........................3 PPC-E4+ Product Details ....................5 Jumper Configuration & Connector Descriptions ..................5 Power Connectors ............................6 Ethernet ................................6 Serial Ports ..............................6 USB Host Ports ............................8 Audio Port ..............................8 LCD Brightness Control ..........................8 MicroSD Card Socket ...........................9 Keyboard/Mouse ............................9... - Page 3 Disclaimer EMAC Inc. does not assume any liability arising out of the application or use of any of its products or designs. Products designed or distributed by EMAC Inc. are not intended for, or authorized to be used in, applications such as life support systems or for any other use in which the failure of the product could potentially result in personal injury, death or property damage.
-
Page 4: Ppc-E4+ Product Summary
FREE Eclipse IDE with GCC & GDB development tools WinCE 6.0 BSP and SDK available Optional Hardware Graphics Acceleration and Video CODECs Optional Power Over Ethernet (POE) Optional Audio with Line-in/out PPC-E4+ User Manual.doc Rev 1.4 © 2015 EMAC, Inc. -
Page 5: Standard Ppc Specifications
Weight: 5.7 oz. Power Supply Voltage: +5V DC or 8 to 35V DC. Power Consumption: typical <~1.0A. @ 5V DC. Operating Temperature: 0 ~ 60° C (32 ~ 140° F) PPC-E4+ User Manual.doc Rev 1.4 © 2015 EMAC, Inc. - Page 6 PPC-E4+ Assembly with 4.3” Touchscreen Molded plastic LCD mounting bracket and standoffs SoM-9G45-110 System on Module Resident on-board flash disk loaded with Operating System Four Serial Port cables PPC-E4+ User Manual.doc Rev 1.4 © 2015 EMAC, Inc.
-
Page 7: Ppc-E4+ Product Details
USB Port A & B (B is not supported w/ 9G45) SOK1 200 pin SOM Socket SOK2 MicroSD Card Socket Power Interface CAN Interface LCD &Touch Interface Cable Socket Audio Input Audio Output PPC-E4+ User Manual.doc Rev 1.4 © 2015 EMAC, Inc. -
Page 8: Power Connectors
JK1 is a standard 5.5mm barrel jack with an inner diameter of 2.1mm with a center V+ connection. This jack allows for easy connection to a 5V DC wall mount power supply (EMAC part number PER-PWR-00032). The SoM-212’s power input uses a switching regulator and allows a voltage input of +5V DC to 36V DC only if you are using the CN1 power connector. - Page 9 Pin Description for 10-Pin Pin Description for DB9 Header Connector 422/485 TX- 422/485 TX- 232 RX, 422/485 TX+ 232 RX, 422/485 TX+ 232 TX, 422/485 RX+ 422/485 RX- 232 TX, 422/485 RX+ 422/485 RX- PPC-E4+ User Manual.doc Rev 1.4 © 2015 EMAC, Inc.
-
Page 10: Usb Host Ports
SoM Pin #114 low. This allows screensaver software to automatically turn off the backlight when the unit is not being used and to automatically turn it back on when the touchscreen is touched. PPC-E4+ User Manual.doc Rev 1.4 © 2015 EMAC, Inc. -
Page 11: Microsd Card Socket
RTC. The RTC has the provision to set Alarms that can interrupt the processor. For example the processor can be placed in sleep mode and then later awakened via the Alarm function. PPC-E4+ User Manual.doc Rev 1.4 © 2015 EMAC, Inc. -
Page 12: Serial Flash
The PPC-E4+ is constructed from the SoM-9G45 module and the SoM-212 carrier. The SoM-212 carrier provides for a un-isolated CAN port, however the SoM-9G45 does not provide a CAN controller so this functionality is not available in the standard PPC-E4+ product. EMAC has other modules that do provide CAN should CAN be required. -
Page 13: Software
This Product offers a wide variety of software support from both open source and proprietary sources. For more information on software support, please visit the EMAC Wiki Software Section at: http://wiki.emacinc.com/wiki/Software Note: All of the links in this document are subject to change. Please contact EMAC for updated link locations if necessary. PPC-E4+ User Manual.doc -11- Rev 1.4 ©... -
Page 14: Appendix A: Connector Pinouts
Signal USB_OTG_VBUS USB_Data- USB_Data+ USB_OTG_ID Power Jack (JK1) Signal Center 5V DC Barrel GND Power Connector (CN1) Signal 5V DC +Vin (+8v to 36V) CAN Interface (CN2) Signal CAN+ CAN- PPC-E4+ User Manual.doc -12- Rev 1.4 © 2015 EMAC, Inc. -
Page 15: Lcd/Touch/Backlight (Cn3)
GREEN3_R GREEN4_R GREEN5_R GREEN6_R GREEN7_R BLUE0_R BLUE1_R BLUE2_R BLUE3_R BLUE4_R BLUE5_R BLUE6_R BLUE7_R LCDCLOCK_R LCDPWR_ON/~OFF LCDEN_R TOUCHF_X+ TOUCHF_Y+ TOUCHF_X- TOUCHF_Y- RGND Stereo Audio Input (CN4) Signal Right In Left In PPC-E4+ User Manual.doc -13- Rev 1.4 © 2015 EMAC, Inc. -
Page 16: Stereo Audio Output (Cn5)
VCC (3.3V) SCLK DAT0 DAT1 SD Card Detect 4.11 COM A RS-232 Serial Port (HDR4) HD3 Signal DB9 Signal 4.12 COM B RS-232 Serial Port (HDR3) HD3 Signal DB9 Signal PPC-E4+ User Manual.doc -14- Rev 1.4 © 2015 EMAC, Inc. -
Page 17: Com C Rs-232/422/485 Serial Port (Hdr2)
HD3 Signal DB9 Signal 4.15 Misc. I/O (HDR1) Signal Signal 3.3V I2DAT I2CLK RESET_OUT SPI_MI SCLK SPI_MOSI SPI_CS1 SPI_CS0 SPI_CS3/FRM 12 GPIO07 ANALG_05 GPIO13 ANALG_06 IROA ANALG_04 GPIO15 ANALG_07 GPIO12 PPC-E4+ User Manual.doc -15- Rev 1.4 © 2015 EMAC, Inc. -
Page 18: Appendix B: Jumper Settings
Line pulled HIGH * Default Setting Flash Write Protect Selection Jumper Position Setting Pins 1 & 2 Flash Write Disable Pins 2 & 3* Flash Write Enable * Default Setting PPC-E4+ User Manual.doc -16- Rev 1.4 © 2015 EMAC, Inc. -
Page 19: Appendix C: Mechanical Drawing With Dimensions
6 Appendix C: Mechanical drawing with dimensions PPC-E4+ User Manual.doc -17- Rev 1.4 © 2015 EMAC, Inc.
