Version 4.00
FF180005
Owner's Manual
EN
BL00005153-201

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FF180005 and is the answer not in the manual?

Questions and answers

Related Manuals for FujiFilm FF180005

Summary of Contents for FujiFilm FF180005

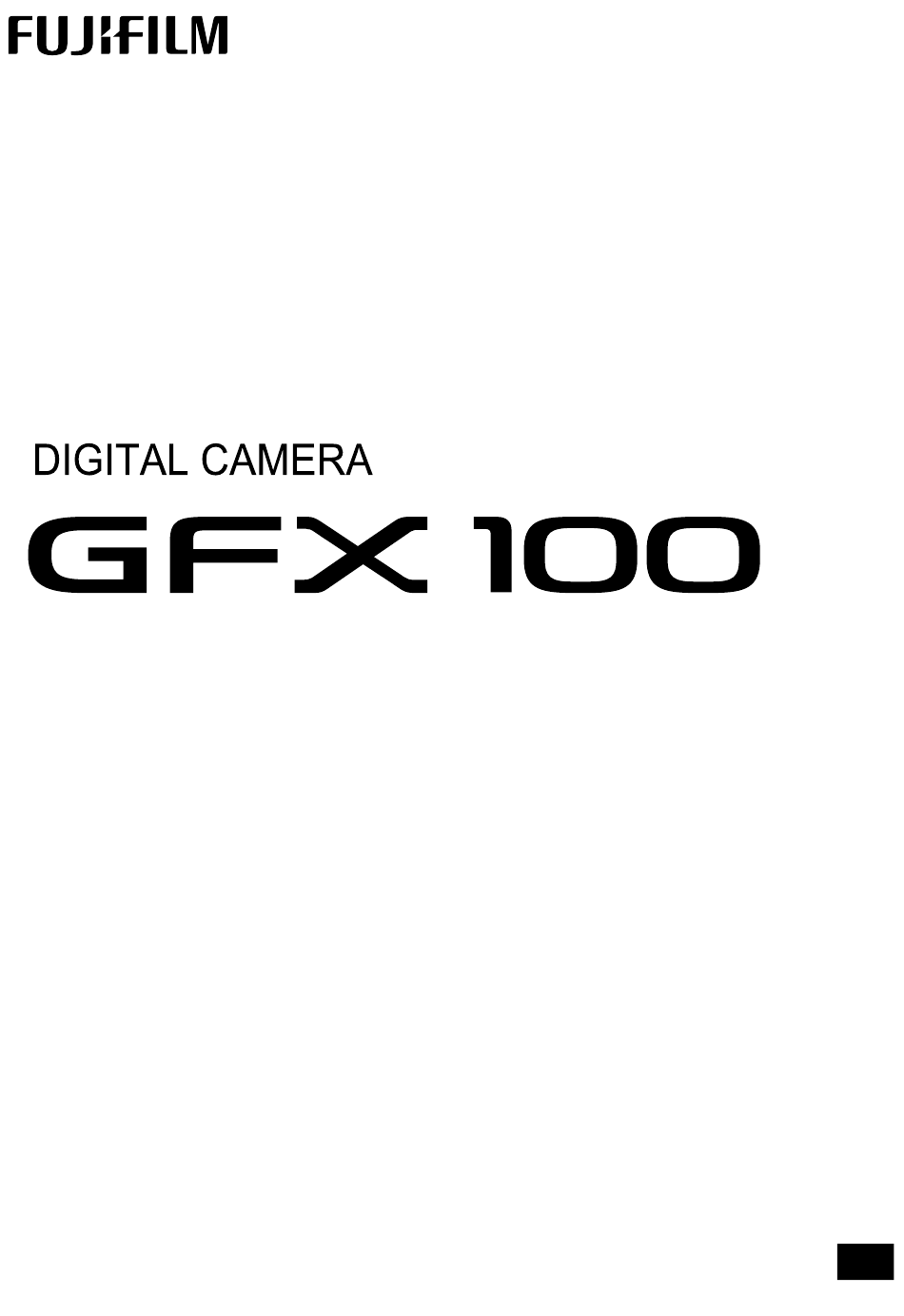

  • Page 1 Version 4.00 FF180005 Owner’s Manual BL00005153-201...

  • Page 2: For The Latest Information

    For the Latest Information The latest versions of the manuals are available from: http://fujifilm-dsc.com/en/manual/ The site can be accessed not only from your computer but also from smartphones and tablets. It also contains information on the software license.
  • Page 3 Chapter Index Menu List Before You Begin First Steps Basic Photography and Playback Movie Recording and Playback Taking Photographs The Shooting Menus Playback and the Playback Menu The Setup Menus Shortcuts Peripherals and Optional Accessories Connections Technical Notes...

  • Page 4: Menu List

    Menu List Camera menu options are listed below. Shooting Menus Adjust settings when shooting photos or movies. See page 111 for details. Photo Menus • Items marked with both x and F icons are available in both the still photography and movie shooting menus. Changes to these items in either menu also apply to the item in the remaining menu.
  • Page 5 Menu List G AF/MF SETTING A SHOOTING SETTING FOCUS AREA SELF-TIMER AF MODE SAVE SELF-TIMER SETTING AF-C CUSTOM SETTINGS SELF-TIMER LAMP ( STORE AF MODE BY ORIENTATION 141 INTERVAL TIMER SHOOTING 1⁄3 1⁄3 1⁄2 1⁄2 AF POINT DISPLAY yz INTERVAL TIMER SHOOTING EXPOSURE SMOOTHING NUMBER OF FOCUS POINTS AE BKT SETTING...
  • Page 6 Movie Menus • Items marked with both x and F icons are available in both the still photography and movie shooting menus. Changes to these items in either menu also apply to the item in the remaining menu. • Items that have been added or changed with the release of fi rmware version 4.00 are indicated by icons.
  • Page 7 Menu List G AF/MF SETTING P AUDIO SETTING F FOCUS AREA INTERNAL MIC LEVEL ADJUSTMENT F AF MODE ( EXTERNAL MIC LEVEL ADJUSTMENT F AF-C CUSTOM SETTING xF AF ILLUMINATOR ( 1⁄2 1⁄2 MIC JACK SETTING ( F FACE/EYE DETECTION SETTING 182 MIC LEVEL LIMITER ( F MF ASSIST WIND FILTER (...

  • Page 8: The Playback Menu

    Menu List The Playback Menu Adjust playback settings. • See page 197 for details. • Items that have been added or changed with the release of fi rmware version 4.00 are indicated by icons. C PLAY BACK MENU C PLAY BACK MENU SWITCH SLOT instax PRINTER PRINT 3⁄3...

  • Page 9: Setup Menus

    Menu List Setup Menus Adjust basic camera settings. • See page 217 for details. • Items that have been added or changed with the release of fi rmware version 4.00 are indicated by icons. D USER SETTING D SCREEN SETTING FORMAT EVF BRIGHTNESS DATE/TIME...
  • Page 10 D BUTTON/DIAL SETTING D SAVE DATA SETTING FOCUS LEVER SETTING FRAME NO. x EDIT/SAVE QUICK MENU ( SAVE ORG IMAGE ) 239 F EDIT/SAVE QUICK MENU ( EDIT FILE NAME ) 239 x CARD SLOT SETTING ( FUNCTION (Fn) SETTING ( 1⁄3 1⁄3 1⁄2...

  • Page 11: Table Of Contents

    Table of Contents Introduction ....................ii For the Latest Information ................... ii Menu List ......................iv Shooting Menus ......................iv The Playback Menu ....................viii Setup Menus .......................ix Supplied Accessories ................xxiii About This Manual .................. xxiv Symbols and Conventions ................xxiv Terminology ......................xxiv Before You Begin Before You Begin Parts of the Camera ..................2 The Serial Number Plate ..................5...
  • Page 12 Using the Menus ..................28 The Menus ........................28 Selecting a Menu Tab ................... 29 Touch Screen Mode ................... 30 Shooting Touch Controls ................... 30 Playback Touch Controls ..................34 Taking Pictures in Portrait Orientation ..........35 Display Rotation ...................... 35 First Steps First Steps Attaching the Strap ...................
  • Page 13 Table of Contents Mode S: Shutter-Priority AE ................72 Mode A: Aperture-Priority AE ................74 Mode M: Manual Exposure ................76 Autofocus ...................... 80 Focus Mode ........................ 81 Autofocus Options (AF Mode) ................ 83 Focus-Point Selection ..................85 Manual Focus ....................88 Checking Focus......................
  • Page 14 COLOR CHROME FX BLUE ................118 SMOOTH SKIN EFFECT ..................118 DYNAMIC RANGE ....................119 D RANGE PRIORITY....................120 WHITE BALANCE ....................121 TONE CURVE ( ) ....................125 COLOR......................... 125 SHARPNESS ......................125 HIGH ISO NR ( ) ....................126 CLARITY ( ) ......................
  • Page 15 Table of Contents xF TOUCH SCREEN MODE ( ) ............150 SHOOTING SETTING (Still Photography) ..........152 SELF-TIMER ....................... 152 SAVE SELF-TIMER SETTING ................153 SELF-TIMER LAMP ( ) ..................153 INTERVAL TIMER SHOOTING ................154 INTERVAL TIMER SHOOTING EXPOSURE SMOOTHING ....155 AE BKT SETTING ....................
  • Page 16 F PHOTOMETRY ( )..................171 F IS MODE ( ) ....................172 F IS MODE BOOST ( ) ................. 172 F ISO ( ) ......................173 ZEBRA SETTING ..................... 173 ZEBRA LEVEL ......................173 MOVIE OPTIMIZED CONTROL oL ( ) ..........174 TALLY LIGHT ......................
  • Page 17 Table of Contents FOCUS CHECK LOCK ( )................186 AUDIO SETTING (Movie Recording) ...........187 INTERNAL MIC LEVEL ADJUSTMENT ( ) ..........187 EXTERNAL MIC LEVEL ADJUSTMENT ( ) ..........187 MIC JACK SETTING ( ) ................... 188 MIC LEVEL LIMITER ( ) ..................
  • Page 18 xF WIRELESS COMMUNICATION ( ) ..........211 PHOTOBOOK ASSIST ..................212 PRINT ORDER (DPOF) ..................214 instax PRINTER PRINT ..................215 DISP ASPECT ......................216 The Setup Menus The Setup Menus USER SETTING ....................218 FORMAT ........................218 DATE/TIME ........................ 219 TIME DIFFERENCE ....................
  • Page 19 Table of Contents F-Log VIEW ASSIST ( ) ................... 229 FRAMING GUIDELINE ..................229 AUTOROTATE PB ....................230 PLAYBACK MAGNIFICATION ( ) ............... 230 FOCUS SCALE UNITS ..................230 DUAL DISPLAY SETTING ................... 231 DISP. CUSTOM SETTING..................231 LARGE INDICATORS MODE(EVF) ..............232 LARGE INDICATORS MODE(LCD) ..............
  • Page 20 POWER MANAGEMENT ................246 AUTO POWER OFF ....................246 PERFORMANCE ( ) ..................247 SHOOTING STAND BY MODE ................ 248 AUTO POWER SAVE..................... 248 SAVE DATA SETTING ................249 FRAME NO........................ 249 SAVE ORG IMAGE ....................250 EDIT FILE NAME ..................... 250 x CARD SLOT SETTING ( ) ...............
  • Page 21 FUJIFILM X Acquire/FUJIFILM Pixel Shift Combiner ..... 304 Copying Pictures from a Memory Card to a Computer ....305 Using Your Camera as a Webcam (FUJIFILM X Webcam) ... 305 Converting RAW Images: FUJIFILM X RAW STUDIO ....... 306 Backing up and Restoring Camera Settings...
  • Page 22 RAW FILE CONVERTER EX powered by SILKYPIX ......316 Capture One Express Fujifi lm ............... 316 Capture One Pro Fujifi lm ................. 316 Adobe® Photoshop® Lightroom® Classic CC + FUJIFILM Tether Shooting Plug-in PRO for GFX ..............317 FUJIFILM X Acquire ..................... 317 FUJIFILM X Webcam ..................

  • Page 23: Supplied Accessories

    Supplied Accessories The following are included with the camera: • NP-T125 rechargeable batteries (× 2) • BC-T125 battery charger • Plug adapter • EVF-GFX2 interchangeable electronic viewfi nder • Body cap (comes attached to camera) • Shoulder strap • Cable protector •...

  • Page 24: About This Manual

    About This Manual This manual contains instructions for your FUJIFILM GFX100 digital camera. Be sure you have read and understood its contents before proceeding. Symbols and Conventions The following symbols are used in this manual: Information that should be read to prevent damage to the product.

  • Page 25: Before You Begin

    Before You Begin...

  • Page 26: Parts Of The Camera

    Parts of the Camera Fn2 button .............269 Vertical grip front command dial Secondary LCD monitor mode button ..25 ............8, 35, 240 Secondary LCD monitor........24 Vertical grip Fn3 button ........35 Secondary monitor backlight button ..26 Lens release button ........39 Hot shoe ............285 Fn3 button .............269 DRIVE mode dial release button ....6 Front command dial .......8, 240...
  • Page 27 Parts of the Camera b (delete) button ...........60 Remote release connector cover ....79 AE-L (exposure lock) button ....98, 269 Indicator lamp 2 ........9, 42 Focus stick (focus lever)....5, 85, 239 Rear secondary monitor .......27 LCD monitor ........ 10, 16, 18, 19 Focus mode selector ........81 AF-ON button .........
  • Page 28 Vertical grip focus stick (focus lever) Vertical grip control lock .......35 ..............5, 35 Speaker ............ 66, 224 Vertical grip AF-ON button ....35, 269 Vertical grip Fn4 button ...... 35, 269 Vertical grip rear command dial Vertical grip Q (quick menu) button ..............

  • Page 29: The Serial Number Plate

    Parts of the Camera The Serial Number Plate Do not remove the serial number plate, which provides the FCC ID, KC mark, CMIIT ID, serial number, and other im- portant information. Serial number plate The Focus Stick (Focus Lever) Tilt or press the focus stick to select the fo- cus area.

  • Page 30: The Drive Mode Dial

    The DRIVE mode dial The DRIVE mode dial is used to select the drive mode. Hold the DRIVE mode dial release button while rotating the dial to select the desired mode. Option Option Description Description STILL Take pictures one at a time or in bursts (P 56, 104) Record multiple exposures, shoot pictures using pixel-shift MULTI multi-shot, or take a series of photos using bracketing...

  • Page 31: The Drive Button

    Parts of the Camera The DRIVE Button Pressing the DRIVE button when STILL or MULTI is selected with the DRIVE mode dial displays drive mode options. Pressing the button when MOVIE is selected displays movie mode options (P 165). Drive mode options (STILL) Drive mode options (MULTI) AE BKT STILL IMAGE...

  • Page 32: The Command Dials

    The Command Dials Rotate or press the command dials to: Front command dial Rear command dial • Highlight menu items • Choose the desired combina- tion of shutter speed and aper- ture (program shift) • 1, 4 Choose a shutter speed •...

  • Page 33: The Indicator Lamp

    Parts of the Camera The Indicator Lamp Camera status is shown by the indicator lamp 1. Indicator lamp 1 Indicator lamp 1 Camera status Camera status Glows green Focus locked. Blinks green Focus or slow shutter speed warning. Pictures can be taken. • Camera on: Recording pictures.

  • Page 34: The Lcd Monitor

    Parts of the Camera The LCD Monitor The LCD monitor can be tilted for eas- ier viewing, but be careful not to touch the wires or trap fi ngers or other objects behind the monitor. Touching the wires could cause camera malfunction. The LCD monitor also functions as a touch screen that can be used for: •...

  • Page 35: The Viewfi Nder

    The Viewfi nder Hot shoe ..........281, 287 Eye cup .............. 13 Viewfi nder lock releases ....... 12 Diopter adjustment control ......13 VIEW MODE button ......... 18 Connectors ............12 Eye sensor ............18 Hot shoe cover Electronic viewfi nder (EVF) ....14, 18, 19 Connector cover The EVF-TL1 The optional EVF-TL1 tilt adapter lets you swivel...

  • Page 36: Attaching The Viewfi Nder

    Attaching the Viewfi nder Using the viewfi nder makes it easier to frame your subject accurately. Remove the hot shoe cover from the camera and slide the viewfi nder onto the hot shoe, stopping when it clicks into place. Removing the Viewfi nder Keeping the lock releases pressed ( ), press down on the front of the viewfi nder (...

  • Page 37: The Eye Cup

    The Viewfi nder The Eye Cup To remove the eye cup, press the bottom in with both thumbs and slide eye cup Focusing the Viewfi nder If the indicators displayed in the viewfi nder are blurred, put your eye to the viewfi nder and rotate the diopter adjustment control until the display is in sharp focus.

  • Page 38: Camera Displays

    Camera Displays This section lists the indicators that may be displayed during shooting. For illustrative purposes, displays are shown with all indicators lit. The Electronic Viewfi nder N O P Q ALL-Intra GHIJK RS T H.264...
  • Page 39 Camera Displays Crop factor .............167 Temperature warning ........343 IS mode ............159 Control lock ..........245 Flash (TTL) mode .........287 Virtual horizon ..........23 Flash compensation ........287 Focus frame ..........85, 97 35mm format mode ........160 Histogram ............23 Movie compression ........167 Power supply ............42 Self-timer indicator ........152 Battery level ............50 Continuous mode ........104...

  • Page 40: The Lcd Monitor

    The LCD Monitor ALL-Intra H.264...
  • Page 41 Camera Displays Crop factor .............167 Histogram ............23 Focus check ..........91, 146 Focus frame ..........85, 97 Depth-of-fi eld preview ......75, 90 Power supply ............42 H.265(HEVC)/H.264 ........166 Battery level ............50 Location data download status ..258, 298 Distance indicator ........90 35mm format mode ........160 Sensitivity ............93 Movie compression ........167 Exposure compensation .......96...

  • Page 42: Choosing A Display Mode

    Choosing a Display Mode Press the VIEW MODE button to cycle through the following display modes. Option Option Description Description Putting your eye to the viewfi nder turns the viewfi nder E EYE SENSOR EYE SENSOR on and the LCD monitor off ; taking your eye away turns the viewfi...

  • Page 43: Adjusting Display Brightness

    Camera Displays Adjusting Display Brightness The brightness and saturation of the viewfi nder and LCD monitor can be adjusted using the items in the D SCREEN SET-UP menu. Choose EVF BRIGHTNESS or EVF COLOR to adjust viewfi nder brightness or saturation, LCD BRIGHTNESS or LCD COLOR to do the same for the LCD monitor.

  • Page 44: The Disp/Back Button

    The DISP/BACK Button The DISP/BACK button controls the display of indicators in the viewfi nder and LCD monitor. Indicators for the EVF and LCD must be selected separately. To choose the EVF dis- play, place your eye to the viewfi nder while using the DISP/BACK button.

  • Page 45: The Dual Display

    Camera Displays LCD Monitor Standard indicators No indicators Dual display Info display (manual focus mode only) The Dual Display The dual display consists of a large full-frame window and a smaller close-up of the focus area.

  • Page 46: Customizing The Standard Display

    Customizing the Standard Display To choose the items shown in the standard indicator display: Display standard indicators. Use the DISP/BACK button to display standard indicators. Select DISP. CUSTOM SETTING. Select D SCREEN SET-UP  > DISP. CUSTOM SETTING in the setup menu. Choose items.
  • Page 47 Camera Displays Virtual Horizon Selecting ELECTRONIC LEVEL displays a virtu- al horizon. The camera is level when the two lines overlap. Note that the virtual horizon may not be displayed if the camera lens is pointed up or down. For a 3D display (shown), press the function button to which ELECTRONIC LEVEL is assigned (P 269).

  • Page 48: The Secondary Lcd Monitor

    The Secondary LCD Monitor Among the settings that can be viewed in the secondary LCD monitor are shutter speed, aperture, and ISO sensitivity. Secondary LCD monitor Default Default A SHUTTER SPEED G FILM SIMULATION B APERTURE H BATTERY LEVEL C ISO I FRAMES REM.
  • Page 49 Camera Displays Cycling Through Indicators in the Secondary LCD Monitor The indicators displayed in the second- ary LCD monitor change each time the secondary LCD monitor mode button is pressed. INFORMATION DIALS HISTOGRAM...
  • Page 50 The secondary monitor backlight button To turn on the secondary LCD monitor back- light when you fi nd the secondary LCD monitor too dark to read, press the secondary monitor backlight button. Press the button again to turn the backlight off . Background Color The background color (black or white) for the secondary LCD monitor can be selected using the D SCREEN SET-UP >...

  • Page 51: The Rear Secondary Monitor

    Camera Displays The Rear Secondary Monitor Among the indicators that can be viewed in the rear secondary monitor are histo- grams and the exposure compensation indicator. Rear secondary monitor Default Default A APERTURE D WHITE BALANCE B SHUTTER SPEED E FILM SIMULATION C ISO F EXPO.

  • Page 52: Using The Menus

    Using the Menus To display the menus, press MENU/OK. The Menus Diff erent menus are displayed during still photography, movie recording, and playback. IMAGE QUALITY SETTING SHOOTING MODE IMAGE SIZE IMAGE QUALITY RAW RECORDING FILM SIMULATION MONOCHROMATIC COLOR GRAIN EFFECT COLOR CHROME EFFECT EXIT DRIVE mode dial set to...

  • Page 53: Selecting A Menu Tab

    Selecting a Menu Tab To navigate the menus: Press MENU/OK to display the menus. IMAGE QUALITY SETTING SHOOTING MODE IMAGE SIZE IMAGE QUALITY RAW RECORDING FILM SIMULATION MONOCHROMATIC COLOR GRAIN EFFECT COLOR CHROME EFFECT EXIT Press the focus stick (focus lever) IMAGE QUALITY SETTING SHOOTING MODE left to highlight the tab for the cur-...

  • Page 54: Touch Screen Mode

    Touch Screen Mode The LCD monitor also functions as a touch screen. Shooting Touch Controls TOUCH SCREEN SETTINGS To enable touch controls, select ON for D BUTTON/DIAL SETTING > TOUCH TOUCH SCREEN SETTING DOUBLE TAP SETTING SCREEN SETTING > x TOUCH SCREEN TOUCH FUNCTION TOUCH SCREEN SETTING SETTING.
  • Page 55 Touch Screen Mode LCD Monitor The operation performed can be selected by tapping the touch screen mode indica- tor in the display. Touch controls can be used for the following operations: Mode Mode Description Description • In focus mode S (AF-S), the camera focuses when you tap your subject in the display.
  • Page 56 MOVIE OPTIMIZED CONTROL oL Selecting ON for B MOVIE SETTING  > MOVIE OPTIMIZED CONTROL oL or tapping the movie-optimized mode but- ton in the shooting display optimizes the command dials and touch controls for movie recording. This can be used to pre- vent camera sounds being recorded with Movie-optimized movie footage.
  • Page 57 Touch Screen Mode Touch Function Functions can be assigned to the follow- ing fl ick gestures in much the same way as function buttons (P 274): • Flick up: T-Fn1 • Flick left: T-Fn2 • Flick right: T-Fn3 • Flick down: T-Fn4 •...

  • Page 58: Playback Touch Controls

    Touch Screen Mode Playback Touch Controls When ON is selected for D BUTTON/DIAL SETTING  > TOUCH SCREEN SETTING > a TOUCH SCREEN SETTING, touch controls can be used for the following playback operations: • Swipe: Swipe a fi nger across the display to view other images.

  • Page 59: Taking Pictures In Portrait Orientation

    Taking Pictures in Portrait Orientation The vertical-grip buttons, com- mand dials, and focus stick (focus lever) make the camera easier to use when rotated to take pictures in portrait (“tall”) orientation. Landscape Portrait (“wide”) (“tall”) orientation orientation • To use the vertical-grip buttons, command dials, and focus stick, slide the vertical grip control lock from LOCK to z.
  • Page 60 MEMO...

  • Page 61: First Steps

    First Steps...

  • Page 62: Attaching The Strap

    Attaching the Strap Attach the strap. Insert the strap through a protective cover and strap clip and fas- ten the buckle as shown. To avoid dropping the camera, be sure the strap is correctly secured. Strap clip Protective cover Buckle Repeat the above steps for the second eyelet.

  • Page 63: Attaching A Lens

    Lenses and Other Optional Accessories The camera can be used with lenses and accessories for the FUJIFILM G-mount. Observe the following precautions when attaching or removing (ex- changing) lenses.

  • Page 64: Charging The Batteries

    Charging the Batteries For reasons of safety, the battery is not charged at ship- ment. The camera will not function if the battery is not charged; be sure to charge the battery before use. Before charging the battery, turn the camera off . •...
  • Page 65 Charging the Batteries The Charging Indicator The charging indicator shows battery charge status as follows: Charging indicator Charging indicator Battery status Battery status Action Action Battery not inserted. Insert the battery. Off Battery fully charged. Remove the battery. Battery charging. —...
  • Page 66 Charging via AC Adapter The battery inserted in the camera will also charge when the camera is pow- ered by an optional AC-15V AC adapter. Charging takes about 120 minutes. Battery charge status is shown by battery status icons when the camera is on (playback mode) and by the two lamps designated as “indicator lamp 2”...
  • Page 67 Charging the Batteries Charging via Computer The batteries also charge if the camera is connected to a computer. Turn the camera off , insert the batteries, and connect a USB cable. USB connector (Type-C) Battery status is shown by indicator lamp 2. Indicator lamp 2 Indicator lamp 2 Battery status...

  • Page 68: Inserting The Batteries

    Inserting the Batteries After charging the batteries, insert them in the camera as described below. Remove the battery tray. Rotate the battery tray latch and re- move the battery tray. • Do not remove the battery tray when the camera is on. Failure to observe this precaution could damage image fi les or memory cards.
  • Page 69 Inserting the Batteries Insert the battery tray and hold it in place while rotating the latch to its original position. Removing the Batteries After turning the camera off , rotate the battery tray latch and remove the battery tray. Remove the batteries as shown. The battery may become hot when used in high-temperature envi- ronments.

  • Page 70: Inserting Memory Cards

    Inserting Memory Cards Pictures are stored on memory cards (sold separately). The camera can be used with two cards, one in each of its two slots. Open the memory card slot cover. Unlatch and open the cover. Do not turn the camera off or remove the memory card while the memory card is being formatted or data are being recorded to or de- leted from the card.

  • Page 71: Using Two Cards

    Inserting Memory Cards Removing Memory Cards Before removing memory cards, turn the camera off and open the memory card slot cover. Press and release the card to eject it part way (to prevent the card falling from the slot, press the center of the card and release it slowly, without removing your fi nger from the card).

  • Page 72: Compatible Memory Cards

    • A list of supported memory cards is available on the Fujifi lm website. For details, visit: https://fujifilm-x.com/support/compatibility/cameras/. • Do not turn the camera off or remove the memory card while the memo- ry card is being formatted or data are being recorded to or deleted from the card.

  • Page 73: Turning The Camera On And Off

    Turning the Camera On and Off Use the ON/OFF switch to turn the camera on and off . Slide the switch to ON to turn the camera on, or to OFF to turn the camera off . Fingerprints and other marks on the lens or viewfi nder can aff ect pic- tures or the view through the viewfi nder.

  • Page 74: Checking The Battery Level

    Checking the Battery Level After turning the camera on, check the battery level in the display. Battery level is shown as follows: • The display shows the level of inserted batteries only. • When a full complement of batteries are inserted in the camera, the batteries will be used in the following order: The battery (L) The battery (R)

  • Page 75: Basic Setup

    If you intend to pair the camera with a smartphone or tablet, install and launch the latest version of the FUJIFILM Camera Remote App on the smart device before proceeding. For more information, visit: http://app.fujifilm-dsc.com/en/camera_remote/...
  • Page 76 Check the time. When pairing is complete, you will be PAIRING REGISTRATION prompted to set the camera clock to PAIRING COMPLETE the time reported by the smartphone 12/ 31/2021 12:10 AM or tablet. Check that the time is cor- SET DATE/TIME FROM SMARTPHONE? rect.

  • Page 77: Choosing A Diff Erent Language

    Basic Setup Choosing a Diff erent Language To change the language: Display language options. Select D USER SETTING > Qa. Choose a language. Highlight the desired option and press MENU/OK. Changing the Time and Date To set the camera clock: Display DATE/TIME options. Select D USER SETTING >...
  • Page 78 MEMO...

  • Page 79: Basic Photography And Playback

    Basic Photography and Playback...

  • Page 80: Taking Photographs (Mode P)

    Taking Photographs (Mode P) This section describes how to take pictures using program AE (mode P). See pages 70–79 for information on S, A, and M modes. Rotate the DRIVE mode dial to STILL. Rotate the focus mode selector to S. Select mode P.
  • Page 81 Taking Photographs (Mode P) Confi rm that P appears in the display. Ready the camera. • Hold the camera steady with both hands and brace your elbows against your sides. Shaking or un- steady hands can blur your shots. • To prevent pictures that are out of focus or too dark (underexposed), keep your fi ngers and other objects...
  • Page 82 Taking Photographs (Mode P) Focus. Press the shutter button halfway to focus. Focus indicator Focus frame • If the camera is able to focus, the focus frame and focus indicator will glow green. • If the camera is unable to focus, the focus frame will turn red, s will be displayed, and the focus indicator will blink white.

  • Page 83: Viewing Pictures

    Viewing Pictures Pictures can be viewed in the viewfi nder or LCD monitor. To view pictures full frame, press a. 100-0001 Additional pictures can be viewed by pressing the focus stick (fo- cus lever) left or right or rotating the front command dial. Press the focus stick or rotate the dial right to view pictures in the order recorded, left to view pictures in reverse order.

  • Page 84: Deleting Pictures

    Deleting Pictures Use the b button to delete pictures. Deleted pictures cannot be recovered. Protect important pictures or copy them to a computer or other storage device before proceeding. With a picture displayed full frame, press the b button and select FRAME.

  • Page 85: Movie Recording And Playback

    Movie Recording and Playback...

  • Page 86: Recording Movies

    Recording Movies This section describes how to fi lm movies in auto mode. Rotate the DRIVE mode dial to MOVIE. Select mode P. Display SHOOTING MODE options by pressing the Fn2 button and then select P. AUTO will appear in the display. •...
  • Page 87 Recording Movies Press the shutter button all the way down. Recording will start. • A recording indicator (V) is dis- played while recording is in prog- ress. • The time remaining is shown by a Recording time countdown display, while another Time remaining display counts up to show the re- cording time.
  • Page 88 • The indicator lamp1 lights while recording is in progress (the B MOVIE SETTING > TALLY LIGHT option can be used to choose the lamp—indicator or AF-assist—that lights during movie recording and whether the lamp blinks or remains steady). During recording, you can change exposure compensation by up to ±2 EV and adjust zoom using the zoom ring on the lens (if available).

  • Page 89: Adjusting Movie Settings

    Recording Movies Adjusting Movie Settings • Pressing MENU/OK when MOVIE is selected with the DRIVE mode dial displays the movie menu. • Frame size and rate can be selected using B MOVIE SETTING > MOVIE MODE. • To choose the card used to store movies, use D SAVE DATA SET-UP >...

  • Page 90: Viewing Movies

    Viewing Movies View movies on the camera. In full-frame playback, movies are identi- fi ed by a W icon. Press the focus stick (fo- cus lever) down to start movie playback. PLAY PLAY +1.0 12800 The following operations can be per- formed while a movie is displayed: Focus stick Focus stick...
  • Page 91 Viewing Movies Playback Speed 29m59s 29m59s Press the focus stick (focus lever) left or right to adjust playback speed during playback. Speed is shown by the number of arrows (M or N). Arrows...
  • Page 92 MEMO...

  • Page 93: Taking Photographs

    Taking Photographs...

  • Page 94: P, S, A, And M Modes

    P, S, A, and M Modes P, S, A, and M modes give you varying degrees of control over shutter speed and aperture. Mode P: Program AE Let the camera choose shutter speed and aperture for optimal exposure. Other values that produce the same exposure can be selected with program shift.
  • Page 95 P, S, A, and M Modes If the subject is outside the metering range of the camera, the shutter speed and aperture displays will show “– – –”. • SHOOTING MODE is assigned to the Fn2 button at shipment. The role of displaying the SHOOTING MODE menu can, however, be as- signed to other function buttons using D BUTTON/DIAL SETTING >...

  • Page 96: Mode S: Shutter-Priority Ae

    Mode S: Shutter-Priority AE Choose a shutter speed and let the camera adjust aperture for optimal exposure. Rotate the DRIVE mode dial to STILL. Select mode S. Display SHOOTING MODE options by pressing the Fn2 button and then select S. S will appear in the display.
  • Page 97 P, S, A, and M Modes • If the correct exposure cannot be achieved at the selected shutter speed, aperture will be displayed in red. • If the subject is outside the metering range of the camera, the aper- ture display will show “– – –”. •...

  • Page 98: Mode A: Aperture-Priority Ae

    Mode A: Aperture-Priority AE Choose an aperture and let the camera adjust shutter speed for optimal exposure. Rotate the DRIVE mode dial to STILL. Select mode A. Display SHOOTING MODE options by pressing the Fn2 button and then select A. A will appear in the display.
  • Page 99 P, S, A, and M Modes • If the correct exposure cannot be achieved at the selected aperture, shutter speed will be displayed in red. • If the subject is outside the metering range of the camera, the shutter speed display will show “– – –”. •...

  • Page 100: Mode M: Manual Exposure

    Mode M: Manual Exposure In manual mode, the user controls both shutter speed and aperture. Shots can be deliberately overexposed (brighter) or underexposed (darker), opening the door for a variety of individual creative ex- pression. The amount the picture would be under- or over-exposed at current settings is shown by the exposure indicator;...
  • Page 101 P, S, A, and M Modes Rotate the rear command dial to choose a shutter speed and the lens aperture ring to choose the aperture. • The manual exposure display includes an exposure indicator that shows the amount the picture would be under- or over-ex- posed at current settings.
  • Page 102 BULB Select a shutter speed of BULB for long time-exposures in which you open and close the shutter manually. Use of a tripod is rec- ommended to prevent the camera moving during the exposure. Set shutter speed to BULB. Press the shutter button all the way down. •...
  • Page 103 P, S, A, and M Modes Using a Remote Release A remote release can be used for long time-ex- posures. When using an optional RR-100 remote release or an electronic release from third-party suppliers, connect it to the camera’s remote re- lease connector.

  • Page 104: Autofocus

    Autofocus Take pictures using autofocus. Rotate the focus mode selector to S or C (P 81). Choose an AF mode (P 83). Choose the position and size of the focus frame (P 85). Take pictures.

  • Page 105: Focus Mode

    Autofocus Focus Mode Use the focus mode selector to choose how the camera focuses. Choose from the following options: Mode Mode Description Description Single AF: Focus locks while the shutter button is pressed halfway. (AF-S) Choose for stationary subjects. Continuous AF: Focus is continually adjusted to refl ect changes in the distance to the subject while the shutter button is pressed halfway.
  • Page 106 The Focus Indicator Focus status is shown by the focus indicator. Focus indicator Focus indicator Focus status Focus status Camera focusing. Subject in focus; focus locked (focus z (lights green) mode S). Subject in focus (focus mode C). (z) (lights green) Focus is automatically adjusted for Focus indicator changes in distance to subject.

  • Page 107: Autofocus Options (Af Mode)

    Autofocus Autofocus Options (AF Mode) Focus can be adapted to a variety of subjects by changing the combination of settings selected for focus and AF modes. Press the Fn5 button to display AF mode options. Choose an AF mode. • AF MODE is assigned to the Fn5 button at shipment.
  • Page 108 Option Option Description Description Sample image Sample image Camera focuses automatically on high-contrast subjects; display WIDE shows areas in focus. Rotate the rear command dial in the focus-point selection dis- play (P 85, 86) to cycle through AF modes in the following order: r SINGLE POINT, y ZONE, and z WIDE.

  • Page 109: Focus-Point Selection

    Autofocus Focus-Point Selection Choose a focus point for autofocus. Viewing the Focus-Point Display Press MENU/OK and go to the shooting menu. Select G AF/MF SETTING  > FOCUS AREA to view the fo- cus-point display. Use the focus stick (focus lever) and rear command dial to choose a focus area.
  • Page 110 The Focus-Point Display The focus-point display varies with the option selected for AF mode. Focus frames are shown by small squares (), focus zones by the large squares. AF mode AF mode r SINGLE POINT y ZONE z WIDE/TRACKING SINGLE POINT ZONE WIDE/TRACKING Number of points avail-...
  • Page 111 Autofocus Checking Focus To zoom in on the current focus area for precise focus, press the center of the rear command dial. Use the focus stick (focus lever) to choose another focus area. Press the center of the rear command dial again to cancel zoom. Normal display Focus zoom •...

  • Page 112: Manual Focus

    Manual Focus Adjust focus manually. Rotate the focus mode selector to M. j will appear in the display. Focus manually using the lens focus ring. Rotate the ring left to reduce the focus distance, right to increase. Take pictures. • Use D BUTTON/DIAL SETTING >...
  • Page 113 Manual Focus Quick Focus • To use autofocus to focus on the subject in the selected focus area, press the button to which focus lock or AF-ON has been assigned (the size of the focus area can be chosen with the rear command dial). •...

  • Page 114: Checking Focus

    Checking Focus A variety of options are available for checking focus in manual focus mode. The Manual Focus Indicator The white line indicates the distance to the subject in the fo- cus area (in meters or feet according to the option selected for D SCREEN SET-UP >...
  • Page 115 Manual Focus Focus Zoom If ON is selected for G AF/MF SETTING  > FOCUS CHECK, the camera will automatically zoom in on the selected focus area when the focus ring is rotated. Press the center of the rear com- mand dial to exit zoom. •...
  • Page 116 Manual Focus • FOCUS PEAK HIGHLIGHT: Highlights high-con- trast outlines. Rotate the focus ring until the subject is highlighted.

  • Page 117: Sensitivity

    Sensitivity Adjust the camera’s sensitivity to light. Set sensitivity using A SHOOTING SETTING > ISO. Option Option Description Description Sensitivity is automatically adjusted in response to shooting AUTO1 conditions according to combination of standard and max- AUTO2 imum sensitivity and minimum shutter speed chosen for A SHOOTING SETTING ...

  • Page 118: Auto

    Sensitivity AUTO Choose the base sensitivity, maximum sensitivity, and minimum shutter speed for AUTO1, AUTO2, and AUTO3. Default Default Item Item Options Options AUTO1 AUTO1 AUTO2 AUTO2 AUTO3 AUTO3 DEFAULT SENSITIVITY 100–12800 MAX. SENSITIVITY 200–12800 1600 3200 MIN. SHUTTER SPEED ⁄–¼...

  • Page 119: Metering

    Metering Choose how the camera meters exposure. A SHOOTING SETTING  > PHOTOMETRY off ers a choice of the following metering options: The selected option will only take eff ect when G AF/MF SETTING > FACE/EYE DETECTION SETTING is OFF. Mode Mode Description Description The camera instantly determines exposure based on an analy-...

  • Page 120: Exposure Compensation

    Exposure Compensation Adjust exposure. Hold the d button and rotate the rear command dial until the desired value is displayed in the viewfi nder or LCD mon- itor. The amount of compensation available varies with the shooting mode. The d Button If ON/OFF SWITCH is selected for D BUTTON/DIAL SETTING ...

  • Page 121: Focus/Exposure Lock

    Focus/Exposure Lock Focus and exposure lock when the shutter button is pressed halfway. Position the subject in the focus frame and press the shutter button halfway to lock focus and exposure. Focus and exposure will remain locked while the shutter button is pressed halfway (AF/AE lock).

  • Page 122: Other Controls

    Focus/Exposure Lock Other Controls Focus and exposure can also be locked using function buttons. At default set- tings, you can use the AE-L button to lock exposure without locking focus. If the AF-ON button is assigned AF LOCK ONLY, it can similarly be used to lock focus with- AE-L button out locking exposure.

  • Page 123: Bracketing

    Bracketing Automatically vary settings over a series of pictures. Rotate the DRIVE mode dial to MULTI. Press the DRIVE button to display drive mode options. Highlight the desired bracketing option using the focus stick and press MENU/OK. Take photographs.

  • Page 124: O Ae Bkt

    O AE BKT Use A SHOOTING SETTING  > AE BKT SETTING to choose the bracketing amount, bracketing order, and number of shots. Each time the shutter button is pressed, the camera will take the spec- ifi ed number of shots: one using the metered value for exposure and the others over- or under-exposed by multiples of the select- ed bracketing amount.

  • Page 125: White Balance Bkt

    Bracketing V WHITE BALANCE BKT Select a bracketing amount (±1, ±2, or ±3) in the drive mode dis- play. Each time the shutter is released, the camera takes one shot and processes it to create three copies: one at the current white balanced setting, one with fi ne-tuning increased by the selected amount, and another with fi ne-tuning decreased by the selected amount.

  • Page 126: Z Focus Bkt

    Z FOCUS BKT Each time the shutter button is pressed, the camera takes a se- ries of photos, varying focus with each shot. The A SHOOTING SETTING > FOCUS BKT SETTING item off ers a choice of MANUAL and AUTO bracketing. •...
  • Page 127 Bracketing AUTO In AUTO mode, the camera calculates FRAMES and STEP auto- matically. Select A SHOOTING SETTING in the shooting menu, high- light FOCUS BKT SETTING, and press MENU/OK. Select AUTO and choose an INTERVAL. The view through the lens will be displayed. Focus on the nearest end of the sub- FOCUS BKT SETTING SET POINT A...

  • Page 128: Continuous Shooting (Burst Mode)

    Continuous Shooting (Burst Mode) Capture motion in a series of pictures. Rotate the DRIVE mode dial to STILL. Press the DRIVE button to display drive mode options. If CL LOW SPEED BURST or CH HIGH SPEED BURST is se- lected, the camera will take pictures continuously while the shutter-release button is pressed.
  • Page 129 Continuous Shooting (Burst Mode) Focus and Exposure • Select focus mode C to vary focus with shot. • To vary exposure with each shot, select OFF for D BUTTON/DIAL SETTING > SHUTTER AE. Depending on such factors as aperture, sensitivity, and exposure com- pensation, exposure may not be adjusted automatically.

  • Page 130: Multiple Exposures

    Multiple Exposures Create a photograph that combines multiple exposures. Rotate the DRIVE mode dial to MULTI. Press the DRIVE button to display drive mode options. Select j MULTIPLE EXPOSURE.
  • Page 131 Multiple Exposures Choose a blend mode. Option Option Description Description The camera adds the exposures together. You may need to ADDITIVE lower exposure compensation depending on the number of shots. The camera automatically optimizes exposure for the fi nal AVERAGE picture.
  • Page 132 Multiple Exposures Press MENU/OK. The combined exposures will be dis- played as a guide to composing the next shot. RETRY EXIT • To return to the previous step and retake the second shot, press the focus stick left. • To end shooting and create a multiple exposure from the shots taken to this point, press DISP/BACK.

  • Page 133: Pixel-Shift Multi-Shot

    To save high-resolution RAW pictures in other formats, use Capture One Express Fujifi lm, Capture One Pro Fujifi lm, or Capture One Pro, available from Capture One A/S. FUJIFILM X RAW STUDIO and RAW FILE CONVERTER EX powered by SILKYPIX cannot be...
  • Page 134 • Pixel-shift multi-shot photography can be performed via tethered shooting. For this purpose, use FUJIFILM Pixel Shift Combiner. • The fl ash will synchronize with the shutter at shutter speeds of 1⁄5 s or slower (14-bit RAW) or ½ .5 s or slower (16-bit RAW).

  • Page 135: The Shooting Menus

    The Shooting Menus...

  • Page 136: Image Quality Setting (Still Photography)

    IMAGE QUALITY SETTING (Still Photography) Adjust image quality settings for still photography. To display image quality settings, press IMAGE QUALITY SETTING SHOOTING MODE MENU/OK in the photo shooting display and IMAGE SIZE IMAGE QUALITY select the H (IMAGE QUALITY SETTING) RAW RECORDING FILM SIMULATION tab.

  • Page 137: Image Quality

    IMAGE QUALITY SETTING (Still Photography) IMAGE QUALITY Choose a fi le format and compression ratio. Option Option Description Description SUPER FINE Very low compression ratios are used for maximum image quality. FINE Low compression ratios are used for higher-quality images. Higher compression ratios are used to increase the number of NORMAL images that can be stored.

  • Page 138: Raw Recording

    fi le size with no loss of image data. The im- ages can be viewed in Capture One Express Fujifi lm, RAW FILE CONVERTER EX powered by SILKYPIX, FUJIFILM X RAW STUDIO, or other software that supports “lossless” RAW LOSSLESS compression.

  • Page 139: Film Simulation ( )

    IMAGE QUALITY SETTING (Still Photography) FILM SIMULATION ( Simulate the eff ects of diff erent kinds of fi lm, including black- and-white (with or without color fi lters). Choose a palette ac- cording to your subject and creative intent. Option Option Description Description...
  • Page 140 MONOCHROME+G FILTER: Produces pleasing skin tones in portrait. Shoots in sepia tone. SEPIA • Film simulation options can be combined with tone and sharpness settings. • Film simulation settings can also be accessed via shortcuts (P 260). • For more information, visit: https://fujifilm-x.com/global/tag/the-world-of-film-simulation/?post_type=xstories...

  • Page 141: Monochromatic Color

    IMAGE QUALITY SETTING (Still Photography) MONOCHROMATIC COLOR ( Add a reddish or bluish tinge (warm or MONOCHROMATIC COLOR cool color cast) to the a ACROS and b MONOCHROME monochrome fi lm simulations. Color can be adjusted on the WARM–COOL and G (Green)–M (Magenta) axes.

  • Page 142: Color Chrome Fx Blue

    COLOR CHROME FX BLUE Increase the range of tones available for rendering blues. Option Option Description Description STRONG Choose for a strong eff ect. WEAK Choose for a weak eff ect. Turn the eff ect off . SMOOTH SKIN EFFECT Smooth complexions.

  • Page 143: Dynamic Range

    IMAGE QUALITY SETTING (Still Photography) DYNAMIC RANGE Adjust dynamic range. Wide dynamic ranges reduce loss of de- tail in highlights for more natural results with high-contrast or backlit scenes. Option Option Description Description V 100% Choose for increased contrast. AUTO W 200% Reduce loss of detail in highlights.

  • Page 144: D Range Priority

    D RANGE PRIORITY Reduce loss of detail in highlights and shadows for natural-look- ing results when photographing high-contrast scenes. Option Option Description Description Contrast is adjusted automatically in response to lighting con- AUTO ditions. Adjust dynamic range by a large amount for very high-contrast STRONG scenes.

  • Page 145: White Balance

    IMAGE QUALITY SETTING (Still Photography) WHITE BALANCE For natural colors, choose a white balance option that matches the light source. Option Option Description Description AUTO White balance is adjusted automatically. k CUSTOM 1 l CUSTOM 2 Measure a value for white balance. m CUSTOM 3 k COLOR Choose a color temperature.
  • Page 146 Fine-Tuning White Balance Pressing MENU/OK after selecting a white WB SHIFT balance option displays a fi ne-tuning dialog; use the focus stick (focus lever) to fi ne-tune white balance. • To exit without fi ne-tuning white balance, press DISP/BACK after se- lecting a white balance option.
  • Page 147 IMAGE QUALITY SETTING (Still Photography) Custom White Balance Choose k, l, or m to adjust white CUSTOM 1 balance for unusual lighting conditions using a white object as a reference (col- ored objects can also be used to lend photos a color cast). A white balance tar- SHUTTER : NEW WB get will be displayed;...
  • Page 148 k: Color Temperature Adjust white balance to match the color temperature of the light source. Color temperature can be adjusted to make pictures “warmer” or “cold- er” or deliberately produce colors that diff er radically from those in real life. Selecting k in the white balance menu WHITE BALANCE displays a list of color temperatures;...

  • Page 149: Tone Curve ( )

    IMAGE QUALITY SETTING (Still Photography) TONE CURVE ( With reference to a tone curve, adjust the TONE CURVE HIGHLIGHTS SHADOWS appearance of highlights or shadows, making them harsher or softer. Choose higher values to make shadows and highlights harsher, lower values to make them softer.

  • Page 150: High Iso Nr ( )

    HIGH ISO NR ( Reduce noise in pictures taken at high sensitivities. Choose high- er values to reduce noise and smooth outlines, lower values to leave outlines visible. Options Options −4 −3 −2 −1 CLARITY ( Increase defi nition while altering tones in highlights and shad- ows as little as possible.

  • Page 151: Lens Modulation Optimizer

    IMAGE QUALITY SETTING (Still Photography) LENS MODULATION OPTIMIZER Select ON to improve defi nition by adjusting for diff raction and the slight loss of focus at the periphery of the lens. Options Options COLOR SPACE Choose the gamut of colors available for color reproduction. Option Option Description...

  • Page 152: Pixel Mapping

    PIXEL MAPPING Use this option if you notice bright spots in your pictures. Press MENU/OK in the shooting display and select the H IMAGE QUALITY SETTING tab. Highlight PIXEL MAPPING and press MENU/OK to perform pix- el mapping. • Results are not guaranteed. •...

  • Page 153: Edit/Save Custom Setting ( )

    IMAGE QUALITY SETTING (Still Photography) EDIT/SAVE CUSTOM SETTING ( Adjust shooting menu settings as desired and save them to a custom settings bank. Saved settings can be recalled using H IMAGE QUALITY SETTING > SELECT CUSTOM SETTING. Saving Custom Settings Create a new custom settings bank. Select H IMAGE QUALITY SETTING ...
  • Page 154 CUSTOM 1 Highlight EDIT/CHECK and press MENU/OK. EDIT/CHECK SAVE THE CHANGES RESET THE CHANGES COPY ERASE EDIT CUSTOM NAME CUSTOM 1 EDIT/CHECK The camera will display a list of shoot- IMAGE SIZE ing menu items; highlight an item you IMAGE QUALITY RAW RECORDING wish to edit and press MENU/OK.
  • Page 155 IMAGE QUALITY SETTING (Still Photography) Copying Custom Settings Copy custom settings from one bank to another, overwriting the settings in the destination bank. If the source bank has been re- named, the name will also be copied to the destination bank. Select H IMAGE QUALITY SETTING ...
  • Page 156 Deleting Custom Settings Delete settings from selected custom settings banks. Select H IMAGE QUALITY SETTING  > EDIT/SAVE CUSTOM SETTING in the shooting menu and press MENU/OK. Highlight the desired custom set- EDIT/SAVE CUSTOM SETTING CUSTOM 1 tings bank and press MENU/OK. CUSTOM 2 CUSTOM 3 CUSTOM 4...

  • Page 157: Auto Update Custom Setting ( )

    IMAGE QUALITY SETTING (Still Photography) Renaming Custom Settings Banks Rename selected custom settings banks. Select H IMAGE QUALITY SETTING  > EDIT/SAVE CUSTOM SETTING in the shooting menu and press MENU/OK. Highlight the desired custom set- EDIT/SAVE CUSTOM SETTING CUSTOM 1 tings bank and press MENU/OK.

  • Page 158: Xf Mount Adaptor Setting ( )

    xF MOUNT ADAPTOR SETTING ( Adjust settings for lenses attached via a mount adapter. Any changes made using this item also apply in movie mode (P 179). Shutter Select When using lenses with an internal shutter, choose whether to use the shutter on the camera (BODY) or the lens (LENS). This option may have no eff ect with some lenses.
  • Page 159 IMAGE QUALITY SETTING (Still Photography) Color Shading Correction Color Shading Correction Color (shading) variations between the center and edges of the frame can be ad- justed separately for each corner. To use color shading correction, follow the steps below. NEXT Rotate the rear command dial to choose a corner.
  • Page 160 IMAGE QUALITY SETTING (Still Photography) Peripheral Illumination Correction Peripheral Illumination Correction Choose from values between –5 and +5. Choosing positive values increases peripheral illumination, while choosing negative values reduces peripheral il- lumination. Positive values are recom- mended for vintage lenses, negative val- CANCEL ues to create the eff ect of images taken with an antique lens or a pinhole camera.

  • Page 161: Af/Mf Setting (Still Photography)

    AF/MF SETTING (Still Photography) Adjust focus settings for still photography. To display AF/MF settings, press MENU/OK AF/MF SETTING FOCUS AREA in the photo shooting display and select AF MODE AF-C CUSTOM SETTINGS the G (AF/MF SETTING) tab. STORE AF MODE BY ORIENTATION AF POINT DISPLAY NUMBER OF FOCUS POINTS PRE-AF...

  • Page 162: Af-C Custom Settings

    AF-C CUSTOM SETTINGS Select focus-tracking options for focus AF-C CUSTOM SETTINGS SET 1 MULTI PURPOSE mode C. Choose from Sets 1–5 according to your subject or select Set 6 for custom focus-tracking options. TRACKING SENSITIVITY SPEED TRACKING SENSITIVITY ZONE AREA SWITCHING AUTO Option Option...
  • Page 163 AF/MF SETTING (Still Photography) Focus Tracking Options The individual parameters that are part of a focus tracking set are described below. TRACKING SENSITIVITY TRACKING SENSITIVITY This parameter determines how long the TRACKING SENSITIVITY camera waits to switch focus when an QUICK LOCKED ON object enters the focus area behind or in...
  • Page 164 ZONE AREA SWITCHING ZONE AREA SWITCHING This parameter determines the focus ZONE AREA SWITCHING area given priority in zone AF. CENTER AUTO FRONT SETS THE SWITCHING SENSITIVITY OF FOCUS FRAME IN ZONE AREA ADJUST SWITCH Option Option Description Description FRONT Zone AF assigns priority to the subjects closest to the camera.

  • Page 165: Store Af Mode By Orientation

    AF/MF SETTING (Still Photography) Custom Focus Tracking Options Follow the steps below to adjust settings for Set 6. Select AF-C CUSTOM SETTINGS  > AF-C CUSTOM SETTINGS SET 6 CUSTOM SET 6 CUSTOM. TRACKING SENSITIVITY SPEED TRACKING SENSITIVITY AUTO ZONE AREA SWITCHING ADJUST SET DETAIL RESET...

  • Page 166: Number Of Focus Points

    NUMBER OF FOCUS POINTS Choose the number of focus points available for focus-point se- lection in manual focus mode or when SINGLE POINT is selected for AF MODE. Option Option Description Description 117 POINTS Choose from 117 focus points arranged in a 9- by 13-point grid. (9 ×...

  • Page 167: Face/Eye Detection Setting

    AF/MF SETTING (Still Photography) FACE/EYE DETECTION SETTING If the camera detects human faces, it will assign them priority over the background and adjust settings appropriately for por- traits when setting focus and exposure. You can also choose whether the camera focuses on the left or right eye when face detection is on.
  • Page 168 • The face selected by the camera is indicated by a green border. Any other faces detected by the camera are indicated by gray borders. To have the camera focus on a diff erent subject, tap inside the gray border. The g icon will change from white to green. •...

  • Page 169: Af+Mf

    AF/MF SETTING (Still Photography) AF+MF If ON is selected in focus mode S and focus has been locked (whether by pressing the shutter button halfway or by other means), focus lock can be ended and focus adjusted manually by rotating the focus ring. Options Options •...

  • Page 170: Mf Assist

    MF ASSIST Choose how focus is displayed in manual focus mode. Option Option Description Description Focus is displayed normally (focus peaking, digital split image, and STANDARD digital microprism are not available). Displays a black-and-white (MONOCHROME) or color (COLOR) DIGITAL SPLIT split image in the center of the frame.

  • Page 171: Interlock Spot Ae & Focus Area

    AF/MF SETTING (Still Photography) INTERLOCK SPOT AE & FOCUS AREA Choose ON to meter the current focus frame when SPOT or MULTI metering is selected. Options Options xF INSTANT AF SETTING ( Choose whether the camera focuses using single AF (AF-S) or continuous AF (AF-C) when a button to which focus lock or AF-ON is assigned is pressed in manual focus mode.

  • Page 172: Xf Depth-Of-Field Scale ( )

    xF DEPTH-OF-FIELD SCALE ( Choose FILM FORMAT BASIS to help you make practical assess- ments of depth of fi eld for pictures that will be viewed as prints and the like, PIXEL BASIS to help you assess depth of fi eld for pictures that will be viewed at high resolutions on computers or other electronic displays.

  • Page 173: Xf Af Range Limiter ( )

    AF/MF SETTING (Still Photography) xF AF RANGE LIMITER ( Limit the range of available focus distances for increased focus speed. Option Option Description Description Focus limiter disabled. Limit focus to a range of distances defi ned by a minimum and maximum.

  • Page 174: Xf Touch Screen Mode

    xF TOUCH SCREEN MODE ( Choose the shooting operations performed using touch controls. Mode Mode Description Description • In focus mode S (AF-S), the camera focuses when you tap your subject in the display. Focus locks at the current distance until you tap the AF OFF icon.
  • Page 175 AF/MF SETTING (Still Photography) Touch Controls for Focus Zoom Diff erent touch controls are used during focus zoom (focus check enabled). Central Area Central Area Tapping the center of the display performs the operations below. Mode Mode Operation performed Operation performed AF-S: AF AF AF MF: Instant AF...

  • Page 176: Shooting Setting (Still Photography)

    SHOOTING SETTING (Still Photography) Adjust shooting options for still photography. To display shooting settings, press MENU/OK SHOOTING SETTING SELF-TIMER in the photo shooting display and select SAVE SELF-TIMER SETTING SELF-TIMER LAMP the A (SHOOTING SETTING) tab. INTERVAL TIMER SHOOTING INTERVAL TIMER SHOOTING EXPOSURE SMOOTHING AE BKT SETTING The options available vary with the shoot- FILM SIMULATION BKT...

  • Page 177: Save Self-Timer Setting

    SHOOTING SETTING (Still Photography) SAVE SELF-TIMER SETTING If ON is selected, the chosen self-timer setting will remain in ef- fect after a picture is taken or the camera is turned off . Options Options SELF-TIMER LAMP ( If ON is selected, the self-timer lamp will light during self-timer photography.

  • Page 178: Interval Timer Shooting

    INTERVAL TIMER SHOOTING Confi gure the camera to take photos automatically at a preset interval. Highlight INTERVAL TIMER SHOOTING INTERVAL/NUMBER OF TIMES INTERVAL NUMBER OF TIMES in the A (SHOOTING SETTING) tab and press MENU/OK. CANCEL Use the focus stick (focus lever) to START WAITING TIME choose the interval and number of shots.

  • Page 179: Interval Timer Shooting Exposure Smoothing

    SHOOTING SETTING (Still Photography) INTERVAL TIMER SHOOTING EXPOSURE SMOOTHING Select ON to automatically adjust exposure during interval-timer photography to prevent it changing dramatically between shots. Options Options • Large changes in subject brightness may make exposure appear er- ratic. We recommend that you choose shorter values for INTERVAL TIMER SHOOTING >...

  • Page 180: Ae Bkt Setting

    AE BKT SETTING Adjust exposure bracketing settings (P 100). Option Option Description Description Choose the number of shots in the bracketing sequence and the amount exposure is varied with each shot. • FRAMES: Choose the number of shots in the bracketing FRAMES/STEP SETTING sequence.

  • Page 181: Shutter Type

    SHOOTING SETTING (Still Photography) SHUTTER TYPE Choose the shutter type. Choose the electronic shutter to mute the shutter sound. Option Option Description Description t MECHANICAL SHUTTER Take pictures with the mechanical shutter. s ELECTRONIC SHUTTER Take pictures with the electronic shutter. t E-FRONT CURTAIN The camera chooses the mechanical or electronic SHUTTER...

  • Page 182: Flicker Reduction

    FLICKER REDUCTION ( Reduce fl icker in pictures and the display when shooting under fl uorescent lighting and other similar light sources. Option Option Description Description Flicker reduction is applied to all frames continuous ALL FRAMES shooting frame rate reduces. Flicker measurement is taken prior to the fi...

  • Page 183: Is Mode

    SHOOTING SETTING (Still Photography) IS MODE Turn image stabilization on or off . Option Option Description Description CONTINUOUS Image stabilization on. Image stabilization enabled only when the shutter button SHOOTING ONLY is pressed halfway (focus mode C) or the shutter is released. Image stabilization off...

  • Page 184: 35Mm Format Mode

    35mm FORMAT MODE Enabling A SHOOTING SETTING > 35mm FORMAT MODE in the shooting menu sets the picture angle to 35 mm; the change is refl ected in the display. Option Option Description Description The picture angle is set to 35 mm; the change is refl ected in the display.

  • Page 185: Xf Wireless Communication ( )

    SHOOTING SETTING (Still Photography) xF WIRELESS COMMUNICATION ( Connect to smartphones running the latest version of the FUJIFILM Camera Remote app. The smartphone can then be used to: • Control the camera and take pictures remotely • Receive pictures uploaded from the camera •...

  • Page 186: Flash Setting (Still Photography)

    FLASH SETTING (Still Photography) Adjust fl ash-related settings for still photography. To display fl ash settings, press MENU/OK FLASH SETTING in the photo shooting display and select FLASH FUNCTION SETTING RED EYE REMOVAL the F (FLASH SETTING) tab. TTL-LOCK MODE LED LIGHT SETTING COMMANDER SETTING CH SETTING EXIT...

  • Page 187: Ttl-Lock Mode

    FLASH SETTING (Still Photography) TTL-LOCK MODE Instead of adjusting fl ash level with each shot, TTL fl ash control can be locked for consistent results across a series of photo- graphs. Option Option Description Description Flash output is locked at the value metered for the most LOCK WITH LAST FLASH recent photo.

  • Page 188: Commander Setting

    FLASH SETTING (Still Photography) COMMANDER SETTING Choose groups when using the camera fl ash unit as a command- er for Fujifi lm optical wireless remote fl ash control. This option is available when the camera is used with clip-on fl ash units that support Fujifi lm optical wireless fl ash control.

  • Page 189: Movie Setting (Movie Recording)

    MOVIE SETTING (Movie Recording) Adjust movie-recording options. To display options for movie recording, MOVIE SETTING SHOOTING MODE press MENU/OK in the movie shooting dis- MOVIE MODE FILE FORMAT play and select the B (MOVIE SETTING) MOVIE COMPRESSION FIX MOVIE CROP MAGNIFICATION tab.

  • Page 190: File Format ( )

    Press the focus stick (focus lever) up or down to highlight a frame rate ( ) and press the stick right. Options Options 23.98P 29.97P 59.94P Press the focus stick up or down to highlight a bit rate ( and press MENU/OK. Options Options 50Mbps...

  • Page 191: Movie Compression

    MOVIE SETTING (Movie Recording) MOVIE COMPRESSION Choose type of compression used to record movies. Option Option Description Description Each frame is compressed separately. Files are larger, but the fact ALL-Intra that the data for each frame are saved separately makes this a good choice for footage that will be further processed.

  • Page 192: F-Log/Hlg/Raw Recording

    F-Log/HLG/RAW RECORDING Choose the destination for F-Log, HLG (Hybrid Log-Gamma), or RAW movies shot while the camera is connected to an HDMI de- vice. Option Option Description Description The footage is processed using fi lm simulation and both b P Y P saved to the memory card and output to the HDMI device.
  • Page 193 MOVIE SETTING (Movie Recording) • F-Log off ers a gentle gamma curve with a wide gamut suitable for further processing post-production. Sensitivity is restricted to values between ISO 800 and ISO 12800. • The HLG (Hybrid Log-Gamma) recording format conforms to the inter- national ITU-R BT2100 standard.

  • Page 194: 4K Movie Output

    4K MOVIE OUTPUT Choose the destination for 4K movies shot while the camera is connected to an HDMI recorder or other device that supports 4K. Option Option Description Description 4K movies are recorded to the camera memory card and out- b 4K Y 4K put to the HDMI device in 4K.

  • Page 195: Hdmi Output Info Display

    MOVIE SETTING (Movie Recording) HDMI OUTPUT INFO DISPLAY If ON is selected, HDMI devices to which the camera is connected will mirror the information in the camera display. Options Options 4K HDMI STANDBY QUALITY Choose whether output to connected HDMI devices switches from 4K to Full HD during standby.

  • Page 196: F Is Mode ( )

    F IS MODE ( Turn image stabilization on or off . Option Option Description Description Enable in-body (IBIS) and optical (OIS) image stabilization. IBIS/OIS IBIS is used with lenses that do not support OIS. Enable in-body (IBIS), optical (OIS), and digital (DIS) image IBIS/OIS + DIS stabilization.

  • Page 197: F Iso ( )

    MOVIE SETTING (Movie Recording) F ISO ( Adjust the camera’s sensitivity to light. Option Option Description Description Choose for special situations. Note that dynamic range may be H (25600) reduced and that pictures may be mottled. 200–12800 Adjust sensitivity manually. Selected value is shown in display. Sensitivity is automatically adjusted in response to shooting AUTO conditions.

  • Page 198: Movie Optimized Control Ol ( )

    MOVIE SETTING (Movie Recording) MOVIE OPTIMIZED CONTROL oL ( Select ON to allow movie settings to be adjusted using only the command dials and touch-screen controls. You may fi nd this helpful in preventing the sounds of camera controls being re- corded with movies (P 32).

  • Page 199: F Select Custom Setting ( )

    F SELECT CUSTOM SETTING ( Options are the same as those for still photography, but settings must be adjusted separately (P 128). F EDIT/SAVE CUSTOM SETTING ( Options are the same as those for still photography, but settings must be adjusted separately (P 129). F AUTO UPDATE CUSTOM SETTING ( Options are the same as those for still photography, but settings must be adjusted separately (P 133).

  • Page 200: Image Quality Setting (Movie Recording)

    IMAGE QUALITY SETTING (Movie Recording) Adjust image quality settings for movies. To display image quality settings, press IMAGE QUALITY SETTING FFILM SIMULATION MENU/OK in the movie shooting display and FMONOCHROMATIC COLOR FDYNAMIC RANGE select the H (IMAGE QUALITY SETTING) FWHITE BALANCE FTONE CURVE tab.

  • Page 201: F Dynamic Range

    IMAGE QUALITY SETTING (Movie Recording) F DYNAMIC RANGE Choose a dynamic range for movie recording. Option Option Description Description V100% W200% See “DYNAMIC RANGE” (P 119). X400% • AUTO  (automatic dynamic range control) is not available during movie recording. • W200% is available at sensitivities of from ISO 400 to ISO 12800, X400% at sensitivities of from ISO 800 to 12800.

  • Page 202: F Sharpness

    F SHARPNESS Options are the same as those for still photography, but settings must be adjusted separately (P 125). F HIGH ISO NR ( Options are the same as those for still photography, but settings must be adjusted separately (P 126). V INTERFRAME NR Select ON to enable interframe noise reduction.

  • Page 203: F Peripheral Light Correction

    IMAGE QUALITY SETTING (Movie Recording) F PERIPHERAL LIGHT CORRECTION Select ON to enable peripheral illumination correction during movie recording. Options Options • If ON is selected when a lens that does not transmit data to the camera is attached, peripheral illumination will be adjusted according to the option selected for H IMAGE QUALITY SETTING ...

  • Page 204: Af/Mf Setting (Movie Recording)

    AF/MF SETTING (Movie Recording) Adjust focus settings for movies. To display AF/MF settings, press MENU/OK AF/MF SETTING FFOCUS AREA in the movie shooting display and select FAF MODE FAF-C CUSTOM SETTING the G (AF/MF SETTING) tab. xFAF ILLUMINATOR FFACE/EYE DETECTION SETTING FMF ASSIST FFOCUS CHECK xFINSTANT AF SETTING...

  • Page 205: F Af-C Custom Setting

    AF/MF SETTING (Movie Recording) F AF-C CUSTOM SETTING Select focus-tracking options when recording movies in focus mode C. TRACKING SENSITIVITY Choose how long the camera waits to switch focus when an ob- ject enters the focus area behind or in front of the current sub- ject.

  • Page 206: F Face/Eye Detection Setting

    F FACE/EYE DETECTION SETTING Enable or disable Intelligent Face Detection when recording movies. Option Option Description Description FACE DETECTION ON See “FACE/EYE DETECTION SETTING” (P 143). Intelligent Face Detection and eye priority off . When Intelligent Face Detection is enabled, the camera will focus using continuous AF even when single AF (S) is chosen with the focus mode selector.

  • Page 207: F Focus Check

    AF/MF SETTING (Movie Recording) F FOCUS CHECK Options are the same as those for still photography, but settings must be adjusted separately (P 146). xF INSTANT AF SETTING ( This item is also found in the photo menus (P 147). Changes to one apply to the other.

  • Page 208: Xf Touch Screen Mode ( )

    xF TOUCH SCREEN MODE ( Choose the shooting operations performed using touch controls. Mode Mode Description Description Tapping the display focuses the camera on the selected point. Use the shutter button to start and stop recording. • In focus mode S (AF-S), you can refocus at any time by tapping your subject in the display.
  • Page 209 AF/MF SETTING (Movie Recording) • To disable touch controls and hide the touch screen mode indica- tor, select OFF for D BUTTON/DIAL SETTING  > TOUCH SCREEN SETTING > x TOUCH SCREEN SETTING. • This item is also found in the photo menus (P 150). Changes to one apply to the other.

  • Page 210: Focus Check Lock ( )

    AF/MF SETTING (Movie Recording) FOCUS CHECK LOCK ( Choose whether focus zoom remains in eff ect once movie re- cording begins. Options Options...

  • Page 211: Audio Setting (Movie Recording)

    AUDIO SETTING (Movie Recording) Adjust settings for audio recorded during fi lming. To display audio settings, press MENU/OK AUDIO SETTING INTERNAL MIC LEVEL ADJUSTMENT in the movie shooting display and select EXTERNAL MIC LEVEL ADJUSTMENT MIC JACK SETTING the P (AUDIO SETTING) tab. MIC LEVEL LIMITER WIND FILTER LOW CUT FILTER...

  • Page 212: Mic Jack Setting

    AUDIO SETTING (Movie Recording) MIC JACK SETTING ( Specify the type of hardware connected to the microphone jack. Option Option Description Description Choose this option for direct connection to an external micro- phone. Choose this option for external audio devices connected via LINE line output.

  • Page 213: Time Code Setting (Movie Recording)

    TIME CODE SETTING (Movie Recording) Adjust time code (hour, minute, second, and frame num- ber) display settings for movie recording. To display time code settings, press TIME CODE SETTING TIME CODE DISPLAY MENU/OK in the movie shooting display START TIME SETTING COUNT UP SETTING and select the Q (TIME CODE SETTING) DROP FRAME...

  • Page 214: Drop Frame ( )

    TIME CODE SETTING (Movie Recording) DROP FRAME ( At frame rates of 59.94P, and 29.97P, a discrepancy will gradu- ally develop between the time code (measured in seconds) and the actual recording time (measured in fractions of a second). Choose whether the camera drops frames as necessary to match the recording time to the time code.

  • Page 215: Playback And The Playback Menu

    Playback and the Playback Menu...

  • Page 216: The Playback Display

    The Playback Display This section lists the indicators that may be displayed during playback. For illustrative purposes, displays are shown with all indicators lit. E F G Date and time ........51, 53, 219 Dynamic range ..........119 Frame-number display White balance ..........121 Face detection indicator ......143 Sensitivity ............93 Bluetooth ON/OFF ........253...

  • Page 217: The Disp/Back Button

    The Playback Display The DISP/BACK Button The DISP/BACK button controls the display of indicators during playback. Standard Information off NEXT Info display...
  • Page 218 The Playback Display Viewing Photo Information The photo information display changes each time the focus stick (focus lever) is pressed up. Basic data Info display 1 NEXT 1/1000 12800 +1.0 1/1000 12800 +1.0 BACK NEXT Info display 3 Info display 2 Zooming in on the Focus Point Press the center of the rear command dial to zoom in on the focus point.

  • Page 219: Viewing Pictures

    Viewing Pictures Read this section for information on playback zoom and multi-frame playback. Use the rear command dial to go from full-frame playback to playback zoom or multi-frame playback. Full-frame playback 100-0001 Multi-frame Playback playback zoom DISP/BACK MENU/OK Nine-frame view Medium zoom Hundred- frame view Maximum zoom...

  • Page 220: Playback Zoom

    Viewing Pictures Playback Zoom Rotate the rear command dial right to zoom in on the current picture, left to zoom out. To exit zoom, press DISP/BACK, MENU/OK, or the center of the rear command dial. • The maximum zoom ratio varies with the option selected for H IMAGE QUALITY SETTING >...

  • Page 221: The Playback Menu

    The Playback Menu Adjust playback settings. The playback menu is displayed when PLAY BACK MENU SWITCH SLOT you press MENU/OK in playback mode. RAW CONVERSION ERASE SIMULTANEOUS DELETE (RAW SLOT1/JPG SLOT2) CROP RESIZE PROTECT IMAGE ROTATE EXIT SWITCH SLOT Choose the card from which images will be played back. If two memory cards are inserted, you can press and hold the a but- ton to choose a card for playback.

  • Page 222: Raw Conversion ( )

    RAW CONVERSION ( Even if you don’t have a computer, you can use the camera to modify RAW pictures and save them in other formats. Saving RAW Pictures in Another Format Display a RAW picture. Highlight RAW CONVERSION in the playback menu. Press MENU/OK.
  • Page 223 The Playback Menu The settings that can be adjusted when converting pictures from RAW to another format are: Setting Setting Description Description Create a copy using the settings in eff ect at the time REFLECT SHOOTING COND. the photo was taken. FILE TYPE Choose a fi...

  • Page 224: Erase

    ERASE Delete individual pictures, multiple selected pictures, or all pic- tures. Deleted pictures cannot be recovered. Protect important pictures or copy them to a computer or other storage device before proceeding. Option Option Description Description FRAME Delete pictures one at a time. SELECTED FRAMES Delete multiple selected pictures.
  • Page 225 The Playback Menu SELECTED FRAMES Select SELECTED FRAMES for ERASE in the playback menu. Highlight pictures and press MENU/OK to select. • Selected pictures are indicated by check marks (R). • To deselect a highlighted picture, press MENU/OK again. When the operation is complete, press DISP/BACK to display a confi rmation dialog.

  • Page 226: Simultaneous Delete(Raw Slot1/Jpg Slot2)

    SIMULTANEOUS DELETE(RAW SLOT1/JPG SLOT2) Taking photos with RAW / JPEG selected for D SAVE DATA SET-UP  >  x CARD SLOT SETTING creates two copies. Choose whether deleting the RAW image will also delete the JPEG copy. Option Option Description Description Deleting the RAW image from the card in Slot 1 also deletes the JPEG copy from the card in Slot 2.

  • Page 227: Resize

    The Playback Menu RESIZE Create a small copy of the current picture. Display the desired picture. Select RESIZE in the playback menu. Highlight a size and press MENU/OK to display a confi rmation dialog. Press MENU/OK again to save the resized copy to a separate fi le.

  • Page 228: Protect

    PROTECT Protect pictures from accidental deletion. Highlight one of the following options and press MENU/OK. Option Option Description Description Protect selected pictures. Press the focus stick (focus lever) left or FRAME right to view pictures and press MENU/OK to select or deselect. Press DISP/BACK when the operation is complete.

  • Page 229: Image Rotate

    The Playback Menu IMAGE ROTATE Rotate pictures. Select ON for D SCREEN SET-UP > AUTOROTATE PB. Display the desired picture. Select IMAGE ROTATE in the playback menu. Press the focus stick (focus lever) down to rotate the picture 90° clockwise, up to rotate it 90° counterclockwise. Press MENU/OK.

  • Page 230: Red Eye Removal

    RED EYE REMOVAL Remove red-eye from portraits. The camera will analyze the im- age; if red-eye is detected, the image will be processed to create a copy with reduced red-eye. Display the desired picture. Select RED EYE REMOVAL in the playback menu. Press MENU/OK.

  • Page 231: Voice Memo Setting

    The Playback Menu VOICE MEMO SETTING Add a voice memo to the current photograph. Select ON for VOICE MEMO SETTING in the playback menu. Display a photo to which you wish to add a voice memo. Press and hold the center of the front command dial to re- cord the memo.

  • Page 232: Rating

    RATING Rate pictures using stars. Select RATING in the playback menu. Rotate the front command dial to choose a picture and the rear command dial to choose a rating of from 0 to 5 stars (“I”). • The focus stick (focus lever) can be used in place of the front com- mand dial to choose a picture.

  • Page 233: Copy

    The Playback Menu COPY Copy pictures between the cards in the fi rst and second slots. Select COPY in the playback menu. Highlight one of the following options. Option Option Description Description Copy pictures from the card in the fi rst slot to the card in SLOT1 y SLOT2 the second slot.

  • Page 234: Image Transfer Order

    IMAGE TRANSFER ORDER Select photos for upload to a paired smartphone or tablet. Select IMAGE TRANSFER ORDER > SELECT FRAMES in the   playback menu. Highlight photos and press MENU/OK to select or deselect. Re- peat until all the desired photos have been selected. Press DISP/BACK to exit to playback.

  • Page 235: Xf Wireless Communication ( )

    The Playback Menu xF WIRELESS COMMUNICATION ( Connect to smartphones running the latest version of the FUJIFILM Camera Remote app. The smartphone can then be used to: • Control the camera and take pictures remotely • Receive pictures uploaded from the camera •...

  • Page 236: Photobook Assist

    PHOTOBOOK ASSIST Create books from your favorite photos. Creating a Photobook Select NEW BOOK for C PLAY BACK MENU > PHOTOBOOK ASSIST. Scroll through the images and press the focus stick (focus le- ver) up to select or deselect. Press MENU/OK to exit when the book is complete.
  • Page 237 The Playback Menu Viewing Photobooks Highlight a book in the photobook assist menu and press MENU/OK to display the book, then press the focus stick (focus lever) left or right to scroll through the pictures. Editing and Deleting Photobooks Display the photobook and press MENU/OK. The following options will be displayed;...

  • Page 238: Print Order (Dpof)

    PRINT ORDER (DPOF) Create a digital “print order” for DPOF-compatible printers. Select C PLAY BACK MENU > PRINT ORDER (DPOF). Select WITH DATE s to print the date of recording on pic- tures, WITHOUT DATE to print pictures without dates, or RESET ALL to remove all pictures from the print order before proceeding.

  • Page 239: Instax Printer Print

    Select C PLAY BACK MENU > instax PRINTER PRINT PRINTER PRINT. The camera will con- instax-12345678 nect to the printer. CONNECTING FUJIFILM-CAMERA-1234 CANCEL Use the focus stick (focus lever) to PRINTER PRINT 100-0020 display the picture you want to print, then press MENU/OK. The picture will be sent to the printer and printing will start.

  • Page 240: Disp Aspect

    The Playback Menu DISP ASPECT Choose how High Defi nition (HD) devices display pictures with an aspect ratio of 4∶3 (this option is available only when an HDMI cable is connected). 16:9 Option Option 16∶9 4∶3 Display ∶ Select 16 9 to display the image so that it fi lls the screen with its top ∶...

  • Page 241: The Setup Menus

    The Setup Menus...

  • Page 242: User Setting

    USER SETTING Adjust basic camera settings. To access basic camera settings, press USER SETTING FORMAT MENU/OK, select the D (SET UP) tab, and DATE/TIME TIME DIFFERENCE choose USER SETTING. x MY MENU SETTING FMY MENU SETTING SENSOR CLEANING BATTERY AGE EXIT FORMAT To format a memory card:...

  • Page 243: Date/Time

    USER SETTING DATE/TIME To set the camera clock: Select D USER SETTING > DATE/TIME in the D (SET UP) tab. Press the focus stick (focus lever) left or right to highlight the year, month, day, hour, or minute and press up or down to change.

  • Page 244: My Menu Setting ( )

    Choose a language. x MY MENU SETTING ( Edit the items listed in the E (MY MENU) tab, a personalized cus- tom menu of frequently-used photo menu options (P 261). F MY MENU SETTING ( Edit the items listed in the E (MY MENU) tab, a personalized cus- tom menu of frequently-used movie menu options (P 261).

  • Page 245: Sensor Cleaning

    USER SETTING SENSOR CLEANING Remove dust from the camera image sensor. Option Option Description Description Clean the sensor immediately. Sensor cleaning will be performed when the camera is WHEN SWITCHED ON turned on. Sensor cleaning will be performed when the camera turns WHEN SWITCHED OFF off...

  • Page 246: Reset

    USER SETTING RESET Reset shooting or setup menu options to default values. Highlight the desired option and press MENU/OK. Option Option Description Description Reset all photo menu settings other than custom white STILL MENU RESET balance and custom settings banks created using EDIT/ SAVE CUSTOM SETTING to default values.

  • Page 247: Sound Setting

    SOUND SETTING Make changes to camera sounds. To access sound settings, press MENU/OK, SOUND SETTING select the D (SET UP) tab, and choose AF BEEP VOL. SELF-TIMER BEEP VOL. SOUND SET-UP. OPERATION VOL. SHUTTER VOLUME SHUTTER SOUND PLAYBACK VOLUME EXIT AF BEEP VOL.

  • Page 248: Operation Vol

    SOUND SETTING OPERATION VOL. Adjust the volume of the sounds produced when camera con- trols are operated. Choose eOFF to disable control sounds. Options Options b (high) c (medium) d (low) eOFF (mute) SHUTTER VOLUME Adjust the volume of the sounds produced by the electronic shutter.

  • Page 249: Screen Setting

    SCREEN SETTING Make changes to display settings. To access display settings, press MENU/OK, SCREEN SETTING EVF BRIGHTNESS select the D (SET UP) tab, and choose EVF COLOR EVF COLOR ADJUSTMENT SCREEN SET-UP. LCD BRIGHTNESS LCD COLOR LCD COLOR ADJUSTMENT IMAGE DISP. AUTOROTATE DISPLAYS EXIT EVF BRIGHTNESS...

  • Page 250: Lcd Brightness

    LCD BRIGHTNESS Adjust monitor brightness. Options Options −5 −4 −3 −2 −1 LCD COLOR Adjust monitor saturation. Options Options −5 −4 −3 −2 −1 LCD COLOR ADJUSTMENT Adjust the color of the display in the LCD monitor. Adjust colors using the focus stick (focus lever). Press MENU/OK.

  • Page 251: Image Disp

    SCREEN SETTING IMAGE DISP. Choose how long images are displayed after shooting. Option Option Description Description Pictures are displayed until the MENU/OK button is pressed or the shutter button is pressed halfway. To zoom in on the active focus CONTINUOUS point, press the center of the rear command dial;...

  • Page 252: Preview Exp./Wb In Manual Mode

    PREVIEW EXP./WB IN MANUAL MODE Choose whether to enable exposure and/or white balance preview in manual exposure mode. Option Option Description Description PREVIEW EXP./WB Enable exposure and white balance preview. Preview white balance only. Choose this option in situations in which exposure and white balance are likely to change during PREVIEW WB shooting, as may be the case when you use a fl...

  • Page 253: F-Log View Assist

    SCREEN SETTING F-Log VIEW ASSIST ( Select ON to display a tone-corrected preview (equivalent to BT.709) when recording or viewing F-log movies. Options Options FRAMING GUIDELINE Choose a framing grid for shooting mode. Option Option F GRID 9 G GRID 24 H HD FRAMING For “rule of thirds”...

  • Page 254: Autorotate Pb

    AUTOROTATE PB Choose ON to automatically rotate “tall” (portrait-orientation) pictures during playback. Options Options PLAYBACK MAGNIFICATION ( Choose the zoom ratio selected when the center of the rear com- mand dial is pressed during playback. Option Option Description Description 2x (FROM CENTER) View the center area of the picture at the selected zoom 4x (FROM CENTER) ratio.

  • Page 255: Dual Display Setting

    SCREEN SETTING DUAL DISPLAY SETTING Choose the content of the two windows in the dual display. Option Option Description Description The right (small) window shows a close-up of the focus area, R:FOCUS L:FRAME while the left (large) window shows the entire frame. The right (small) window shows the entire frame, while the left R:FRAME L:FOCUS (large) window shows a close-up of the focus area.

  • Page 256: Large Indicators Mode(Evf)

    LARGE INDICATORS MODE(EVF) Select ON to display large indicators in the electronic viewfi nd- er. The indicators displayed can be selected using D SCREEN SET-UP > LARGE INDICATORS DISP. SETTING. Some icons are not displayed when ON is selected for LARGE INDICATORS MODE(EVF) (P 15).

  • Page 257: Large Indicators Disp. Setting

    SCREEN SETTING LARGE INDICATORS DISP. SETTING Choose the indicators displayed when LARGE INDICATORS DISP. SETTING Expo. DISP. ON is selected for D SCREEN SET-UP > Scale LARGE INDICATORS MODE(EVF) or LARGE INDICATORS MODE(LCD). Option Option Description Description Choose the items listed at the bottom of the display. A Expo.

  • Page 258: Sub Monitor Setting

    SUB MONITOR SETTING Choose the indicators displayed in the secondary LCD monitor. Separate displays are available for still photography and movie recording. Choose from the following: Option Option Description Description Display camera settings. You can choose the settings INFORMATION displayed. DIALS Display dials showing ISO sensitivity and shutter speed.
  • Page 259 SCREEN SETTING Highlight the indicator you wish to DISPLAY 1 SETTING SHUTTER SPEED display and press MENU/OK. APERTURE EXPO. COMP. MOVIE MODE SHOOTING MODE PHOTOMETRY DRIVE MODE Choose from: • • SHUTTER SPEED IMAGE SIZE/QUALITY • • APERTURE SHUTTER TYPE •...

  • Page 260: Rear Sub Monitor Setting

    REAR SUB MONITOR SETTING Choose the indicators displayed in the rear secondary monitor. Separate displays are available for still photography and movie recording. Choose from the following: Option Option Description Description INFORMATION 1 Display a preset selection of indicators (INFORMATION 1 or INFORMATION 2).
  • Page 261 SCREEN SETTING Highlight the indicator you wish to DISPLAY 1 SETTING SHUTTER SPEED display and press MENU/OK. APERTURE EXPO. COMP. FRAMES REM. REC. TIME SHOOTING MODE PHOTOMETRY Choose from: • • SHUTTER SPEED FILE TYPE • • APERTURE MOVIE COMPRESSION •...

  • Page 262: Sub Monitor Background Color

    SCREEN SETTING SUB MONITOR BACKGROUND COLOR Adjusting the background color of the secondary LCD monitor according to lighting conditions makes the display easier to read. Option Option Description Description BLACK Recommended for use with dark ambient lighting. WHITE Recommended for use with bright ambient lighting. The background is displayed in white when the secondary LCD moni- tor backlight is on.

  • Page 263: Button/Dial Setting

    BUTTON/DIAL SETTING Access options for camera controls. To access control options, press MENU/OK, BUTTON/DIAL SETTING FOCUS LEVER SETTING select the D (SET UP) tab, and choose xEDIT/SAVE QUICK MENU FEDIT/SAVE QUICK MENU BUTTON/DIAL SETTING. FUNCTION (Fn) SETTING COMMAND DIAL SETTING COMMAND DIAL DIRECTION SHUTTER AF SHUTTER AE...

  • Page 264: Function (Fn) Setting ( )

    FUNCTION (Fn) SETTING ( Choose the roles played by the function buttons (P 269). COMMAND DIAL SETTING ( Choose the roles played by the command dials. Option Option Description Description FRONT COMMAND Assign shutter speed (S.S. (PROGRAM SHIFT)) or aper- DIAL 1 ture (APERTURE) to FRONT COMMAND DIAL 1.

  • Page 265: Command Dial Direction ( )

    BUTTON/DIAL SETTING COMMAND DIAL DIRECTION ( Choose the direction in which the command dials are rotated to choose values. Settings for the front and rear command dials can be adjusted separately. Option Option Description Description Rotate the dial right for higher values or to move to the next - –––––...

  • Page 266: Shoot Without Lens

    SHOOT WITHOUT LENS Choose ON to enable the shutter release when no lens is at- tached. Options Options SHOOT WITHOUT CARD Choose whether the shutter can be released without a memory card inserted in the camera. Option Option Description Description When no memory card is inserted, the shutter can be released to test camera function and the shooting and setup menus can be displayed.

  • Page 267: Ae/Af-Lock Mode

    BUTTON/DIAL SETTING AE/AF-LOCK MODE This option determines the behavior of the button to which exposure and/or focus lock is assigned. Option Option Description Description AE&AF ON WHEN Exposure and/or focus will lock while the button is pressed. PRESSING AE&AF ON/OFF Exposure and/or focus will lock when the button is pressed and re- SWITCH main locked until it is pressed again.

  • Page 268: Touch Screen Setting

    TOUCH SCREEN SETTING Enable or disable touch-screen controls. x TOUCH SCREEN SETTING Option Option Description Description The LCD monitor functions as a touch screen during shooting. Touch controls disabled. x DOUBLE TAP SETTING Option Option Description Description Tap the LCD monitor twice to zoom in on your subject during shooting.

  • Page 269: Lock ( )

    BUTTON/DIAL SETTING EVF TOUCH SCREEN AREA SETTINGS Select the area of the LCD monitor used for touch controls while the viewfi nder is active. The area used for touch controls can be selected from: Option Option Description Description All. Right half. Top right quarter.

  • Page 270: Power Management

    POWER MANAGEMENT Adjust power management settings. To access power management settings, POWER MANAGEMENT press MENU/OK, select the D (SET UP) tab, AUTO POWER OFF and choose POWER MANAGEMENT. PERFORMANCE SHOOTING STAND BY MODE AUTO POWER SAVE EXIT AUTO POWER OFF Choose the length of time before the camera turns off automati- cally when no operations are performed.

  • Page 271: Performance ( )

    POWER MANAGEMENT PERFORMANCE ( Select BOOST to improve focus and EVF display performance. Option Option Description Description Boost camera focus and EVF display performance. The battery drains faster than when is NORMAL selected. You can choose to assign priority to: •...

  • Page 272: Shooting Stand By Mode

    POWER MANAGEMENT SHOOTING STAND BY MODE Choose the delay before the camera enters shooting standby mode. Option Option Description Description 5 MIN The camera will suspend all functions and enter power- 2 MIN ing-saving (standby) mode if no operations are performed 1 MIN for the selected period.

  • Page 273: Save Data Setting

    SAVE DATA SETTING Make changes to fi le management settings. To access fi le management settings, SAVE DATA SETTING FRAME NO. press MENU/OK, select the D (SET UP) tab, SAVE ORG IMAGE EDIT FILE NAME and choose SAVE DATA SET-UP. xCARD SLOT SETTING FCARD SLOT SETTING SELECT SLOT(...

  • Page 274: Save Org Image

    SAVE ORG IMAGE Choose ON to save unprocessed copies of pictures taken using RED EYE REMOVAL. Options Options EDIT FILE NAME Change the fi le name prefi x. sRGB images use a four-letter prefi x (default “DSCF”), Adobe RGB images a three-letter prefi x (“DSF”) preceded by an underscore.

  • Page 275: F Card Slot Setting

    SAVE DATA SETTING F CARD SLOT SETTING ( Choose the role played by the card in the second slot. Option Option Description Description The card in the second slot is used only when the card in the SEQUENTIAL fi rst slot is full. BACKUP Each picture is recorded twice, once to each card.

  • Page 276: Select Folder

    SAVE DATA SETTING SELECT FOLDER Create folders and choose the folder used to store subsequent pictures. Option Option Description Description To choose the folder in which subsequent pictures will be SELECT FOLDER stored, press the focus stick (focus lever) up or down to highlight an existing folder and press MENU/OK.

  • Page 277: Connection Setting

    Adjust Bluetooth settings. Option Option Description Description PAIRING Pair the camera with a smartphone running the FUJIFILM Camera Remote app. REGISTRATION Choose a connection from a list of devices with which the SELECT PAIRING camera has been paired using PAIRING REGISTRATION.

  • Page 278: Network Setting

    • Install the latest version of the FUJIFILM Camera Remote app on your smartphone or tablet before pairing the device with your camera or uploading images. • When ON is selected for both Bluetooth ON/OFF and AUTO IMAGE TRANSFER or images are currently selected for upload using the IMAGE TRANSFER ORDER option in the C (playback) menu, upload to paired...

  • Page 279: Instax Printer Connection Setting

    CONNECTION SETTING instax PRINTER CONNECTION SETTING Adjust settings for connection to optional Fujifi lm instax SHARE printers. The Printer Name (SSID) and Password The printer name (SSID) can be found on the bottom of the printer; the default password is “1111”.

  • Page 280: Connection Mode

    USB TETHER Photoshop® Lightroom® + Tether Plugin, FUJIFILM X Acquire, SHOOTING AUTO or FUJIFILM Pixel Shift Combiner. FUJIFILM X Acquire can also be used to save and load camera settings. • The camera can be used as a webcam when connected to a computer running FUJIFILM X Webcam.

  • Page 281: Smartphone Wireless Com. Frequency Setting

    USB RAW conversion/backup restore mode. The camera functions normally when not connected. • USB RAW CONV. (requires FUJIFILM X RAW STUDIO): Use the cam- USB RAW CONV./ era’s image processing engine to rapidly convert RAW fi les BACKUP RESTORE to other formats while maintaining image quality.

  • Page 282: General Settings

    CONNECTION SETTING GENERAL SETTINGS Adjust settings for connection to wireless networks. Option Option Description Description Choose a name (NAME) to identify the camera on the wireless NAME network (the camera is assigned a unique name by default). Choose whether to resize images for upload to smartphones. Resizing applies only to the copy uploaded to the smartphone;...

  • Page 283: Shortcuts

    Shortcuts...

  • Page 284: Shortcut Options

    Shortcut Options Customize camera controls to suit your style or situation. Frequently-used options can be added to the Q menu or a cus- tom “my” menu or assigned to a function button or touch-func- tion gesture for direct access: Shortcut Option Shortcut Option Description Description...

  • Page 285: My Menu

    MY MENU Access a personalized menu of frequently-used options. To display “my menu”, press MENU/OK in the MY MENU SELF-TIMER shooting display and select the E (MY INTERVAL TIMER SHOOTING FILM SIMULATION MENU) tab. GRAIN EFFECT SHUTTER TYPE IS MODE FACE/EYE DETECTION SETTING EXIT The E tab is only available if options have been assigned to...
  • Page 286 MY MENU Choose a position for the item and SELECT ITEM LOCATION 1 IMAGE SIZE press MENU/OK. The item will be added 2 IMAGE QUALITY to “my menu”. MOVE SAVE Press MENU/OK to return to the edit display. Repeat Steps 3 and 4 until all the desired items have been added.

  • Page 287: The Quick Menu

    The Quick Menu Use the quick menu for quick access to selected options. To view the quick menu, press the Q button. The Quick Menu Display The quick menu off ers diff erent options in photo and movie modes. At default settings, it contains the following items: Still photography SELECT CUSTOM SETTING LONG PRESS...
  • Page 288 Movie recording SELECT CUSTOM SETTING LONG PRESS EDIT/SAVE CUSTOM Default Default SHOOTING MODE/ G G MOVIE MODE FRAME RATE SELECT CUSTOM SETTING WHITE BALANCE COLOR TEMP. B B SHUTTER SPEED (WHEN k SELECTED) MOVIE MODE RESOLUTION/ I I FILM SIMULATION ASPECT RATIO D F WHITE BALANCE J DYNAMIC RANGE...

  • Page 289: Viewing And Changing Settings

    The Quick Menu Viewing and Changing Settings Press Q to display the quick menu during shooting. Use the focus stick (focus lever) to highlight items and rotate the rear command dial to change. LONG PRESS EDIT/SAVE CUSTOM Press Q to exit when settings are complete. •...

  • Page 290: Editing The Quick Menu

    Editing the Quick Menu To choose the items displayed in the quick menu: Press and hold the Q button during shooting. The camera displays the photo quick menu during still photogra- phy and the movie quick menu when in movie mode. The current quick menu will be displayed;...
  • Page 291 The Quick Menu Available Items (Still Photography) Choose from: • • IMAGE SIZE HIGH ISO NR • • IMAGE QUALITY AF MODE • • FILM SIMULATION AF-C CUSTOM SETTINGS • • GRAIN EFFECT FACE/EYE DETECTION SETTING • • COLOR CHROME EFFECT MF ASSIST •...
  • Page 292 The Quick Menu Available Items (Movies) • • FILM SIMULATION MOVIE MODE FRAME RATE • • DYNAMIC RANGE MOVIE MODE BIT RATE • • WHITE BALANCE MOVIE AF MODE • • WHITE BALANCE COLOR TEMP. FIX MOVIE CROP MAGNIFICATION • F IS MODE (WHEN k SELECTED) •...

  • Page 293: Function Controls

    Function Controls Assign a role to each function button or touch-function gesture for quick access to the selected feature. The Function Buttons Assign a role to the function buttons for quick access to the se- lected feature. Function Button Defaults The default assignments are: Front-of-Camera Function Buttons Front-of-Camera Function Buttons...
  • Page 294 Back-of-Camera Function Buttons Back-of-Camera Function Buttons Function buttons Function buttons Default Default A A Fn2 button SHOOTING MODE B B Fn1 button EXPO. COMP. C C AE-L button AE LOCK ONLY D D Fn5 button AF MODE E E Secondary LCD monitor mode button SUB MONITOR MODE F F Center of rear command dial FOCUS CHECK...
  • Page 295 Function Controls Back-of-Camera Function Buttons (Portrait Orientation) Back-of-Camera Function Buttons (Portrait Orientation) Function buttons Function buttons Default Default A A Vertical grip Vertical grip center of rear command dial FOCUS CHECK B B Vertical grip Vertical grip AF-ON AF-ON button button AF-ON C C Vertical grip...
  • Page 296 Assigning Roles to the Function Buttons The roles played by the function buttons can be selected using the D BUTTON/DIAL SETTING  > FUNCTION (Fn) SETTING op- tion in the setup menu. • • SHOOTING MODE WIRELESS COMMUNICATION • • EXPO. COMP. FLASH FUNCTION SETTING •...
  • Page 297 Function Controls AF-ON Controls to which AF-ON is assigned can be used for autofocus. MODELING FLASH If MODELING FLASH is selected when a compatible shoe-mount- ed fl ash unit is attached, you can press the control to test-fi re the fl ash and check for shadows and the like (modeling fl ash).

  • Page 298: Touch-Function Gestures

    Touch-Function Gestures Assign roles to touch-function gestures (T-Fn1, T-Fn2, T-Fn3, or T-Fn4) for quick access to selected features. Touch-function gestures are disabled by default. To enable touch-func- tion gestures, select ON for D BUTTON/DIAL SETTING  > TOUCH SCREEN SETTING > c TOUCH FUNCTION. Touch-Function Gesture Defaults The default assignments for the diff erent gestures are: Touch-Function Gestures...
  • Page 299 Function Controls Assigning Roles to Touch-Function Gestures The roles played by touch-function gestures can be selected us- ing the D BUTTON/DIAL SETTING  > FUNCTION (Fn) SETTING option in the setup menu. • • IMAGE SIZE IS MODE • • IMAGE QUALITY 35mm FORMAT MODE •...
  • Page 300 MEMO...

  • Page 301: Peripherals And Optional Accessories

    Peripherals and Optional Accessories...

  • Page 302: Lenses

    Lenses The camera can be used with lenses for the FUJIFILM G-mount. Lens Parts Lens hood Aperture ring Mounting marks Lens signal contacts Focus ring Front lens cap Aperture ring lock release Rear lens cap Mounting marks (focal length) A GF63mmF2.8 R WR lens is used here for illustrative purposes.

  • Page 303: Lens Care

    Lenses Lens Care • Use a blower to remove dust, then gently wipe with a soft, dry cloth. Any remaining stains can be removed by wiping gently with a piece of Fujifi lm lens-cleaning paper to which a small amount of lens-cleaning fl uid has been applied. •...

  • Page 304: Aperture Rings

    Lenses Aperture Rings In modes A (aperture-priority AE) and M (manual), you can choose the aperture (f-number) by rotating the lens aperture ring. Aperture ring Aperture ring lock release Setting Setting Description Description With the aperture ring in the C or A position, you can choose C ( C ( the aperture (f-number) by rotating the camera command dial.

  • Page 305: Viewfi Nder Tilt Adapters

    Viewfi nder Tilt Adapters The optional EVF-TL1 tilt adapter lets you swivel the view- fi nder left or right ±45° or up or down between 0° and 90°. Hot shoe Connectors Tilt lock knob Connector cover Adapter lock release Hot shoe cover Horizontal swivel lock...

  • Page 306: Attaching The Evf-Tl1

    Attaching the EVF-TL1 Slide the EVF-TL1 onto the camera hot shoe and then attach the EVF-GFX2 elec- tronic viewfi nder. Remove the hot shoe covers from the camera and EVF-TL1 before attaching the adapter and viewfi nder. Removing the EVF-TL1 Remove the viewfi nder and then, keeping the lock releases ( ) pressed, press down on the...

  • Page 307: Using The Evf-Tl1

    Viewfi nder Tilt Adapters Using the EVF-TL1 Swivel the viewfi nder into the desired position. Swiveling the Viewfi nder Up or Down Loosen the tilt lock knob and swivel the viewfi nder up or down from 0° to 90°. With the viewfi nder in the desired posi- tion ( ), tighten the tilt lock knob ( to lock the viewfi nder in place.

  • Page 308: External Flash Units

    External Flash Units Use optional external fl ash units for fl ash photography. Some units support high-speed sync (FP) and can be used at shutter speeds faster than the fl ash sync speed, while others can function as commanders controlling remote units via optical wireless fl ash control.

  • Page 309: Flash Settings

    External Flash Units Flash Settings Connect the unit to the camera. In shooting mode, select FLASH FLASH SETTING FUNCTION SETTING in the F (FLASH FLASH FUNCTION SETTING RED EYE REMOVAL SETTING) menu tab. The options TTL-LOCK MODE LED LIGHT SETTING available vary with the fl ash unit.

  • Page 310: Sync Terminal

    SYNC TERMINAL The following options are available when no compatible fl ash unit is connected or if a unit is connected via the sync terminal or uses only the X-contact on the hot shoe. MODE SYNC TERMINAL ADJUST Setting Setting Description Description Choose from the following options:...

  • Page 311: Shoe Mount Flash

    External Flash Units SHOE MOUNT FLASH The following options are available when an optional shoe-mounted fl ash unit is attached and turned on. MODE SHOE MOUNT FLASH ADJUST Setting Setting Description Description The fl ash control mode selected with the fl ash unit. This can in some cases be adjusted from the camera;...
  • Page 312 Setting Setting Description Description The options available vary with fl ash control mode. • TTL: Adjust fl ash compensation (the full value may not be applied if the limits of the fl ash control system are exceed- ed). In the cases of the EF-X20, EF-20, and EF-42, the select- ed value is added to the value selected with the fl...
  • Page 313 External Flash Units Setting Setting Description Description Control fl ash timing. • H (1ST CURTAIN): The fl ash fi res immediately after the shut- ter opens (generally the best choice). • I (2ND CURTAIN): The fl ash fi res immediately before the shutter closes.

  • Page 314: Commander(Optical)

    COMMANDER(OPTICAL) The options will be displayed if the unit is currently functioning as a commander for Fujifi lm optical wireless remote fl ash control. MODE COMMANDER(OPTICAL) ADJUST Fujifi lm optical wireless remote fl ash control off ers a choice of four channels (Channels 1 through 4) for the exchange of optical signals between the commander and remote fl ash units.
  • Page 315 External Flash Units Setting Setting Description Description Choose fl ash control modes for groups A, B, and C. TTL% is available for groups A and B only. Flash control mode • TTL: The units in the group fi re in TTL mode. Flash com- (group A) pensation can be adjusted separately for each group.
  • Page 316 Setting Setting Description Description Choose a fl ash mode for TTL fl ash control. The options available vary with the shooting mode (P, S, A, or M) se- lected. • E (FLASH AUTO): The fl ash fi res only as required; fl ash level is adjusted according to subject brightness.
  • Page 317 External Flash Units Setting Setting Description Description Choose the group for units functioning as a command- er for Fujifi lm optical wireless remote fl ash control in TTL, TTL%, or M mode. This option is available only with clip- on fl ash units that support Fujifi lm optical wireless remote fl...
  • Page 318 MEMO...

  • Page 319: Connections

    Connections...

  • Page 320: Hdmi Output

    HDMI Output Camera shooting and playback displays can be output to HDMI devices. Connecting to HDMI Devices Connect the camera to TVs or other HDMI devices using a third-party HDMI cable. Turn the camera off . Connect the cable as shown below. Insert into HDMI connector Insert into HDMI Micro...

  • Page 321: Shooting

    HDMI Output Shooting Shoot photos and record movies while viewing the scene through the camera lens on or saving footage to the HDMI device. This feature can be used to save 4K and Full HD movies to an HDMI recorder. Playback To start playback, press the camera a button.

  • Page 322: Wireless Connections (Bluetooth®, Wireless Lan/Wi-Fi)

    Connect to the camera via Bluetooth or wireless LAN. To establish a wireless connection to the camera, you will need to in- stall the latest version of the FUJIFILM Camera Remote app on your smartphone or tablet. FUJIFILM Camera Remote...
  • Page 323 Wireless Connections (Bluetooth®, Wireless LAN/Wi-Fi) SmartPhones and Tablets: Bluetooth® Pairing Use D CONNECTION SETTING > Bluetooth SETTINGS > PAIRING REGISTRATION to pair the camera with smartphones or tablets. Pairing off ers a simple method for downloading photos from the camera. • Photos are downloaded via a wireless connection. •...

  • Page 324: Tethered Shooting: Capture One Pro Fujifi Lm/Adobe® Photoshop® Lightroom® Classic Cc + Fujifilm Tether Shooting Plug-In Pro For Gfx/Fujifilm X Acquire

    Tethered shooting can be performed using software such as Capture One Pro Fujifi lm, Adobe® Photoshop® Lightroom® Classic  CC, and FUJIFILM X Acquire. If you use Adobe® Photoshop® Lightroom® Classic CC, download FUJIFILM Tether Shooting Plug-in PRO for GFX from the Adobe Exchange web- site.

  • Page 325: Connecting Via Usb

    GFX/FUJIFILM X Acquire/FUJIFILM Pixel Shift Combiner” (P 304) • “Copying Pictures from a Memory Card to a Computer” (P 305) • “Using Your Camera as a Webcam (FUJIFILM X Webcam)” (P 305) • “Converting RAW Images: FUJIFILM X RAW STUDIO” (P 306) •...
  • Page 326 Tethered shooting: During tethered shooting, you can copy pictures using tethered shooting software such as the Capture One Pro Fujifi lm/Adobe® Photoshop® Lightroom® Classic CC + FUJIFILM Tether Shooting Plug-in PRO for GFX/ FUJIFILM X Acquire. • Image transfer: Use applications provided with your operat- ing system.
  • Page 327 Connecting via USB • Turn the camera off before disconnecting the USB cable. • When connecting USB cables, be sure the connectors are fully in- serted in the correct orientation. Connect the camera directly to the computer; do not use a USB hub or keyboard. •...

  • Page 328: Tethered Shooting: Capture One Pro Fujifi Lm/Adobe® Photoshop® Lightroom® Classic Cc + Fujifilm Tether Shooting Plug-In Pro For Gfx/ Fujifilm X Acquire/Fujifilm Pixel Shift Combiner

    ESET WIRELESS SETTING Photoshop® Lightroom® Classic CC + FUJIFILM Tether Shooting Plug-in PRO for GFX, FUJIFILM X Ac- quire, and FUJIFILM Pixel Shift Combiner can be used for teth- ered shooting. • Choose USB TETHER SHOOTING FIXED if the camera will be used solely for tethered shooting.

  • Page 329: Copying Pictures From A Memory Card To A Computer

    WIRELESS COM. FREQUENCY SETTING camera menus. USB RAW CONV./BACKUP RESTORE GENERAL SETTINGS • Launch FUJIFILM X Webcam. INFORMATION RESET WIRELESS SETTING ESET WIRELESS SETTING For more information on FUJIFILM X Webcam, see “Software for Use with Your Camera” (P 316).

  • Page 330: Converting Raw Images: Fujifilm X Raw Studio

    RESET WIRELESS SETTING ESET WIRELESS SETTING to convert RAW images to JPEG or TIFF images. For more information on FUJIFILM X RAW STUDIO, see “Software for Use with Your Camera” (P 316). Backing up and Restoring Camera Settings (FUJIFILM X Acquire) •...

  • Page 331: Connecting To Smartphones

    Connecting to Smartphones To copy pictures to a smartphone, connect the camera to the phone using a USB cable. For Customers Using Android Devices How you will connect the camera depends on the type of USB connector with which your smartphone is equipped. Type-C Type-C Ready a cable equipped with connectors matching the USB...
  • Page 332 Connect the camera and smartphone using a USB cable. If the smartphone asks for permission for an application other than the “Camera Importer” to access the camera, tap “Cancel” and move on to the next step. On your smartphone, tap the notifi cation “Connected to USB PTP”.
  • Page 333 Connecting via USB For Customers Using iOS Use a camera adapter. Given that the camera is equipped with a USB Type-C connector, you will need to supply a cable with a USB Type-A connector for connection to the camera adapter. Apple Lightning to Third-party USB cable USB Camera Adapter...

  • Page 334: Instax Share Printers

    instax SHARE Printers Print pictures from your digital camera to instax SHARE printers. Establishing a Connection Select D CONNECTION SETTING  > instax PRINTER CONNECTION SETTING and enter the instax SHARE printer name (SSID) and pass- word. The Printer Name (SSID) and Password The printer name (SSID) can be found on the bottom of the printer;...

  • Page 335: Printing Pictures

    Select C PLAY BACK MENU > instax PRINTER PRINT PRINTER PRINT. The camera will con- instax-12345678 nect to the printer. CONNECTING FUJIFILM-CAMERA-1234 CANCEL Use the focus stick (focus lever) to PRINTER PRINT 100-0020 display the picture you want to print, then press MENU/OK.
  • Page 336 MEMO...

  • Page 337: Technical Notes

    Technical Notes...

  • Page 338: Accessories From Fujifi Lm

    FUJINON lenses FUJINON lenses GF-series lenses: Interchangeable lenses for use exclusively with the FUJIFILM G-mount. Tilt adapters Tilt adapters EVF-TL1: This adapter lets you swivel the viewfi nder left or right ±45° or up or down between 0°...
  • Page 339 Accessories from Fujifi lm Shoe-mounted fl ash units Shoe-mounted fl ash units EF-X500: In addition to manual and TTL fl ash control, this clip-on fl ash unit has a Guide Number of 50/164 (ISO 100, m/ft.) and supports FP (high-speed sync), allowing it to be used at shutter speeds that exceed the fl...

  • Page 340: Software For Use With Your Camera

    Software for Use with Your Camera The camera can be used with the following software. For the latest information on software available from Fujifi lm, visit https://fujifilm-x.com/support/compatibility/cameras/. FUJIFILM Camera Remote Establish a wireless connection between your camera and a smartphone or tablet (P 298). http://app.fujifilm-dsc.com/en/camera_remote/...

  • Page 341: Adobe® Photoshop® Lightroom® Classic Cc + Fujifilm Tether Shooting Plug-In Pro For Gfx

    Adobe® Photoshop® Lightroom® Classic CC + FUJIFILM Tether Shooting Plug-in PRO for GFX Installing this dedicated plug-in allows tethered shooting us- ing Adobe® Photoshop® Lightroom® Classic CC. FUJIFILM Tether Shooting Plug-in PRO for GFX is available free of charge from the Adobe Exchange website.

  • Page 342: Fujifilm X Raw Studio

    Software for Use with Your Camera FUJIFILM X RAW STUDIO When the camera is connected to a computer via USB, FUJIFILM X RAW STUDIO can use the camera’s unique image processing engine to rapidly convert RAW fi les to create high-quality images in other formats.

  • Page 343: For Your Safety

    For Your Safety IMPORTANT SAFETY INSTRUCTIONS • Read Instructions Read Instructions: All the safety and operating instructions Power-Cord Protection: Power-supply cords should be routed should be read before the appliance is operated. so that they are not likely to be walked on or pinched by •...
  • Page 344 Power Lines: An outside antenna system should not be locat- Damage Requiring Service: Unplug this video product from ed in the vicinity of overhead power lines or other electric the wall outlet and refer servicing to qualifi ed service person- light or power circuits, or where it can fall into such power nel under the following conditions: •...
  • Page 345 For Your Safety  WARNING  WARNING  WARNING  WARNING If the battery leaks and fl uid gets in contact with your If the battery leaks and fl uid gets in contact with your Do not use the camera in the bathroom or shower. Do not use the camera in the bathroom or shower.
  • Page 346  CAUTION  CAUTION Do not use this came Do not use this camera in locations aff e ra in locations aff ected by oil cted by oil fumes, s fumes, steam, humidity or du team, humidity or dust. st. This can cause a fi re or electric shock.
  • Page 347 For Your Safety The Battery and Power Supply Note: Check the type of battery used in your camera and read Cautions: Handling the Battery Cautions: Handling the Battery ■ ■ • the appropriate sections. Do not transport or store with metal objects such as neck- laces or hairpins.
  • Page 348 Digital Split Image is a trademark or registered trademark of such as the sun in a cloudless sky. Failure to observe this FUJIFILM Corporation. Digital Micro Prism is a trademark or precaution could damage the camera image sensor. registered trademark of FUJIFILM Corporation. The typefaces •...
  • Page 349 For Your Safety NOTICES To prevent fire or shock hazard, do not expose the unit to rain or moisture. Please read the “Safety Notes” and make sure you understand them before using the camera. Perchlorate Material—special handling may apply. See: http://www.dtsc.ca.gov/hazardouswaste/perchlorate For Customers in the U.
  • Page 350 For Customers in Canada For Customers in Canada Disposal of Electrical and Electronic Equipment in Private Households Disposal of Electrical and Electronic Equipment in Private Households CAN ICES-3 (B)/NMB-3(B) In the European Union, Norway, Iceland and CAUTION: This Class B digital apparatus complies with Cana- Liechtenstein: This symbol on the product, or in dian ICES-003.
  • Page 351 Hereby, FUJIFILM Corporation declares that the radio er attention to security than applies in the case of wired equipment type FF180005 is in compliance with Directive networks. 2014/53/EU. Do not connect to unknown networks or networks to...
  • Page 352 For Your Safety Be sure to read these notes before using the lens Safety Notes  WARNING  WARNING • Make sure that you use the lens correctly. Read these safety Do not i Do not immerse in or expose mmerse in or expose to water. to water.

  • Page 353: Product Care

    Product Care To ensure continued enjoyment of the product, observe the following precautions. Camera body: Use a soft, dry cloth to clean the camera body after each use. Do not use alcohol, thinner, or other volatile chemicals, which could discolor or deform the leather on the camera body. Any liquid on the camera should be removed immediately with a soft, dry cloth.

  • Page 354: Cleaning The Image Sensor

    Cleaning the Image Sensor Dust that cannot be removed using D USER SETTING  > SENSOR CLEANING can be removed manually as de- scribed below. Note that there will be a charge to repair or replace the image sensor if it is damaged during cleaning. Use a blower (not a brush) to remove dust from the sensor.

  • Page 355: Firmware Updates

    Firmware Updates Updates to product fi rmware may result in changes not described in the manual. For more information, visit: https://fujifilm-x.com/support/download/firmware/cameras/ Checking the Firmware Version The camera will only display the fi rmware version if a memory card is inserted.

  • Page 356: Troubleshooting

    Troubleshooting Consult the table below should you encounter problems using your camera. If you don’t fi nd the solution here, con- tact your local Fujifi lm distributor. Power and Battery Problem Problem Solution Solution • The battery is exhausted: Charge the battery or insert a ful- ly-charged spare battery (P 40).
  • Page 357 Troubleshooting Problem Problem Solution Solution • Insert the battery (P 44). • Reinsert the camera battery in the correct orientation (P 44). • Make sure that the charger is correctly plugged in (P 40). • The battery has not been recharged for an extended period: If the battery has not been charged for an extended period, charging will be disabled to ensure safety.
  • Page 358 Menus and Displays Problem Problem Solution Solution Select ENGLISH for D USER SETTING > Qa Display is not in English. (P 53, 220).
  • Page 359 Troubleshooting Shooting Problem Problem Solution Solution • The memory card is full: Insert a new memory card or delete pictures (P 46, 200). • The memory card is not formatted: Format the memory card in the camera (P 218). • There is dirt on the memory card contacts: Clean the contacts with a soft, dry cloth.
  • Page 360 Problem Problem Solution Solution • The fl ash is disabled: Adjust settings (P 162). • The battery is exhausted: Charge the battery or insert a ful- The fl ash does not fi re. ly-charged spare battery (P 40). • The camera is in bracketing or continuous mode: Select single frame mode (P 7).
  • Page 361 Troubleshooting Playback Problem Problem Solution Solution The pictures were taken with a diff erent make or model of Pictures are grainy. camera. Playback zoom is The pictures were created using RESIZE or with a diff erent unavailable. make or model of camera. •...
  • Page 362 The computer does not Be sure the camera and computer are correctly connected recognize the camera. (P 301). FUJIFILM X RAW STUDIO Check the option selected for CONNECTION MODE or FUJIFILM X Acquire on the camera. Select USB RAW CONV./BACKUP fails to correctly detect RESTORE before connecting the USB cable (P 306).
  • Page 363 Troubleshooting Wireless Transfer For additional information on troubleshooting wireless connec- tions, visit: https://digitalcamera-support-en.fujifilm.com/ Problem Problem Solution Solution Cannot connect to smartphone. • The smartphone is too far away: Move the devices closer The camera is slow (P 298). to connect or upload •...
  • Page 364 Miscellaneous Problem Problem Solution Solution • Temporary camera malfunction: Remove and reinsert the battery (P 44). • The battery is exhausted: Charge the battery or insert a fully-charged spare battery (P 40). The camera is unresponsive. • The camera is connected to a wireless LAN: End the con- nection.

  • Page 365: Warning Messages And Displays

    Warning Messages and Displays Warning Messages and Displays The following warnings appear in the display. Warning Warning Description Description Low battery. Charge the battery or insert a fully-charged i (red) spare battery. Battery exhausted. Charge the battery or insert a ful- j (blinks red) ly-charged spare battery.
  • Page 366 Warning Warning Description Description • The memory card is not formatted for use in the camera: For- mat the card. • The memory card contacts require cleaning or the memory card is damaged: Clean the contacts with a soft, dry cloth. If the CARD ERROR message is repeated, format the card.
  • Page 367 Warning Messages and Displays Warning Warning Description Description • The fi le is corrupt or was not created with the camera: The fi le cannot be viewed. • The memory card contacts require cleaning: Clean the con- READ ERROR tacts with a soft, dry cloth. If the message is repeated, format the card.

  • Page 368: Memory Card Capacity

    Memory Card Capacity The following table shows the recording time or number of pictures available at diff erent image sizes. All fi gures are approximate; fi le size varies with the scene recorded, pro- ducing wide variations in the number of fi les that can be stored.

  • Page 369: Specifi Cations

    Q 1∶1 (2992 × 2992) RAW (11808 × 8754) TIFF (11648 × 8736) Lens mount FUJIFILM G mount • Sensitivity Still pictures: Standard output sensitivity equivalent to ISO  100 – 12800 in increments of ⁄  EV; AUTO1 – 3; extended output sensitivity equivalent to ISO 50, 25600, 51200, or 102400 •...
  • Page 370 System Metering 256-segment through-the-lens (TTL) metering; MULTI, SPOT, AVERAGE, CENTER WEIGHTED Exposure control Programmed AE (with program shift); shutter-priority AE; aperture-priority AE; manual exposure • Exposure compensation Still pictures: −5 EV – +5 EV in increments of ⁄ EV • Movies: −2 EV – +2 EV in increments of ⁄ EV •...
  • Page 371 Specifi cations System • Flash mode MODE: TTL MODE (FLASH AUTO, STANDARD, SLOW SYNC.), MANUAL, MULTI, OFF • SYNC. MODE: 1ST CURTAIN, 2ND CURTAIN, AUTO FP (high- speed sync) • RED EYE REMOVAL: e FLASH+REMOVAL, L FLASH, d REMOVAL, OFF Hot shoe Accessory shoe with TTL contacts;...
  • Page 372 Power supply/other • Power supply NP-T125 rechargeable battery (supplied with camera) • AC-15V AC adapter (available separately) • Battery life Battery type: NP-T125 (× 2) • Lens: GF63mmF2.8 R WR • External fl ash units: Disabled • Shooting mode: Mode P •...
  • Page 373 Specifi cations Wireless transmitter Wireless LAN Standards IEEE 802.11a/b/g/n/ac (standard wireless protocol) • Operating frequency Israel, Indonesia (center frequency) : 2,412 MHz–2,462 MHz (11 channels) • USA, Canada, China, India, Korea, Malaysia : 2,412 MHz–2,462 MHz (11 channels) : 5,180 MHz–5,320 MHz (W52, W53) : 5,745 MHz–5,825 MHz (UNII-3) •...
  • Page 374 EVF-GFX2 interchangeable electronic viewfi nder Type OLED Size 0.5-in/1.3 cm Pixel count Approximately 5.76 million dots Magnifi cation 0.86× with 50 mm lens (35 mm format) at infi nity and diop- −1 ter set to −1.0 m Diagonal angle of Approximately 41°...
  • Page 375 Specifi cations Weight and dimensions vary with the country or region of sale. Specifi cations and performance are subject to change without notice. Fujifi lm will not be held liable for any errors this manual may contain. The appearance of the product may diff er from that described in this manual.
  • Page 376 7-3, AKASAKA 9-CHOME, MINATO-KU, TOKYO 107-0052, JAPAN https://fujifilm-x.com...

This manual is also suitable for:

Gfx100

Table of Contents
