Scoreboard Operator's Instructions
Horn
Team
at
Bat
At
Ball
Bat
Time
On
Time
Hit
Off
Some features on the keyboard overlay may not be included on the particular model being operated.
Rev. 04/08/09
MPC Control
Model Code 387
Set
Time
Inning
Strike
Out
Reset
Error
Since 1934
Retain this manual in your permanent files
Baseball
Time Out Timer
Start
7
4
1
Options
Yes
Clear
8
9
No
5
6
Chronometer
(Time of Day)
Home
2
3
Score
Guest
0
Blank
Score
135-0076

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 387 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Nevco 387

Summary of Contents for Nevco 387

  • Page 1 Scoreboard Operator’s Instructions MPC Control Model Code 387 Baseball Time Out Timer Options Horn Start Clear Team Time Inning Chronometer Ball Strike (Time of Day) Time Home Reset Score Time Guest Error Blank Score Some features on the keyboard overlay may not be included on the particular model being operated.
  • Page 2 7425-Baseball w/Aux. Timer Display Thank You Thank You for choosing NEVCO. We appreciate your business. The following instructions will help you become familiar with the operation and features of the scoreboard system. Please take a few minutes to study this manual, and to practice with the control.

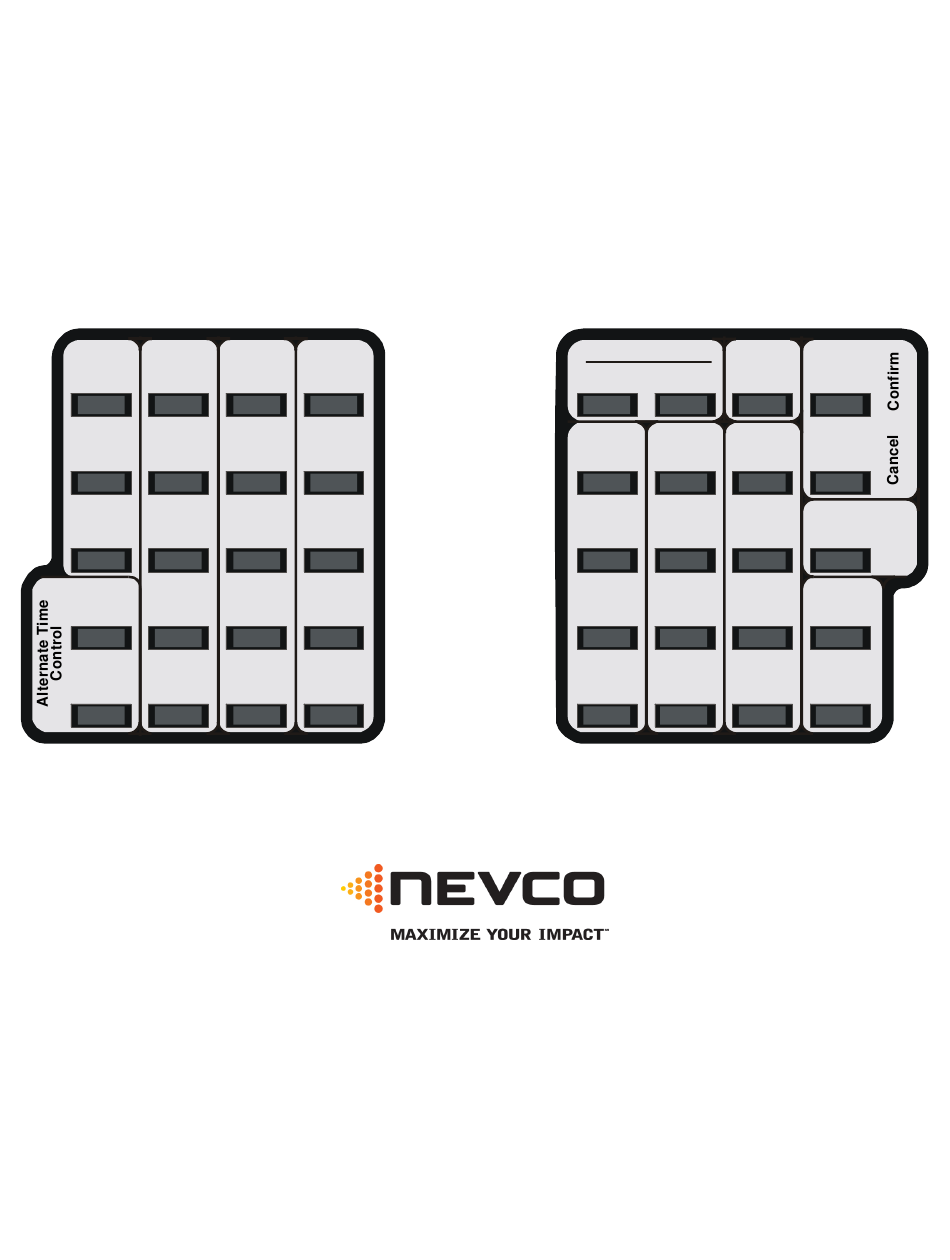

  • Page 3 Figure 1 – MPC Control (front view) MPC Control Can operate scoreboards for a wide range of sports and features. Power Supply 9 V DC (included with the control) Overlay Fits on top of control to label the keys (included with system) A TCS-5 time control switch is included with each control.
