displayit E20D Assembly Instructions

20' ensemble tension fabric trade show display kit

Advertisement

Quick Links

40" x 91" Flat-Top
1
2
3
12
4
11
10
5
Foot push button holes
6
9
face forward
8
7
1. Straighten and assemble all
bungeed poles.
3. Pull pillowcase graphic over frame
and zip bottom closed.
20' Ensemble Tension Fabric Trade Show Display Kit E20D
79" x 101" Arch-Top
2
3
1
16
15
14
Foot push button holes
13
face forward
12
11
10
79" x 101" Arch-Top
2
4
1
5
16
6
15
7
14
Foot push button holes
13
8
face forward
9
12
11
Push button does
not align with hole

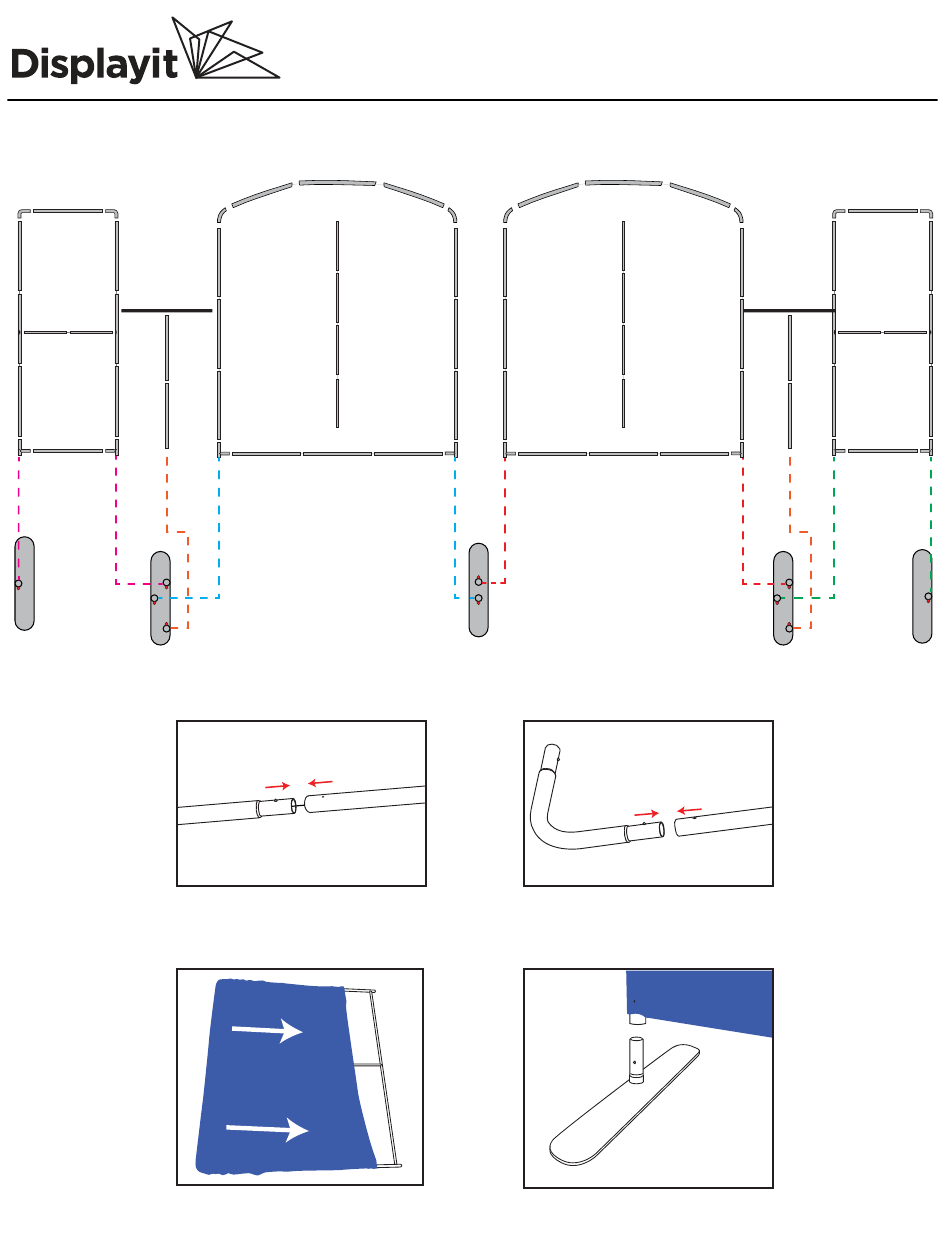

2. Assemble the frame by aligning
the stickers as seen in the frame
diagram above.
4. Attach the feet to the frame as
seen in the diagram above.
Assembly Instructions
3
40" x 91" Flat-Top
4
12
5
6
11
7
10
8
9
10
9
1
2
3
4
5
Foot push button holes
6
face forward
8
7
