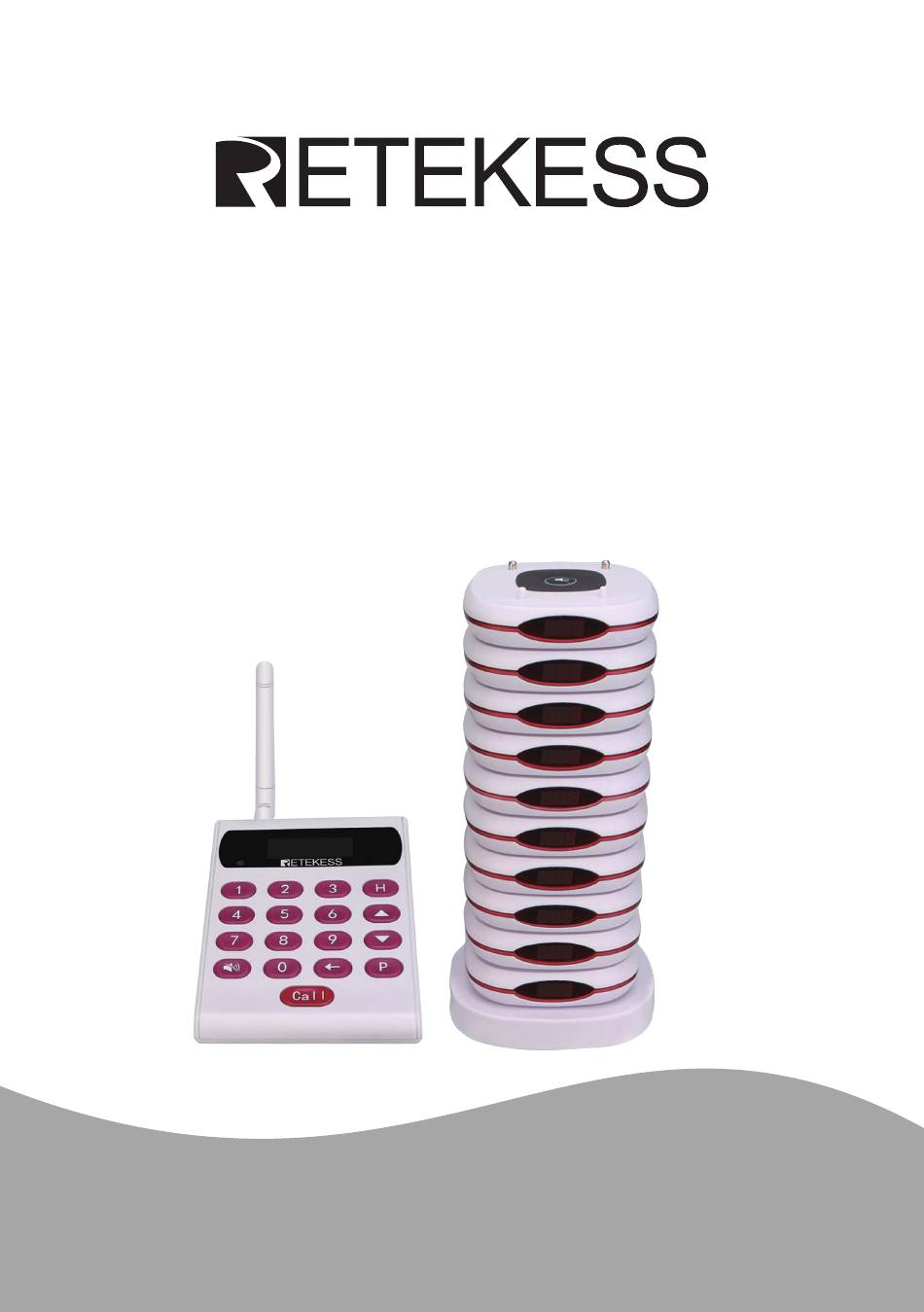

- Page 1 Queue Wireless Calling System User Manual TD161...
-
Page 2: Product Introduction

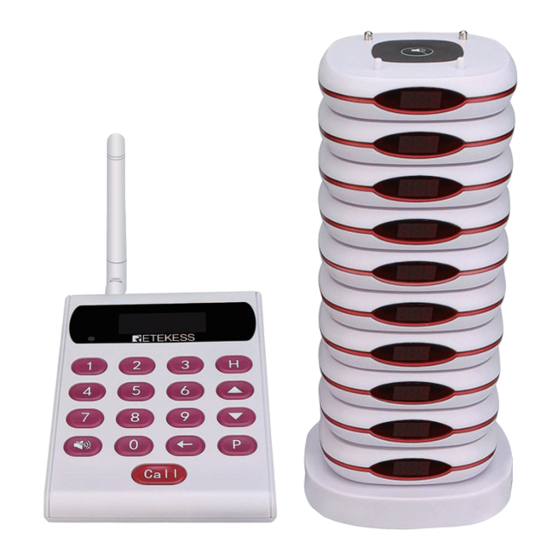

Product introduction Thank you for using Retekess Paging System, it adopts RF wireless technology. The TD161 guest pag- ing system consists of 1 keyboard transmitter and 10 coaster pagers. Each one keyboard transmitter can pair up to 998 coaster pagers. It is widely used in fast food restaurants, coffee houses, pizza shops, 4S stores, churches and other places where there are many guests waiting for their services. -
Page 3: Packing List
Parameter Host Pager Input Power DC12V/2A Battery Li-ion 3.7V 300mAh Frequency 433.92MHz Frequency 433.92MHz Transmit Power 26dBm Standby Current <12mA Standby Power <120mW Standby Duration Modulation Type Sensitivity -115dBm Max Capacity 998 pagers Max Distance 600m-800m Backup Battery Li-ion 3.7v 1000mAh Prompt Mode Vibration/Buzzer/Flashing Dimensions... - Page 4 Instructions for Use A.Before using Wiring: Host connects to power source via adapter. Charging base connects to host via Type-C cable. Connect host to power source, and charge pagers for 10 minutes at least before using. Charging Indicator Information: Host Pager Red LED Charging...
-
Page 5: Instruction Description
Instruction Description Instruction Buttons Display Function Programming Mode P 999 CALL P999 To enter programming mode History H + Number Check recent 10 call records. Mute Mode S999 All charging pagers switch to MUTE mode. 999 Call Quit Mute Mode S000 All charging pagers quit MUTE mode. - Page 6 Exposure awareness can be facilitated by the use of a product label directing users to specific user awareness information. Your Retekess radio has a RF Exposure Product Label. Also, your Retekess user manual, or separate safety booklet includes information and operating instructions required to control your RF exposure and to satisfy compliance requirements.
- Page 7 RED Directive 2014/53/EU and the ROHS Directive 2011/65/EU and the WEEE Directive 2012/19/EU; the full text of the EU declaration of conformity is available at the following internet address: www.retekess.com. • Disposal The crossed-out wheeled-bin symbol on your product, literature, or packaging reminds...
- Page 8 • The operating temperature of the EUT can’t exceed the specified range. Approved Accessories • This radio meets the RF exposure guidelines when used with the Retekess accessories supplied or designated for the product. Use of other accessories may not ensure com- pliance with the RF exposure guidelines and may violate regulations.
- Page 9 Guarantee Model Number: Serial Number: Purchasing Date: Dealer: Telephone: User’s Name: Telephone: Country: Address: Post Code: Email: Remarks: 1.This guarantee card should be kept by the user, no replament if lost. 2.Most new products carry a two-year manufacturer’s warranty from the date of purchase. 3.The user can get warranty and after-sales service as below: •...
- Page 10 Henan Eshow Electronic Commerce Co., Ltd. Add: 7/F, Sanjiang Building, No.170 Nanyang Road, Huiji District, Zhengzhou, Henan, China EU Importer: Germany Retevis Technology GmbH Address: Uetzenacker 29,38176 wendeburg Facebook: facebook.com/Retekess.ru E-mail: support@retekess.com.ru MADE IN CHINA Web: retekess.com.ru...
