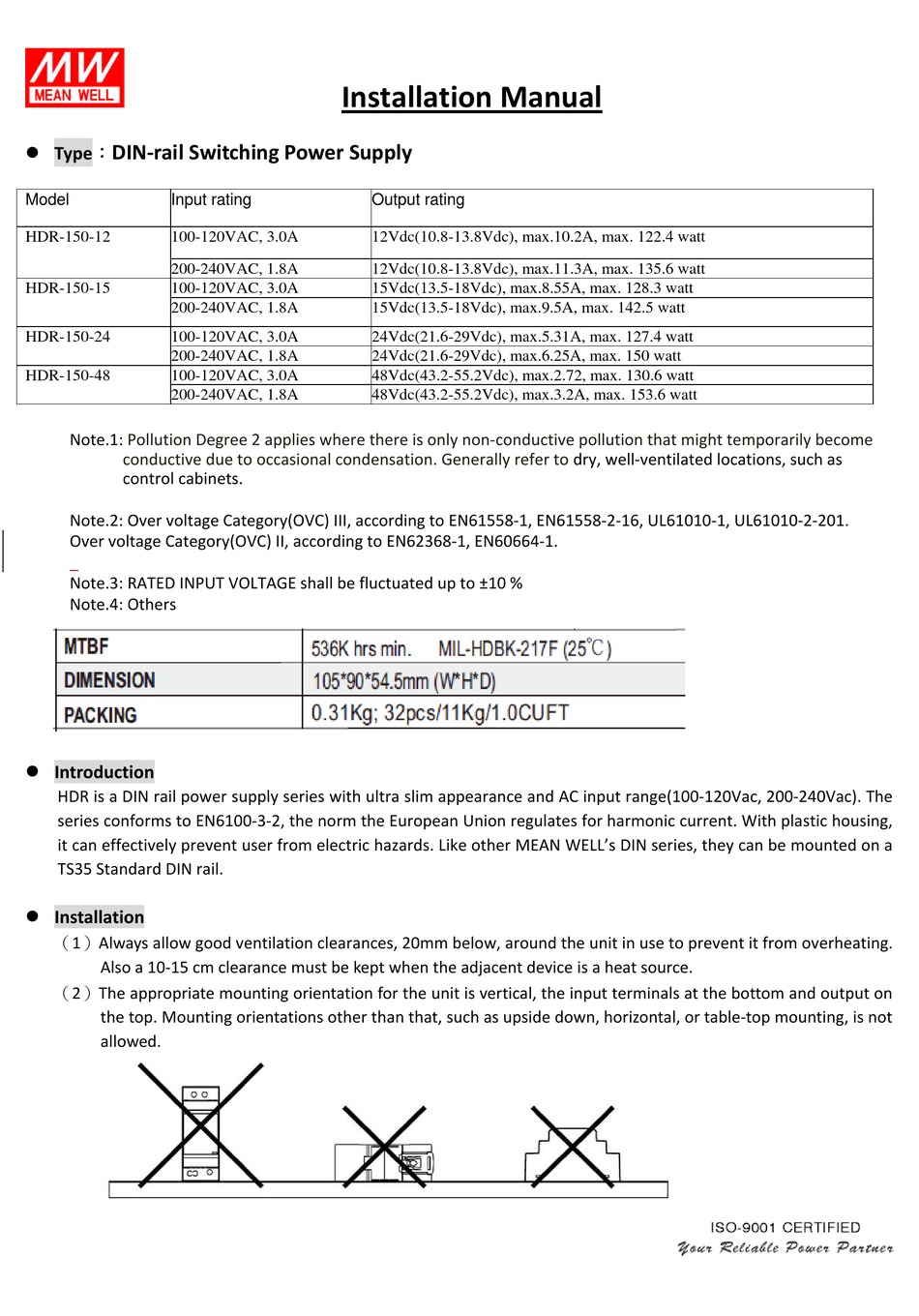

MW HDR-150-12 Installation Manual

 Type：
DIN-rail Switching Power Supply
Model Input rating
HDR-150-12 100-120VAC, 3.0A
200-240VAC, 1.8A
HDR-150-15 100-120VAC, 3.0A
200-240VAC, 1.8A
HDR-150-24 100-120VAC, 3.0A
200-240VAC, 1.8A
HDR-150-48 100-120VAC, 3.0A
200-240VAC, 1.8A
Note.1: Pollution Degree 2 applies where there is only non-conductive pollution that might temporarily become
conductive due to occasional condensation. Generally refer to
control cabinets.
Note.2: Over voltage Category(OVC) III, according to EN61558-1, EN61558-2-16, UL61010-1, UL61010-2-201.
Over voltage Category(OVC) II, according to EN62368-1, EN60664-1.
Note.3: RATED INPUT VOLTAGE shall be fluctuated up to ±10 %
Note.4: Others
 Introduction
HDR is a DIN rail power supply series with ultra slim appearance and AC input range(100-120Vac, 200-240Vac). The
series conforms to EN6100-3-2, the norm the European Union regulates for harmonic current. With plastic housing,
it can effectively prevent user from electric hazards. Like other MEAN WELL's DIN series, they can be mounted on a
TS35 Standard DIN rail.
 Installation
（1）Always allow good ventilation clearances, 20mm below, around the unit in use to prevent it from overheating.
Also a 10-15 cm clearance must be kept when the adjacent device is a heat source.
（2）The appropriate mounting orientation for the unit is vertical, the input terminals at the bottom and output on
the top. Mounting orientations other than that, such as upside down, horizontal, or table-top mounting, is not
allowed.
Installation Manual
Output rating
12Vdc(10.8-13.8Vdc), max.10.2A, max. 122.4 watt
12Vdc(10.8-13.8Vdc), max.11.3A, max. 135.6 watt
15Vdc(13.5-18Vdc), max.8.55A, max. 128.3 watt
15Vdc(13.5-18Vdc), max.9.5A, max. 142.5 watt
24Vdc(21.6-29Vdc), max.5.31A, max. 127.4 watt
24Vdc(21.6-29Vdc), max.6.25A, max. 150 watt
48Vdc(43.2-55.2Vdc), max.2.72, max. 130.6 watt
48Vdc(43.2-55.2Vdc), max.3.2A, max. 153.6 watt
dry, well-ventilated locations, such as
