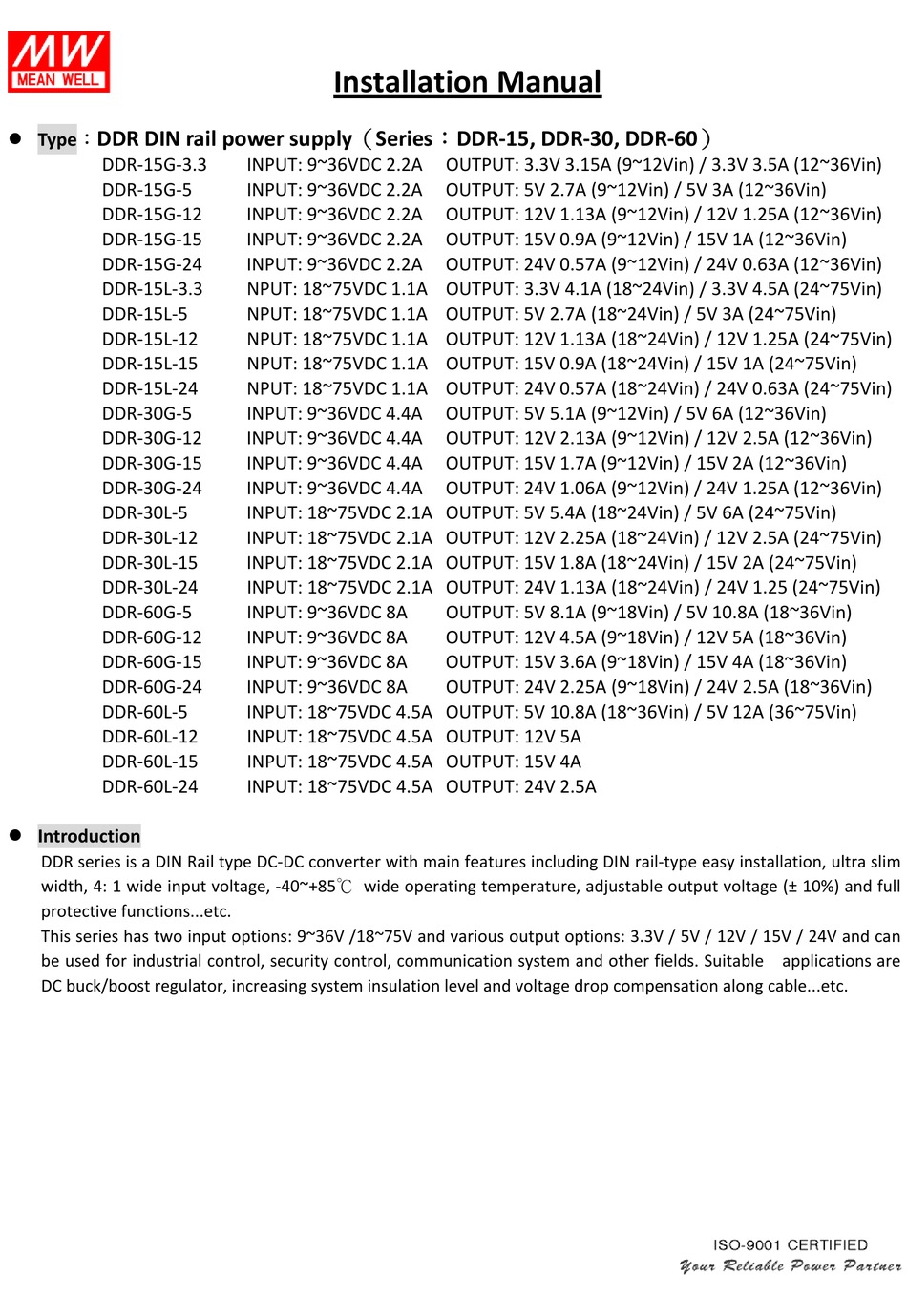

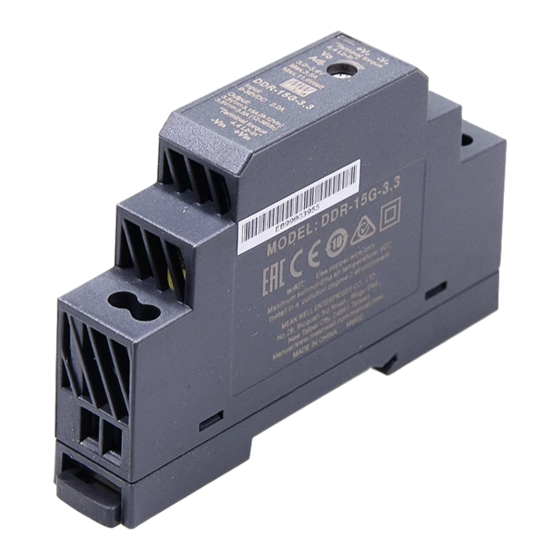

MW DDR-15 Series Installation Manual

 Type： DDR DIN rail power supply（Series：DDR-15, DDR-30, DDR-60）
DDR-15G-3.3
DDR-15G-5
DDR-15G-12
DDR-15G-15
DDR-15G-24
DDR-15L-3.3
DDR-15L-5
DDR-15L-12
DDR-15L-15
DDR-15L-24
DDR-30G-5
DDR-30G-12
DDR-30G-15
DDR-30G-24
DDR-30L-5
DDR-30L-12
DDR-30L-15
DDR-30L-24
DDR-60G-5
DDR-60G-12
DDR-60G-15
DDR-60G-24
DDR-60L-5
DDR-60L-12
DDR-60L-15
DDR-60L-24
 Introduction
DDR series is a DIN Rail type DC-DC converter with main features including DIN rail-type easy installation, ultra slim
width, 4: 1 wide input voltage, -40~+85℃ wide operating temperature, adjustable output voltage (± 10%) and full
protective functions...etc.
This series has two input options: 9~36V /18~75V and various output options: 3.3V / 5V / 12V / 15V / 24V and can
be used for industrial control, security control, communication system and other fields. Suitable applications are
DC buck/boost regulator, increasing system insulation level and voltage drop compensation along cable...etc.
Installation Manual
INPUT: 9~36VDC 2.2A
INPUT: 9~36VDC 2.2A
INPUT: 9~36VDC 2.2A
INPUT: 9~36VDC 2.2A
INPUT: 9~36VDC 2.2A
NPUT: 18~75VDC 1.1A OUTPUT: 3.3V 4.1A (18~24Vin) / 3.3V 4.5A (24~75Vin)
NPUT: 18~75VDC 1.1A OUTPUT: 5V 2.7A (18~24Vin) / 5V 3A (24~75Vin)
NPUT: 18~75VDC 1.1A OUTPUT: 12V 1.13A (18~24Vin) / 12V 1.25A (24~75Vin)
NPUT: 18~75VDC 1.1A OUTPUT: 15V 0.9A (18~24Vin) / 15V 1A (24~75Vin)
NPUT: 18~75VDC 1.1A OUTPUT: 24V 0.57A (18~24Vin) / 24V 0.63A (24~75Vin)
INPUT: 9~36VDC 4.4A
INPUT: 9~36VDC 4.4A
INPUT: 9~36VDC 4.4A
INPUT: 9~36VDC 4.4A
INPUT: 18~75VDC 2.1A OUTPUT: 5V 5.4A (18~24Vin) / 5V 6A (24~75Vin)
INPUT: 18~75VDC 2.1A OUTPUT: 12V 2.25A (18~24Vin) / 12V 2.5A (24~75Vin)
INPUT: 18~75VDC 2.1A OUTPUT: 15V 1.8A (18~24Vin) / 15V 2A (24~75Vin)
INPUT: 18~75VDC 2.1A OUTPUT: 24V 1.13A (18~24Vin) / 24V 1.25 (24~75Vin)
INPUT: 9~36VDC 8A
INPUT: 9~36VDC 8A
INPUT: 9~36VDC 8A
INPUT: 9~36VDC 8A
INPUT: 18~75VDC 4.5A OUTPUT: 5V 10.8A (18~36Vin) / 5V 12A (36~75Vin)
INPUT: 18~75VDC 4.5A OUTPUT: 12V 5A
INPUT: 18~75VDC 4.5A OUTPUT: 15V 4A
INPUT: 18~75VDC 4.5A OUTPUT: 24V 2.5A
OUTPUT: 3.3V 3.15A (9~12Vin) / 3.3V 3.5A (12~36Vin)
OUTPUT: 5V 2.7A (9~12Vin) / 5V 3A (12~36Vin)
OUTPUT: 12V 1.13A (9~12Vin) / 12V 1.25A (12~36Vin)
OUTPUT: 15V 0.9A (9~12Vin) / 15V 1A (12~36Vin)
OUTPUT: 24V 0.57A (9~12Vin) / 24V 0.63A (12~36Vin)
OUTPUT: 5V 5.1A (9~12Vin) / 5V 6A (12~36Vin)
OUTPUT: 12V 2.13A (9~12Vin) / 12V 2.5A (12~36Vin)
OUTPUT: 15V 1.7A (9~12Vin) / 15V 2A (12~36Vin)
OUTPUT: 24V 1.06A (9~12Vin) / 24V 1.25A (12~36Vin)
OUTPUT: 5V 8.1A (9~18Vin) / 5V 10.8A (18~36Vin)
OUTPUT: 12V 4.5A (9~18Vin) / 12V 5A (18~36Vin)
OUTPUT: 15V 3.6A (9~18Vin) / 15V 4A (18~36Vin)
OUTPUT: 24V 2.25A (9~18Vin) / 24V 2.5A (18~36Vin)
