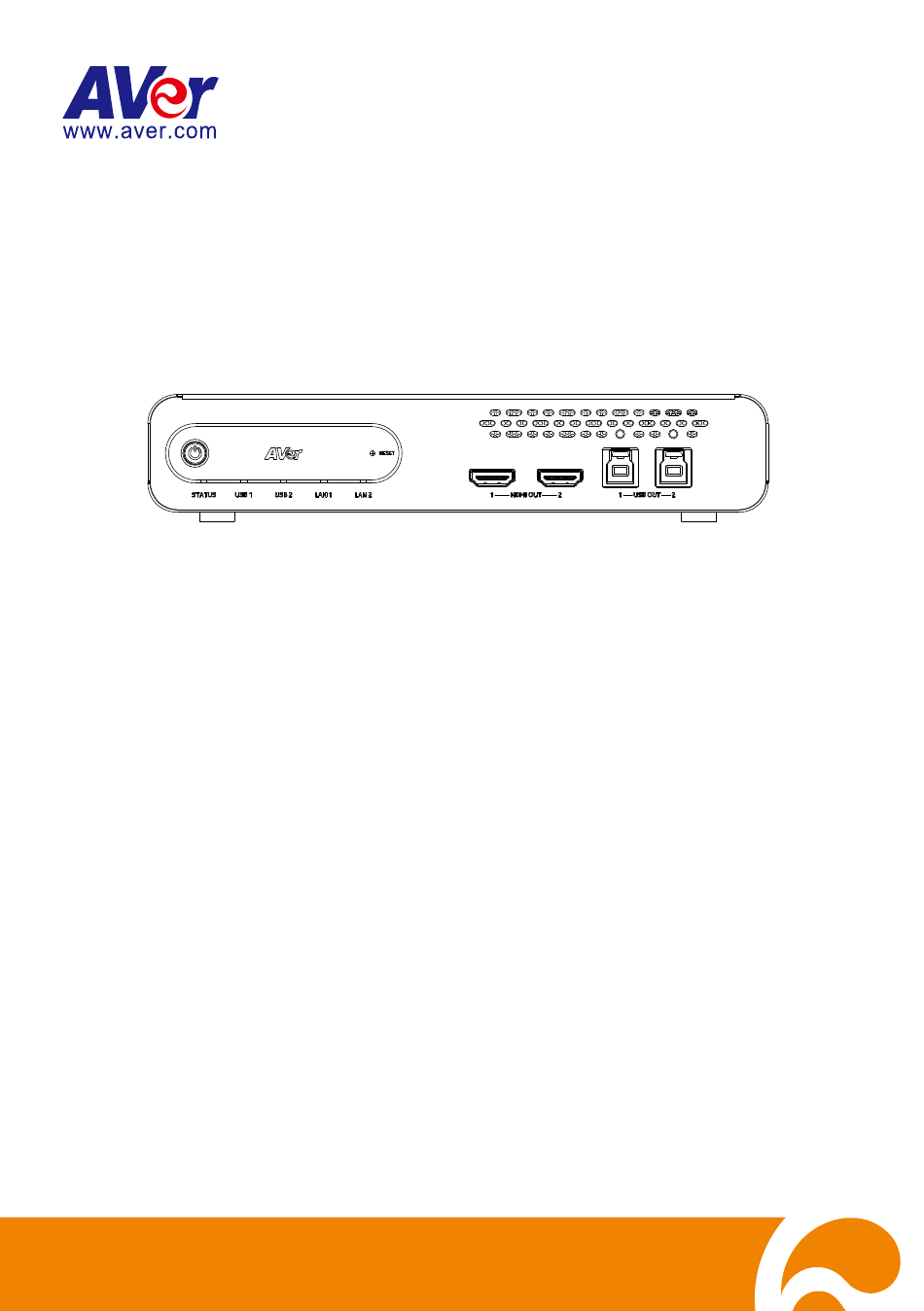

  • Page 1 MT300 Matrix Tracking Box User Manual...
  • Page 2 Risk of Explosion if Battery is replaced by an Incorrect Type. Dispose of Used Batteries According to the Instructions. COPYRIGHT © 2023 AVer Information Inc. All rights reserved. | June 14, 2023 The information contained in this documentation is subject to change without notice.
  • Page 3 Tel: +81 (0) 3 5989 0290 テクニカル・サポート: https://jp.aver.com/technical-support Vietnam Branch Office Công ty TNHH AVer Information (Việt Nam) Tầng 5, 596 Nguyễn Đình Chiểu, P.3, Quận 3, Thành phố Hồ Chí Minh 700000, Việt Nam Tel: +84 (0) 28 22 539 211...

  • Page 4: Table Of Contents

    Desk Mount Installation ....................6 Server Rack Mount (Optional Accessories) ..............6 Getting Started ....................... 7 Web Interface Setup ....................7 With AVer IPCam Utility ..................7 With Power over Ethernet Plus (PoE+) ..............8 Main Screen ........................ 9 Device ........................10 Profile ........................
  • Page 5 Troubleshooting ......................30...

  • Page 6: Overview

    Overview Package Contents MT300 Power Adapter & Cable Ties (x13) Cable Fixing Plate Matrix Tracking Box Power Cord (x2) 3.0 x 5mm M3 x 10mm Rack Mount Bracket 3.0 x 5mm Flat Head Screw (x5) Screws (x4) (x2) Truss Head Screw (x4) USB 3.0 Cable (x2)

  • Page 7: Connections

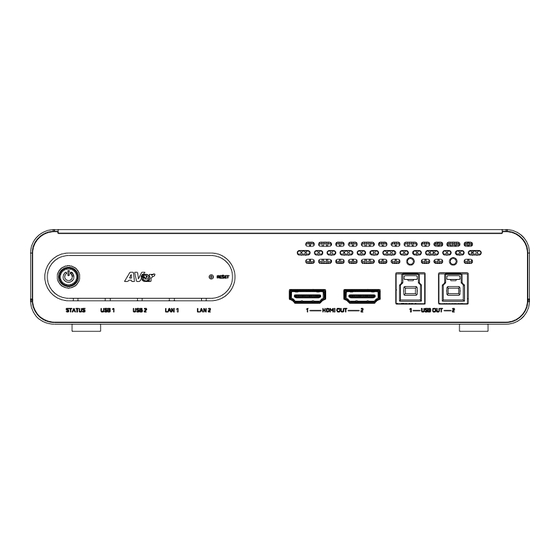

    Connections Front Panel Back Panel Power Button DC Power Jack Reset Button PoE+ Port IEEE 802.3AT Status LEDs Ethernet Port HDMI Out Port*2 HDMI In Port*3 USB Out 3.0 Port (Type-B)*2 USB In 2.0 Port (Type-A)*3 (Only 1 USB output each time) RS-422 Port Kensington Lock...
  • Page 8 Front Panel Back Panel Network...

  • Page 9: Dimensions

    Dimensions LED Indicators STATUS (Power/System) Status Solid orange Powered on but not operating Solid green Operating successfully Flashing green Firmware updating USB 1 / USB 2 Status Solid green Connected and ready for UVC / UAC streaming Flashing green Streaming in UVC / UAC LAN 1 / LAN 2 Status Solid green...

  • Page 10: Cable Fixing Plate Installation

    Cable Fixing Plate Installation 1. Secure the cable fixing plates to the tracking box with 5 flat hat 3.0 x 5mm screws in the package. 3. Use 13 cable ties in the package to secure 2. Plug in cables. the cables and cable fixing plates.

  • Page 11: Desk Mount Installation

    Desk Mount Installation 1. Secure the mount brackets on the tracking box. Screw: 4 truss head screws, 3.0 x 5mm 2. Install the mount brackets and the tracking box under the desk. Screw: 4 screws, M3 x 10mm Server Rack Mount (Optional Accessories) For details on optional accessories, consult your local dealer.

  • Page 12: Getting Started

    Web Interface Setup Configure settings through the web interface. With AVer IPCam Utility Download and run IPCam Utility from the AVer Download Center (https://www.aver.com/download-center). Click Search to see the list of devices. If the tracking box doesn’t appear, make sure: ...

  • Page 13: With Power Over Ethernet Plus (Poe+)

    With Power over Ethernet Plus (PoE+) Connect the tracking box to the network using the PoE+ port. Set up your computer with static IP 192.168.1.x. Type in 192.168.1.168 in your web browser to open the web interface. The default network is Static IP, and the default username/password is admin/admin. You can also use the Ethernet port to open the web interface: Network Port Default IP Address...

  • Page 14: Main Screen

    Main Screen 1. Account Switch between admin and user accounts.  An admin account provides access to settings and configurations that are not available to a user account. A user account can select profiles and switch between Auto and Manual Mode. ...

  • Page 15: Device

    Device Go to Settings icon on the main screen > Device. To add cameras and microphones: Click Add device. Fill out the Add New Device dialog box. Item Description Select Camera or Microphone Add a camera or a microphone. Connect camera via IP / IP: Connect the camera via Ethernet or PoE+.
  • Page 16 To edit devices:  Hover over the device and click the Pencil icon.  Edit device in the dialog box and click Save. To delete devices: Hover over the device and click the Trash can icon.

  • Page 17: Profile

    Go to Settings icon on the main screen > Profile. Auto Mode Settings Auto Mode integrates AVer PTZ Link (Premium version) software, which connects AVer cameras to third-party microphone systems (supported models) from Audio-Technica, ClearOne, Nureva, Sennheiser, Shure and Yamaha.

  • Page 18: Supported Aver Cameras

    Supported AVer Cameras PTC V2 Series PTC500 Series PTC330 Series PTC310 Series PTC115 Series PTC330UV2 PTC500S PTC330 PTC310 PTC115 TR333V2 TR530 TR331 TR311 TR320 PTC320UNV2 PTC500+ PTC330N PTC310U PTC115+ TR323NV2 TR530+ TR331N TR313 TR320+ PTC320UV2 PTC330U PTC310H TR333 PTC310UV2 PTC310N...
  • Page 19 Auto Mode Settings screen. Select Output Layout Select a video display layout for up to 3 devices. Add Device Group Add up to 25 AVer camera + microphone groups by selecting your camera, microphone and microphone channels.

  • Page 20: Select Group

    The device groups are displayed in the Select Group section. Device status The icon indicates your camera status. Click the question mark for reference. Icon Status Camera is sending data to MT300 Device online Device offline Incorrect account or password Group +...
  • Page 21 Hamburger menu (triple bars) Click to select a camera + microphone group and click the hamburger menu. Item Description Set preset Set up 0-255 preset positions. Edit group Edit name, device pair and channels. Delete group Delete a group from list. Group overlap priority Set a group as priority.
  • Page 22 Set Preset Set up 0-255 preset positions. To set up a preset position: On Select group, click to select a group > hamburger menu > Set preset. To exit, click Back. First, position the camera using pan, tilt and zoom controls. Select a preset number from the Preset setting number pad and then click the save button to save that position.
  • Page 23 Group Overlay Priority Group overlay priority can be used when several camera + microphone groups share the same camera. When these microphones detect the same sound source, the camera will only move to the preset position configured in the priority group. To set a group as priority: Hover over the device and click the hamburger menu.

  • Page 24: Pair Presets With Microphone Channels

    Pair Presets with Microphone Channels Pairing presets with microphone channels enables users to turn AVer cameras into voice tracking cameras. When the tracking box detects sound sources from a microphone channel (lobe), the corresponding camera will turn to a linked preset and frame the speaker.
  • Page 25 Set time to trigger. Horizontally scroll right and click the Time button to set up how long it takes to trigger a preset or go back to a pre-configured Preset 0 (home position). Item Description Time to trigger Preset Select how long it takes for the camera to move to a preset after it detects a sound.

  • Page 26: Manual Mode Settings

    Manual Mode Settings Go to Settings icon on the main screen > Profile > Manual Mode Settings. Profile Select a profile to save the settings in or rename the profile from the drop-down list. The settings are saved automatically when closing the Manual Mode Settings screen. Select Output Layout Select a video display layout for up to 4 devices.

  • Page 27: Video

    Video Go to Settings icon on the main screen > Video. Item Description Video Output Resolution Select a video output resolution. Stream Video Output Select a streaming output resolution for the live view. Framerate Select a framerate. Bitrate Select a bit rate. Encoding Type Select H.264 or H.265.

  • Page 28: Network

    PoE+ Item Description DHCP Enable or disable DHCP. Hostname The default hostname is AVer. Change the hostname to be displayed on devices such as an IP router. IP Address Netmask Enter your network settings when DHCP is disabled. Gateway Ethernet...
  • Page 29 RTMP Settings Configure Real-Time Messaging Protocol (RTMP) settings to stream live audio and video to a video platform such as YouTube. To enable live streaming on YouTube: Go to YouTube. From the top right, click Create > Go live. Copy and paste your YouTube server URL and stream key into the web interface. Click Start Stream to start streaming, Stop to stop streaming.

  • Page 30: Ndi (Mt300N)

    Ethernet networks. It allows devices to connect and communicate with each other and can transmit multiple streams simultaneously over a single network cable. Make sure your device or application support NDI. Tracking box comes in two models: MT300 (without NDI) and MT300N (with NDI). To purchase NDI|HX upgrade, please visit NewTek Online Store (https://store.newtek.com/ndi-hx-upgrade-for-cameras.html#).
  • Page 31 Reliable UDP Select the checkbox to enable Reliable User Datagram Protocol (RUDP).  This provides reliable data delivery between applications running on different devices over IP networks. Discovery Server Select the checkbox to enable discovery server. This allows devices to discover and connect to each other ...

  • Page 32: System

    System Go to Settings icon on the main screen > System. Item Description MT300 Information Display MT300 information such as the IP address. Upgrade Firmware Download the latest firmware from AVer Download Center (https://www.aver.com/download-center). Login Edit your admin and user account login.

  • Page 33: Help

    Help View our user manual, terms and conditions, and private policy. Go to Settings icon on the main screen > Help.

  • Page 34: Specification

    Specification DC Power 12V/1.5A PoE+ 42.5-57V / 0.6A Reset Button 3, Type-A for peripherals input USB Inputs #1,#2 are UVC only #3 can be UVC or UAC 2, Type-B for user application Non-simultaneous output Automatic switch to the port that is connected to host. Port #1 has USB Outputs higher priority if both ports are connected to host (PC or MTR),.
  • Page 35 Troubleshooting No human tracking.  Make sure your camera supports human tracking. For supported AVer cameras, see Supported AVer Cameras.  If your camera is connected via HDMI and controlled via RS-422, make sure you select “Support Human Tracking” from the drop-down list. Hover over the device in the Device list and click the Pencil icon to edit.
