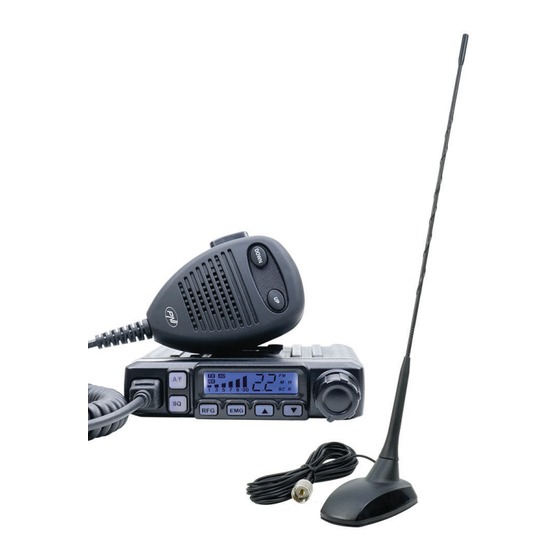

PNI ESCORT HP 7120 +
CB radio and CB antenna / CB радио и CB антена /
CB-Radio und CB-Antenne / Emisoras CB y antena CB / Poste CB et antenne CB /
CB rádió és CB antenna / Radio CB e antenna CB / CB-radio en CB-antenne / CB
radio i antena CB / Statie radio CB si antena CB
EN
BG
DE
ES
FR
HU
IT
NL
PL
RO
PNI EXTRA 48
User manual .............................................
Ръководство за потребителя ................
Benutzerhandbuch ...................................
Manual de usuario ....................................
Manuel utilisateur .....................................
Használati utasítás ...................................
Manuale utente ........................................
Handleiding
....................................................
Instrukcja obsługi .....................................
Manual de utilizare ...................................
3
10
17
24
31
38
45
52
59
66

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ESCORT HP 7120 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PNI ESCORT HP 7120

Summary of Contents for PNI ESCORT HP 7120

  • Page 1 PNI ESCORT HP 7120 + PNI EXTRA 48 CB radio and CB antenna / CB радио и CB антена / CB-Radio und CB-Antenne / Emisoras CB y antena CB / Poste CB et antenne CB / CB rádió és CB antenna / Radio CB e antenna CB / CB-radio en CB-antenne / CB radio i antena CB / Statie radio CB si antena CB User manual ..........

  • Page 3: Other Warning

    WARNINGS Please read the ollowing precautions to prevent re, personal injury or the radio destruction. Do not attempt to adjust the radio while driving; is dangerous. This radio is designed for power supply at 13.8V DC. Do not use a 24V battery to power the radio.
  • Page 4 PNI Escort HP 7120 can be operated as a mobile station in a car or with a suitable DC power supply as a base station. This device complies with the latest European CB stan-dards. Due to its selectable CB standards it can be used throughout Europe. Please select only a CB standard that is allowed in the country of use.

  • Page 5: Back Panel

    DISPLAY FM AM 1 3 5 7 9 +30 SC R 1 - Selected channel 2 - AM/FM mode 3 - RX/TX: reception (RX) and trasmission (TX) indicator 4 - SC: SCAN function activated 5 - AQ: automatic squelch activated 6 - R: RF GAIN activated 7 - Received signal strenght indicator and trasmission power signal BACK PANEL...

  • Page 6: Antenna Connection

    ANTENNA CONNECTION Connect the CB antenna to the ANT socket on the back of your radio. The antenna must be tuned to the CB radio band. For this use a SWR meter. For a good radio range, the SWR should not exceed a value o...

  • Page 7: Frequency Band Chart

    the screen. Use the up/down keys to change the direction of the scan. Press the [7] key or the PTT key on the microphone again to deactivate the scan function. CHANGING THE CB-STANDARD To change the standard you are using the CB radio in, do the ollowing: •...

  • Page 8: Restore Factory Default

    RESTORE FACTORY DEFAULT • Press the [2] - SQ key while turning on the radio. • The “rt” icon will appear on the screen • All settings and functions will be reset SPECIFICATION Frequency 26.965-27.405 MHz Dimensions 110 X 120 X 28 mm Weight 385 g Power supply...

  • Page 9: Installation Instructions

    PNI EXTRA 48 CB ANTENNA PNI EXTRA 48 is a small CB radio antenna suitable or both cars and trucks, compatible with all CB radio on the market. It is very easy to install with the help of the magnetic base in the package.
  • Page 10 СПЕЦИАЛНИ ПРЕДУПРЕЖДЕНИЯ Моля, прочетете следните предпазни мерки, за да предотвратите пожар, телесна повреда или унищожаване на станцията. Не се опитвайте да регулирате станцията, докато шофирате, това е опасно. Тази станция е предназначена за захранване при 13.8V DC. Не използвайте 24V батерия за...
  • Page 11 PNI Escort HP6500 може да се използва като мобилна станция в автомобили или като базова станция, ако й осигурите подходящо захранване. Устройството отговаря на най-новите европейски стандарти. Благодарение на избираемите правила, HP 7120 Escort PNI може да се използва в цяла Европа.
