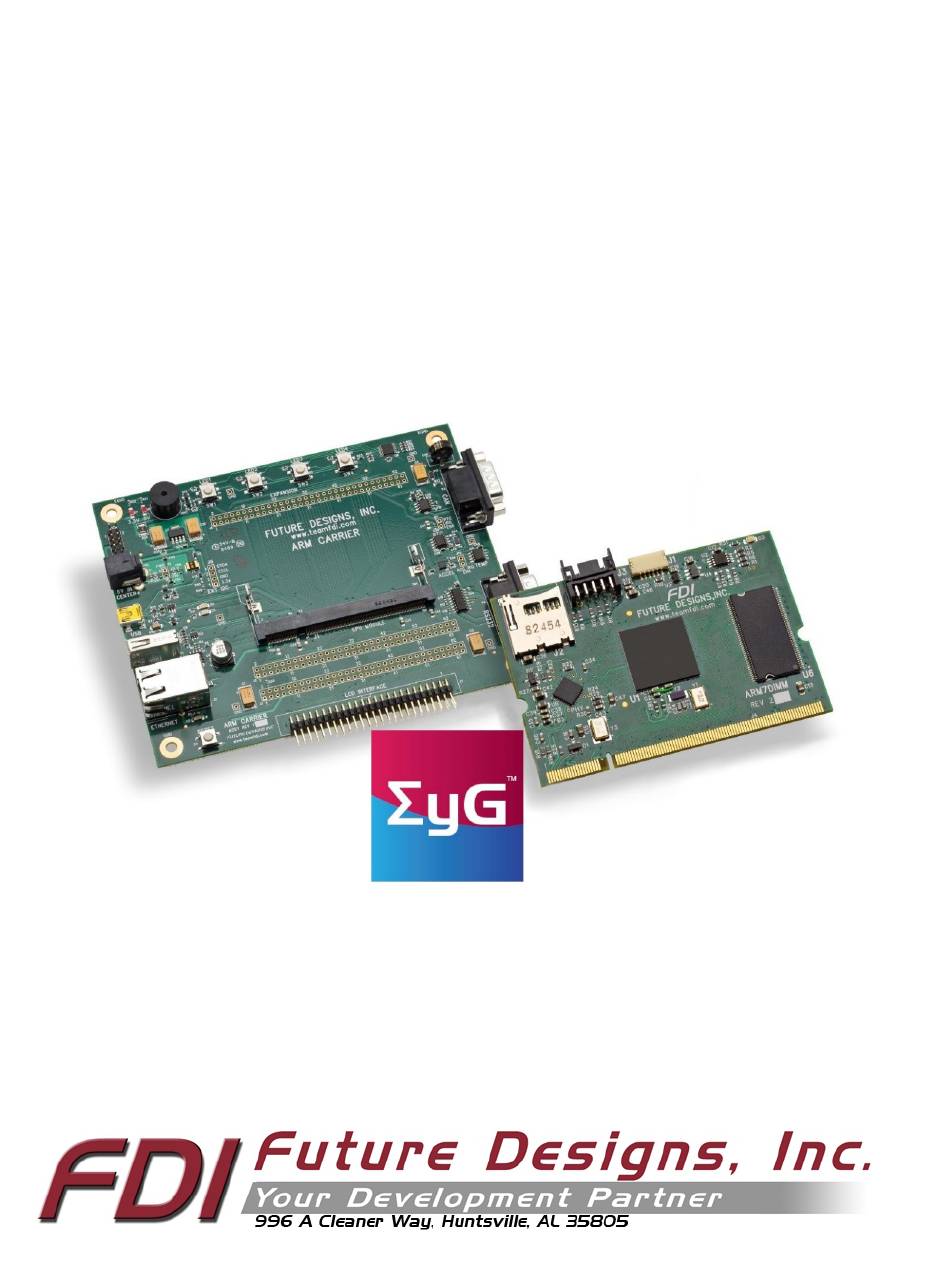

  • Page 1 User’s Manual ΣYG-S7G2-MDK Version 1.3 Copyright ©2015, Future Designs, Inc., All Rights Reserved...

  • Page 2: Important Legal Information

    User’s Manual Important Legal Information Information in this document is provided solely to enable the use of Future Designs, Inc. (FDI) products. FDI assumes no liability whatsoever, including infringement of any patent or copyright. FDI reserves the right to make changes to these specifications at any time, without notice. No part of this document may be reproduced or transmitted in any form or by any means, electronic or mechanical, for any purpose, without the express written permission of Future Designs, Inc.

  • Page 3: Table Of Contents

    ΣYG-S7G2-MDK User’s Manual Table of Contents Important Legal Information ............................2 ΣyG-S7G2 Modular Development Kit (MDK) Overview ................5 Introduction ..............................5 ESD Warning ............................... 5 Renesas Synergy S7G2 Microcontoller Block Diagram ................6 ΣyG-S7G2 SOM System Block Diagram ....................7 Requirements ...............................
  • Page 4 ΣYG-S7G2-MDK User’s Manual External I2S Audio ............................ 23 ΣyG-S7G2 System on Module Board Layout ..................... 24 3.1 Schematics................................. 24 3.2 Mechanicals............................... 24 Support ................................26 Where to Get Help ............................ 26 Useful Links ............................... 26 Copyright ©2021, 4/5/2021 Future Designs, Inc Page 4 of 26...

  • Page 5: Σyg-S7G2 Modular Development Kit (Mdk) Overview

    ΣyG Modular Development LCD Kits but can be used independently as a lower cost option for those embedded applications without the need for a touch screen display. FDI offers low cost customization services for customer specific hardware, software or packaging applications at volumes of 500 units or more.

  • Page 6: Renesas Synergy S7G2 Microcontoller Block Diagram

    ΣYG-S7G2-MDK User’s Manual 1.3 Renesas Synergy S7G2 Microcontoller Block Diagram Figure 1: S7G2 System Block Diagram Copyright ©2021, 4/5/2021 Future Designs, Inc Page 6 of 26...

  • Page 7: Σyg-S7G2 Som System Block Diagram

    ΣYG-S7G2-MDK User’s Manual 1.4 ΣyG-S7G2 SOM System Block Diagram Figure 2: ΣYG-S7G2 Kit Block Diagram (4.3” display shown) Copyright ©2021, 4/5/2021 Future Designs, Inc Page 7 of 26...

  • Page 8: Requirements

    ΣYG-S7G2-MDK User’s Manual 1.5 Requirements The ΣYG-S7G2-MDK requires a carrier board with a 200-pin SO-DIMM socket. The socket should have the key at the 1.8V location. The CARRIER Board from Future Designs provides this socket and should be utilized to develop your application for initial verification. Each ΣyG development kit includes: •...

  • Page 9: Demonstration Software

    ΣYG-S7G2-MDK User’s Manual Figure 3: SOMDIMM Insertion The following are step by step instructions for setting up the hardware. 1) Make sure you have a SOMDIMM board plugged into the CARRIER board at J1. 2) Verify the LCD Interface ribbon cable connects the LCD CARRIER board to the CARRIER (J7) board.
  • Page 10 ΣYG-S7G2-MDK User’s Manual Figure 4: ThreadX ΣYG-S7G2-MDK Demonstration Copyright ©2021, 4/5/2021 Future Designs, Inc Page 10 of 26...

  • Page 11: Σyg-S7G2 Som System On Module Board Components

    ΣYG-S7G2-MDK User’s Manual ΣyG-S7G2 SOM System on Module Board Components 4.1 ARM Mini-JTAG J2 The ΣyG-S7G2 SOM uses a JTAG connector based on a 2mm header. This smaller connector provides 100% of the functionality of the standard 20-pin JTAG connector, but utilizes 70% less board space.

  • Page 12: Microsd Socket J1

    ΣYG-S7G2-MDK User’s Manual Figure 6: Tag-Connect JTAG 4.3 MicroSD Socket J1 The ΣyG-S7G2 SOM utilizes a microSD for flexible mass storage. MicroSD flash cards are common, cost effective, and provides a large amount of user-changeable memory. Pin Number Description DAT2/RSV CD_DAT3/CS# CMD/SDI CLK/SCLK...

  • Page 13: Inserting The Microsd Card Into The Microsd Socket

    ΣYG-S7G2-MDK User’s Manual pull mechanism will “click” again and eject the card from the socket. The card is now available for safe removal. 4.3.1 Inserting the microSD card into the microSD socket First, prepare to insert the microSD card into the Next, partially insert the card into the socket.

  • Page 14: Removing The Microsd Card From The Microsd Socket

    ΣYG-S7G2-MDK User’s Manual 4.3.2 Removing the microSD card from the microSD socket Begin to remove the microSD card by gently Once the microSD card is ejected, it will pushing the card into the socket. The socket partially extend out from the socket. will “click”...

  • Page 15: 200-Pin Somdimm Connector Details J4

    ΣYG-S7G2-MDK User’s Manual 4.5 200-pin SOMDIMM Connector Details J4 SOMDIMM Signal Name Application Details SOMDIMM Connection Details ETH_TXP Ethernet Transmit Positive Output from KSZ8041 Ethernet PHY ETH_RXP Ethernet Receive Positive Output from KSZ8041 Ethernet PHY ETH_TXN Ethernet Transmit Negative Input to KSZ8041 Ethernet PHY ETH_RXN Ethernet Receive Negative Input to KSZ8041 Ethernet PHY...
  • Page 16 ΣYG-S7G2-MDK User’s Manual SOMDIMM Signal Name Application Details SOMDIMM Connection Details GPIO55 GPIO56_MOSI GPIO57_TXD GPIO / Serial Transmit Data – For Connected to S7G2 Port 0 bit 10 RS232 GPIO58_RXD GPIO / Serial Receive Data – For Connected to S7G2 Port 0 bit 11 RS232 Not connected DO NOT USE!
  • Page 17 ΣYG-S7G2-MDK User’s Manual SOMDIMM Signal Name Application Details SOMDIMM Connection Details Not connected Unused Not connected Unused Not connected Unused Not connected Unused Not connected Unused 5.0V Power 5.0V Power Not connected Unused GPIO116 GPIO Connected to S7G2 Port 2 bit 14 / VOL_UD GPIO117 GPIO Connected to S7G2 Port 2 bit 15 / AMP_MODE...
  • Page 18 ΣYG-S7G2-MDK User’s Manual SOMDIMM Signal Name Application Details SOMDIMM Connection Details GPIO162_NMI Not connected Unused Ground Ground 3.3V 3.3V Power Ground Not connected Unused Not connected Unused Not connected Unused Not connected Unused Not connected Unused Not connected Unused Not connected Unused Not connected Unused...

  • Page 19: Carrier Board Components

    ΣYG-S7G2-MDK User’s Manual Carrier Board Components 5.1 DC Power Input The Touch Screen Kit utilizes a 5VDC 2.3A Power Supply. The connector is 2.1mm with center positive. Pin Number Description 5VDC, +/- 10%, 2.0A (min) Power Supply Ground 5.2 Alternate Power Input The CARRIER Board includes an optional alternate power input connector, J8.

  • Page 20: Usb Power Host

    ΣYG-S7G2-MDK User’s Manual Signal Ground 5.4 USB Power Host The CARRIER Board includes one USB Host Port allowing the unit to interface to various USB peripherals such as a USB Flash Drive (Thumb Drive). The operational mode of this port is dependent on the software utilized (i.e.

  • Page 21: Can/Rs485

    ΣYG-S7G2-MDK User’s Manual 3.3V 3.3V No Connect Signal Ground 5.6 CAN/RS485 The CARRIER Board includes one Male DB9 Interface Connector that supports either CAN or RS485 (Rev 2 and later) depending on the configuration of jumpers JP4 – JP7. The CAN interface utilizes an NXP TJA1040TD high speed transceiver IC to provide fully ISO 11898 standard interface at up to 1MBaud.

  • Page 22: External I2C

    ΣYG-S7G2-MDK User’s Manual 5.7 RS232 The CARRIER Board includes one RS232 Serial Port Connector. This connector is a Male DB9 configured as either DCE or DTE (Rev 2 and later only) depending on the configuration of jumper block JP3. The interface includes optional RTS & CTS handshaking signals that are brought to test points that the user may connect as needed (see page 5 of the schematic).

  • Page 23: External I2S Audio

    ΣYG-S7G2-MDK User’s Manual GPIO75_SCL Signal Ground GPIO74_SDA GPIO116 GPIO117 Please refer to the specific details of the processor module for connectivity details. 5.9 External I2S Audio The Rev 1 CARRIER board provides an external I2S Audio Expansion Connector. Please refer to the specific details of the processor module for connectivity details. Description Description 3.3V...

  • Page 24: Σyg-S7G2 System On Module Board Layout

    ΣYG-S7G2-MDK User’s Manual ΣyG-S7G2 System on Module Board Layout 3.1 Schematics Visit this link for schematics of the SYG-S7G2-SOM: http://www.teamfdi.com/wp- content/uploads/SYG-S7G2-SOM.pdf 3.2 Mechanicals Figure 7: S7G2 Top Figure 8: S7G2 Bottom Copyright ©2021, 4/5/2021 Future Designs, Inc Page 24 of 26...
  • Page 25 ΣYG-S7G2-MDK User’s Manual Figure 9: Carrier Board Top Copyright ©2021, 4/5/2021 Future Designs, Inc Page 25 of 26...

  • Page 26: Support

    User’s Manual Support 7.1 Where to Get Help Online technical support is available at http://www.teamfdi.com/support/. 7.2 Useful Links Future Designs, Inc. Forums: http://www.teamfdi.com/?post_type=forum • • SYG-S7G2-MDK Product Page: http://www.teamfdi.com/product-details/syg-s7g2-mdk/ Renesas Synergy: • https://www.renesas.com/us/en/products/synergy.html SEGGER J-Link LITE: https://www.segger.com/jlink-lite-cortexm.html • • Renesas Forums: http://www.renesasrulz.com/...
