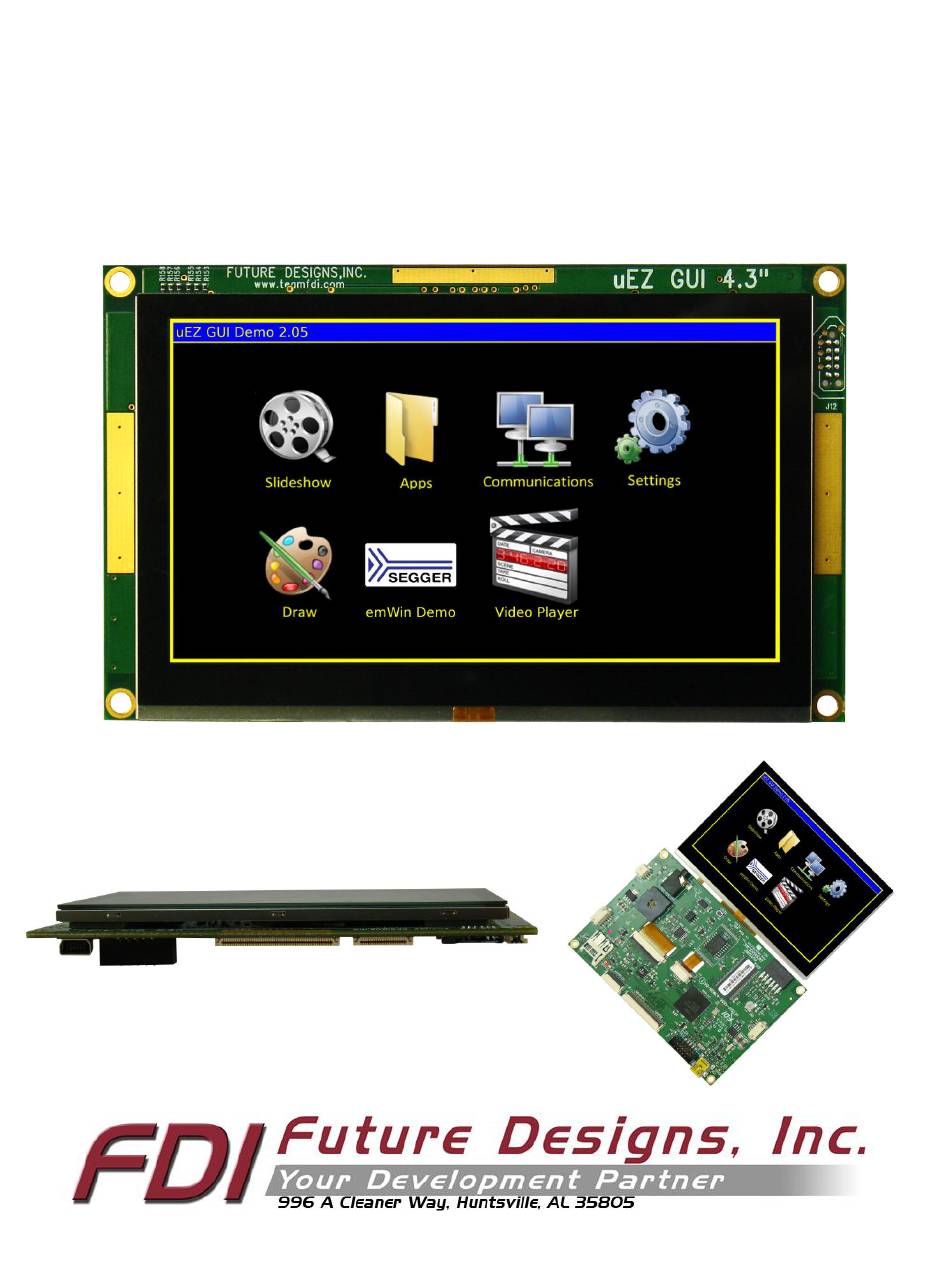

- Page 1 µEZGUI User’s Manual Covers the following products: uEZGUI-4088-43WQN (Dev Kit) uEZGUI-4088-WQN-BA (Board Assembly)
-
Page 2: Table Of Contents
Copyright ©2013, Future Designs, Inc., All Rights Reserved Table of Contents Introduction __________________________________________________________________________ 3 Block Diagram _________________________________________________________________________ 3 Kit Contents for FDI PN: uEZGUI-4088-43WQN _______________________________________________ 3 Functional Description __________________________________________________________________ 4 Startup procedure _____________________________________________________________________ 4 Demonstration Software Main Menu ______________________________________________________ 5... - Page 3 Information in this document is provided solely to enable the use of Future Designs products. FDI assumes no liability whatsoever, including infringement of any patent or copyright. FDI reserves the right to make changes to these specifications at any time, without notice. No part of this document may be reproduced or transmitted in any form or by any means, electronic or mechanical, for any purpose, without the express written permission of Future Designs, Inc.
-
Page 4: Introduction
BACKLIGHT LCD CONN GENERATOR Figure 1 – uEZGUI-4088-43WQN-BA Block Diagram 3. Kit Contents for FDI PN: uEZGUI-4088-43WQN uEZGUI-4088-43WQN-BA module with 4.3” Capacitive Touch Screen LCD Segger Mini-JTAG Debugger and JTAG cable FDI JTAG Adapter Board 4 GB Micro SD card ... -
Page 5: Functional Description
µ E Z G U I U s e r ’ s M a n u a l P a g e 4. Functional Description LPC4088 120 MHz Cortex-M4 based Microprocessor SDRAM 8MB, optional up to 64MB SPIFI Serial Flash 16MB ... -
Page 6: Demonstration Software Main Menu
µ E Z G U I U s e r ’ s M a n u a l P a g e By connecting the USB A to mini B cable to P1, the uEZGUI will also appear as a USB Flash Drive to the PC, allowing the user to read/write files directly to the Micro SD card. - Page 7 µ E Z G U I U s e r ’ s M a n u a l P a g e The following programs appear under the “Apps” icon: Accelerometer Selecting this icon demonstrates the accelerometer feature by moving a simulated ball across the screen as the board is tilted along the X and Y axis.
-
Page 8: Setting Up A Slideshow
This standard allows for code comments and annotations to be written in a certain manner, and then compiled along with source code into HTML documentation. FDI provides the pre-compiled HTML documentation at this link: http://www.teamfdi.com/uez/docs/ In the uEZ source code, “uEZ/uEZDoxyfile” is the main project file for the Doxygen generator. When Doxygen is recompiled, the new Doxygen files will be found here: uEZ\Docs\ Doxygen_Documentation.html... -
Page 9: Uez Project Maker
µ E Z G U I U s e r ’ s M a n u a l P a g e FDI will update the documentation roughly with each new μEZ® release or as new drivers are added to the system. For more information, see the Doxygen website: http://www.doxygen.org/... -
Page 10: Software
µ E Z G U I U s e r ’ s M a n u a l P a g e 11. Software μEZ® takes its name from the Muses of Greek mythology. A Muse was a goddess who inspired the creation process for the arts and sciences. -
Page 11: Configuring Rowley Crossworks Crossstudio For Arm® For J-Link Flashing
µ E Z G U I U s e r ’ s M a n u a l P a g e | 10 μEZ® is ideally suited for Embedded Systems with standard features such as: Processor and Platform BSPs TCP/IP stack ... -
Page 12: Configuring Iar Ewarm V6.30 For J-Link Flashing
µ E Z G U I U s e r ’ s M a n u a l P a g e | 11 6) If programming a blank LPC4088 part, select a Speed of 100. If the part has already been programmed, select a Speed of 1000. -
Page 13: Functional Test Software
4. Click the Debug tab and select the same device for Use. 15. Functional Test Software The Functional Test Software tests all the basic features of the uEZGUI-4088-43WQN KIT as follows. Functional Test is a step by step test of the following parameters: ... -
Page 14: Board Layout
P a g e | 13 16. Board Layout The following figure illustrates the layout of the various components of the uEZGUI-4088-43WQN kit. They are for reference only and are subject to change. Figure 2 – uEZGUI-4088-43WQN-BA Component View 17. I/O Connector Descriptions JTAG Connector J5 The uEZGUI-4088-43WQN-BA uses a reduced size JTAG connector based on a 2mm Header. -
Page 15: Tag Connect J12
µ E Z G U I U s e r ’ s M a n u a l P a g e | 14 The FDI Mini-JTAG Adapter is available here: http://www.digikey.com/product-detail/en/JLINK-ARM-AD/622-1039-ND/2631978 For users that may have existing JTAG debuggers, an adapter may be fabricated using the following wiring diagram: (part numbers for the connectors are included from both the manufacturer and Digi-Key Figure 3 –... - Page 16 MicroSD Socket J4 When connected to the USB Host port on a PC, the uEZGUI-4088-43WQN-BA will appear as a USB Flash Drive to the PC, allowing the user to read and write files directly to the MicroSD card. The unit uses a MicroSD Socket for flexible mass storage capability.
-
Page 17: Isp Connector J3 (Loaded)
ISP Connector J3 (loaded) The uEZGUI-4088-43WQN-BA includes an ISP programming header. This header is designed to be utilized with the USB-ICP-LPC2K programmer from FDI. However the connector on the uEZGUI-4088-43WQN-BA is not directly compatible with the one used on the USB-ICP. This connector is a 1.25mm Hirose male, shrouded connector. -
Page 18: Alternate Power And Communication J10 (Loaded)
3.3V Expansion Connectors J2 & J6 The uEZGUI-4088-43WQN-BA includes two expansion connectors that provide a wide variety of capabilities for user expansion, ranging from 10/100 Ethernet to USB Host, etc. The tables below provide the pinout and signal names available on these connectors:... - Page 19 µ E Z G U I U s e r ’ s M a n u a l P a g e | 18 SSEL1 - Slave Select for SSP1. SCL2 - I2C2 clock input/output (this is not an open-drain pin) P4[20] - General purpose digital input/output pin.
- Page 20 µ E Z G U I U s e r ’ s M a n u a l P a g e | 19 RESET_OUTn RSTOUT - This is a 3.3 V pin. LOW on this pin indicates LPC4088 being in Reset state P0[26] General purpose digital Input/Output pin.
- Page 21 | 20 On the uEZGUI-4088-43WQN, J2-6 through J2-9 can be selectable for either the group of Port 0 pins, or Port 4 pins shown below. By default, the SPIFI Flash is loaded along with RN2. This allows the use of P4.20 – P4.23 on the expansion connector.
-
Page 22: Expansion Connector Cable Details
Please see the website at http://www.uezgui.com 19. Temperature Range uEZGUI-4088-43WQN-BA board w/o LCD: -40°C to +85°C uEZGUI-4088-43WQN-BA with LCD: -10°C to +70°C 20. Real Time Clock Backup Time The uEZGUI’s Real Time Clock is backed up with a Seiko Super Capacitor to allow the time to be preserved when external power is removed. -
Page 23: Esd Warning
| 22 21. ESD Warning The uEZGUI-4088-43WQN-BA kit is shipped in a protective anti-static package. The kit must not be subjected to high electrostatic potentials. Damage may occur to the boards that will not be covered under warranty. General practice for working with static sensitive devices should be followed when working with the kit. -
Page 24: Mechanical Details
µ E Z G U I U s e r ’ s M a n u a l P a g e | 23 24. Mechanical Details The following illustrations show the mechanical details of the uEZGUI-4088-43WQN-BA PCB. Figure 5 –Mechanical Dimensions (Component View) 9/8/2014 Revision 3.1... - Page 25 µ E Z G U I U s e r ’ s M a n u a l P a g e | 24 Figure –Mechanical Dimensions (LCD Module View and Side View) 9/8/2014 Revision 3.1 Copyright ©2014, Future Designs, Inc...
-
Page 26: Updating To Uezgui-4088-43Wqn-Ba From Uezgui-1788-43Wqr-Ba
Updating to uEZGUI-4088-43WQN-BA from uEZGUI-1788-43WQR-BA The uEZGUI-4088-43WQN-BA has a Newhaven display that is approximately the same height and depth as the one found on the uEZGUI-1788-43WQR model. Here is a stack up comparison between the two units. The Newhaven display is about 0.3mm thinner on its total horizontal width.
