ΣyG Modular Development LCD Kits but can be used independently as a lower cost option for those embedded applications without the need for a touch screen display. FDI offers low cost customization services for customer specific hardware, software or packaging applications at volumes of 500 units or more.

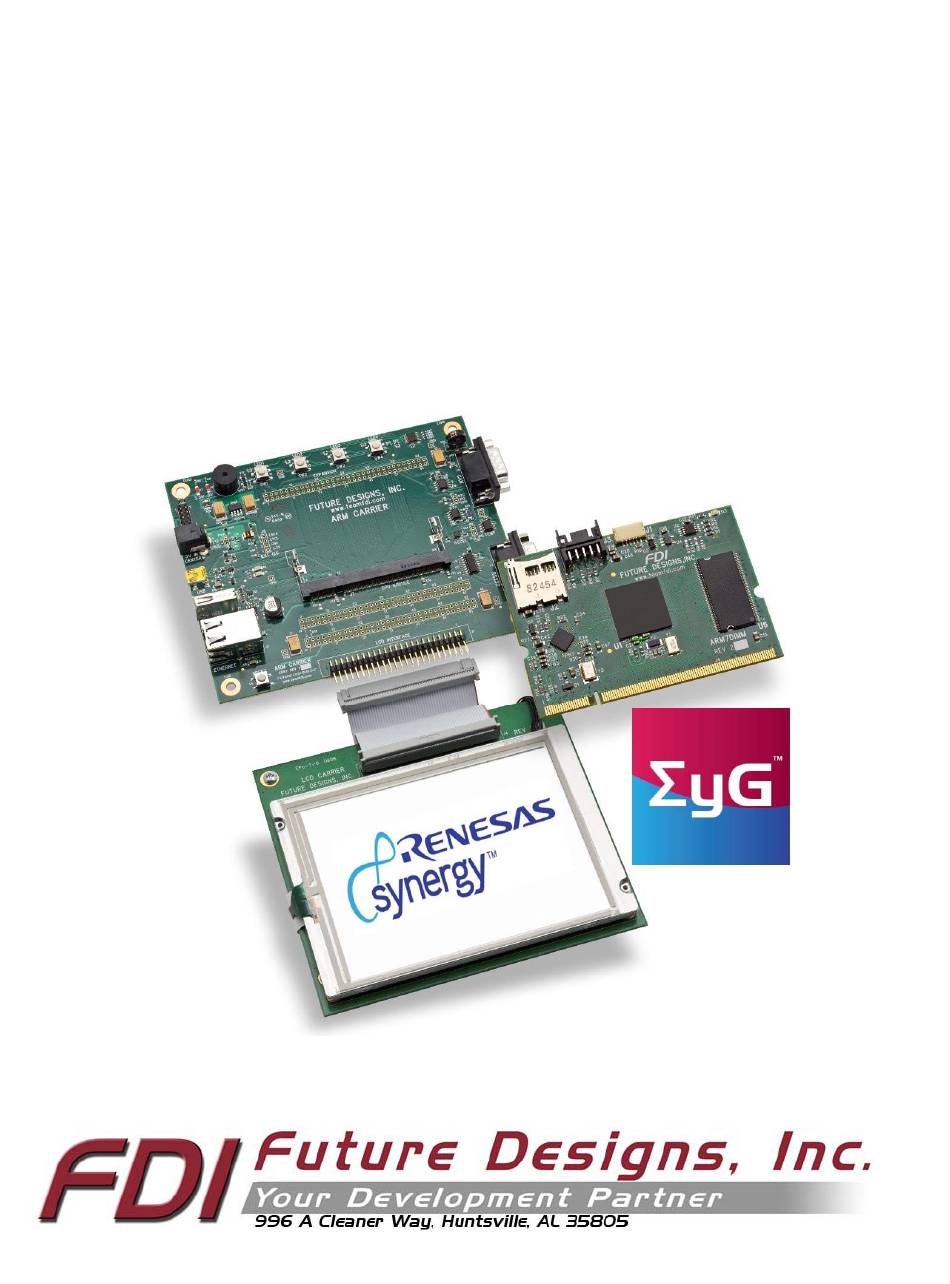

ΣYG-S7G2-43C-MDK User’s Manual 1.5 Requirements The ΣYG-S7G2-43C -MDK requires a carrier board with a 200-pin SO-DIMM socket. The socket should have the key at the 1.8V location. The CARRIER Board from Future Designs provides this socket and should be utilized to develop your application for initial verification. Each yG development kit includes: •...
Page 9
ΣYG-S7G2-43C-MDK User’s Manual Figure 3: SOMDIMM Insertion The following are step by step instructions for setting up the hardware. 1) Make sure you have a SOMDIMM board plugged into the CARRIER board at J1. 2) Verify the LCD Interface ribbon cable connects the LCD CARRIER board to the CARRIER (J7) board.
ΣYG-S7G2-43C-MDK User’s Manual 2.2 Demonstration Software Once the device is powered on, the demonstration software start menu will appear on the LCD screen. The software consists of the brewing demonstration and temperature demonstration. 2.2.1 Brewing Demonstration To launch the Brewing Demonstration tap the “Brewing Demo” button on the demonstration software start menu.
Page 11
Doxygen is recompiled, the new Doxygen files will be found here: uEZ\Docs\ Doxygen_Documentation.html FDI will update the documentation roughly with each new μEZ® release or as new drivers are added to the system. For more information, see the Doxygen website: http://www.doxygen.org/...
ΣYG-S7G2-43C-MDK User’s Manual 2.4 Software PC with Windows 7 or Windows 8 e studio Integrated Solution Development Environment (ISDE) from Renesas Renesas Synergy Software Package (SSP) GNU tool chain for ARM® Cortex®-M MCUs You can download the latest versions of the SSP and e studio ISDE from https://synergybeta.renesas.com/ The GNU tool chain and installation instructions for the tool chain are included in the e2 studio...
ΣYG-S7G2-43C-MDK User’s Manual 3.3 MicroSD Socket J1 The ΣyG-S7G2 SOM utilizes a microSD for flexible mass storage. MicroSD flash cards are common, cost effective, and provides a large amount of user-changeable memory. Pin Number Description DAT2/RSV CD_DAT3/CS# CMD/SDI CLK/SCLK DAT0/SDO DAT1/RSV The microSD card must be removed using the spring loaded “push-pull”...
ΣYG-S7G2-43C-MDK User’s Manual 3.3.1 Inserting the microSD card into the microSD socket First, prepare to insert the microSD card into the Next, partially insert the card into the socket. socket by positioning it with its text facing up. Position the ridge, or “lip”, of the card furthest from the socket.
ΣYG-S7G2-43C-MDK User’s Manual 3.3.2 Removing the microSD card from the microSD socket Begin to remove the microSD card by gently Once the microSD card is ejected, it will pushing the card into the socket. The socket partially extend out from the socket. will “click”...
ΣYG-S7G2-43C-MDK User’s Manual 3.5 200-pin SOMDIMM Connector Details J4 SOMDIMM Signal Name Application Details SOMDIMM Connection Details ETH_TXP Ethernet Transmit Positive Output from KSZ8041 Ethernet PHY ETH_RXP Ethernet Receive Positive Output from KSZ8041 Ethernet PHY ETH_TXN Ethernet Transmit Negative Input to KSZ8041 Ethernet PHY ETH_RXN Ethernet Receive Negative...
Page 18
ΣYG-S7G2-43C-MDK User’s Manual SOMDIMM Signal Name Application Details SOMDIMM Connection Details GPIO51_SPCK GPIO55 GPIO56_MOSI GPIO57_TXD GPIO / Serial Transmit Data – For Connected to S7G2 Port 0 bit 10 RS232 GPIO58_RXD GPIO / Serial Receive Data – For Connected to S7G2 Port 0 bit 11 RS232 Not connected DO NOT USE!
Page 19
ΣYG-S7G2-43C-MDK User’s Manual SOMDIMM Signal Name Application Details SOMDIMM Connection Details Not connected Unused Not connected Unused Not connected Unused Not connected Unused Not connected Unused Not connected Unused Not connected Unused 5.0V Power 5.0V Power Not connected Unused GPIO116 GPIO Connected to S7G2 Port 2 bit 14 / VOL_UD...
Page 20
ΣYG-S7G2-43C-MDK User’s Manual SOMDIMM Signal Name Application Details SOMDIMM Connection Details GPIO160_MD Not connected Unused GPIO162_NMI Not connected Unused Ground Ground 3.3V 3.3V Power Ground Not connected Unused Not connected Unused Not connected Unused Not connected Unused Not connected Unused Not connected Unused...
ΣYG-S7G2-43C-MDK User’s Manual Carrier Board Components 4.1 DC Power Input The Touch Screen Kit utilizes a 5VDC 2.3A Power Supply. The connector is 2.1mm with center positive. Pin Number Description 5VDC, +/- 10%, 2.0A (min) Power Supply Ground 4.2 Alternate Power Input The CARRIER Board includes an optional alternate power input connector, J8.
ΣYG-S7G2-43C-MDK User’s Manual Signal Ground 4.4 USB Power Host The CARRIER Board includes one USB Host Port allowing the unit to interface to various USB peripherals such as a USB Flash Drive (Thumb Drive). The operational mode of this port is dependent on the software utilized (i.e.
ΣYG-S7G2-43C-MDK User’s Manual 3.3V 3.3V No Connect Signal Ground 4.6 CAN/RS485 The CARRIER Board includes one Male DB9 Interface Connector that supports either CAN or RS485 (Rev 2 and later) depending on the configuration of jumpers JP4 – JP7. The CAN interface utilizes an NXP TJA1040TD high speed transceiver IC to provide fully ISO 11898 standard interface at up to 1MBaud.
ΣYG-S7G2-43C-MDK User’s Manual 4.7 RS232 The CARRIER Board includes one RS232 Serial Port Connector. This connector is a Male DB9 configured as either DCE or DTE (Rev 2 and later only) depending on the configuration of jumper block JP3. The interface includes optional RTS & CTS handshaking signals that are brought to test points that the user may connect as needed (see page 5 of the schematic).
ΣYG-S7G2-43C-MDK User’s Manual GPIO75_SCL Signal Ground GPIO74_SDA GPIO116 GPIO117 Please refer to the specific details of the processor module for connectivity details. 4.9 External I2S Audio The Rev 1 CARRIER board provides an external I2S Audio Expansion Connector. Please refer to the specific details of the processor module for connectivity details. Description Description 3.3V...
