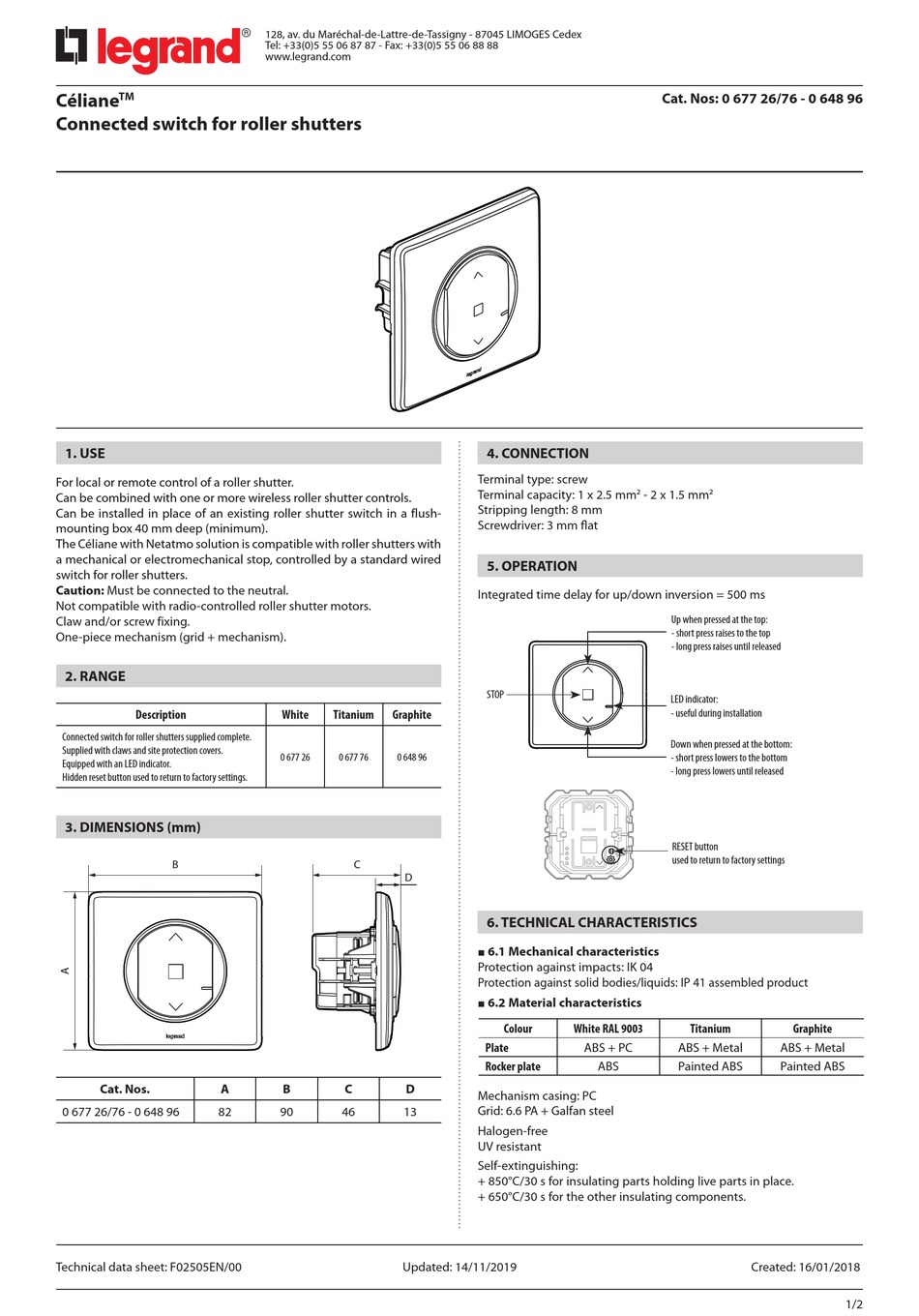

Céliane
TM

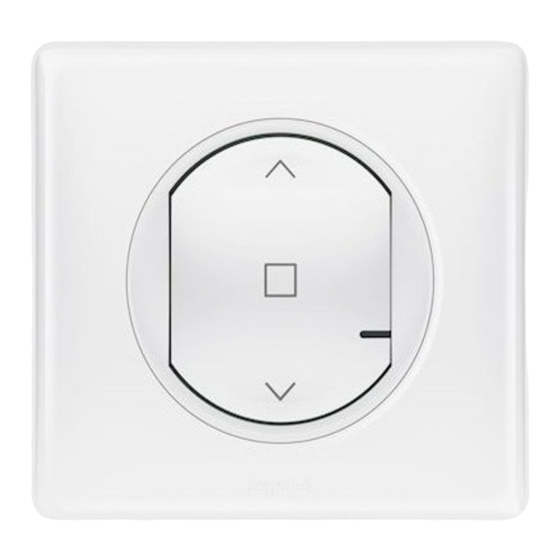

Connected switch for roller shutters

1. USE

For local or remote control of a roller shutter.
Can be combined with one or more wireless roller shutter controls.
Can be installed in place of an existing roller shutter switch in a flush-
mounting box 40 mm deep (minimum).
The Céliane with Netatmo solution is compatible with roller shutters with
a mechanical or electromechanical stop, controlled by a standard wired
switch for roller shutters.
Caution: Must be connected to the neutral.
Not compatible with radio-controlled roller shutter motors.
Claw and/or screw fixing.
One-piece mechanism (grid + mechanism).

2. RANGE

Description
Connected switch for roller shutters supplied complete.
Supplied with claws and site protection covers.
Equipped with an LED indicator.
Hidden reset button used to return to factory settings.

3. DIMENSIONS (mm)

B
Cat. Nos.
A
0 677 26/76 - 0 648 96
82
Technical data sheet: F02505EN/00
128, av. du Maréchal-de-Lattre-de-Tassigny - 87045 LIMOGES Cedex
Tel: +33(0)5 55 06 87 87 - Fax: +33(0)5 55 06 88 88
www.legrand.com
White
Titanium
Graphite
0 677 26
0 677 76
0 648 96
C
D
B
C
D
90
46
13
Updated: 14/11/2019

4. CONNECTION

Terminal type: screw
Terminal capacity: 1 x 2.5 mm
- 2 x 1.5 mm
2
Stripping length: 8 mm
Screwdriver: 3 mm flat

5. OPERATION

Integrated time delay for up/down inversion = 500 ms
STOP

6. TECHNICAL CHARACTERISTICS

 6.1 Mechanical characteristics
Protection against impacts: IK 04
Protection against solid bodies/liquids: IP 41 assembled product
 6.2 Material characteristics
Colour
White RAL 9003
Plate
ABS + PC
Rocker plate
ABS
Mechanism casing: PC
Grid: 6.6 PA + Galfan steel
Halogen-free
UV resistant
Self-extinguishing:
+ 850°C/30 s for insulating parts holding live parts in place.
+ 650°C/30 s for the other insulating components.
Cat. Nos: 0 677 26/76 - 0 648 96
2
Up when pressed at the top:
- short press raises to the top
- long press raises until released
LED indicator:
- useful during installation
Down when pressed at the bottom:
- short press lowers to the bottom
- long press lowers until released
RESET button
used to return to factory settings
Titanium
Graphite
ABS + Metal
ABS + Metal
Painted ABS
Painted ABS
Created: 16/01/2018
1/2
