Transforms your pool into a water tank enabling you to defend yourself against
vegetation/forest fire outbreaks.

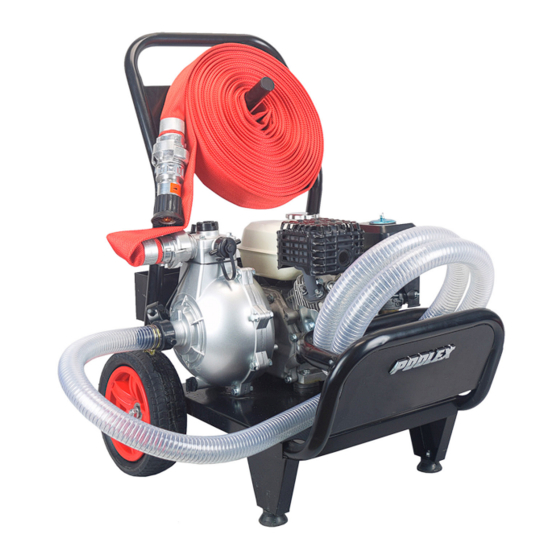

GASOLINE ENGINE WATER PUMP
INSTALLATION AND OPERATION MANUAL
Please read carefully and retain for future reference
WARNING, IN THE EVENT OF A FIRE, FIRST CALL EMERGENCY.
THIS KIT DOES NOT REPLACE AN INTERVENTION BY THE FIRE BRIGADE, BUT CAN HELP YOU FIGHT
AN OUTBREAK OF FIRE WHILE AWAITING FOR THE FIRE FIGHTERS.
www.poolex.fr
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for poolstar POOLEX POOL SAM
Summary of Contents for poolstar POOLEX POOL SAM
- Page 1 Transforms your pool into a water tank enabling you to defend yourself against vegetation/forest fire outbreaks. GASOLINE ENGINE WATER PUMP INSTALLATION AND OPERATION MANUAL Please read carefully and retain for future reference WARNING, IN THE EVENT OF A FIRE, FIRST CALL EMERGENCY. THIS KIT DOES NOT REPLACE AN INTERVENTION BY THE FIRE BRIGADE, BUT CAN HELP YOU FIGHT AN OUTBREAK OF FIRE WHILE AWAITING FOR THE FIRE FIGHTERS.
- Page 2 ! WARNINGS! The risk of fire is mainly caused by human activity (for 90% of fire outbreaks). Most of these fires are caused by the careless and dangerous behaviour from both tourists and residents. They could therefore be avoided by having the right reflexes on a daily basis. Maintaining and clearing the bushes around the house is essential.
-
Page 3: Table Of Contents
CONTENTS ACKNOWLEDGEMENTS ..................5 1. GENERAL TERMS OF DELIVERY ................6 2. SAFETY INSTRUCTIONS ..................7 3. HOW IT WORKS ....................8 4. OPERATING LIMITS ...................9 5. FEATURES .......................10 6. INSTALLATION ....................11 6.1. General view / identification of elements ..........11 6.2. Trolley assembly .................12 6.3. - Page 4 ! PLEASE READ CAREFULLY ! Please read this operation manual to have a thorough understanding of the content there before use the product. Failure to do so may lead to personal injury or mechanical damage. For safety, never attempt using this GEP (gasoline engine powered) water pump to deliver inflammable or corrosive liquids (such as gasoline and acids).
-
Page 5: Acknowledgements
Our products reflect our research work related to the usage of the swimming pool. Our goal is to deliver high-quality products. We took great care to put together this manual so you can get the most out of your POOLEX POOL SAM. -
Page 6: General Terms Of Delivery
1. GENERAL TERMS OF DELIVERY All products and packaging, even those delivered carriage paid, travel at the risk of the recipient. Persons responsible for accepting delivery of the device must perform a visual inspection to make a note any damage that may have occurred during transportation. -
Page 7: Safety Instructions
2. SAFETY INSTRUCTIONS Before use Everything must be done to limit the spread of fires and vegetation / forest fires. Prepare your home and its surroundings all year round: - Clear your garden, check local requirements (usually 50m around the house). - Trees and branches within 3 meters of houses should be removed. -
Page 8: How It Works
3. HOW IT WORKS POOL SAM is a protection system against vegetation/forest fire breakouts starting near your swimming pool allowing you to act while waiting for the intervention of professional fire safety services. POOL SAM uses your swimming pool as a water tank in order to throw water onto a fire outbreak or to prevent any fire outbreak on any vegetation surrounding your house. -
Page 9: Operating Limits
4. OPERATING LIMITS Attention, POOL SAM is intended for use at the outbreak of vegetation/forest fires or for prevention, by moistening the vegetation before the arrival of a fire. Please always follow the instructions of the fire-fighting services, evacuate as soon as the order is given. Protect yourself, confine yourself. -
Page 10: Features
5. CHARACTERISTICS Modèle / Model POOL SAM1 Puissance / Power 7 Cv Carburant / Fuel type Gas/Petrol SP95 - E10 Huile / Oil type 10W30 or 10W40 or 15W30 or 15W40 Hauteur d’aspiration / Suction height Jusqu’à 7 m / up to 7m Hauteur de projection / Projection height Up to 25m (25 m beyond hose length) Pression en sortie de pompe / Outlet pressure (on the pump) -
Page 11: Installation
6. INSTALLATION 6.1. GENERAL VIEW / IDENTIFICATION OF ELEMENTS Outlet hose Nozzle Turbine filling cap Turbine Suction hose Trolley handle Exhaust Gas tank cap Air filter Accelerator lever Starter lever Gas tap ON/OFF button Rope pull starter handle Oil tank cap Suction strainer Trolley wheels and axles... -
Page 12: Trolley Assembly
6.2. ASSEMBLING THE TROLLEY 1 – Attaching the handle Insert both tubes ensuring both stop buttons come out. 2 – Mounting the 2 wheels Put the trolley in a vertical position, inser the axle ensuring the stop button comes out. Then tighten the wheel nut. -
Page 13: Filling The Oil Tank
2 – Outlet hose The outlet hose (flat) is supplied fitted with GRF connectors. 1. Screw the metal GFR adapter onto the upper outlet of the pump. Use the Teflon tape supplied to ensure perfect sealing of the connector. 2. Place the end of the discharge pipe on the adapter and screw the ring using the pin wrench. -
Page 14: Filling The Gas Tank
6.5. FILLING THE GAS TANK Please note that fuels are highly flammable and dangerous products. They are to be handled outside in a well- ventilated place and when POOL SAM is stopped and cold. For the storage and handling of these products, please refer to the instructions for these products. -
Page 15: Use
7. USE In the event of a fire, first call the fire department Never put yourself in danger. Always follow the instructions of the fire department and local authorities. Never wear flammable clothes (nylon), the temperature of the fire could melt these clothes. In case of strong smokes breathe through a damp cloth. - Page 16 HOW TO STOP POOL SAM: Slow speed to minimum Switch the ON/OFF button to OFF Close the fuel tap Never disconnect the spark plug to stop the engine, as you will get an electrical shock. Do not touch hot surfaces, especially the exhaust pipe. HOW TO USE POOL SAM: First and foremost, do not put yourself in danger, always ensure your safety.
-
Page 17: Care, Wintering And Maintenance
8. CARE, WINTERING AND MAINTENANCE CLEANING POOL SAM should be cleaned with a damp cloth only when the engine is stopped and has cooled off (button on OFF). Never use a water jet directly onto the device. The use of detergents or other household products could degrade the surfaces and alter their properties. After each use with your pool water, rinse with clean water to rinse POOL SAM from pool products, in particular treatment and regulation products (chlorine, bromine, pH- / pH+, etc.) and salt if the pool is equipped with a salt chlorinator. -
Page 18: Breakdowns And Faults
9. BREAKDOWNS AND FAULTS Faults Possible causes Possible fixes Turn off the engine, fill the pumping turbine Pump not primed with about 5L of water. Then restart The inlet hose (strainer) is blocked, crushed, damaged, too long or with a reduced Replace the inlet hose. -
Page 19: Warranty
Poolstar. The parts under warranty shall be replaced or repaired at the discretion of Poolstar. Faulty parts must be returned to us during the warranty period in order to be covered. The warranty does not cover unauthorized labor or replacement costs. - Page 20 ’ – – L’objet de la déclaration décrit ci dessus est conforme à la législation d’harmonisation de l’Union applicable: • – – • – • • •...
- Page 22 Dear customer, Please take a few minutes to complete a warranty form that you can find on our website: https://assistance.poolstar.fr/ Thank you for you trust and support. Happy bathing! Your personal information is processed in accordance with the French Data Protection Act of 06 January 1978 and will not be shared with 3rd parties.
