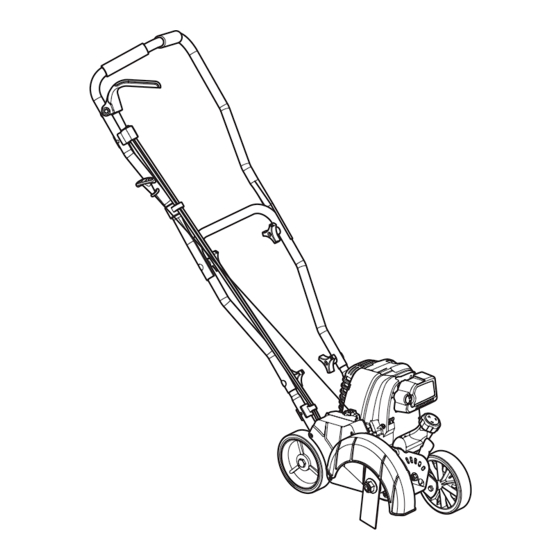

R516 EC
Electric Start Capable
4-Stroke Lawn Edger
IMPORTANT: Read this manual thoroughly before using this product. Follow all instructions.
769-11474 / 00
Operator's Manual
TABLE OF CONTENTS
Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Know Your Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Oil and Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Starting and Stopping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Cleaning and Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
SAVE THESE INSTRUCTIONS
SERVICE
DO NOT RETURN THIS UNIT TO THE RETAILER. PROOF OF
PURCHASE WILL BE REQUIRED FOR WARRANTY SERVICE.
For assistance regarding the assembly, operation or maintenance of
the unit, please call 1300 951 594. Additional information can be
found at www.rovermowers.com.au.
Warranty service is available through an authorized service center.
To locate a service center in your area, please visit our website or
call the number listed above. Service on this unit, both within and
after the warranty period, should only be performed by an
authorized and approved service center. When servicing, use only
identical replacement parts.
All information, illustrations, and specifications in this manual are based
on the latest product information available at the time of printing. We
reserve the right to make changes at any time without notice.
The product may vary slightly from the illustrations contained in this
manual.
Copyright© 2016 MTD SOUTHWEST INC, All Rights Reserved.
02/16
Advertisement
Table of Contents
Related Manuals for Rover R516 EC
Summary of Contents for Rover R516 EC
-
Page 1: Table Of Contents
Operator’s Manual R516 EC TABLE OF CONTENTS Service ..........1 Safety . -
Page 2: Safety
SAFETY SPARK ARRESTOR NOTE The purpose of safety symbols is to attract your attention to possible dangers. The safety symbols, and their explanations, NOTE: For users on U.S. Forest Land and in the states of deserve your careful attention and understanding. The safety California, Maine, Oregon and Washington. - Page 3 SAFETY WARNINGS FOR GAS UNITS • Turn the engine off and disconnect the spark plug for maintenance or repair. • Use only original equipment manufacturer (OEM) replacement WARNING: Gasoline is highly flammable and parts and accessories for this unit. These are available from your authorized service dealer.
- Page 4 • SAFETY & INTERNATIONAL SYMBOLS • This operator's manual describes safety and international symbols and pictographs that may appear on this product. Read the operator's manual for complete safety, assembly, operating and maintenance and repair information. SYMBOL MEANING SYMBOL MEANING •...
-
Page 5: Know Your Unit
KNOW YOUR UNIT APPLICATIONS Handle • Edging along paths, driveways, rockeries, etc. Throttle Control On/Off Switch NO ASSEMBLY TOOLS REQUIRED Air Filter Primer Cover Bulb Starter Rope Grip Cold Weather Spark Plug Start Lever Muffler Depth Oil Fill Plug Adjustment Lever Fuel Cap Blade Shield... -
Page 6: Assembly
ASSEMBLY ASSEMBLING THE HANDLE Middle Shaft Installing the Middle Shaft 1. Slide the middle shaft onto the lower shafts (Fig. 1). Keep the throttle cable and wire assembly to the front of the unit. 2. Align the holes on the middle shaft with the holes on the lower Lower Shaft shafts (Fig. - Page 7 Securing the Starter Rope, Throttle Cable and Wire Assembly Starter Rope 1. Pull the starter rope and run it through the eye hook (Fig. 4). 2. Insert the throttle cable and wire assembly into the cable restraints on the upper and lower shafts (Fig. 5). NOTE: DO NOT run the throttle cable and wire assembly through the eye hook.
-
Page 8: Oil And Fuel
OIL AND FUEL USING THE RIGHT OIL Use a high-quality SAE 30 weight oil. DO NOT use dirty oil. Failure to use clean oil of the correct type can cause premature engine wear and failure. ADDING OIL: INITIAL USE Oil Fill Plug WARNING: OVERFILLING THE CRANKCASE MAY CAUSE SERIOUS PERSONAL INJURY. - Page 9 FUELING THE UNIT WARNING: Gasoline is extremely flammable. Ignited vapors may explode. Always stop the engine and allow it to cool before filling the fuel tank. Do not smoke while filling the tank. Keep sparks and open flames at a distance from the area.
-
Page 10: Starting And Stopping
STARTING AND STOPPING WARNING: Operate this unit only in a well-ventilated On/Off Switch outdoor area. Carbon monoxide exhaust fumes can be Throttle Control (I = On / O = Off) lethal in a confined area. WARNING: Avoid accidentally starting the unit. To avoid serious injury, the operator and the unit must be in a stable position when pulling the starter rope (Fig. - Page 11 USING THE ELECTRIC START ACCESSORY This unit can be started with an optional electric start accessory ELECTRIC START ACCESSORIES (items sold separately). Refer to the electric start accessory operator’s manual for the proper use of this feature. Item No. Description Please contact your local retailer, call the Customer Support 49MESCBP966 .
-
Page 12: Operation
OPERATION HOLDING THE UNIT Operating Position WARNING: Always wear eye, hearing, hand, foot and body protection to reduce the risk of injury when operating this unit. • Stand in the operating position (Fig. 11). Stand up straight. Do not bend over. •... -
Page 13: Maintenance
MAINTENANCE MAINTENANCE SCHEDULE WARNING: To avoid serious personal injury, always stop the engine and allow it to cool before cleaning or maintaining Perform these required maintenance procedures at the frequency the unit. Never perform cleaning or maintenance while the stated in the table. These procedures should also be a part of any unit is running. - Page 14 CHECKING THE OIL LEVEL Oil Fill Plug WARNING: Check the oil level before each use. The importance of maintaining the proper oil level cannot be overemphasized. 1. Stop the engine and allow it to cool. O-Ring 2. Set the unit on a flat, level surface. NOTE: Failure to keep the engine level may result in oil overfill.
- Page 15 MAINTAINING THE AIR FILTER Air Filter Cover Failure to maintain the air filter can result in poor performance or can cause permanent damage to the engine. Engine failure due to improper air filter maintenance is not covered by the product warranty. Cleaning the Air Filter 1.
- Page 16 MAINTAINING THE SPARK PLUG 1. Stop the engine and allow it to cool. 2. Remove the 6 screws from the engine cover with a flat-head Screws Screws screwdriver or T-25 Torx screwdriver (Fig. 21). Remove the engine cover. 3. Grasp the spark plug boot firmly and pull it from the spark plug. 4.
-
Page 17: Cleaning And Storage
CLEANING AND STORAGE CLEANING STORAGE • Never store a fueled unit where fumes may reach an open flame WARNING: To avoid serious personal injury, always stop or spark. the engine and allow it to cool before cleaning or maintaining • Allow the engine to cool before storing. -
Page 18: Troubleshooting
TROUBLESHOOTING PROBLEM SOLUTION THE ENGINE WILL NOT START The fuel tank is empty Fill the fuel tank with fresh fuel The primer bulb was not pressed enough Press the primer bulb 10 times The fuel is old (over 30 days) Drain the fuel tank and add fresh fuel The spark plug is fouled Replace the spark plug... - Page 19 NOTES...
- Page 20 NOTES...
- Page 21 NOTES...
- Page 22 NOTES...
- Page 23 NOTES...
-
Page 24: Warranty
Warranty Conditions - Australia (Not applicable to other Regions) The benefits given to you under this warranty are in addition to other rights and remedies that you have under Australian law in relation to the goods. MTD Products Australia Pty Ltd warrants that this machine is free from defects in material and workmanship. This warranty is limited to repairing or replacing any part which appears upon inspection by MTD Products Australia Pty Ltd or its agent to be defective in material or workmanship.
