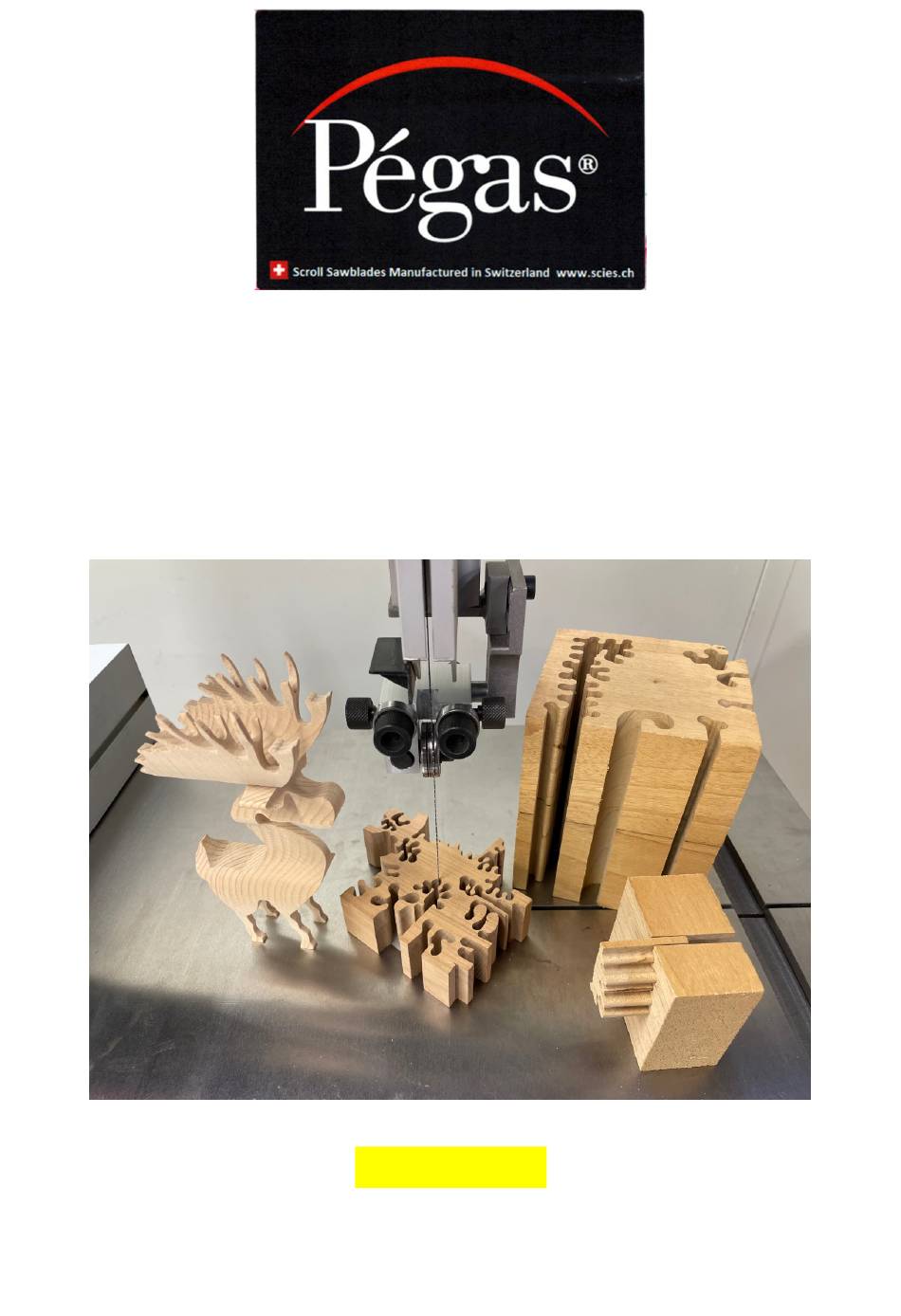

- Page 1 INSTRUCTIONS FOR THE ASSEMBLY OF THE SCROLL GUIDES SRP13 DUAL www.scies.ch...
- Page 2 Unplug the machine from the power supply. Introduction : Congratulations on the purchase of your Pegas mixed band saw. Follow the steps of the first assembly step by step. The next permutations classic cutting / scrolling will then take only a few minutes because the bearings of scrolling will no longer need to be removed.
-
Page 3: Preparation Of The Machine
Preparation of the machine: - Remove the conventional cutting insert from the table. (Fig 1) Figure 1 (Machine manual page 10 Fig.16) Remove the lower blade guard. (Machine manual page 25 Fig.71 - Loosen and remove the classic cutting blade. (Machine manual page 27 Fig.83 - Set the machine to the "high speed"... - Page 4 Mounting the scroll bearing on the lower guide : (Machine manual page 11 Fig.21) Remove the lower classic cutting bearing. - Mount the M6 x 18 screw, the square nut and two M6 x 18 x 0.8 mm washers supplied with the scrolling bearings, on one of the scroll bearings.
- Page 5 Mounting the scroll bearing on the upper guide: - Remove the upper classic cutter bearing. (Fig 8) - Unscrew the two fixing screws and remove the blade guide from the axis. (Fig 9) Figure 8 Figure 9 - Mounting the bearing on the guide : >...
- Page 6 Mounting of the scrolling band saw : Mount the scroll band saw on the upper wheel. (Machine manual pages 8 Fig.02-03-04-05) - Hold the tape to the center of the upper wheel with two pieces of tape or two clips. (Fig 14-15) Figure 14 Figure 15...
- Page 7 Adjustment of the scrolling upper guide : - The two side bearings must be spaced. (Fig 19) - Adjust the guide laterally on the fixing axis with the M6 x 12 screws so that : the right groove of the bearing is precisely in the axis of the blade. (Fig 18-19) Figure 18 Figure 19...
- Page 8 Adjustment of the lower scrolling guide : - This adjustment can be made by observing the position of the blade guide through the opening of the table insert. (Fig 22) Loosenig the two fixing screws of the lower guide Figure 22 Figure 22b Figure 24 Figure 23...
- Page 9 Centering the band saw blaede on the upper wheel : - Turn the wheel manualy in the direction of sawing while gently adjusting the tracking control screw. Clockwise: the blade moves backwards on the belt towards the inside. Counterclockwise: the blade moves outward on the belt. (Fig 25 et 26) - When centering, if the tape deviates quickly, turn the handwheel in the opposite direction to bring it back to the center of the belt and continue adjusting with the tracking control screw.
-
Page 10: Start-Up And Controls
Start-up and controls : Replace the lower guide guard. (Machine manual page 10 Fig. Control squareness between the table and band saw blade. (Machine manual page 21 Fig.53-54-55-56) - Mount the insert table for scrolling. (Fig 28) Figure 28 - Reconnect the machine's power supply to the mains and close the doors. - Start the machine and check that the blade does not move on the belt of the wheels. - Page 11 Switching from the scrolling mode configuration to classic cutting: Returning to the classic cut mode configuration does not require changing the bearings. - Loosen and remove the scrolling blade and the table insert. - Move the upper blade guide to the rear position (Fig 29) then rotate it to the classic cut position.
- Page 12 Adjustment of the lower guide on classic cut band saw blade : - Move foward the scroll bearing so that it is in contact with the classic cut blade and the lateral bearings in front of the heel of the blade. (Fig 37) - Center the bearing with the 2 fixation screws of the guide, so that the blade is in contact with the space between the two scrolling grooves,...
- Page 13 Lames de scie et roulements livrés avec le kit de chantournage :...
