FEATURES

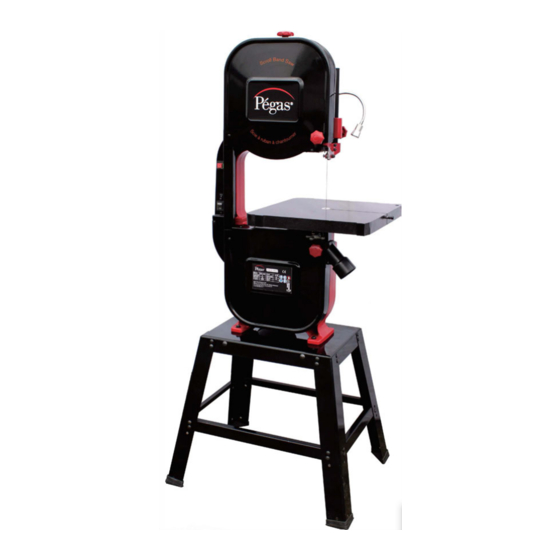

The Pegas
®
SCROLL BAND SAW is a precision machine using Pegas
the most accruable blades ever produced. This unique and innovative concept is intended for informed users,
from hobbyists to skilled professionals.
- Cast-iron frame for higher longevity and stability
- Balanced aluminum wheels to avoid vibrations, with replaceable
rubber tires.
- Two cutting speeds for excellent results in hard and soft woods.
- Top and bottom precision guiding system Pegas
- Blade protection guard.
- Led lamp.
°
- Cast-iron table, with 40
and release coating.
- One extra 5mm table insert for table tilting 25
- Dust collection port ideally placed under the worktable.
- Sturdy and easy assembling open steel stand height 580mm and
optional stand height 300mm.
- Certified CE by T0V Rheinland.
SPECIFICATIONS
WHEEL SIZE: 353 mm (13- 7/8 ")
MAXIMUM BLADE WIDTH: 3mm
MINIMUM BLADE WIDTH: 1 mm
BLADE LENGTH : 2375 mm (93 1/2")
BLADE SPEEDS (2): 700 / 1050 MPM
(1050 MPM is recommanded speed for the best scrolling result)
TABLE SIZE : 406 x 406 mm (16" x 16" )
°
TABLE TILT : 0 - 40
DUST COLLECTION PORT : 63 mm (2- 1/2")
POWER: 500W 110-120V-, 50Hz, 3/4HP
NET WEIGHT: 77 Kg
LIMITS ON SIZE OF WORK PIECE: 406mm x 406mm x 152mm
(Recommended)
Scies Miniatures Sari
Z.I. Les Plans-Praz
1337 VALLORBE
SWITZERLAND
Email: pegas@scies.ch
r
s ETUP & OPERATION
MODEL: 90.700
MANUAL
SCROLL BAND SAW
®
with ball bearings.
tilting capability, coated with wear-proof
°
to 40
®
Scroll Bandsaw blades, the finest and
°
.
Original instruction Version 01 2016
CE:
Advertisement
Related Manuals for PEGAS 90.700
Summary of Contents for PEGAS 90.700
- Page 1 SCROLL BAND SAW FEATURES The Pegas ® SCROLL BAND SAW is a precision machine using Pegas ® Scroll Bandsaw blades, the finest and the most accruable blades ever produced. This unique and innovative concept is intended for informed users, from hobbyists to skilled professionals.
-
Page 2: Very Important
INTRODUCTION Thank you for purchasing model 90.700 scroll band saw, this machine has been carefully tested and inspected before shipment and if properly used and maintained, will provide you with years of reliable service. VERY IMPORTANT It is new concept, which you maybe still never seen. We strongly recommend to read carefully and completely this manual;... -
Page 5: Ec Declaration Of Conformity
2.1. Les Plans-Praz 1337 VALLORBE SWITZERLAND declare in sole responsibility that the equipment Equipment : Band saw (Scroll band saw) Model/ serial no.: 90.700 to which this declaration applies, complies with these normative documents: • Machinery Directive: 2006/42/EC and conforms to the following EN standard, •... - Page 16 Clip x " " 4 " 4...
- Page 17 x " " 4...
- Page 19 Lower Saw Blade Cover Dust Collector Attachment 3/16"x1/2"...
