FEATURES

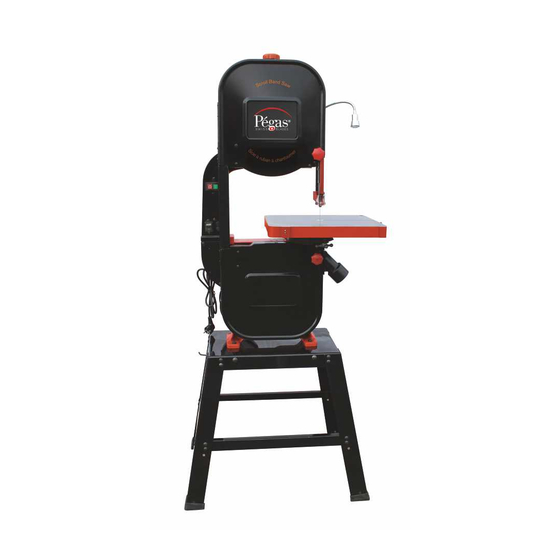

The Pégas® SCROLL BAND SAW is a precision machine using Pégas® Scroll Bandsaw blades, the finest and
the most accruable blades ever produced. This unique and innovative concept is intended for informed users,
from hobbyists to skilled professionals.
- Cast-iron frame for higher longevity and stability
- Balanced aluminum wheels to avoid vibrations, with replaceable
rubber tires.
- Two cutting speeds for excellent results in hard and soft woods.
- Top and bottom precision guiding system Pégas® with ball bearings.-
- Blade protection guard.
- Led lamp.
- Cast-iron table, with 40° tilting capability, coated with wear-proof
and release coating.
- One extra 5mm table insert for table tilting 25° to 40°.
- Dust collection port ideally placed under the worktable.
- Sturdy and easy assembling open steel stand height 580mm and
optional stand height 300mm.
- Certified CE by TÜV Rheinland.
.
SPECIFICATIONS
WHEEL SIZE: 353 mm (13- 7/8 ")
MAXIMUM BLADE WIDTH: 3mm
MINIMUM BLADE WIDTH: 1mm
BLADE LENGTH : 2375 mm (93 1/2" )
BLADE SPEEDS (2): 700 / 1050 MPM
(1050 MPM is recommanded speed for the best scrolling result)
TABLE SIZE : 406 x 406 mm (16" x 16" )
TABLE TILT : 0 - 40°
DUST COLLECTION PORT : 63 mm (2- 1/2")
POWER: 500W 220-240V~, 50Hz, 3/4HP
NET WEIGHT: 81 Kg
LIMITS ON SIZE OF WORK PIECE: 406mm x 406mm x 152mm
(Recommended)
Scies Miniatures Sàrl
Z.I. Les Plans‐Praz
1337 VALLORBE
SWITZERLAND
Email: pegas@scies.ch
SETUP & OPERATION MANUAL
MODEL: SRP14-CE
SCROLL BAND SAW
Original instruction Version 01 2016
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for PEGAS SRP14-CE
Summary of Contents for PEGAS SRP14-CE
- Page 1 SETUP & OPERATION MANUAL MODEL: SRP14-CE SCROLL BAND SAW FEATURES The Pégas® SCROLL BAND SAW is a precision machine using Pégas® Scroll Bandsaw blades, the finest and the most accruable blades ever produced. This unique and innovative concept is intended for informed users, from hobbyists to skilled professionals.
-
Page 2: Very Important
INTRODUCTION Thank you for purchasing model SRP14-CE scroll band saw, this machine has been carefully tested and inspected before shipment and if properly used and maintained, will provide you with years of reliable service. VERY IMPORTANT It is new concept, which you maybe still never seen. We strongly recommend to read carefully and completely this manual;... - Page 3 Do not let persons, especially children, not involved in the work touch the tool or the extension cord and keep them away from the work area. 5 - Store idle tools When not in use, tools should be stored in a dry locked-up place, out of reach of children. 6 - Do not force the tool It will do the job better and safer at the rate for which it was intended.
- Page 4 Before further use of tool, it should be carefully checked to determine that it will operate properly and perform its intended function. Check for alignment of moving parts, binding of moving parts, breakage of parts, mounting and any other conditions that may affect its operation. A guard or other part that is damaged should be properly repaired or replaced by an authorized service centre unless otherwise indicated in this instruction manual.
-
Page 5: Ec Declaration Of Conformity
Z.I. Les Plans-Praz 1337 VALLORBE SWITZERLAND declare in sole responsibility that the equipment Equipment： Scroll Band Saw Model/ serial no.: SRP14-CE to which this declaration applies, complies with these normative documents: Machinery Directive: 2006/42/EC and conforms to the following EN standard, ... - Page 6 TRANSPORTING AND HANDLING This machine shall be moved by persons who are qualified. Persons besides the worker are not allowed to stay in the work place during transporting the machine. Plate trailer can be used in handling, make sure that machine is loaded vertically and the strength of plate trailer is sufficient to hand the machine.
- Page 7 WARNING Do not connect the machine while it is not fully installed. ASSEMBLING BLADE & ADJUSTING BLADE TENSION AND TRACKING When the machine is correctly fixed on the stand, take care of these very important information, which will be followed systematically also when you install a new blade or when you change the size of the blade. Look at both upper and lower precision guiding systems ball bearings and get used with this new system.
- Page 8 Notice that there is an important radial clearance and the ball bearings can be moved of about 3mm. IT’S NORMAL AND NECESSARY TO INSURE A FINE AND PRECISE ADJUSTMENT. (Image D) Push both ball bearings in the most back position and block them in this position by tightening slightly the Allen screws by hand.
-
Page 9: Assembling The Table
ASSEMBLING THE TABLE Now you are ready to go to the next step, assembling the table. If you are alone we recommend firstly to remove the blade from the band saw before installing the table to avoid breaking the fine blade. If somebody is helping you, (we recommend it, you should be able to install the table without any damage to the blade. -
Page 10: Basic Adjustments And Controls
6. If you have removed the blade, you have now to put it back, following the instructions concerning this important point.(Pages 7+8). 7. Re-install the table insert in the center of table and the alignment pin on the side. (Images N + O) 8. - Page 11 To avoid unexpected or unintentional start-up, make sure that the power switch is in the OFF before connecting to a power source. Do not try to use the machine unless all the guards and other safety devices necessary for machining are in good working order. ADJUSTING THE UPPER GUARD 1.
-
Page 12: Power On/Off Switch
POWER ON/OFF SWITCH Plug the power cable into a correctly rated switch socket outlet. If extension leads are being used, check these and make sure that they are not damaged. This scroll band saw is equipped with a magnetic ON/OFF switch (A) To START the saw: Press the green button “I”. -
Page 13: Changing Speed Settings
CHANGING SPEED SETTINGS This machine has 2 different speed settings: 700 MPM /1050 MPM To change the speed setting: 1. Turn off power and disconnect the saw from the power source. 2. Open the door. 3. At the back of the saw, just above the motor, there is a ratchet lever to loosen the drive belt, unscrew the bolt a few turns - counterclockwise then pull up on the capacitor cover of the motor and pivot the motor to the left. - Page 15 PARTS LIST SRP14-CE PARTS NO. DESCRIPTION SPEC. SRP14CE-01 Base SRP14CE-02 Upper Frame SRP14CE-03 Steel Pin 1/4"x16mm Hex Screw 3/4"x2-1/2" SRP14CE-04 Flat Washer 3/4" SRP14CE-05 Spring Washer 3/4" SRP14CE-06 Hex Nut 3/4" SRP14CE-07 Motor SRP14CE-08 Hex Screw 1/2"x2-1/2" SRP14CE-09 Flat Washer 1/2"...
- Page 16 PARTS LIST SRP14-CE PARTS NO. DESCRIPTION SPEC. Clip SRP14CE-52 Capacitor Clip SRP14CE-53 Capacitor SRP14CE-54 20uF 400V SRP14CE-55 Girdle SRP14CE-56 External Gear Washer Copper Washer SRP14CE-57 SRP14CE-58 Cross Hd Screw w/Washer 3/16"x1/4" Foam Sticker SRP14CE-59 LED Light SRP14CE-60 SRP14CE-61 Cross Hd Screw...
- Page 17 PARTS LIST SRP14-CE PARTS NO. DESCRIPTION SPEC. Hex Screw SRP14CE-102 M6x35 SRP14CE-103 Flat Washer Protective Glass for Blade ( R ) SRP14CE-104 Protective Glass for Blade ( L ) SRP14CE-105 SRP14CE-106 Upper Wheel Housing SRP14CE-107 Flat Washer 3/16" SRP14CE-108 Mounting Post 3/8"...
- Page 18 PARTS LIST SRP14-CE PARTS NO. DESCRIPTION SPEC. Spring Washer SRP14CE-150 5/16" SRP14CE-151 Flat Washer 1/4" Scale SRP14CE-152 Pointer SRP14CE-153 Star Knob SRP14CE-154 SRP14CE-155 Table Spring Pin φ3x10L SRP14CE-156 Set Screw M4x8 SRP14CE-157 SRP14CE-158 Table Insert SRP14CE-159 Table Insert SRP14CE-160 Table Alignment Pin...
- Page 19 58MM STAND DIAGRAM PART NO. DESCRIPTION SPECIFICATION Top Plate Carriage Screw 5/16"x3/4" Reinforcing Rib Flat Washer 5/16"x18x2T Hex Nut 5/16" Lower Bracket (Long) Carriage Screw 5/16"x1/2" Lower Bracket (Short) Foot Pad Hex Screw 5/16"x2" Flat Washer 5/16" Flange Nut 5/16"...
-
Page 20: Specification
30MM STAND DIAGRAM PART NO. DESCRIPTION SPECIFICATION Lower Bracket (Long) Lower Bracket (Short)
