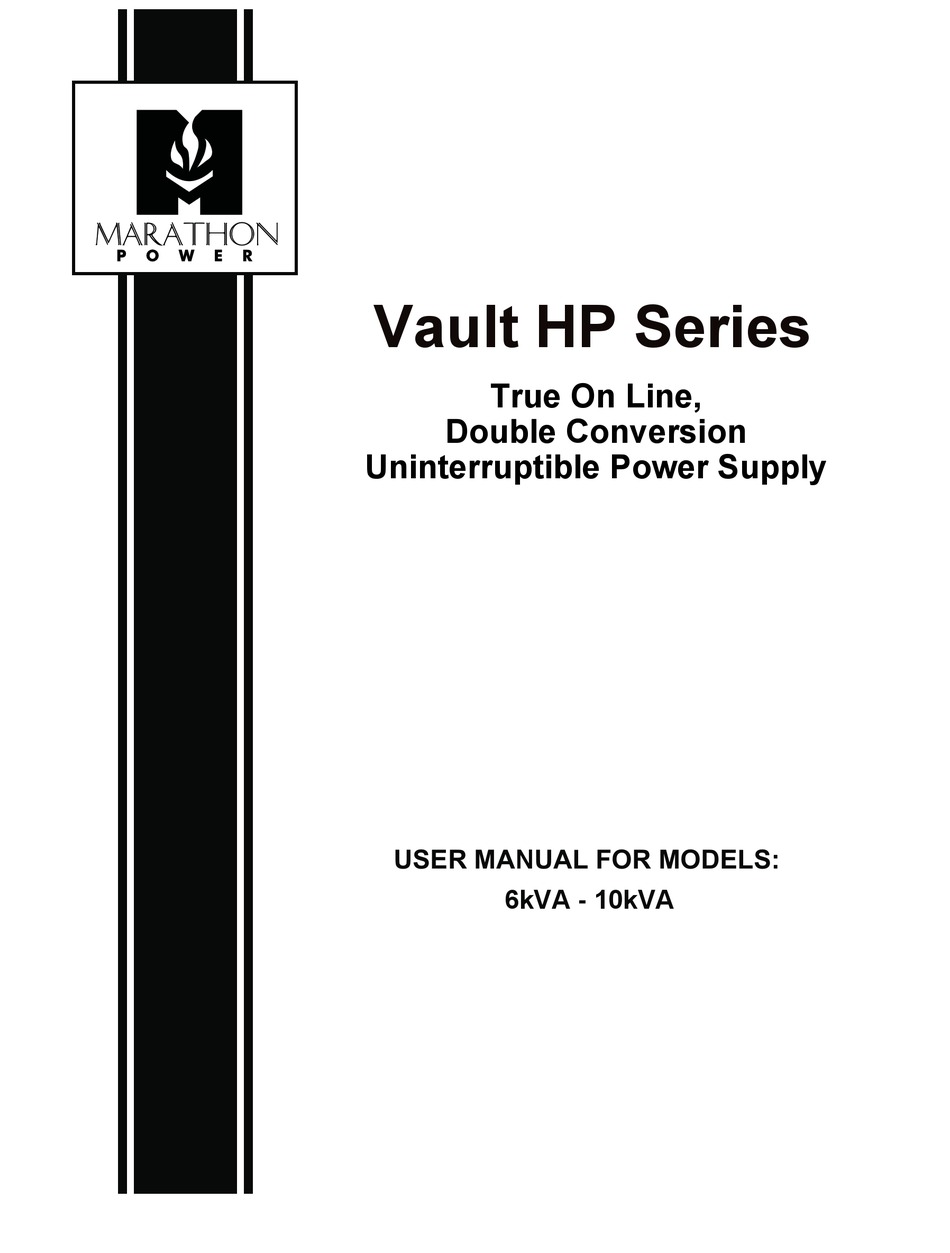

- Page 1 Vault HP Series True On Line, Double Conversion Uninterruptible Power Supply 86(5 0$N8$/ )25 02'(/6 6kVA - 10kVA...
-
Page 3: Table Of Contents
Table of Contents Section Page 1 .Introduction ..........................8 2. System Description ......................... 8 2.1 General Description……………………………………………………………………………..…8 2.2 System Configuration……………………………………………………………………………..10 3. Safety Information ........................10 4. Storage ............................11 5 .Installation ..........................11 5.1 Environment ........................11 5.2 AC Power and Load Connections ..................12 5.3 Rear Panel Views ...................... - Page 5 EMC Statements CISPR 22 NOTICE: Pursuant to CISPR 22 rules, this product has been tested and thereby complies with the conditions of a class C2 (6KVA and 10KVA) and Class A digital device, which have been established for offering sufficient protection against dangerous interference for installation in a residential area.
- Page 6 IMPORTANT SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS 1. This manual contains important instructions that should be followed during Installation and Maintenance of the UPS and Batteries. 2. CAUTION (UPS with Internal Batteries): Risk of electric shock - Hazardous live parts inside this unit are energized from the battery supply even when the input AC power is disconnected.
- Page 7 The instructions contained within this safety manual are extremely important and should be closely followed at all times during installation and follow-up maintenance of the UPS and battery. CAUTION The unit contains dangerous voltage levels. If the UPS is on, but not connected to an AC power supply, the unit's outlets may still be energized with voltage due to the presence of an internal power source, i.e.
-
Page 8: Introduction
,QWURGXFWLRQ The information provided in this manual covers single phase 6000 – 10000 VA, uninterruptible power systems, their basic functions, operating procedures, and emergency situations, also including information on how to ship, store, handle and install the equipment. Only detailed requirements of the UPS units are described herein, and installation must be carried out in accordance with this manual. - Page 9 Efficiency Optimizer Function The Efficiency Optimizer function is a new feature for the UPS adding cost effectiveness, minimizing power loss and reducing power consumption. Alternating between bypass and on-line modes is achieved automatically and in accordance with the conditions of the utility power. On-line mode may be used during times of intermittent power supply, and bypass mode when power flows smoothly in order to obtain greatest efficiency.
-
Page 10: System Configuration
2.2 System Configuration The UPS device and the internal backup battery make up the system. Depending on the site and load requirements of the installation, certain additional options are available as a tailored solution. Planning a UPS system, the following should be taken into consideration: The total demand of the protected system shall dictate the output power rating (VA). -
Page 11: Storage
User’s operations - The only operations that users are permitted to do are: • Turning the UPS unit on and off • Operating the users interface • Connecting data interface cables All such operations are to be performed exactly as instructed in this manual. The greatest care possible must be taken for any of these operations and any change thereof may prove very hazardous to the operator. -
Page 12: Ac Power And Load Connections
5.2 AC Power and Load Connections Vertical and Wall-Mount Installation Only qualified technicians should carry out installation of this equipment. The installation must further comply with all local legislation and regulations. Follow all installation and safety instructions very carefully to avoid the existence of a hazardous situation and damage to the UPS and/or loads. - Page 13 Additional Installation Information (for 6kVA - 10kVA Models) 1. Ensure that all electrical connections have been correctly implemented for the installation site out. 2. Refer to Table 2 for input and output breaker rating. 3. Isolate and prevent the source from activating. Both input and output circuit breakers (located on the rear of the unit) must be in the "OFF"...
- Page 14 Installation Appendix Installing the input /output terminals with covers on UPS Module. Screws: M3x8 Step1: Separate the top cover Step 2: Fix the bottom cover on the terminal block. Step 3: Input configure. Insert the input cable. Step 4: Output configure. Insert the output cable. Step 5: Fix the top cover.
- Page 15 Connecting the UPS to the Battery...
- Page 16 Unit Stack Installation The following diagrams illustrate how to stack the units (and battery packs when applicable). 6WDFN ,QVWDOODWLRQ...
-
Page 17: Rear Panel Views
5.3 Rear Panel Views 1. 6000VA Tower Rear Panel 2. 6000VA RT Rear Panel... -
Page 18: Tower Models - 6Kva Rear Panel Views
3. 10000VA Tower Rear Panel 4. 10000VA RT Rear Panel... -
Page 19: Connection To Mains Run And Loads (6000-10000)
5.4 Connection to Mains and Loads (6000 - 10000VA) Only qualified specialists or technicians who conform to applicable safety standards may carry out the installation of this equipment. The installation must further comply with all local legislation and regulations. Follow all installation and safety instructions very carefully, otherwise those performing installation may suffer from a hazardous situation and the UPS or load connections may also be damaged. -
Page 20: Factory Default Settings
Caution! Local safety requirements may require a separate external Emergency Power Off that opens output circuit breakers, and if so, use figures 2 to 4 for proper installation. Refer to local wiring rules. • Should computer or alarm connections be used, use connections according to chapter 6 of the manual provided with that option. - Page 21 6. Computer and Alarm Connections At the back of the UPS is an interface allowing direct communication with your computer system, the location of which can be found in figure 4. There is a RS232 serial data interface, one USB data interface and an emergency power off switch supplied.
-
Page 22: Network Transient Protector (Optional)
6.2 Network Transient Protector (Optional) The network transient protector, located on the rear panel, consists of both IN and OUT jacks housed on a separate RJ-45 (10BaseT) network card. If used, make sure that the input and the output are connected to the appropriate jack. 6.3 Load Segments (Where applicable) The power management software controls individual sets of output receptacles on the UPS called "load segments"... -
Page 23: Operational Instructions
2SHUDWLRQDO ,QVWUXFWLRQV 6WDUWLQJ 8S DQG 6KXWWLQJ 'RZQ WKH 836 6WDUW 8S (QVXUH WKDW WKH XQLW KDV EHHQ FRUUHFWO\ LQVWDOOHG DQG WKDW WKH LQSXW SRZHU FDEOH LV FRQQHFWHG WR D SURSHUO\ JURXQGHG $& RXWOHW 7KH XQLW LV WXUQHG RQ E\ SXVKLQJ WKH SRZHU SXVKEXWWRQ RQ WKH IURQW SDQHO IRU PRUH WKDQ VHFRQGV 7KH XQLW VHTXHQFHV WKURXJK LWV IXQFWLRQDO FKHFN $&... -
Page 24: Control Panel Indicators
&RQWURO 3DQHO ,QGLFDWRUV 6WDWXV SDUDPHWHUV DQG UHDGLQJV DUH GLVSOD\HG RQ WKH FRQWURO SDQHO YLD ¿YH /(' LQGLFDWRUV DQG RU DQ /&' VFUHHQ DQG DXGLEOH DODUPV FRPSOLPHQW WKH GLVSOD\ 7KLV V\PERO LV DFFRPSDQLHG E\ D JUHHQ /(' WKDW LOOXPLQDWHV ZKHQ WKH 836 KDV EHHQ WXUQHG RQ 21/,1( 7KLV V\PERO LV DFFRPSDQLHG E\ D JUHHQ /(' WKDW LOOXPLQDWHV ZKHQ WKH... -
Page 25: Lcd Panel Display Modes
7.4 LCD Panel Display Modes 1. Normal Display Mode UPS status is shown in this display mode. From this mode, the UPS data display mode and the setting display mode can be selected by pressing the appropriate push-button. 2. Data Display Mode Various data and measurements are shown in this display mode. -
Page 26: Manual Ups Or Battery Test
Settings LCD Display Detail Selection/Option Default Output Voltage O/P V Setting Nominal Voltage Selection 208/220/230/240V 230V ±2% Input frequency range selection Input / Frequency I/P F Setting ±5% ±5% when UPS is in free run mode ±7% ±10% Input Voltage range selection Input / Bypass Voltage I/P Bypass Set +10/-15%... -
Page 27: Sense Mode - Normal And Generator Waveforms
Sense Mode - Normal and Generator Waveforms This is used to broaden the input parameters to accommodate the voltage fluctuations created by a backup generator or a noisy line. The factory default setting is normal, where the unit runs on normal parameters. -
Page 28: Troubleshooting
7.8 Troubleshooting &RUUHFWLYH $FWLRQ /&' $ODUPV 3UREOHP 'HVFULSWLRQ 2XWSXW 7ZR EHHSV SHU 7KH 836 LV RYHUORDGHG LQ 5HGXFH WKH ORDG RQ WKH 836 E\ 2YHUORDG VHFRQG /LQH 0RGH 7KH SRZHU UDWLQJ GLVFRQQHFWLQJ OHVV FULWLFDO HTXLSPHQW RI WKH FRQQHFWHG HTXLSPHQW 2QFH WKH WRWDO ORDG LV EHORZ WKH H[FHHGV WKH FDSDFLW\ 9$ PD[LPXP VSHFL¿HG E\ WKH 836 LW ZLOO UDWLQJ RI WKH 836 7KH 836... -
Page 29: Maintenance
8. Maintenance As long as all the installation, environmental and operational requirements have been followed and met, the UPS will require little or no maintenance for many years. The batteries are the only component that should eventually need replacing. Their useful life depends primarily on the following two factors;... - Page 30 Manual test of the UPS Manual UPS or Manual Battery tests can be conducted from the UPS configuration as well and are functional even when the UPS is not charging the battery. Manual Battery test: Scroll the parameters until Manual Bat test displays on the LCD. Press the “ENTER” button twice. Step 1: Disassemble top cover screws, then remove the top cover.
- Page 31 WARNING: When power supplied by external batteries, output toward loads must be limited to less than 90% of overall power generation. UPS Shutdown procedures: STEP 1: From the front panel, press and hold “ON/OFF” button to 2 seconds until hear a long beep sound and see “SHUTDOWN”...
-
Page 32: Specifications
9. Technical Specifications Tower model at PF0.9 WARNING: When power supplied by external batteries, output toward loads must be limited to less than 90% of overall power generation GENERAL Rated Capacity: 6kV, 10kVA (pf. = 0.9) Technology: True on-line, double conversion topology with integral automatic bypass INPUT Phase:... - Page 33 Model Number VTWP-6000-02 VTWP-10000-02 Capacity 6000VA | 5400W 10000VA | 9000W 6-Position Terminal Blocks, 6-Position Terminal Blocks, Input Connection 57A, Bolt Size: M5 57A, Bolt Size: M5 6-Position Terminal Blocks, 6-Position Terminal Blocks, Output Connection 57A, Bolt Size: M5 57A, Bolt Size: M5 Sealed, lead-acid Battery Type &...
-
Page 34: Warranties
Marathon Power warrants to the original purchaser, who must have properly registered the product within 30 days of purchase, and not for the benefit of anyone else that this product at the time of its sale by Marathon Power is free of defects in materials and workmanship for three (3) years (batteries for 2 years within the USA, Canada and Mexico, otherwise 1 year) from the original purchase date. - Page 36 Marathon Power Inc., 2023 2538 E. 54th Street Huntington Park, CA Office: 310-689-2328 Fax: 310-689-2329 support@marathon-power.com www.marathon-power.com © Marathon Power, Inc. 2023 Vault HP 6k-10k User Man_June_2023...
