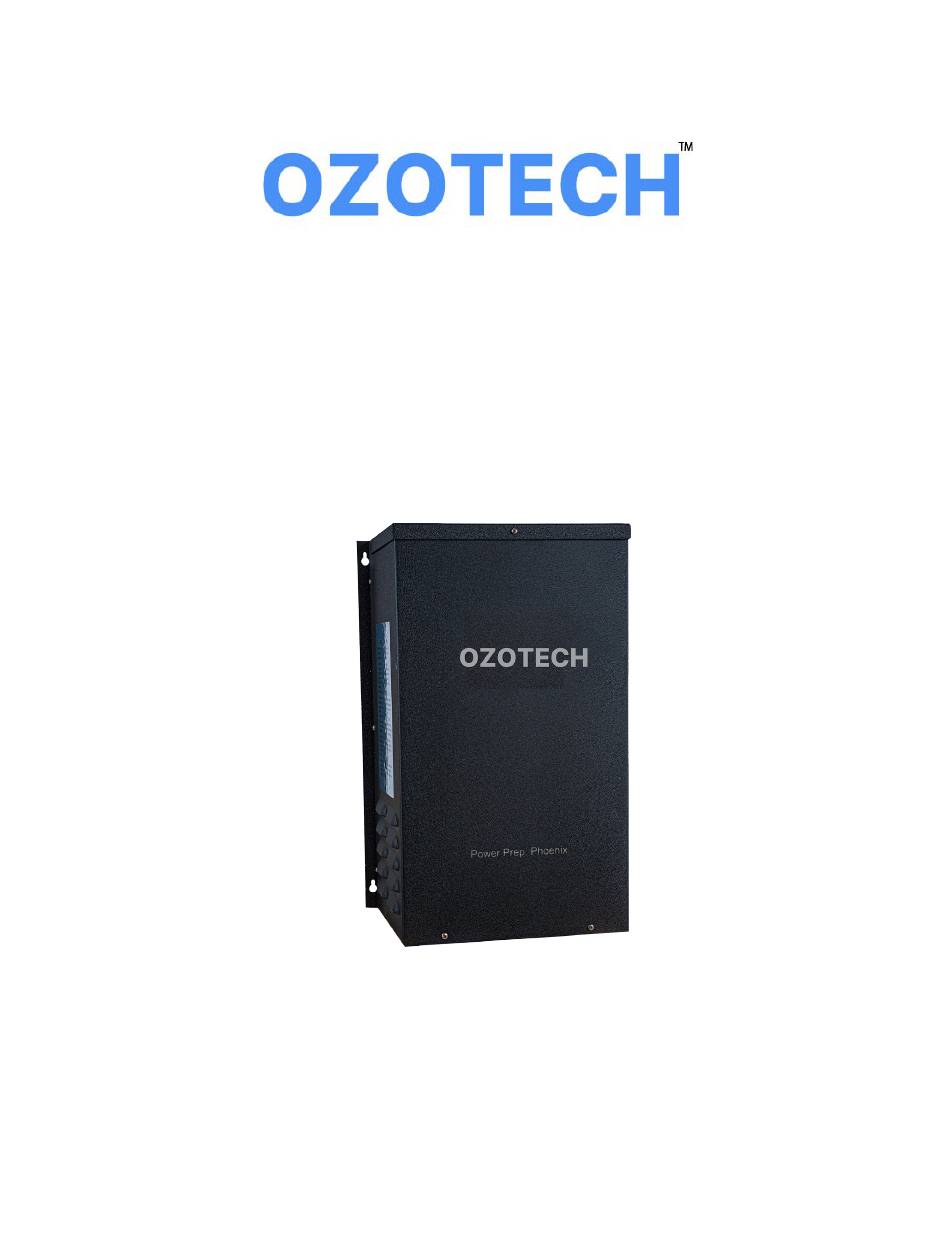

- Page 1 Power Prep Phoenix Oxygen Concentrator Operation & Maintenance Manual OZOTECH, Inc. • 1015 South Main Street, Yreka, CA 96097 • Ph. 530.842.4189 • ozotech.com M43-31254 REV B...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1.0 Caution 2.0 Theory of Operation 2.1 Pressure Swing Adsorption (PSA) Air Preparation 3.0 Operating Conditions 3.1 Ambient Temperature 3.2 Operating Environment 3.3 Output Air Flow Specifications 3.4 Input Power Requirements 3.5 Features 4.0 Maintenance 4.1 Compressor Intake Filter 4.2 Maintenance of Compressor 4.2.1 Unit Output Pressure 5.0 Spare/Replacement Parts... -
Page 3: Caution
• The equipment must be operated using a grounded electrical outlet. Circuit must be protected (fuse or circuit breaker). • Ozotech, Inc. assumes no liability for damages or injuries incurred by misuse of this product. • Do not use an extension cord to supply power to this equipment. -
Page 4: Theory Of Operation
Pressure Swing Adsorption is a reliable and economical way to produce superior feed gas, on site, for ozone generation applications. The Power Prep Phoenix is designed primarily as a “heatless” air dryer, capable of reducing dew point of the feed gas to -100˚F, with oxygen concentrations of up to 70% possible at low air flow rates. -
Page 5: Operating Environment
(6) inches clearance is required around the front, left and right side of the unit to eliminate restriction of air flow. In addition, choose a location that is free of ambient ozone gas. Refer to Power Prep Phoenix installation manual for methods of equipment installation that will minimize the chance of an ozone “leak”. -
Page 6: Maintenance
Each kit contains the correct quantity and type of maintenance parts for your specific model of equipment. Make sure that you use the correct Ozotech, Inc., maintenance kit for your particular application. Refer to the Spare/Replacement Parts section of this manual for maintenance kit information. - Page 7 4.2.1 Unit Output Pressure Unit Output Pressure must be maintained at specified value in order to maintain sufficient pressure within the system. Loss of system pressure will result in reduced purge capability. Frequency of Maintenance: Every 2,400 hours (3 months) To check Unit Output Pressure: 1.
-
Page 8: Spare/Replacement Parts
Part No. Description Applicable Model 31072 Flow meter, 0-10 SCFH All models 32179 Compressor, 115Vac/60Hz Power Prep Phoenix, 115Vac/60Hz Power Prep Phoenix, 230Vac/60Hz 32180 Compressor, 230Vac/50Hz Power Prep Phoenix, 230Vac/50Hz 40002 All models 39021 Pressure Regulator... -
Page 9: Troubleshooting Guide
6.0 Troubleshooting Guide Troubleshooting should be performed by a qualified electrician, in accordance with sound electrical safety practices. Symptom Possible Cause Remedy Unit does not turn on Unit is not connected to power source, or is Refer to label on side of chassis for voltage/frequency connected to improper power source. - Page 10 FIGURE 1 - Component Layout Diagram, Power Prep Phoenix, All Models...
- Page 11 FIGURE 2 - Wiring Diagram, Power Prep Phoenix, 115Vac/60Hz...
- Page 12 FIGURE 3 - Wiring Diagram, Power Prep Phoenix, 230Vac/60Hz...
- Page 13 FIGURE 4 - Wiring Diagram, Power Prep Phoenix, 230Vac/50Hz...
-
Page 14: Installation
7.0 Installation Hookup of the Power Prep Phoenix is very simple. Basically, all that is required is an air-flow meter between the output tubing and the ozone generator input connection (unless your ozone generator is equipped with its own flow meter). Based on customer inputs, we have also included a desiccant indicator that is meant to be installed between the air-flow meter and the ozone generator. - Page 15 7.0 Installation (contd.) 3b. Set the air-flow rate through your Power Prep Phoenix by adjusting the flow-meter. Use the number found in Step (3a) to determine the proper air flow rate for your Power Prep Phoenix. For example, assume that you find that your venturi draws 5 SCFH.
- Page 16 FIGURE 5 – Typical Installation, in use with a BTU Series Ozone Generator...
-
Page 17: Limited Warranty
9.0 Limited Warranty OZOTECH, Inc., warrants the Power Prep Phoenix oxygen concentrator to be free from defects in parts and workmanship for (12) months from date of invoice, under conditions of normal use. The corona discharge cell is warrantied against catastrophic electrical failure for 3 years from date of invoice. -
Page 18: Service Returns
✓Shipments that are not factory authorized will be refused. It is recommended that you ship with a reputable and reliable shipping company, and that the contents of the package are insured. Ozotech, Inc., accepts no responsibility for damage or loss of equipment in transit.
