Summary of Contents for Ozotech AIM PCS 400

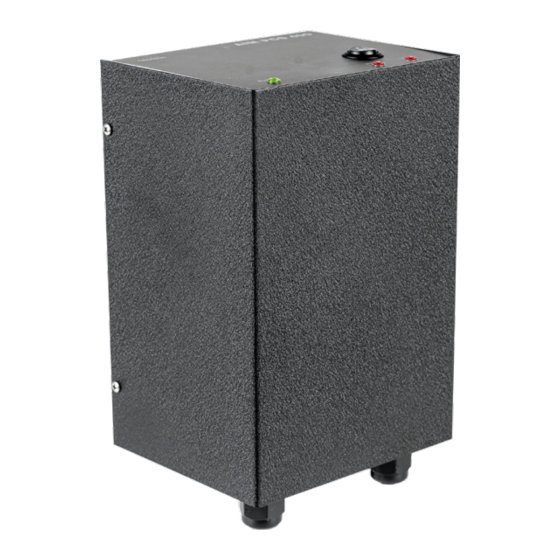

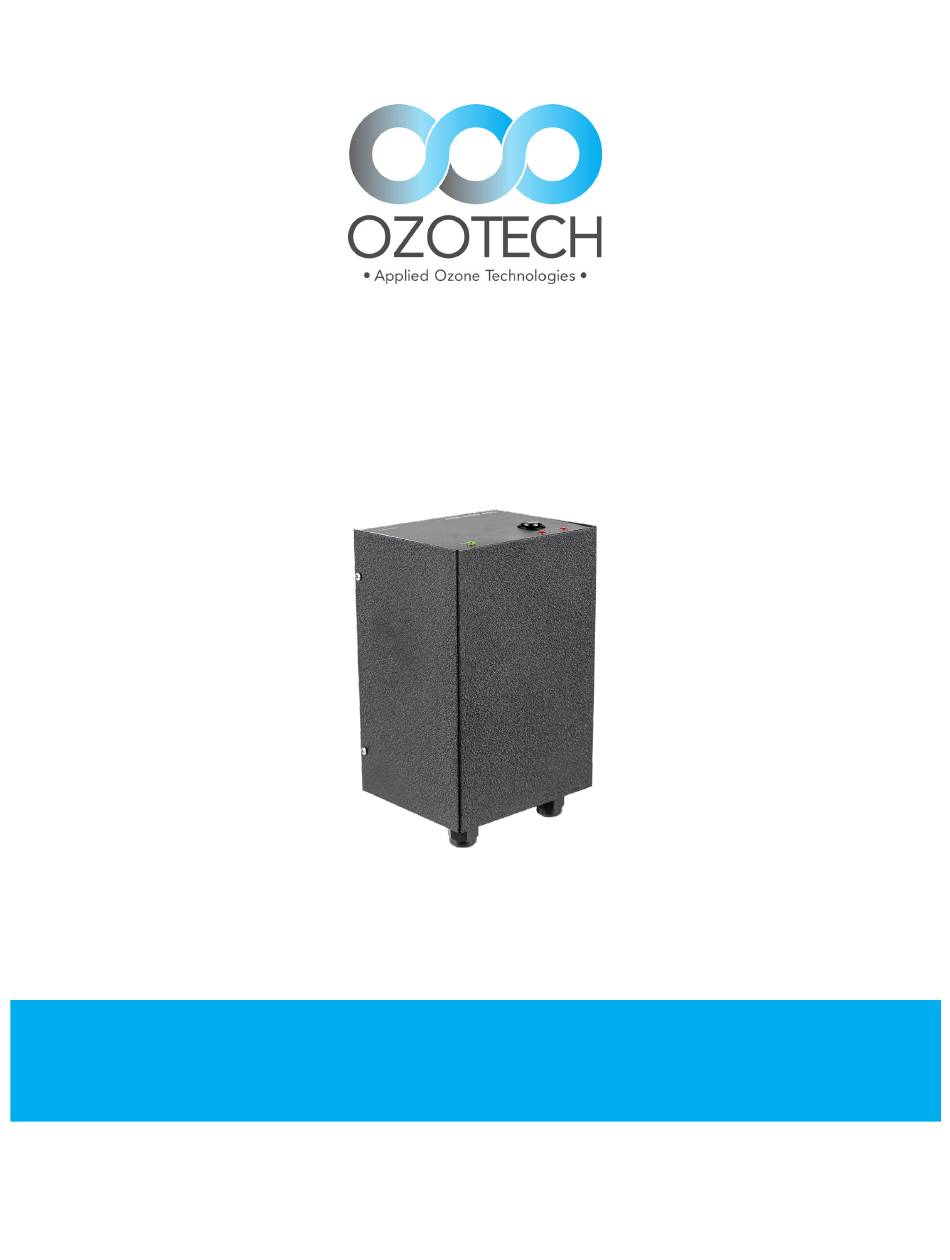

- Page 1 AIM PCS 400 Ozone Generator Installation and Service Manual M43-31333 REV A...
- Page 2 Congratulations on your purchase of the AIM Series ozone generator! This user manual was created to help you get the most out of your new device and to assist you with the initial set up. Please visit www.ozotech.com to learn more about this and other products.
- Page 3 Do not use an extension cord to supply power to this equipment. Use a power conditioner if line voltage fluctuates outside of specified range. Unit must be disconnected from power prior to performing service or repair. *Ozotech, Inc., assumes no liability for damages or injuries incurred by misuse of this product.
-
Page 4: Table Of Contents
Table of Contents Installation and Operation Operating Environment Installation Operation Maintenance Ozone Generator Maintenance Spare/Replacement Parts Specifications Component Replacement CD Cell Replacement Troubleshooting Guide Illustrations Limited Warranty Service Returns... -
Page 5: Installation And Operation
5.0. 1.2 Installation The AIM PCS 400 is designed to be mounted vertically on a wall, panel, or framework. There are two (2) keyhole mounting features within the chassis, sized for #8 screws. The use of wall anchors is recommended when stud(s) are not available. -
Page 6: Operation
1.3 Operation Ozotech, Inc., offers the AIM PCS 400 ozone generator with a variety of electrical input configurations to accommodate a wide range of applications. Configurations include a standard AC to DC wall transformer (included with purchase), a cigarette lighter adapter or twisted wire for connection to a hard 12 VDC source such as a car, boat or RV battery circuit. -
Page 7: Spare/Replacement Parts
3.0 Spare/Replacement Parts Part # Description 33217-BR Corona Discharge Cell* (2) 47018-304 Ozone Resistant In-line Check Valve* (2) 40080-01 Wall Transformer, 230/115 VAC to 12 VDC/2A 47044-1 CD Cell Maintenance Kit 44140-1 Ozone Resistant Tubing, 1/4” ID x 3/8” OD 44077 Clear PVC Tubing, 1/4”... -
Page 8: Specifications
4.0 Specifications Input Power Requirements: • Operating Voltage (specified): 11.7 VDC to 13.9 VDC • Power consumption: 700mA to 1.3A @ 12VDC (8.4 to 15.6 watts) nominal Fusing Specification: 800 mA fast blow, IEC 127, 5x20mm Product Size (L x W x H): 9” x 6” x 5” Shipping Weight: 5 lbs. -
Page 9: Troubleshooting Guide
6.0 Troubleshooting Guide System Possible Cause Solution Unit doesn’t turn on Unit is not connected to pow- Refer to Input Power Require- er source, or is connected to ments, section 4.0, for proper improper power source electrical requirements Red light on power supply will Improper outlet voltage Verify power at outlet not illuminate... -
Page 10: Illustrations
7.0 Illustrations Figure 1. Typical well application w/contact tank and EOG filter Figure 2. Typical well application w/EOG filter... - Page 11 Figure 3. AIM PCS 400 internal diagram...
-
Page 12: Limited Warranty
Ozotech, Inc. ’ s warranty obligation with regard to equipment not of its own manufacture is limited to the warranty actually extended to the Ozotech, Inc. by its supplier. Ozotech, Inc. will refund the purchase price, perform repairs or replace equipment, at the option of Ozotech, Inc. -
Page 13: Service Returns
✓ It is recommended that you ship with a reputable and reliable shipping company, and that the contents of the package are insured. Ozotech, Inc., accepts no responsibility for damage or loss of equipment in transit. ALL FREIGHT CHARGES INTO THE FACTORY MUST BE PREPAID. If the repair is covered under warranty, the factory will pay return shipping charges (surface rates only) to the address listed on the RMA, within the continental United States. - Page 14 Ozotech, Inc. • 1015 South Main Street, Yreka, CA 96097 • Ph. 530.842.4189 ozotech.com...
