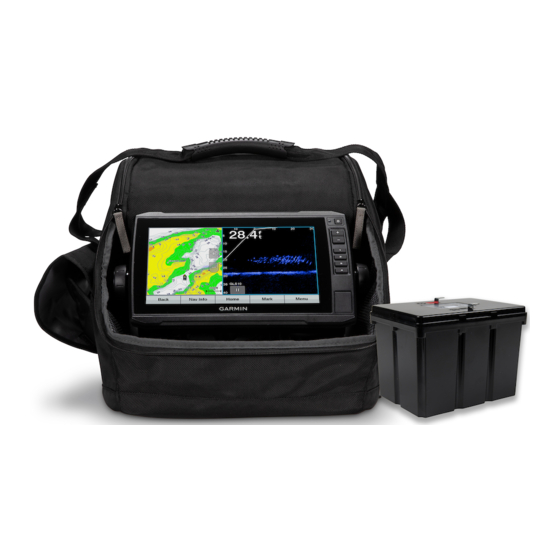

LIVESCOPE
ICE FISHING BUNDLE
™
INSTALLATION INSTRUCTIONS
Important Safety Information
WARNING
See the Important Safety and Product Information guide in the chartplotter or fishfinder product box for product
warnings and other important information.
To obtain best performance and to avoid possible damage, you must install this mount using these instructions.
Read all installation instructions before proceeding with the installation. If you experience difficulty during the
installation, go to
support.garmin.com
for more information.
March 2023
GUID-7EFDE99F-8A8C-46E2-98EA-F02109ECA727 v4
Advertisement
Related Manuals for Garmin LIVESCOPE
Summary of Contents for Garmin LIVESCOPE
- Page 1 LIVESCOPE ICE FISHING BUNDLE ™ INSTALLATION INSTRUCTIONS Important Safety Information WARNING See the Important Safety and Product Information guide in the chartplotter or fishfinder product box for product warnings and other important information. To obtain best performance and to avoid possible damage, you must install this mount using these instructions.
-
Page 2: Battery Information
Battery Information Battery Warnings WARNING The Garmin device uses a user-replaceable, sealed, lead-acid battery. If these guidelines are not followed, the ® battery may experience a shortened life span or may present a risk of damage to the device, fire, chemical burn, electrolyte leak, and/or bodily injury. - Page 3 Battery Tips • The length of time a fully charged battery will last before fully discharging varies based on many factors, such as device backlight brightness, the temperature, and the age of the battery. • You can lower the backlight brightness level to help extend the battery life. •...
- Page 4 7 Using the hex wrench and the M6 screws , attach the two halves of the bracket around the pole. 8 Use the hook and loop straps to secure the transducer cable to the pole. 9 Position the transducer for the desired view. TIP: Turn the transducer one click to change the orientation from forward to down 10 Place the mount base around the hole in the ice.
-
Page 5: Specifications
Specifications Ice Fishing Bundle Specifications Specification Measurement Battery type Sealed, lead acid, 12 Ah Up to 7 hr. NOTE: The actual battery life of a fully charged battery can vary based on the device Battery life used, backlight brightness, temperature the battery is operated and stored in, age of the battery, and depth of the water. -
Page 6: Open Source Software License
© 2019 Garmin Ltd. or its subsidiaries Garmin ® and the Garmin logo are trademarks of Garmin Ltd. or its subsidiaries, registered in the USA and other countries. LiveScope is a trademark of Garmin Ltd. or its ™ subsidiaries. These trademarks may not be used without the express permission of Garmin.
