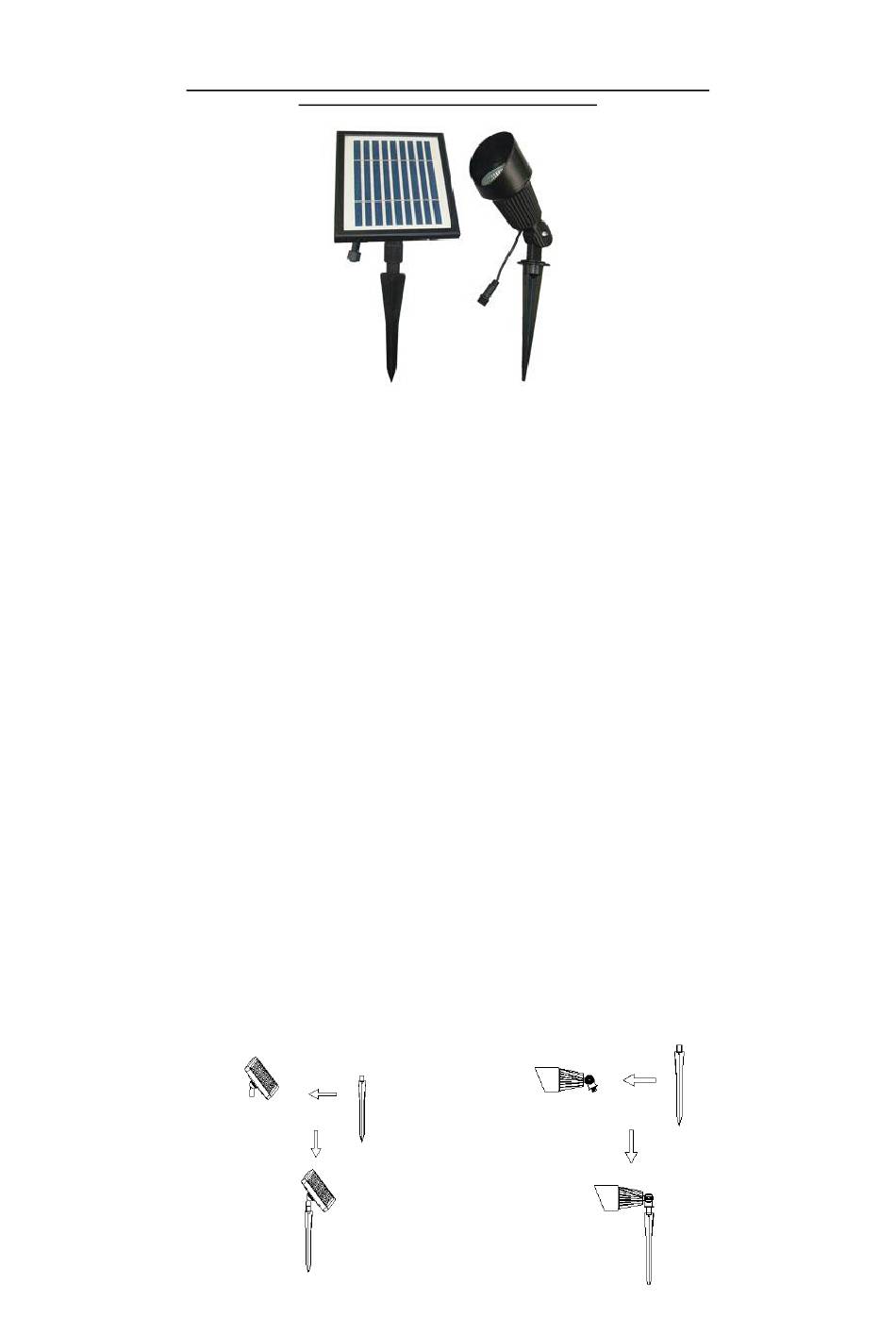

DESCRIPTION
The SGG‐S12 is designed as a stand‐alone spotlight which automatically illuminates at dusk. It is completely solar powered and
must be installed in position where the solar panel will receive the maximum sun per day. It's energy‐saving, auto switches
on/off and has an appealing design.

The unit has a single spotlight with 12 super bright LED's, and a Li‐ion rechargeable battery which is easily replaceable. The
SGG‐S12 can easily be installed and used in a broad range of applications such as; gardens, yards, walls, signs, flags etc.

PARTS
Battery Box and integrated solar panel
LED lamp fitting
Spike for lamp fittings
Battery Box Spike
Optional Flat Mount Kits
Optional Pole Mount Kits
Optional 9' wire kit

*Please contact your retailer to purchase optional mount and wire kits.


INSTALLATION

I Solar Spot Light
INSTALLATION OF THE SOLAR PANEL
Choose a place to locate the unit where there is abundant and unobstructed sunshine during the day. Any cover or
shade on the solar panel will affect its performance to charge the battery resulting in a shorter run time of the light
during the night (Fig.1).    IDEAL LOCATION OF THE SOLAR PANEL WILL BE FACING SOUTH AT A 45 DEGREE ANGLE TO
THE HORIZON.
The solar panel is adjustable. Adjust the angle of solar panel to 45 degrees for best results. The selected location should
not be near a night time light source like a porch or street light. If the panel receives light on it at any time it will not
allow the automatic day/night sensor to turn the light on.













SGG - S12
SolarGoesGreen SGG‐S12
READ AND FOLLOW ALL INSTRUCTIONS BEFORE OPERATING YOUR SOLAR LIGHT.
SAVE THIS MANUAL FOR FUTURE REFERENCE.
Fig.1
Fig.2

Page 1 of 3

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SGG-S12 and is the answer not in the manual?

Questions and answers

Summary of Contents for SolarGoesGreen SGG-S12

  • Page 1   SGG - S12 SolarGoesGreen SGG‐S12  READ AND FOLLOW ALL INSTRUCTIONS BEFORE OPERATING YOUR SOLAR LIGHT. SAVE THIS MANUAL FOR FUTURE REFERENCE. DESCRIPTION  The SGG‐S12 is designed as a stand‐alone spotlight which automatically illuminates at dusk. It is completely solar powered and  must be installed in position where the solar panel will receive the maximum sun per day. It’s energy‐saving, auto switches  on/off and has an appealing design.      The unit has a single spotlight with 12 super bright LED’s, and a Li‐ion rechargeable battery which is easily replaceable. The  SGG‐S12 can easily be installed and used in a broad range of applications such as; gardens, yards, walls, signs, flags etc.      PARTS  Battery Box and integrated solar panel  LED lamp fitting    Spike for lamp fittings  Battery Box Spike  Optional Flat Mount Kits  Optional Pole Mount Kits  Optional 9’ wire kit ...
  • Page 2   INSTALLATION OF LIGHT    • Spike it into soft ground. Adjust lamp aiming direction before installation(Fig.2)  • After installation, connect Spot light wire with Solar panel wire (optional wire kit for longer use) and switch the unit to  the ON position located on the back of solar panel. The light will automatically be operational when the panel detects  that it’s dark enough.      II Solar Flat Mount Light (OPTIONAL USE)  INSTALLATION OF THE SOLAR PANEL  • Drill 4 holes (dia. 8mm) on any flat surface using the flat wall mount as a template to determine hole location. (Fig.3)  • Fix wall mount to solar panel by using provided butterfly nut (Fig.4)  • Fix the solar panel to the surface by using provided screws(Fig.5)  • The solar panel is adjustable. Adjust the angle of solar panel to 45 degrees for best results. The installation location  must be located to capture the most possible sunshine during the day. IDEAL LOCATION OF THE SOLAR PANEL WILL BE  FACING SOUTH AT A 45 DEGREE ANGLE TO THE HORIZON.                        Fig.3      Fig.5    Fig.4   ...
  • Page 3 IF  LIGHT  WILL  NOT  ILLUMINATE  AFTER  2  SUNNY  DAYS,  UNPLUG  LIGHT  FROM  SOLAR  PANEL,  LEAVE  PANELSWITCH IN ON POSITION AND CONTINUE TO CHARGE LIGHT.  • REATTACH  LIGHT  AND  RESUME  OPERATION  AS  NORMAL.  IF  LIGHT  STILL  WILL  NOT  WORK,  REPLACE  BATTERY.    BATTERY REPLACEMENT  The battery is 3.7V 2000mAh Li‐ion rechargeable battery which is easily replaceable.  If the battery begins to illuminate dimly or for short durations of time and you know that it has had sufficient  sunlight on the panel in order to charge, you should replace the battery in the following way:  1. Unscrew the battery cover on the back of solar panel box and take off the old battery carefully without  damaging the cables.  2. Replace the new battery and remount the unit.    WARNING – Polarity is very important. Switching polarity on the unit is dangerous and will destroy  the unit.    UPC 850901003163    www.SolarGoesGreen.com      Page 3 of 3   ...
