DESCRIPTION
The SGG-S12 is designed as a stand-alone spotlight which automatically illuminates at dusk. It is completely solar
powered and must be installed in position where the solar panel will receive the maximum sun per day. It's
energy-saving, auto switches on/off and has an appealing design.
The unit has a single spotlight with 12 super bright LED's, and a Li-ion rechargeable battery which is easily
replaceable. The SGG-S12 can easily be installed and used in a broad range of applications such as; gardens, yards,
walls, signs, flags etc.
PARTS
Battery Box and integrated solar panel
LED lamp fitting
Spike for lamp fittings
Battery Box Spike
Optional Flat Mount Kits
Optional Pole Mount Kits
Optional 9' wire kit
*Please contact your retailer to purchase optional mounting kits and wire.
INSTALLATION
I Solar Spot Light
INSTALLATION OF THE SOLAR PANEL
•
Choose a place to locate the unit where there is abundant and unobstructed sunshine during the day. Any
cover or shade on the solar panel will affect its performance to charge the battery resulting in a shorter run
time of the light during the night (Fig.1). IDEAL LOCATION OF THE SOLAR PANEL WILL BE FACING SOUTH AT
A 45 DEGREE ANGLE TO THE HORIZON.
•
The solar panel is adjustable. Adjust the angle of solar panel to 45 degrees for best results. The selected
location should not be near a night time light source like a porch or street light. If the panel receives light on it
at any time it will not allow the automatic day/night sensor to turn the light on.
•

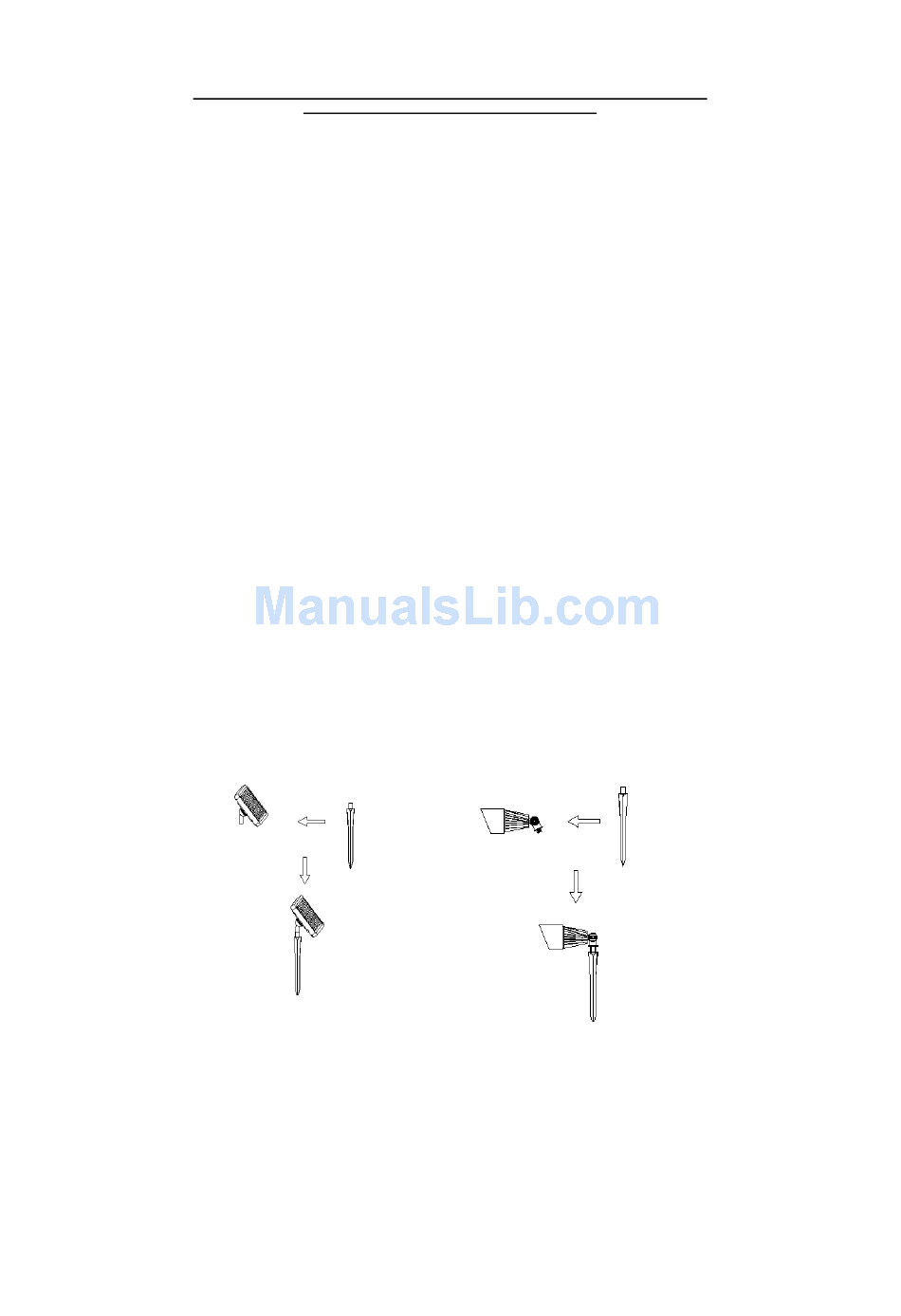

Spike it into soft ground. Adjust lamp aiming direction before installation(Fig.2)
After installation, connect Spot light wire with Solar panel wire (optional wire kit for longer use) and switch
•
the unit to the On positopn located on the the back of solar panel. The light will automatically be operational
when the panel detects that it's dark enough.
II Solar Flat Mount Light (OPTIONAL USE)
INSTALLATION OF THE SOLAR PANEL
•
Drill 4 holes (dia. 8mm) on any flat surface using the flat wall mount as a template to determine hole location.
(Fig.3)
SolarGoesGreen SGG-S12
READ AND FOLLOW ALL INSTRUCTIONS BEFORE OPERATING YOUR SOLAR LIGHT.
SAVE THIS MANUAL FOR FUTURE REFERENCE.
