Summary of Contents for Redrover True3Di SDM-080

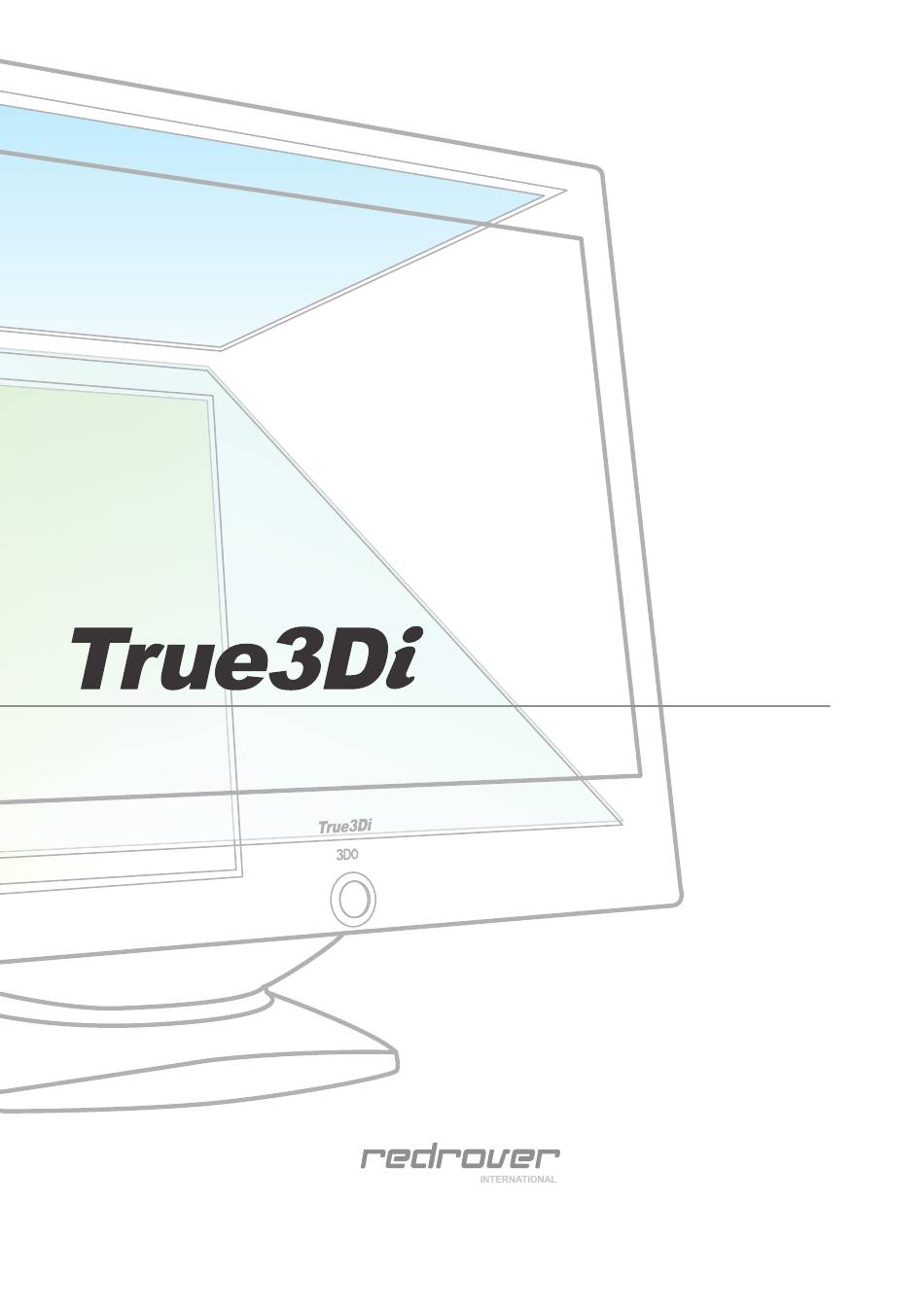

- Page 1 SDM-080 SDM-080 SDI User Guide...
-
Page 3: Table Of Contents
High Resolution Stereoscopic 3D Monitor True3Di is ...........4 Hazardous parts .........6 Included Parts .......... 12 Button functions description ..... 14 OSD settings & Monitor Menu settings ..19 Trouble shooting ........29... -
Page 4: True3Di Is
True3Di... - Page 5 True3Di USER GUIDE We appreciate users who decide to use True3Di products. SPECIFICATION Model SDM-080 SDM-080 SDI Aspect ratio WVGA WVGA Resolution 800 X 480 800 X 480 Active Display area 176.64(H) * 99.36(V) 176.64(H) * 99.36(V) (mm, typ.) Pixel Pitch(mm) 0.2208(H)*0.2070(W) 0.2208(H)*0.2070(W) Brightness (nits)
-
Page 6: Hazardous Parts
Hazardous Parts... - Page 7 True3Di USER GUIDE ※ Caution ● Graphic card ▶ Quadro FX series for Open GL Stereo Software ▶ Geforce 6000 and 7000 series for DirectX Stereo Software ● As using two graphic cards ▶ Please use the same graphic cards for the Quadro FX series, If different versions of the graphic cards are used, the 3D stereo will not work properly.
- Page 8 True3Di USER GUIDE ● Disconnect the power cable from the outlet when lightning or thunder is occuring nearby. ▶ It may cause a fire and/or electric shock. ● Do not drag or move the monitor in any direction holding only the power cable or any other cables only.
- Page 9 True3Di USER GUIDE Warnings relating installation ● Do not install or place the monitor at the edge of a shelf. Make sure the monitor is installed or placed fully inside the given space. ▶ It may drop or fall to cause damage or serious injury. ●...
- Page 10 True3Di USER GUIDE ● Install or place the monitor at least 10 cm (5 inch) from the wall for optimum level of ventilation. ▶ It may reduce or damage the life of the parts or the board. ● Disconnect the power cable and other connected cables if connected from the outlet and the monitor when removing the monitor to different locations.
- Page 11 True3Di USER GUIDE ● Do not watch the monitor for too long at a in close distance. ▶ Make sure to rest at least 5 minutes after each hour. ● Do not let anyone to climb on top of the monitor. ▶...
-
Page 12: Included Parts
Included Parts... - Page 13 True3Di USER GUIDE Included Parts 8 ″Monitor Polarized glasses Cleaner Power cable and adapter ※ Included parts and its manufacturer may vary upon subject. ※ It is possible for the included quantity and manufacturer of parts to be changed.
-
Page 14: Button Functions Description
Button Functions Description... - Page 15 True3Di USER GUIDE Description of each function (SDM-080) ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ 1. Button Description ① Composite, Component, DVI selection of input. ② Menu button. - If Main and Sub panel are both turned on, it will not work. - To control the Main panel, please turn off the Sub panel (vice versa) ③...
- Page 16 True3Di USER GUIDE ⑨ ⑨ ⑪ ⑩ ⑨ ⑩ ⑪ ⑫ ⑨ Component input port (YPbPr) ⑩ VIDEO input port (Composite) ⑪ DVI-D input port - Using HDMI gender for DVI cable ⑫ POWER port...
- Page 17 True3Di USER GUIDE Function description on each part(SDM-080 SDI) ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ 1. Button Description ① HD-SDI, DVI selection of input. ② Menu button. - If Main and Sub panel are both turned on, it will not work. - To control the Main panel, please turn off the Sub panel (vice versa) ③...
- Page 18 True3Di USER GUIDE ⑨ ⑪ ⑩ ⑨ ⑨ ⑩ ⑨ SDI In, SDI Out ⑩ DVI-D input port - Using HDMI gender for DVI cable ⑪ POWER port...
-
Page 19: Osd Settings & Monitor Menu Settings
Monitor Menu Settings... - Page 20 True3Di USER GUIDE 1. Picture Menu 1) Brightness control 2) Contrast control 3) Saturation control 4) Hue control 5) Temperature control - 0 : RGB at No color temperature - 1 : 4200K - 2 : 5000K - 3 : 5400K - 4 : 6500K - 5 : 7500K - 6 : 9300K...
- Page 21 True3Di USER GUIDE 6) User RGB 7) Sharpness control 8) Position Adjust control * Remark : When both the Main and Sub panels receive the signals, if you press the button five times, Sub position is possible to control.
- Page 22 True3Di USER GUIDE 2. OPTION Setup 1) RGB Calibration : Auto setup of RGB calibration of Component image 2) Factory Reset 3) Flips Mode - Select Flips Mode on OPTION Menu ① Auto - Convert to Factory Setting ② Manual ③...
- Page 23 True3Di USER GUIDE 3. Source Select(SDM-080) - Selection of Component, DVI, Composite input 4. Source Select(SDM-080 SDI) - Selection of , DVI, HD-SDI...
- Page 24 True3Di USER GUIDE 5. Indication of abnormal operation and quick fix BLUE SCREEN(LED orange color) - Current mode is displayed on the top left side and the whole screen is blue screen. This means that there is no signal from the PC or the source of the video or the cable is disconnected.
- Page 25 Important safety instructions...
- Page 26 True3Di USER GUIDE IMPORTANT SAFETY INSTRUCTIONS: Important safety instructions shall be provided with each apparatus. These instructions shall be in a separate booklet or sheet, or be located before any operating instructions in an instruction for installation or use and supplied with the apparatus. This information shall be given in a language acceptable to the country where the apparatus is intended to be used.
- Page 27 True3Di USER GUIDE 13) Unplug this apparatus during lightning storms or when unused for long periods of time. 14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
- Page 28 SHOCK, DO NOT EXPOSE THIS PRODUCT TO IMPORTANT: Model No.: RAIN OR MOISTURE. To aid reporting in case of loss or theft, please record the TV's model and serial numbers in the space Serial No.: True3Di USER GUIDE provided. The numbers are located at the rear of the TV. The lightning flash with arrow-head symbol, within an equilateral IMPORTANT INFORMATION...
-
Page 29: Trouble Shooting
Trouble Shooting... - Page 30 True3Di USER GUIDE Trouble Shooting 1. No image is shown on the screen after computer is turned on. 1) When the graphics card is inserted loosely into the card slot on the motherboard, take out the graphics card from the slot to check if it is clean and re-insert it tightly. 2) When the memory is inserted loosely into the memory slot on the motherboard, take out the memory from the slot to check if it is clean and re-insert it tightly.
- Page 31 True3Di USER GUIDE Service 1. Free of service charge Free repair service is valid until the warranty expires when the monitor has been used with no factory defect or any other initial problems. 2. Service charge Following reasons would require service charge (labor fee, part fee, service fee) : 1) After warranty has expired 2) Before warranty has expired - Natural disaster or act of God (fire, flood, lightning, earthquake and other natural...
- Page 32 Homepage : www.redrover.co.kr Webmaster@redrover.co.kr...
