Related Manuals for Kogan SMARTERHOME KASMSWTH1GA
Summary of Contents for Kogan SMARTERHOME KASMSWTH1GA

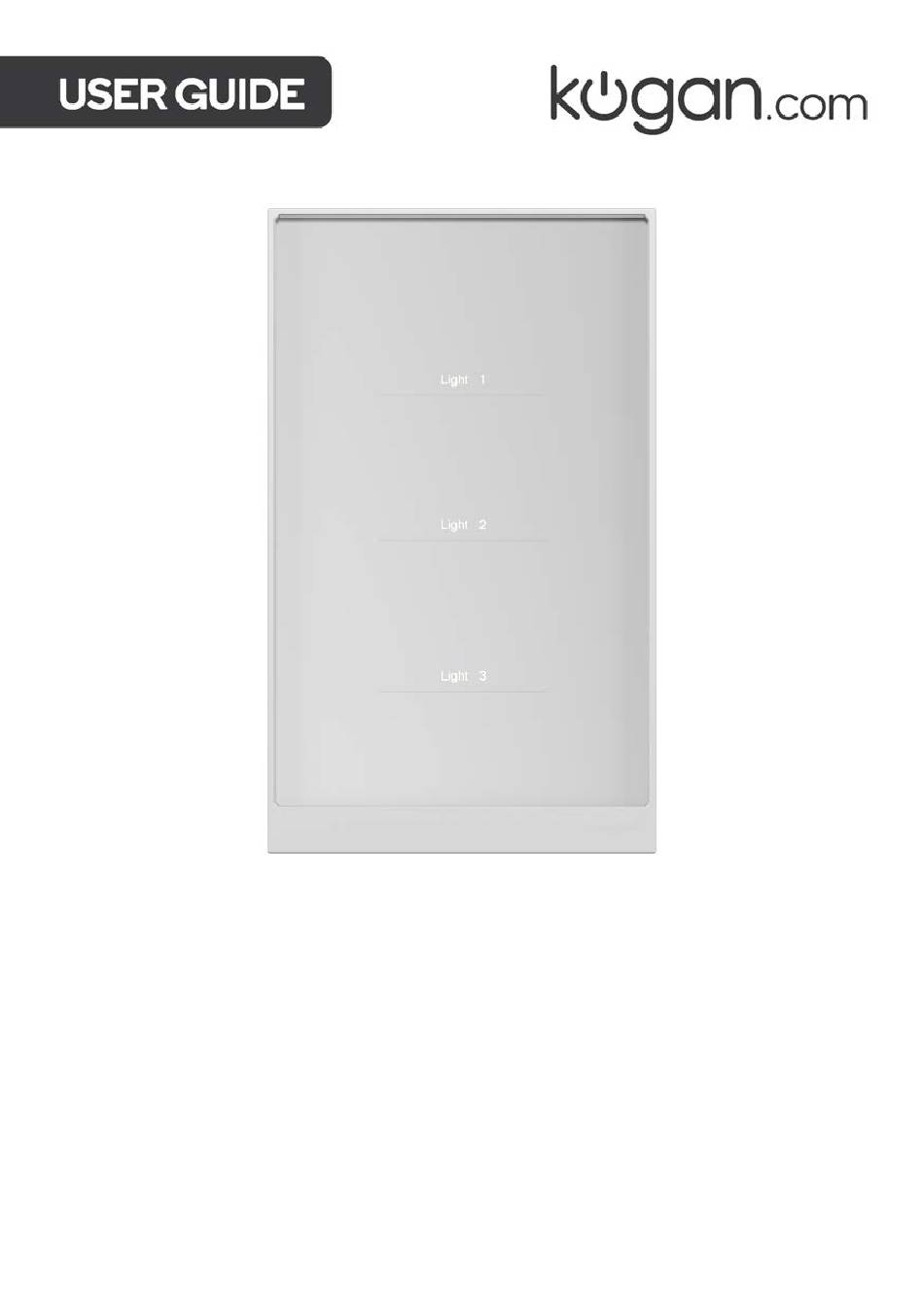

- Page 1 KOGAN SMARTERHOME™ SMART TOUCH LIGHT SWITCH (1, 2 & 3 GANG) KASMSWTH1GA, KASMSWTH2GA & KASMSWTH3GA...
-
Page 3: Safety And Warnings
• Use a soft, dry cloth to clean the surface of the smart light switch. Avoid using abrasive or corrosive cleaning agents that may damage the device. • Do not disassemble the smart light switch or attempt to repair it yourself. Contact help.Kogan.com for support. - Page 4 OVERVIEW 1 gang light switch First button Button indicator Light 1 Operation Methods Indicator status The indicator light turns on Short press any ON/OFF and off according to the load button status. Light switch The first button indicator will flash quickly. Network pairing Long press (5 sec.) The indicator will turn off to...
- Page 5 2 gang light switch First button Light 1 Light 2 3 gang light switch First button Light 1 Light 2 Light 3...
-
Page 6: Installation
INSTALLATION • This product must be installed by a licensed electrician or qualified trade professional. • Before installation, ensure that the power supply to the switch is turned off. • The installation location of the light switch must have a neutral wire. Where multiple neutral wires are present, ensure that it is the same neutral wire as the light intended to be controlled. - Page 7 Installing the Switch Separate the switch face from the switch body using a flat screwdriver. Attach the switch body to the wall junction box using the supplied screws. Attach the wall switch face to the switch body. Ensure the wiring has been connected correctly before turning the power back on. Switch Switch Junction...
- Page 8 CONNECT TO SMARTERHOME™ APP Install App Download the “Kogan SmarterHome” app from the Play Store (Android) or App Store (iOS). Play Store (Android) App Store (iOS) To register: If you already have a SmarterHome account, select ‘Log In’. To register a new account, select ‘Sign Up’.
- Page 9 Set device in pairing mode When the device is first turned on, it may automatically enter pairing mode (the indicator on the first button is flashing rapidly). If not automatically in pairing mode when powered on, you can manually set the device in pairing mode by pressing and holding the first button for 5 seconds until the button indicator begins flashing rapidly.
- Page 10 Ensure that the device is in pairing mode, with the indicator on the first button flashing rapidly, select “Confirm indicator rapidly blink” and tap “Next”. The device will commence the pairing process and connect to the app. Ensure your Wi-Fi router, mobile phone, and the SmarterHome™ device are kept close until connection is complete.
-
Page 11: Specifications
SPECIFICATIONS Dimension 116 x 70 x 35mm In-wall Size 71x45x26mm (LxWxH) Incandescent lamp 300W/gang.max Output Fluorescent lamp 150W/gang.max Input AC 100V-240V 50/60Hz Wireless Protocol Wi-Fi & Bluetooth Transmit Power 19dBm Receiving Sensitivity -100dBm Communication Distance >300m (Open area) Control Method Manual control, App control... - Page 12 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com...
