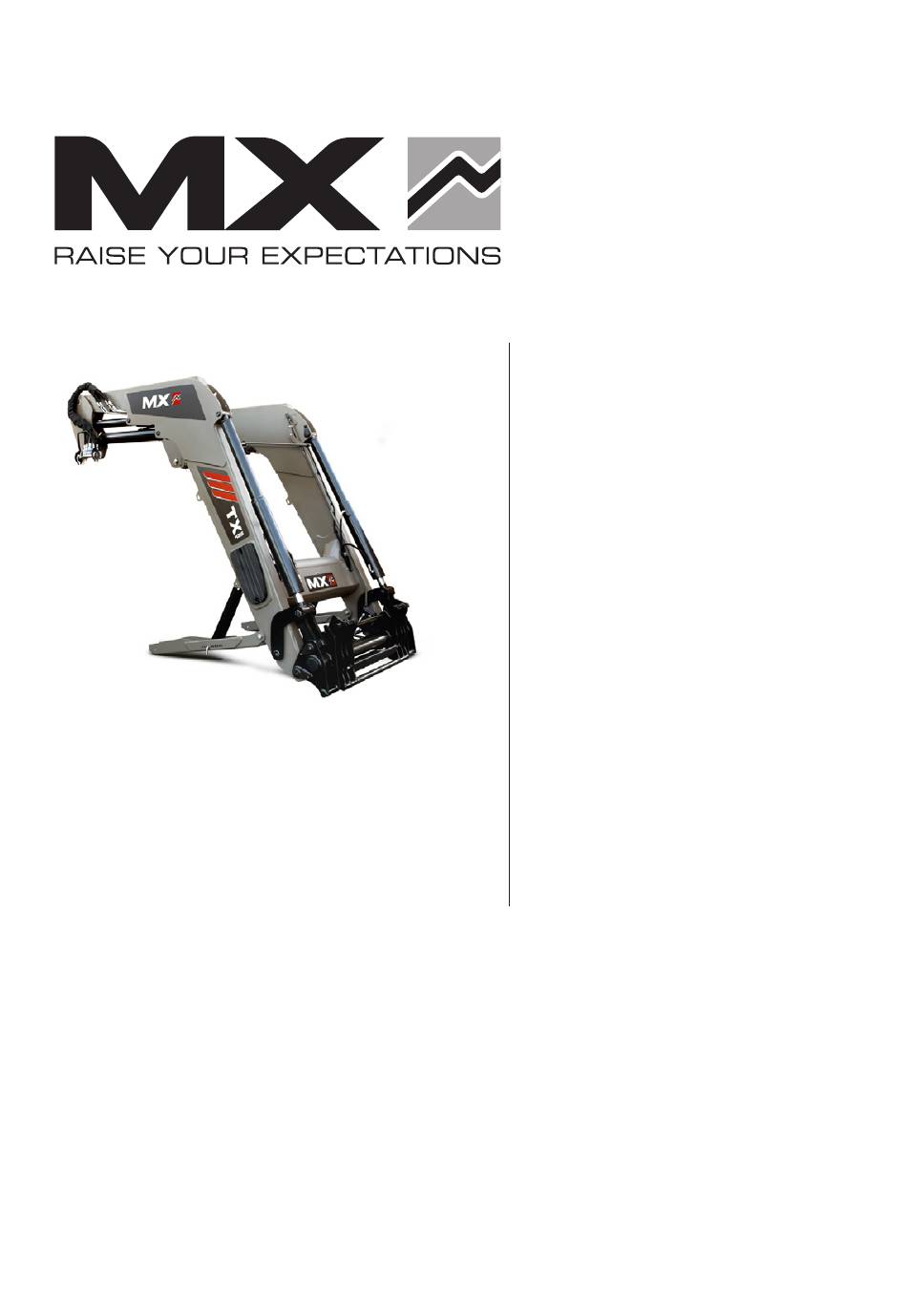

- Page 1 LOADER MX TX420 MX TX425 MX TX430 User Manual Read carefully before using EN 372185 AE - 0123 Translation of the original manual...
- Page 3 We thank you for placing your trust in us and hope that you will find your MX loader satisfactory in every way. By taking a few minutes to read this manual, you will be able to obtain the best results from your MX loader to the full, prolong its service life and ensure safe operation.
-
Page 5: Table Of Contents
2. SAFETY STICKERS 3. IDENTIFICATION PLATE 4. COUNTERWEIGHT 5. CONTROL 5.1 Control using the tractor's control valves 5.2 Control with MX e-PILOT S control valve 6. LOADER UNHITCHING 7. LOADER HITCHING 8. IMPLEMENT UNHITCHING 9. IMPLEMENT HITCHING 9.1 Lock the implement 10. - Page 7 The loader is a complex machine. The operator must read this manual before using the loader for the first time. Familiarise yourself with: — The safety instructions. — Hitching and unhitching the loader. — Hitching and unhitching the implements. — Full use of the controls.
-
Page 8: Safety Rules
— For full use of the MX loader, the tractor must be fitted with a structure to protect against falling objects. If this is not the case, there are limits on the use of the MX loader (see the "LOADER USE LIMITS" section). CAUTION: the protective fitting must be in active position while working. -
Page 9: Ppe Table (Personal Protective Equipment)
If the tractor is not fitted with a structure protecting against falling loads, the driver is exposed to constant risk when handling loads. If the tractor is fitted with a roll cage only, the loader must be equipped with a parallelogram. Reminder: only implements recommended by the MX loader manufacturer may be used. Subject to modification... -
Page 10: Non-Compliance With Instructions For Safety And Use
MX on the MX loader, will render the MX guarantee on all supplied items null and void. — Use only genuine MX spare parts. Do not carry out any modifications yourself or have anyone else do so on your MX loader and its implements (mechanical, electrical, hydraulic or pneumatic specifications) without seeking prior approval in writing from MX. -
Page 11: Safety Stickers
2. Safety stickers Safety stickers are affixed to loaders. Ensure that these stickers are clean and legible; replace them if they become damaged. Familiarise yourself with the safety instructions in the user manual before using or working on the loader. Follow the loader hitching and unhitching procedure given in the user manual. Use the anchoring points when handling the loader. -
Page 12: Identification Plate
3. Identification plate The identification plate is located inside the loader's right arm. The serial number and loader model shown on this plate must be quoted in any request for spare parts information or technical assistance. Subject to modification... -
Page 13: Counterweight
4. Counterweight The stability of the tractor-loader unit can only be ensured with a counterweight installed on the rear of the tractor. This should ensure that 20% of the gross weight (tractor, loader, implement, maximum load and counterweight) bears on the rear axle of the tractor for optimum working safety. -
Page 14: Control
Control using the tractor's control valves Refer to the user manual for the tractor. 5.1.1 Front/rear control selector (optional) From the tractor's original joystick, the user in the cab controls either the MX loader or the rear couplings. Subject to modification... -
Page 15: Control With Mx E-Pilot S Control Valve
Control with MX e-PILOT S control valve See manual specific to e-PILOT S. 6. Loader unhitching This operation must be carried out by the driver, who must exit the cab and ensure all manoeuvres are prohibited while working on the loader. - Page 16 — Remove the locking pins from the frame and put them in the available holes. Subject to modification...
- Page 17 — Lower in double action to retract the lifting rams. — Position the implement on the ground, slightly dumped (approx. 20°). — Crowd slightly to set down the parking stands. — Crowd slightly by moving forwards to release the bracket frames. —...
- Page 18 — Hook the MACH System housing onto its support. — Reverse the tractor in one motion, then slowly until the loader is resting on its parking stands. — Check the stability of the whole assembly. Subject to modification...
-
Page 19: Loader Hitching
7. Loader hitching This operation must be carried out by the driver, who must exit the cab and ensure all manoeuvres are prohibited while working on the loader. Watch the unhitching/hitching video at www.m-x.eu — Advance the tractor slowly so that the bracket is approx. 5 cm behind the frames. - Page 20 — Lift the loader 0.5 m above the ground. — Lock the loader frame onto the bracket with the spindles. — Fold away the parking stands. Subject to modification...
-
Page 21: Implement Unhitching
8. Implement unhitching This operation must be carried out by the driver, who must exit the cab and ensure all manoeuvres are prohibited while working on the loader. — Choose a level and solid surface. — Position the implement horizontally, 0.30 m above the ground. —... - Page 22 — Put the hoses on the front of the implement. — Set the implement down on the ground by lightly dumping to release the implement carrier from the implement. Subject to modification...
-
Page 23: Implement Hitching
9. Implement hitching This operation must be carried out by the driver, who must exit the cab and ensure all manoeuvres are prohibited while working on the loader. — Align the loader with the implement. — Before attaching the implement, make sure that the locks are in the "open"... -
Page 24: Models Of Implement Carrier Frames
Operate each moving part fully, in each direction, to check the integrity of the hydraulic circuit and the correct routing of the hoses. 10. Models of implement carrier frames — MX implement carrier — Euro implement carrier Subject to modification... - Page 25 — Claas Kramer implement carrier — Manitou implement carrier — JCB Q-Fit implement carrier Subject to modification...
-
Page 26: Level Indicator
11. Level indicator The level indicator enables implement positioning as the loader is descending. It is located on the left side of the loader. It can be adjusted to suit the implement being used. (1) indicator (2) Bucket parallel to the ground Subject to modification... -
Page 27: Shock Eliminator System
12. SHOCK ELIMINATOR System Shocks are eliminated during movement or when stopping the loader quickly when lowering. This system softens impacts on the tractor and jolting in the cab. NOTE: The Shock Eliminator can be activated or deactivated directly in the cab (electric isolation). See manual specific to e-PILOT S. -
Page 28: Auto-Level System
13. AUTO-LEVEL System Automatic implement level reset, using the AUTO-LEVEL System (optional), is available for loaders controlled using the tractor's original control valve or by MX "Flexpilot" or "e-PILOT S" control valves. 13.1 Implement position adjustment The implement position is adjusted at the indicator rod. See pictures opposite. -
Page 29: Automatic Implement Position Reset
13.2 Automatic implement position reset The system operates in both directions: crowding and dumping. If the implement is dumped when the AUTO-LEVEL System is activated, the loader crowds. If the implement is crowded, the loader dumps. Control: see specific manual for e-PILOT S. 14. -
Page 30: Safety When Lifting And Dumping
15. Safety when lifting and dumping In compliance with standard EN 12525 + A2 2010, it can be disengaged for working when no one is near the load. The movements can then be carried out, with no loss of power or speed of execution. Uniquely, this equipment is compatible with the Shock Eliminator and the notched floating position. -
Page 31: Use Of The Lifting And Dumping Safety Device
15.2 Use of the lifting and dumping safety device The hydraulic circuit of the lifting and dumping rams is fitted with a safety device (1) and (2). By default, the safety device is activated. When the user presses the button in the cab (3) (secure button), the safety device is deactivated and the red indicator lights are illuminated on: —... -
Page 32: Maintenance
16. Maintenance Drain the tractor's hydraulic circuit regularly and change the filters in accordance with the manufacturer's recommendation. Contaminated oil ceases to lubricate, causing wear to all the hydraulic components (pumps, control valves, rams). Even clear oil may be spent. Maintenance operations must be performed by competent persons, authorised by the dealer. - Page 33 Lubricate every 10 hours and after each wash (water drives grease out), particularly after using a pressure washer. See the lubrication points opposite. Recommended type of grease for maintenance: NLGI 2 When using a pressure washer, do not direct the jet of water onto the electric components.
-
Page 34: Directions For Use
17. Directions for use — Each implement has been designed for a specific use and has its own resistance limits. — Land clearing and stump pulling are prohibited. This work must be done with specialized machinery and is not appropriate for the agricultural loader. -
Page 35: Recycling Mx Products
18. Recycling MX products Hydraulic system — At the end of their service life, MX products must be drained of hydraulic oil by an authorised service technician. — The hydraulic hoses must be removed before the equipment can be recycled. -
Page 36: Technical Specifications
19. Technical specifications TX420 TX425 TX430 Length (A) 2.90 m 3.00 m 3.30 m 1.50 m 1.50 m 1.50 m Width (B) 2.25 m 2.40 m 2.40 m Height (C) 1080 kg 1180 kg 1270 kg Max. weight 4.87 m 5.10 m 5.50 m Maximum height at implement pivot*... - Page 37 DECLARATION OF CONFORMITY The manufacturer: M-extend France SAS Registered office: 19, Rue de Rennes, 35690 Acigné (France). Registered with the RCS of Rennes under number 639 200 260. Hereby declares that the material : Front loader T406 or T408 or T408+ or T410 or T410+ or T412 or T412+ or T414 or T417 or T418 or TX420 or TX425 or TX430 Front loader U403 or U404 or U405 or U406 or U406+ or U407 or U408 or U408+ or U409 or U410 or U410+ or U412 or U412+ or U414...
- Page 40 M-extend France SAS 19, rue de Rennes B.P. 83221 FR-35690 ACIGNÉ Email : contact@m-x.eu Web : www.m-x.eu...
