New England Arbors Country Corner Picket VA20234 Assembly Instructions

A S S E M B LY I N S T R U C T I O N S

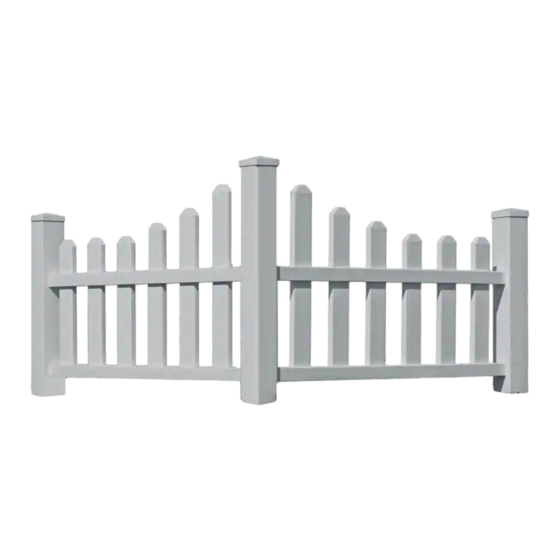

Country Corner Picket
White Vinyl - VA20234
Brown Composite Vinyl -VA84050
Please read through before starting assembly.
IMPORTANT: CHECK THE INSIDE OF YOUR POSTS FOR ALL MATERIALS.

Check Box for These Contents

In the event of damaged, missing or defective parts please call our customer service dept. at 1 800 282 9346 (Mon. to F ri. 8:00 AM to 4:00 PM EST).
(UK Tel: (44) 2038 687160 - Mon. to Fri. 1:00 PM to 10:00 PM GMT).
1. Corner Post (1) 3" x 3" x 43" - (8 cm x 8 cm x 109 cm) -
2. Top Rails (2) 1 1/2" x 1 1/2" x 44.73" - (4 cm x 4 cm x 114 cm) -
3. End Post (2) 3" x 3" x 38" - (8 cm x 8 cm x 97 cm) -
4. 18" Pickets (6) 7/8" x 3" x 18" - (2 cm x 8 cm x 46 cm) -
5. 19" Pickets (2) 7/8" x 3" x 19" - (2 cm x 8 cm x 48 cm) -
6. Bottom Rails (2) 1 1/2" x 1 1/2" x 44.73" (8 cm x 8 cm x 114 cm) -
7. 20 1/2" Pickets (2) 7/8" x 3" x 20 1/2" - (2 cm x 8 cm x 52 cm) -
8. 23" Pickets (2) 7/8" x 3" x 23" - (2 cm x 8 cm x 58 cm) -

Optional Materials

3 Bags of pre-mix concrete for extra post stability.

Tools You Will Need

• Shovel
• Tape measure

General Information

Read Instructions through carefully before
beginning assembly.
• When assembling components, place on a non-abrasive surface
(i.e. shipping box) to avoid scratching.
• We recommend an area approx 10 ft. x 8 ft. (3 m x 2.4 m) for unobstructed assembling.
• You should not need to use excessive force when assembling components.
43.7 in
110.9 cm
White 10785, Brown 14094
White 10787, Brown 14095
White 10786, Brown 14096
White 10132, Brown 14097
White 10133, Brown 14098
White 10788, Brown 14099
White 10134, Brown 14100
White 10135, Brown 14101
3
4
5
6
7
8
