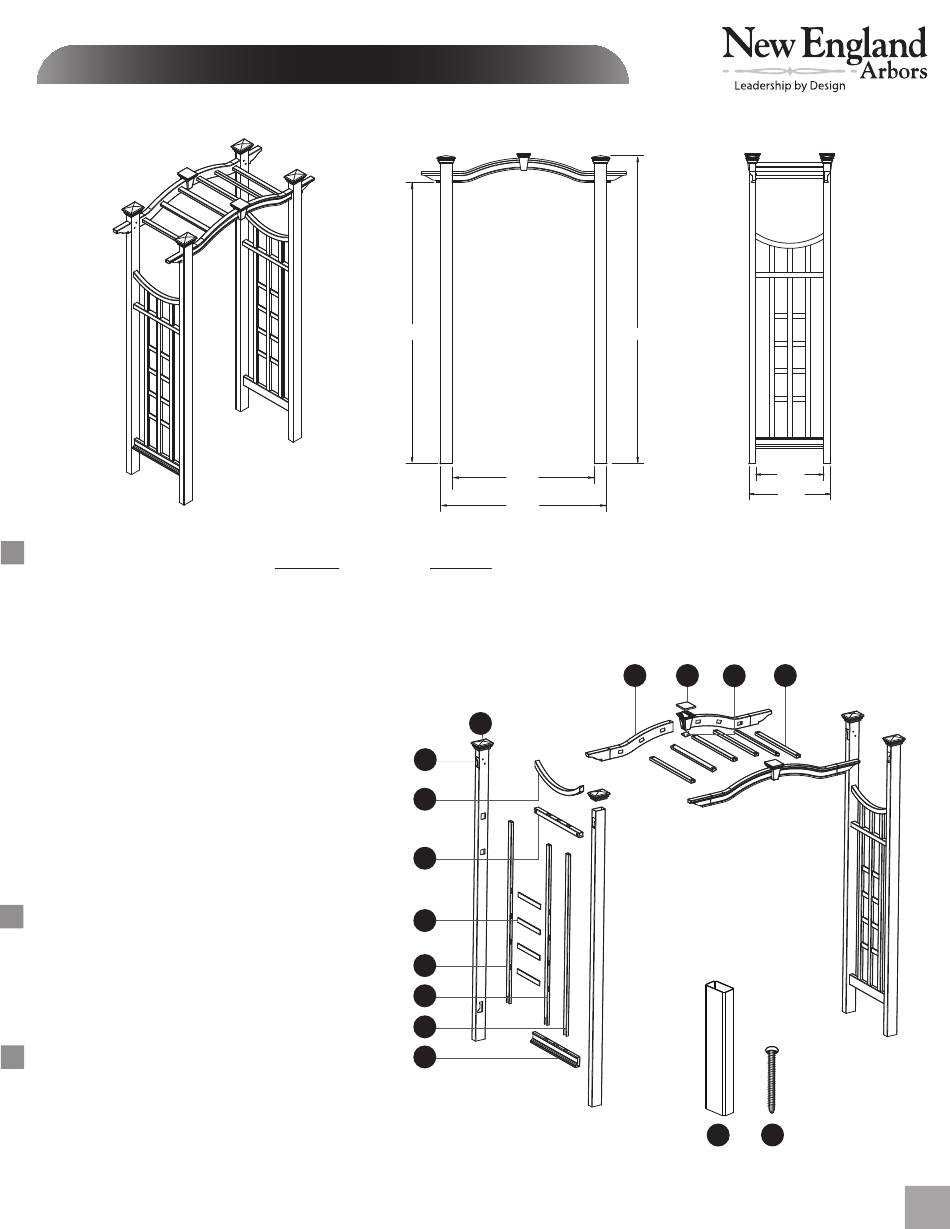

A S S E M B LY I N S T R U C T I O N S

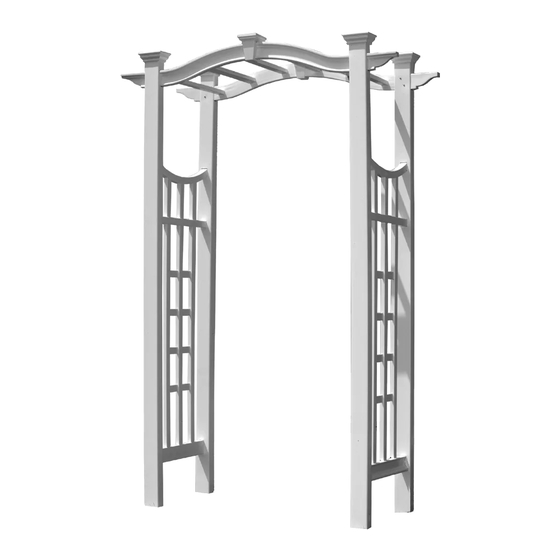

The Florence Arbor / Arch
Please read through before starting assembly.
IMPORTANT: CHECK THE INSIDE OF YOUR POSTS FOR ALL MATERIALS.
Check Box for These Contents
In the event of missing or defective parts please call our customer service dept. at 1 800 282 9346 (Mon. to Fri. 8:00 AM to 4:00 PM EST).
(UK Tel: (44) 2038 687160 (Mon. to Fri. 1:00 PM to 10:00 PM GMT).
1. Posts (4) - Left - 10651, Right - 10652
2. Post Caps (4) - 10611
3. Arches (4) - Left - 10653-1, Right - 10654-1
4. Arch Keystones
(10836),
Inserts
5. Keystone Bottom Plates (2) - 10666-1
6. Arch Rafters (6) - 10655-1
7. Side Panel Horizontal Bent Top Rails (2) - 10656-1
8. Side Panel Horizontal Mid-Rails (2) - 10657-1
9. Side Panel Horizontal Spindles Short (8) - 10658-1
10. Side Panel Vertical Spindles Long - Left (2) - 10659-1
11. Side Panel Vertical Spindles Short - Middle (2) - 10661-1
12. Side Panel Vertical Spindles Long - Right (2) - 10600-1
13. Side Panel Horizontal Bottom Rails (2) - 10662-1
14. Ground Mounting Extensions (4) - 10844
15.1 1/2 Self-Auguring Stainless Steel Screws (24) - 20005
Tools You Will Need
• Cordless Drill
• Hammer
• Tape Measure
• Level
• Stool or Short Ladder
• Shovel
General Information
• Read Instructions through carefully before
beginning assembly.
• When assembling components, place on a non-abrasive surface
(i.e. shipping box) to avoid scratching.
• We recommend an area approx 10ft.x 8ft. (3 m x 2.5 m) for unobstructed assembling.
• You should not need to use excessive force when assembling components.
81.8in
(208 cm)
(2 of each)
(10837),
(10668-1)
and Lids
1
7
8
9
10
11
12
13
89.6 in
(228 cm)
42 in
(107 cm)
49 in
(124 cm)
3
2
L
R
www.newenglandarbors.com
www.newenglandarbors.co.uk
20 in
(51 cm)
24 in
(61 cm)
4
5
6
14
15
Not to Scale
V2.2/072417
1
Advertisement
Table of Contents
Related Manuals for New England Arbors The Florence
Summary of Contents for New England Arbors The Florence
- Page 1 A S S E M B LY I N S T R U C T I O N S The Florence Arbor / Arch www.newenglandarbors.com www.newenglandarbors.co.uk 81.8in 89.6 in (208 cm) (228 cm) 20 in 42 in (51 cm) (107 cm)
- Page 2 Insert arch rafters (6) into the holes on the arches until they bottom out inside the arches. There are “locking tabs” located at each end of these rafters that once inserted into the holes will lock into place. The Florence Arbor / Arch...
- Page 3 Adjust the opening width to 42in. between the posts (arbor allows for minor variance). Fasten the arch system to the posts by installing the screws provided into the 2-pre drilled holes per post. Place post caps on top of posts. The Florence Arbor / Arch...
- Page 4 S T E P F O U R Arbor / Arch Installation Arbors must be well secured to prevent tipping over from wind load etc. We have provided four ground mounting extensions for securing the arbor either into the ground or a concrete footing. In some cases it may be acceptable to secure the arbor to an existing structure such as a fence post.
