Summary of Contents for Red Mountain Valley 2A-OC001

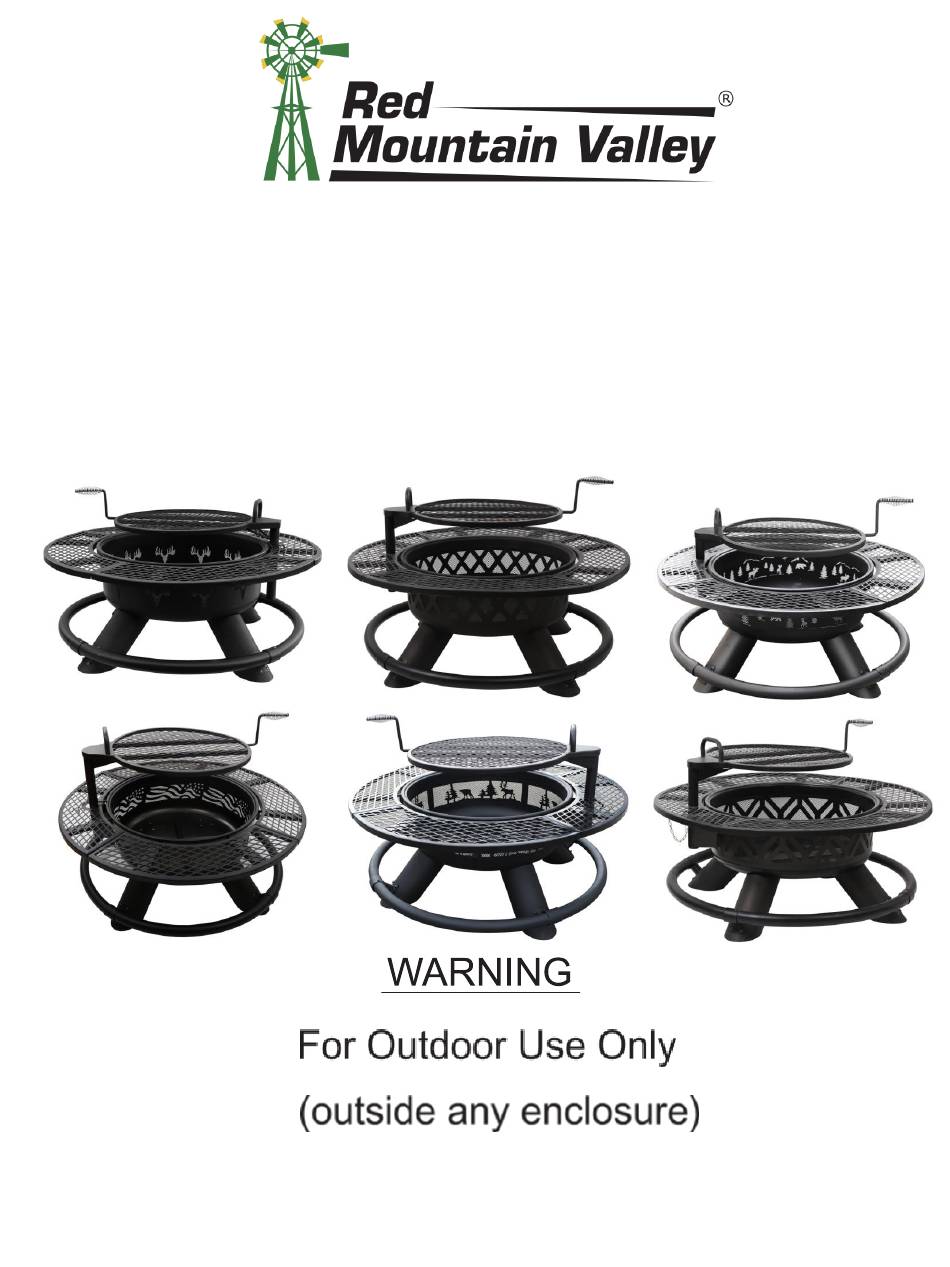

- Page 1 Assembly Instructions & User’s Manual 47 In Fire Pit with BBQ Grate Style # 2A-OC001,2A-OC002,2A-OC003,2A-OC137,2A- OC138,2A-OC139...
-
Page 2: Table Of Contents
Table of Contents Warnings………………………………………………………………..…2 Tools and Parts…………………………………………………………...5 Assembly Instructions…………………………………………………..6 Care and Maintenance……………………………………………...……9 Warranty Information………………………………………....10 Note: Before beginning assembly of product, make sure all parts are present. Compare parts with package content list and hardware contents. If any part is missing or damaged do not attempt to assemble the unit. -
Page 3: Warnings
Warnings 1.DO NOT use this fire pit without reading this entire document and all WARNINGS, cautions and instructions. 2.This item is for outdoor use only, and shall NOT be used in a building, garage or any other enclosed area 3.DO NOT use this fire pit for indoor heating. TOXIC carbon monoxide fumes can accumulate and cause asphyxiation or death 4.This fire pit is NOT for commercial use. - Page 4 16.DO NOT use this fire pit near automobiles, trucks, vans or recreational vehicles. 17.DO NOT use in an explosive atmosphere. Keep outdoor area clean and free from combustible materials, gasoline and other flammable liquids. 18.DO NOT use this fire pit under an overhead or near any unprotected combustible constructions.
- Page 5 34. DO NOT place hot pit tools onto combustible surface such as grass, wooden deck or furniture. 35. Avoid breathing smoke from the fire and avoid getting it into your eyes. 36. This fire pit should be thoroughly inspected and cleaned on a regular basis. 37.
-
Page 6: Tools And Parts
Tools Required Phillips Head Screwdriver Adjustable open end wrench Parts List Swing Handle Lift Handle Cooking Grate Cooking Grate Pole L-Pin Table Pane Fire Bowl Support Ring Section-A Support Ring Section-B Hardware M6 x 14 Bolt M6 x 20 Bolt M6 Nut Wing Bolt Page 5 of 10... -
Page 7: Assembly Instructions
Assembly Instructions Step 1: Attach (4) legs (H) to fire bowl (F) with (12) M6 x 14 bolts (J) Step 2: Insert one support ring section (G1) into （G2） and attach the support ring assembly to leg (H) with M6 x 14 Bolt（J） (4) M6 x 14 bolts (J) as illustrated. - Page 8 Assembly Instructions Step 3: Secure (4) support ring sections (G) with (4) M6 x 14 bolts (J). Step 4: Insert (2) the pins on table panels (E) into the fixed brackets on the fire bowl (F) as illustrated .Connect table panels (E) with (8) M6 x 20 bolts (L) and (8) M6 nuts (M).
- Page 9 Assembly Instructions Step 5: Insert the Grate(C1) and Pole(C2) were connected by M6 x 14 Bolt(J) Attach the lift handle (B) to cooking grid(C) with (2) M6*14bolts (J) as illustrated . Attach the swing handle (A) to cooking grid (C) with (2) M6 x 14 (J) and (2) M6 nuts (M) as illustrated.
-
Page 10: Care And Maintenance
Care and Maintenance Lighting 1. Make sure there is only a small amount of ash in the bottom of the bowl. 2. Place a layer of dry kindling or a natural fire-starter onto the center of the fire bowl. 3. Place above that a layer of dry seasoned hardwood that is no more than 3/4 the length of the bowl diameter. -
Page 11: Warranty Information
Warranty Information This product has been manufactured under the highest standards of quality and workmanship. We warrant to the original consumer purchaser that all aspects of this product will be free of defects in material and workmanship for one year from the date of purchase. A replacement for any defective part will be supplied free of charge for installation by the consumer.
Need help?
Do you have a question about the 2A-OC001 and is the answer not in the manual?
Questions and answers
Is it possible to purchase a replacement part for item 2A-OC003?
No, a replacement part for item 2A-OC003 cannot be purchased. However, a defective part will be supplied free of charge for installation by the consumer if it is within the one-year warranty period.
This answer is automatically generated
@Mr. Anderson
You should offer replacement parts. It is really bad that after a year sitting on a patio and covered up the bottom completely rusted out. The rest of the fire pit is still in great shape. I clean it out after every burn and i have painted it once. Still rusted out.
