1. Install the
I/O
board.
2. Install the
base
cover.
3. Follow the procedure in
Power-button module
Removing the power button
Prerequisites
CAUTION:
The information in this section is intended for authorized service technicians only.
1. Follow the procedure in
2. Remove the
base
cover.
3. Remove the
I/O
board.
About this task
NOTE:
Before removing the base cover, ensure that there is no SD card installed in the SD card slot on your computer.

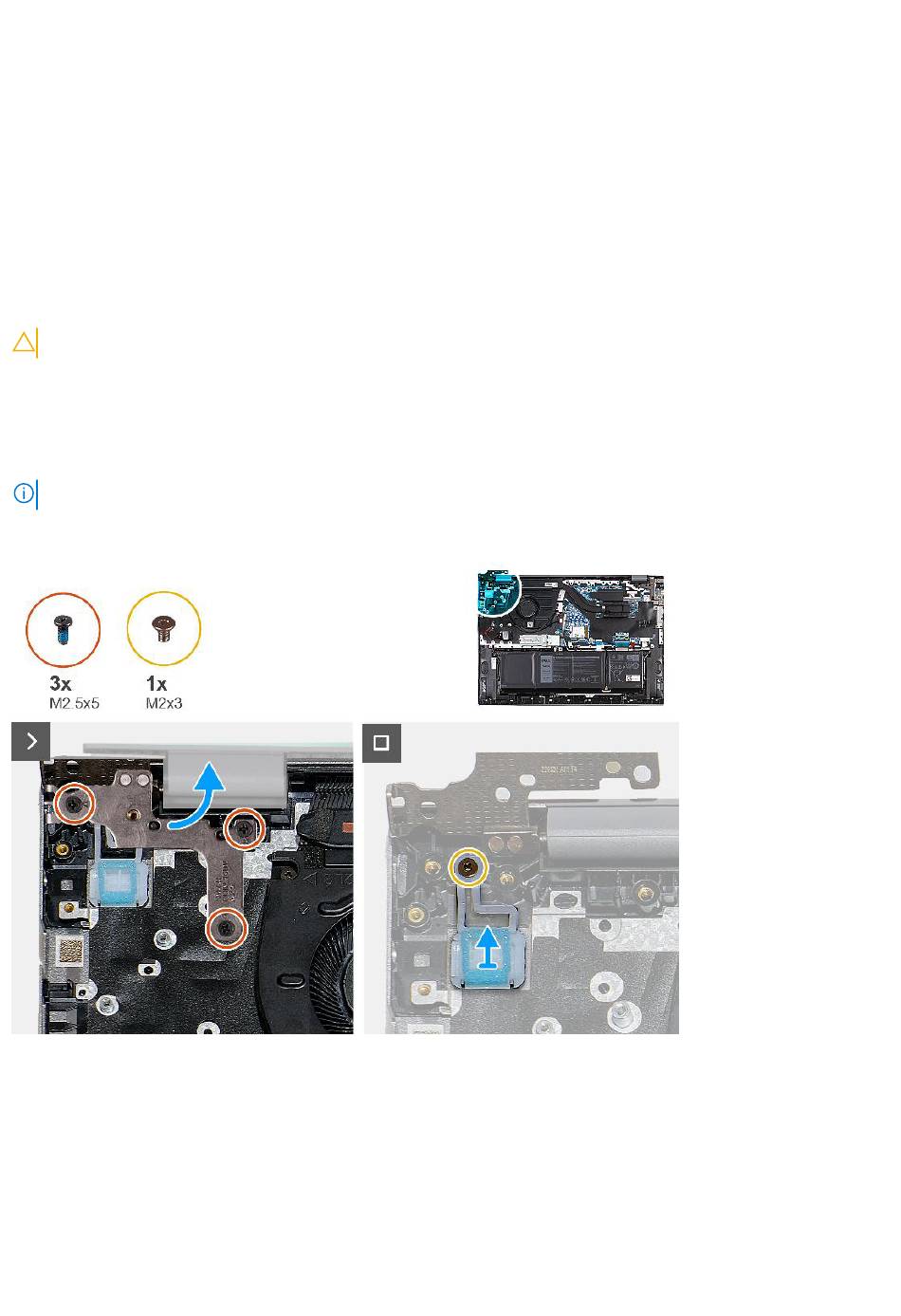

The following image(s) indicate the location of the power button and provides a visual representation of the removal procedure.
Steps
1. Remove the three screws (M2.5x5) that secure the left display hinge to the system board.
2. Open the left display hinge at an angle of 90 degrees.
3. Remove the screw (M2x3) that secures the power button to the palm-rest and keyboard assembly.
4. Lift the power button off the palm-rest and keyboard assembly.
After working inside your
Before working inside your
computer.
computer.
Removing and installing Field Replaceable Units (FRUs)
57
