Sigtronics Sport 200 Installation And Operating Instructions

Sigtronics Sport 200 Installation and Operating Instructions

INTRODUCTION

ATTENTION INSTALLER: To assure a trouble free installation, please
read the entire instructions through once before beginning.
The Sigtronics' Sport 200 is a voice actuated (VOX) intercom for to two
headset positions with transmit through the aircraft radio capability
using your push-to-talk switches.
Three controls are provided:
Power Switch — Turns unit on and off.
Volume Control — Controls the intercom volume.
Squelch Control — Allows the setting of voice actuated (VOX)
operation of the intercom for variations in background noise levels
and differences in headset microphones.

Sport 200 SYSTEM SPECIFICATIONS

CONFIGURATION – The Sport 200 Intercom system is specifically
designed for permanent, panel mounted installation in aircraft.
COMPATIBILITY – Sport 200 intercoms have been designed to operate
with all standard general aviation aircraft radios and headsets.
SIZE: Panel – 1" x 2½". Chassis – 1" high x 2½" wide x 4 3 ⁄ ₁₆ " deep.
Can be mounted either horizontally or vertically in the aircraft panel.
WEIGHT: 4.5 ounces (Sport 200 intercom unit with panel and knobs).
Jacks and wiring harness weigh (5.5 ounces maximum).
INPUT POWER: 11 VDC through 32 VDC. Maximum current drain 0.06
amps @ 28 volts
WARRANTY: Sport 200 intercoms are constructed of high quality
components and carry a five year parts and labor warranty.

HARDWARE SUPPLIED

Intercom unit, instructions, and the following hardware:
Headphone Output Jacks - Accept standard 0.250" aircraft
headphone plugs. ........................................................................................ 2
Microphone Input Jacks - Accept standard 0.206" aircraft
microphone plugs. (U93 plug compatible jacks can be used in
place of the jacks provided. ..................................................................... 2
Mic Jack Insulating Washers, Flat ........................................................... 2
Mic Jack Insulating Washers, Shoulder ................................................ 2
Intercom Panel - lettered on both sides. ............................................. 1
Intercom Control Knobs ............................................................................ 2
Switch Nut ....................................................................................................... 1
Mounting Screws 4-40 x ½ ....................................................................... 2
Drill Template - Adhesive backed hole size pattern for
drilling aircraft panel. ................................................................................. 1
Aircraft / Intercom Interface Cable (4 feet long) ............................... 1

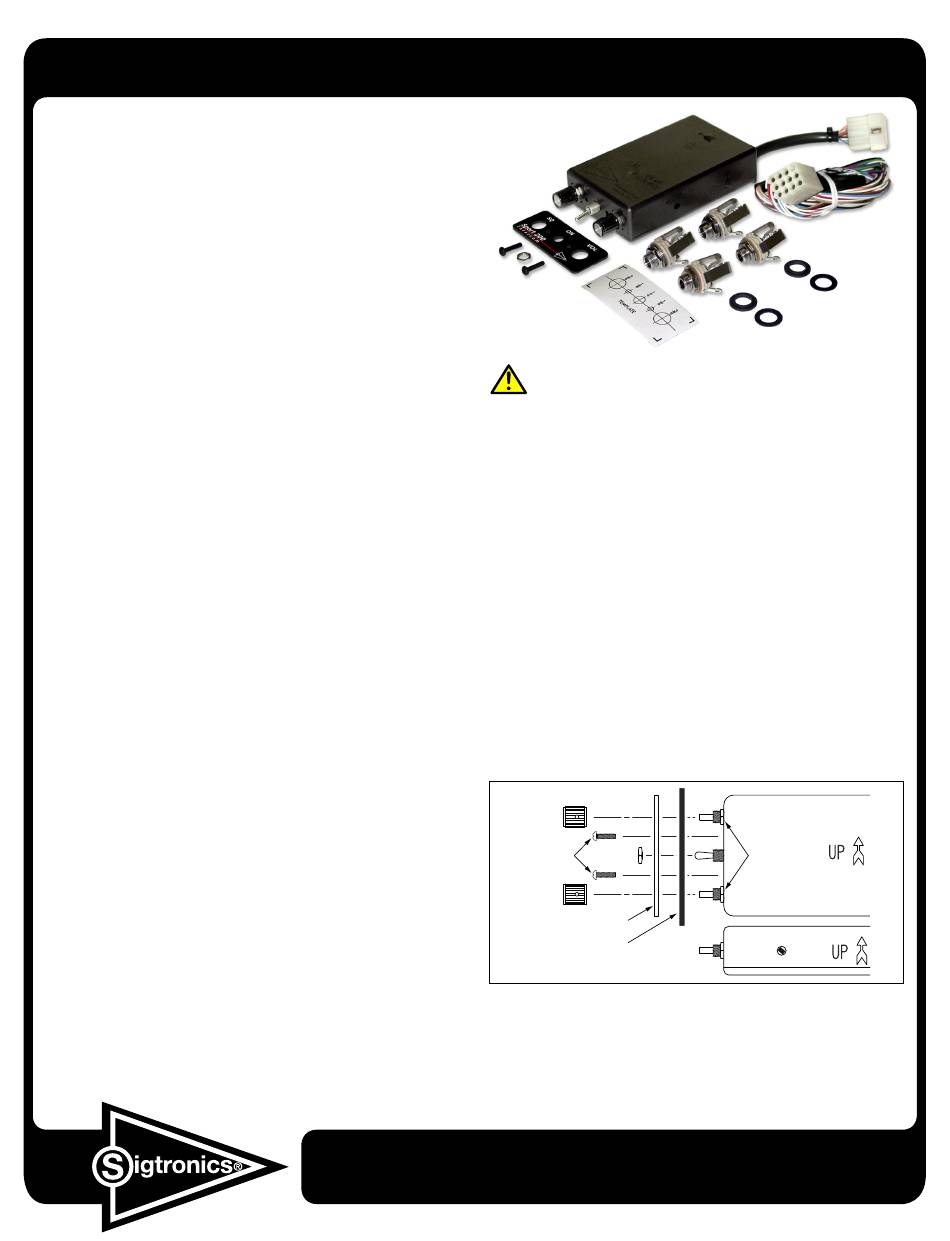

Figure 1
The Sigtronics' Sport 200 has been designed to mount either
horizontally or vertically in your aircraft panel. All necessary mounting
hardware has been supplied for a 2-way installation. (A round faceplate
is also available from Sigtronics to fit a 2¼" round instrument hole).
The location selected requires a minimum front panel area of 2½" by
1". Depth required behind panel is 4 ³ ⁄ ₁₆ " plus cable access.
Caution: Move aircraft flight controls through limits of travel while
observing selected area to make sure rear of intercom and cable will
not interfere with aircraft control components.

PANEL PREPARATION:

1. Position adhesive template on aircraft panel in selected area.
2. Center punch each hole at cross lines. (The five holes are in straight
3. Drill ¹ ⁄ ₈ " pilot hole all five places.
4. Enlarge holes to ¼" and ³ ⁄ ₈ " per template.
Figure 2
Mounting Chassis: See Figure 2.
1. Remove switch nut from intercom ON-OFF switch bushing.
2. Remove knobs from Volume and Squelch controls. NOTE: DO NOT
3. Remove two 4-40 panel screws and remove panel from the chassis.
Specialists in "SOUND" Management
178 East Arrow Highway, San Dimas, CA 91773 ( 909 ) 305-9399
WARNING: This product can expose you to chemicals including
Polyvinyl Chloride, which is known to the State of California to
cause cancer, and Lead, which is known to the State of California
to cause birth defects or other reproductive harm. For more
information go to www.P65Warnings.ca.gov.

CHASSIS INSTALLATION

line and equally spaced 0.4" apart.)
K N O B
S W I TCH
4–40 SCREWS
N U T
K N O B
INTERCOM PANEL
AIRCRAFT PANEL
REMOVE nuts from Volume and Squelch control potentiometers.
D O N OT
R E M OV E
T H E S E
N U T S
INTERCOM CHASSIS
MOD. ADJ.
