- Page 1 PORTABLE GENERATOR Owner’s Manual SUA4300iD DO NOT RETURN TO STORE! CALL US FIRST 855-888-3598 FOR SUPPORT Model# 1492007 REV00 Model: Serial: Date Purchased: SAVE THIS MANUAL FOR FUTURE REFERENCE P/N: 32082-00000-00...
-
Page 2: Table Of Contents
Table of Contents Introduction..........1 Stopping the Engine......22 Low Oil Shutdown........22 Safety............1 Do Not Overload Generator....22 General Safety Precautions....2 Changing Fuels........23 Unpacking the Generator.......8 Parallel Operation.........24 Parts Included........8 Maintenance And Storage....25 Controls and Features......9 Maintenance Schedule......25 Control Panel Features......11 Engine Maintenance......25 Specifications........12 Engine Oil Level Check......25 CO WATCH-GUARD......13... -
Page 3: Introduction
Service at 855-888-3598, or which are known to the State of California to cause www.a-ipower.com for starting, operating and cancer and birth defects orother reproductive harm. servicing procedures. The owner is responsible for To minimize exposure, avoid breathing exhaust, and proper maintenance and safe use of the unit. -
Page 4: General Safety Precautions
Asphyxiation Electric Shock Fire Hazard Hazard Hazard Hot Surface. Explosion Moving Parts Do Not Touch the Surface. Hazard Hazard Burn Hazard Operator’s Manual Kickback GENERAL SAFETY PRECAUTIONS • Operate this product ONLY outside far away from windows, doors and vents to reduce the risk of Using a generator indoors CAN KILL YOU IN MINUTES. - Page 5 CORRECT USAGE Example location to reduce risk of carbon monoxide poisoning • ONLY use outside and downwind, far away from windows, doors and vents. • Direct exhaust away from occupied spaces. INCORRECT USAGE Do not operate in any of the following locations: •...
- Page 6 Propane/LPG (Liquid Petroleum Gas) WARNING • Propane/LPG is highly flammable and explosive. Starter cord kickback (rapid retraction) • LPG is heavier than air and can settle in low places will pull hand and arm toward engine while dissipating. faster than you can let go which could •...
- Page 7 • Store Fuel in a container approved for gasoline. DANGER • Store any containers containing gasoline or propane/LPG outdoor in a well-ventilated area, away from any combustibles or source of ignition. DANGER Gasoline, gasoline vapor and propane/LPG are highly flammable and explosive. Generator voltage could cause electrical Never use a gasoline container, gasoline tank, shock or burn will result in death or...
- Page 8 WARNING WARNING Starter and other rotating parts could entangle hands, hair, clothing, or accessories. Keep away from rotating parts, failure to do so could result in Exhaust heat/gases could ignite combustibles, death or serious injury. structures or damage fuel tank causing a fire, •...
- Page 9 • Shut off generator if: -Electrical output is lost. -Equipment sparks, smokes, or emits flames. -Unit vibrates excessively. WARNING Medical and Life Support Uses. • In case of emergency, call 911 immediately. • NEVER use this product to power life support devices or life support appliances.
-
Page 10: Unpacking The Generator
UNPACKING THE GENERATOR • Open carton completly. Remove and verify carton content prior to assembly. Your generator ships with following items. • Call our customer service at 855-888-3598 with the unit model and serial number for any missing item. • Record model, serial number, and date of purchase on front cover of this munual for your own record. -
Page 11: Controls And Features

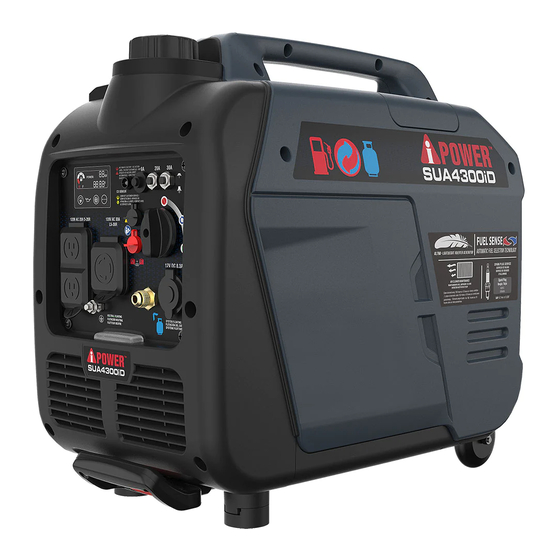

CONTROLS AND FEATURES 1 - Recoil Starter 7 - Telescopic Handle 2 - Control Panel 8 - Panel LED Light 3 - Fuel Cap 9 - Propane Inlet 4 - Maintenance Cover 10 - Support Leg 5 - Carrying Handle 11 - Muffler/Spark Arrester 6 - Wheel Page 09... - Page 12 CONTROL PANEL FEATURES 1. LED DATA CENTER: See LED DATA CENTER section. 6. Starting Dial Switch: Used to start and stop the generator. 2. CO (Carbon Monoxide) WATCH-GUARD Indicator Light (Red for Shut off and Yellow for Service): The 7. 12V DC, Outlet (Automotive): Provides 12 volt DC CO(Carbon Monoxide) WATCH-GUARD monitors for the power up to 8.3 amps.
-
Page 13: Control Panel Features
CONTROL PANEL FEATURES LED Data Center 1. LED Multi-Meter: Displays voltage,power,fuel level, 4. Overload Reset Button with Indicator Light: The frequency, and running time. indicator light is green when the inverter is running under rated load. The indicator light will turn to 2. -
Page 14: Specifications
SPECIFICATIONS SUA4300iD Model Number 1492007 4300W-GAS / 3900W-Propane/LPG Starting Watts Running Watts 3450W-GAS / 3100W-Propane/LPG Rated AC Voltage 120V Rated DC Voltage Rated Frequency 60HZ Phase Single Grounding System (AC) Neutral Floating Engine Type Single Cylinder, 4-Stroke OHV Air Cooled Engine Displacement 149cc Recoil... -
Page 15: Co Watch-Guard
CO WATCH-GUARD Carbon Monoxide (CO) Detection and Auto Shutoff System Your Generator is equipped with Carbon Monoxide (CO) WATCH-GUARD detect system for your protection and safety. This detecting and shutoff system monitors for the accumulation of poisonous CO gas around the generator produced by engine exhaust when the generator is running. - Page 16 The generator is shutoff automatically and the yellow light will blink for at least five minutes after shutoff. Call A-iPower Customer Service 855-888-3598 for repair. Do not use the generator until the sensor is working properly. The CO WATCH-GUARD must only be serviced by qualified technician to restore it to original settings.
-
Page 17: Add Engine Oil
Add Engine Oil NOTICE We recommend using SAE 10W-30 APISJ oil for We consider the first 5 hours of run time to be the best performance. Other high-quality detergent oils break-in period for the unit. During the break in (APISJ or higher) are acceptable. Do not use special period stay at or below 50% of the running watt additives. -
Page 18: Add Fuel: Propane/Lpg
• It is important to prevent gum deposits from Fuel cap / Bouchon du Red line indicator réservoir d'essence / forming in fuel system parts such as the carburetor, Indicateur de ligne rouge Tapa de combustible Indicador de línea roja fuel hose or tank during storage. -
Page 19: Fuel Sense
• When exchanging propane/ LPG cylinders, be sure the cylinder valve is of the same type. • Always keep the propane/LPG cylinder in an upright position. • Propane/LPG will burn skin if it comes in contact with it. Keep Propane/LPG away from skin at all times. -
Page 20: Operation At High Altitude
3.5% for every 1000 feet (305 m) of elevation above sea level. High altitude may cause hard starting, increased fuel consumption and spark plug fouling. To operate at high altitudes A-iPower can provide a high altitude carburetor main jet. The alternative main jet and installation instructions can be obtained by contacting Customer Support. -
Page 21: Operation
OPERATION Surge suppressors come in single- or multi-outlet Generator Location styles. They’re designed to protect against virtually WARNING all short-duration voltage fluctuations. Make sure you review each warning in order to Before Starting the Generator prevent fire hazard. • Make certain the generator is on a flat, level surface and well-ventilated location. -
Page 22: Starting The Engine (Generator)
Select the Fuel Source (Propane/LPG) 2. Add gasoline to the fuel tank. 1. Connect the LPG gas hose to the propane fuel source. Connect the small end of the LPG gas hose to the LPG inlet on generator and then snug with a wrench to prevent leakage. -
Page 23: Connecting Electrical Loads
5. Turn the starting dial switch to the RUN NOTE: position. When applying a load, do not exceed the maximum wattage rating of the generator when using one or more receptacles. Also, do not exceed the amperage rating of any one receptacle. Do not apply heavy electrical load during break-in period (the first five hours of operations). -
Page 24: Stopping The Engine
Turn LOW IDLE Switch to OFF position when WARNING powering large surge loads such as an air conditioner or electric pump. Be certain that the OUTPUT READY INDICATOR LED is illuminated green before turning the switch to ON position. If no load is present, the generator speed (RPM) will drop to idle speed. -
Page 25: Changing Fuels
Changing Fuels 2a. Gasoline to Propane/LPG DANGER 2a1. Connect the LPG gas hose to the propane fuel source. Connect the small end of the LPG gas hose to the LPG inlet on generator and then snug with a wrench to prevent leakage. Gasoline, gasoline vapor and propane/LPG are highly flammable and explosive. -
Page 26: Parallel Operation
3. Make sure the low idle switch is in OFF NOTICE position on both generators. Paralleling this generator to a generator that is not compatible can cause a low voltage output that can damage tools and appliances powered by the generator. -
Page 27: Maintenance And Storage
MAINTENANCE AND STORAGE MAINTENANCE SCHEDULE NOTE: Maintenance should be performed more frequently Regular Maintenance will improve the performance when generator is used in dusty areas. and extend the life of your generator. Follow When generator has exceeded the maximum figures maintenance schedule intervals whichever occurs specified in the table, maintenance should still be first according to use. -
Page 28: Change Engine Oil
Recommended Engine Oil Type CAUTION 1 0W-3 0 Avoid prolonged or repeated skin contact with used motor oil. 5W-3 0 1 0W-4 0 1. Loosen the bolts and remove the maintenance cover. 5W-3 0 Full Synthetic 2. Remove the oil filler cap. °... -
Page 29: Air Filter Maintenance
6. Measure plug gap. The correct gap is 0.028-0.031 Air Filter Maintenance in. (0.7-0.8 mm). To widen gap, if necessary, 1. Unscrew the bolts carefully bend the ground (top) electrode. To remove the maintenance cover (A). lessen gap, gently tap ground electrode on a hard 2. -
Page 30: Cleaning The Spark Arrestor
Cleaning the Spark Arrestor Short Term Storage Fill the tank with fresh gasoline and add gasoline 1. allow the engine to cool down completely before stabilizer. Drain the carburetor float bowl. carrying out fender maintenance. 1 - Add a properly formulated FUEL STABILIZER to 2. -
Page 31: Draining The Float Bowl
DRAINING THE FLOAT BOWL 1. Turn the fuel tank valve to the OFF position. 2. Locate the drain screw on the bottom of the carburetor float bowl. 3. Place an appropriate gasoline container to catch the drained fuel. 4. Loosen the float bowl drain screw and allow the fuel to drain from the drain tube. -
Page 32: Trouble Shooting
TROUBLE SHOOTING PROBLEM POSSIBLE CAUSE SOLUTION Engine is running, 1. AC Circuit breaker is open. 1. Check AC load and reset circuit breaker. but no AC output is 2. Fault in generator. 2. Contact customer service or authorized service center. available. -
Page 33: Parts Diagram And Parts List
PARTS DIAGRAM AND PARTS LIST SUA4300iD PARTS DIAGRAM Page 31... -
Page 34: Parts List
Parts List Part Number Description Qty. Part Number Description Qty. 30111-00083-00 Cross bolt M5*14 33004-01223-00 Mounting bracket 30111-00008-00 Cross bolt M5*10 30101-00349-00 Hexagon flange bolt M6*40 30111-00070-00 Cross bolt M4*12 34024-00085-00 Clip nut M6 31026-00388-00 Switch knob 33089-00511-00 Base assembly 20114-06888-00 Control panel 30125-00002-00... -
Page 35: Circuit Diagram
Circuit Diagram Page 33... -
Page 36: Warranty
Warranty Term related service due to obstructions and other build ups resulting from improper maintenance. A-iPower will provide warranty for any of its products Additional exclusions - this warranty does not cover purchased through any authorized AiPower dealer in wearable parts such as filers, spark plugs, o-rings, North America to the original purchaser and will be batteries etc. - Page 37 Warranty limits and Implications and Consequential Damages A-iPower is not obligated to cover any loss of time, use of product, freight cost, or any other incidental or consequential claim from the use of this product. This warranty is in Lieu of all other warranties, express or implied.
- Page 38 Fontana, CA 92337 USA Phone: 855-888-3598 support@a-ipower.com www.a-ipower.com...
- Page 39 A-iPOWER WARRANTY REGISTRATION FORM Register your product by emailing this form to support@a-ipower.com or register on-line at: www.a-ipower.com. Registering your product is important , it provides the following protections: 1. You have record of product purchased 2. Customer Service can Better serve you for Warranty related issues...
- Page 40 Fontana, CA 92337 USA Phone: 855-888-3598 support@a-ipower.com www.a-ipower.com...
