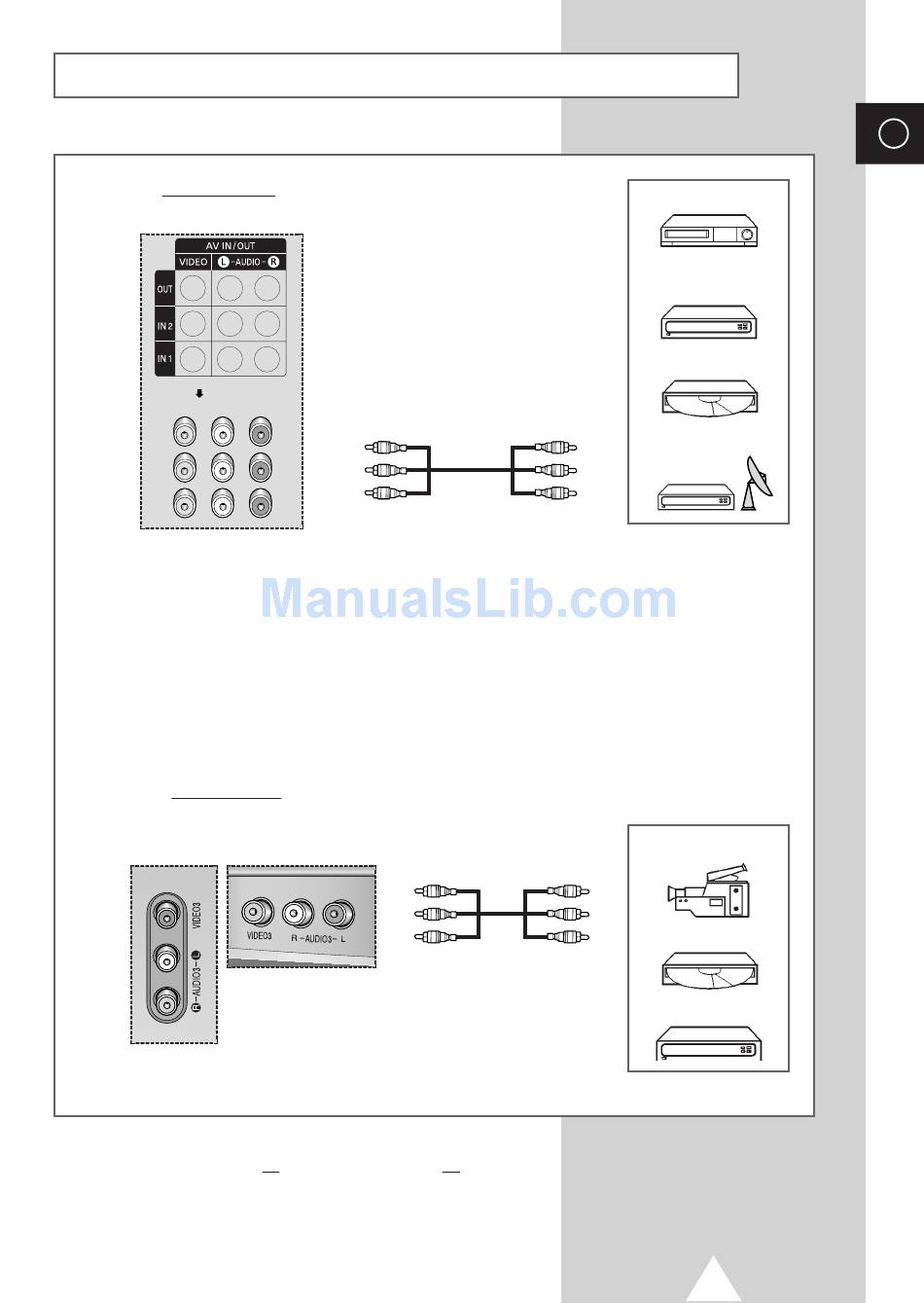

Connecting to the External Devices
Rear of the TV
(Input/Output)
①
This end can be fitted with:
◆ Three RCA connectors (VIDEO + AUDIO-L and R)
②
If you have a second VCR and wish to copy cassettes tape, connect the source VCR to "IN 1" and the
target VCR to "OUT" so that you can redirect the signal from source VCR to target VCR.
③
If you have a decoder, connect the decoder to the VCR and the VCR to the television.
➃
"OUT" is used for displaying the current picture to an external device. When you wish to record the
current picture, connect the VCR to "OUT".
Side of the TV
(Input)
(depending on the model)
☛
Whenever you connect an audio or video system to your
television, ensure that all elements are switched off.
Refer to the documentation supplied with your equipment
for detailed connection instructions and associated safety
precautions.
VCR
②
Decoder /
Video game device
③
Video disc player
①
Satellite receiver
➃
Camcorder
Video disc player
Video game device
49
ENG
