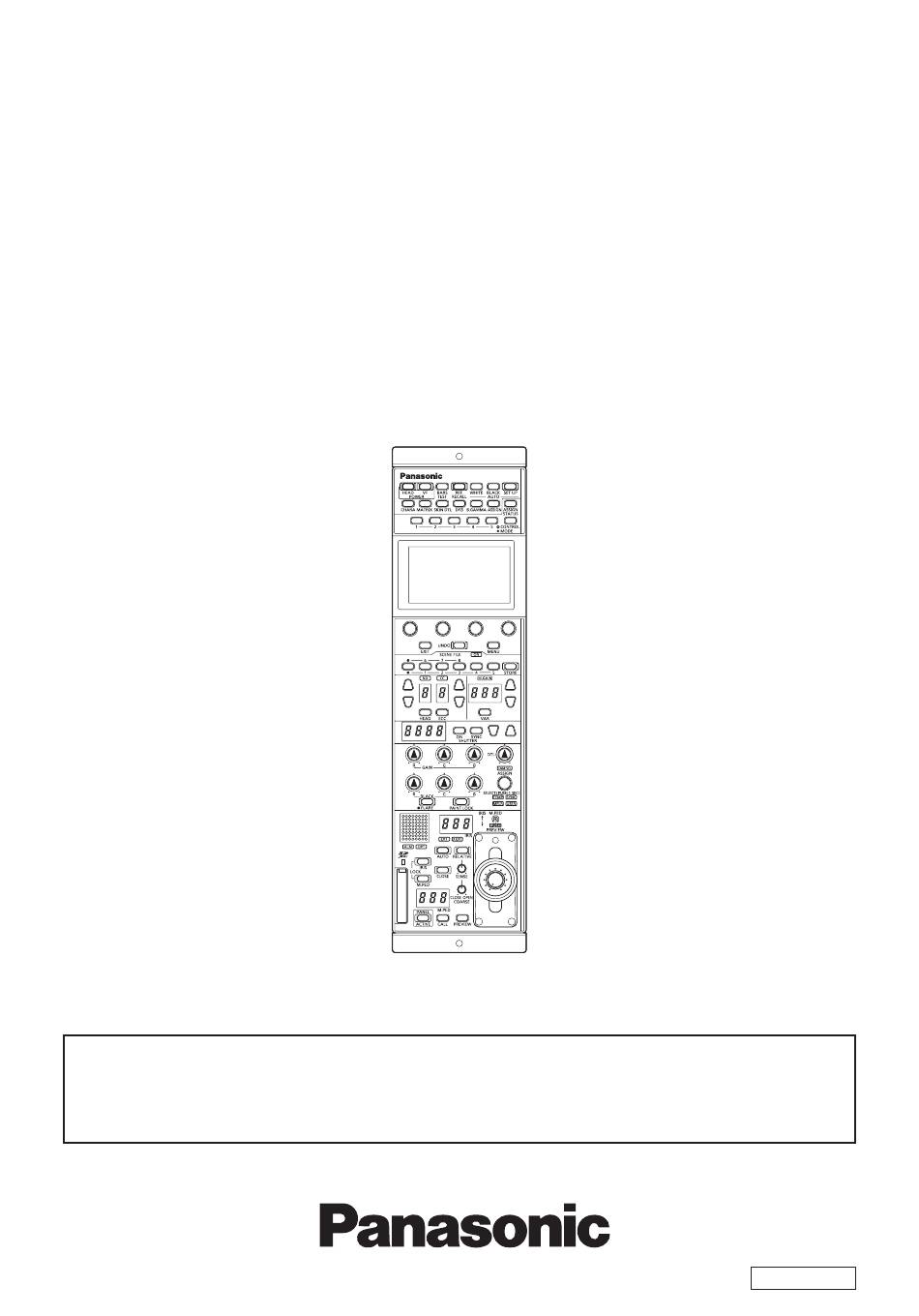

Operating Guide
Read this document when using the AK-HRP1010G Remote Operation Panel in
conjunction with AG-CX350 Memory Card Camera-Recorder.
For details of operating Remote Operation Panel AK-HRP1010G, please visit
the Panasonic website (https://pro-av.panasonic.net/manual/en/index.html),
and refer to the Operating Instructions (HTML or PDF).
W1122AM0 -PS

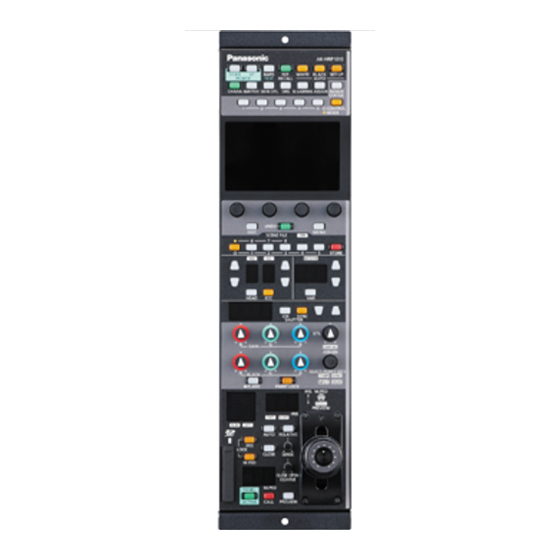

Remote Operation Panel
  AK-HRP1010G
Model No.
ENGLISH
DVQP2910ZA

Advertisement

Table of Contents
loading

Related Manuals for Panasonic AK-HRP1010G

Summary of Contents for Panasonic AK-HRP1010G

  • Page 1 Operating Guide Remote Operation Panel   AK-HRP1010G Model No. Read this document when using the AK-HRP1010G Remote Operation Panel in conjunction with AG-CX350 Memory Card Camera-Recorder. For details of operating Remote Operation Panel AK-HRP1010G, please visit the Panasonic website (https://pro-av.panasonic.net/manual/en/index.html), and refer to the Operating Instructions (HTML or PDF).

  • Page 2: Table Of Contents

    Table of Contents Connecting the Unit to AG-CX350 Cameras Connections Compatible Functions List ROP Menu (during AG-CX350 Connection) ROP menu list PAINT SHUTTER PEDESTAL CHROMA GAIN COLOR TEMP WHITE BALANCE GAMMA KNEE WHITE CLIP DETAIL SKIN TONE DTL MATRIX COLOR CORRECTION FUNCTION SYSTEM CAM INFO AUTO IRIS SETTING...

  • Page 3: Connecting The Unit To Ag-Cx350 Cameras

    Connecting the Unit to AG-CX350 Cameras Connecting the Unit to AG-CX350 Cameras Connections Use a LAN cable to connect the <REMOTE> connector at the rear of the AG-CX350 to the <LAN> connector of the AK- HRP1010G. Set the connection setting to “LAN(AG)” in the [CONNECT SETTING] menu. C 0 1 : E N G 1 / 9 C O N N E C T S E T T I N G...

  • Page 4: Compatible Functions List

    Connecting the Unit to AG-CX350 Cameras Compatible Functions List When the unit is used in conjunction with an AG-CX350 Memory Card Camera-Recorder, a portion of the unit’s button, dial, and other con- trol functions will be limited or disabled. Be sure to refer to the following table. Front panel 1 Front panel 2 Front panel 3...
  • Page 5 Connecting the Unit to AG-CX350 Cameras ✓ : Enabled Number Part name Remarks ×: Disabled ✓ [POWER HEAD] button Always lit. [POWER VF] button × ✓ [BARS/TEST] button Only the ON/OFF for the color bar signal output will function. [REF. RECALL] button ×...
  • Page 6 Connecting the Unit to AG-CX350 Cameras ✓ : Enabled Number Part name Remarks ×: Disabled ✓ LCD panel ✓ [MENU] dial ✓ Front panel 3 [EXIT] button [UNDO] button × ✓ [MENU] button ✓ [ON] indicator (SCENE FILE) This is always lit. Scene file page switching button ×...
  • Page 7 Connecting the Unit to AG-CX350 Cameras ✓ : Enabled Number Part name Remarks ×: Disabled ✓ [SHUTTER] display Display varies depending on the shutter mode. When fixed shutter is selected: Displays the numerical value for the denom- inator of the shutter speed. When synchro scan (time display) is selected: Displays the numerical value for the denom- inator of the shutter speed.
  • Page 8 Connecting the Unit to AG-CX350 Cameras ✓ : Enabled Number Part name Remarks ×: Disabled [EXT] indicator × [D.EXT] indicator × ✓ [IRIS] lever ✓ [M.PED] dial ✓ [RELATIVE] button ✓ [SENSE] dial ✓ Front panel 8 [COARSE] dial ✓ [IRIS] display ✓...

  • Page 9: Rop Menu (During Ag-Cx350 Connection)

    ROP Menu (during AG-CX350 Connection) ROP Menu (during AG-CX350 Connection) ROP menu list When an AG-CX350 Memory Card Camera-Recorder is connected, the ROP menu will be as follows. For setting values related to the cam- era, refer to the Operating Instructions for the camera. For details on menu operations, refer to the following items in the Operating Instructions and “Addition of [MENU OPE] to [ROP SETTING] in the [MAINTENANCE] menu”...
  • Page 10 ROP Menu (during AG-CX350 Connection) ROP IP SETTING Refer to the following section in the Operating Instructions. “SYSTEM” CAM  IP SEARCH MANUAL IP SETTING CONNECT SETTING CAMERA AUTH SETTING SYSTEM ROP AUTH SETTING Refer to the following sections in “Functions Added by Version Updates”.

  • Page 11: Paint

    ROP Menu (during AG-CX350 Connection) PAINT SHUTTER Touch mode Legacy mode C 0 1 : E N G C 0 1 : E N G 1 / 1 1 / 1 S H U T T E R S H U T T E R SPEED SYNC SPEED...

  • Page 12: Pedestal

    ROP Menu (during AG-CX350 Connection) PEDESTAL C 0 1 : E N G P E D E S T A L 1 / 1 M.PED OFFSET R PED G PED B PED Item Setting details M.PED Adjusts the black level (master pedestal level adjustment). OFFSET Sets whether or not to retain the pedestal levels of the R, G, and B channels when the auto black balance is adjusted.

  • Page 13: Chroma

    ROP Menu (during AG-CX350 Connection) CHROMA C 0 1 : E N G C H R O M A 1 / 1 LEVEL % PHASE Item Setting details LEVEL % Sets the chroma level for the P and P signals. PHASE Finely adjusts the chroma phase for the P and P...

  • Page 14: Gain

    ROP Menu (during AG-CX350 Connection) GAIN Touch mode Legacy mode C 0 1 : E N G C 0 1 : E N G G A I N 1 / 1 G A I N 1 / 1 GAIN LIMIT POINT GAIN 12dB...

  • Page 15: Color Temp

    ROP Menu (during AG-CX350 Connection) COLOR TEMP Touch mode Legacy mode C 0 1 : E N G C 0 1 : E N G C O L O R T E M P 1 / 1 C O L O R T E M P 1 / 1 COLOR COLOR...

  • Page 16: White Balance

    ROP Menu (during AG-CX350 Connection) WHITE BALANCE Touch mode Legacy mode C 0 1 : E N G C 0 1 : E N G W H T E B A L A N C E 1 / 1 W H T E B A L A N C E 1 / 1 W.BAL GAIN...

  • Page 17: Gamma

    ROP Menu (during AG-CX350 Connection) GAMMA Touch mode Legacy mode C 0 1 : E N G C 0 1 : E N G G A M M A 1 / 1 G A M M A 1 / 2 MODE GAMMA MODE...

  • Page 18: Knee

    ROP Menu (during AG-CX350 Connection) KNEE Touch mode Legacy mode C 0 1 : E N G C 0 1 : E N G K N E E 1 / 1 K N E E 1 / 2 H.COLOR MODE POINT SLOPE MODE...

  • Page 19: White Clip

    ROP Menu (during AG-CX350 Connection) WHITE CLIP C 0 1 : E N G W H I T E C L I P 1 / 1 LEVEL(%) Item Setting details Enables or disables the white clip function. This is enabled when [MODE] in the [GAMMA] menu is other than “HLG”. LEVEL(%) Sets the white clip level.

  • Page 20: Drs

    ROP Menu (during AG-CX350 Connection) Touch mode Legacy mode C 0 1 : E N G C 0 1 : E N G D R S 1 / 1 D R S 1 / 1 EFFECT EFFECT DEPTH DEPTH Item Setting details EFFECT DEPTH Sets the compression level for high-brightness areas of the dynamic range stretcher function.

  • Page 21: Detail

    ROP Menu (during AG-CX350 Connection) DETAIL Touch mode Legacy mode C 0 1 : E N G C 0 1 : E N G D E T A I L 1 / 1 D E T A I L 1 / 2 V DTL H DTL CORING...

  • Page 22: Skin Tone Dtl

    ROP Menu (during AG-CX350 Connection) SKIN TONE DTL Touch mode Legacy mode C 0 1 : E N G C 0 1 : E N G S K I N T O N E D T L 1 / 1 S K I N T O N E D T L 1 / 2 SKIN...

  • Page 23: Matrix

    ROP Menu (during AG-CX350 Connection) MATRIX Touch mode Legacy mode C 0 1 : E N G C 0 1 : E N G M A T R I X 1 / 1 M A T R I X 1 / 1 TYPE TABLE ADAPTIVE...

  • Page 24: Color Correction

    ROP Menu (during AG-CX350 Connection) COLOR CORRECTION Touch mode Legacy mode C 0 1 : E N G C 0 1 : E N G C O L O R C O R R E C T I O N 1 / 4 C O L O R C O R R E C T I O N 1 / 6...
  • Page 25 ROP Menu (during AG-CX350 Connection) C 0 1 : E N G 6 / 6 C O L O R C O R R E C T I O N PHASE Yl-Yl-R Yl-Yl-R PHASE Yl-R Yl-R PHASE Yl-R-R Yl-R-R Item Setting details Sets the color correction function to ON/OFF.

  • Page 26: Function

    ROP Menu (during AG-CX350 Connection) FUNCTION SYSTEM CAM INFO Touch mode Legacy mode C 0 1 : E N G C 0 1 : E N G 1 / 1 1 / 1 S Y S T E M C A M I N F O S Y S T E M C A M I N F O TALLY TALLY...

  • Page 27: Auto Iris Setting

    ROP Menu (during AG-CX350 Connection) AUTO IRIS SETTING C 0 1 : E N G A U T O I R I S S E T T I N G 1 / 1 LEVEL SPEED WINDOW SLOW NRML1 Item Setting details AUTO IRIS LEVEL Sets the auto iris level.

  • Page 28: Maintenance

    ROP Menu (during AG-CX350 Connection) MAINTENANCE CAMERA MENU CONTROL Touch mode Legacy mode C 0 1 : E N G C 0 1 : E N G 1 / 1 1 / 1 C A M E R A M E N U C O N T R O L C A M E R A M E N U C O N T R O L CURSOR/ CURSOR/...

  • Page 29: System

    ROP Menu (during AG-CX350 Connection) SYSTEM ROP IP SETTING For details on operations and settings, refer to the following section in the Operating Instructions. “ROP IP SETTING” CAM IP SEARCH For details on operations and settings, refer to the following section in the Operating Instructions. “CAM IP SEARCH”...
