Katadyn Rapidyn Quick Starter Manual

Filter kit and filter 10l system
Hide thumbs Also See for Rapidyn:
1
2
3
4
5
6

Advertisement

Table of Contents

Components
A
B
2 x
C
E
Only for Katadyn Rapidyn 10L Filter System
G1
G2
H
Quick Starter Guide
Katadyn Rapidyn Filter Kit
and Katadyn Rapidyn Filter 10L System
Quick Starter Guide
D
F
2 x
I

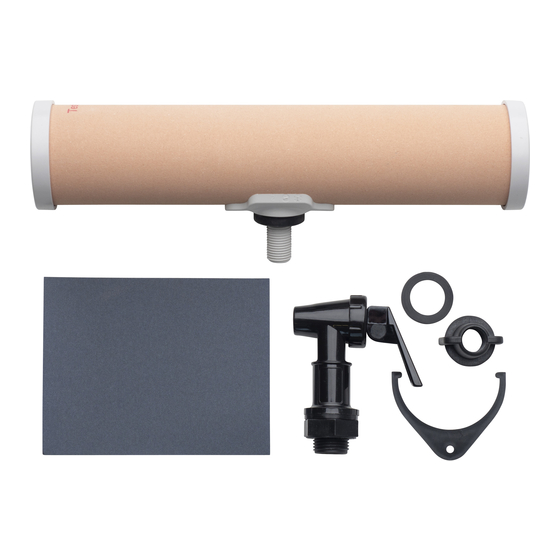

A: Ceramic Filter Element Katadyn Rapidyn
B: Mouth Piece Seal (2 pcs)
1 piece mounted on ceramic filter element
C: Filter Nut
D: Outlet Tap
E: Tap Nut
F: Tap Seal (2pcs)
G: Bucket (2pcs)
G3
G4
H: End of Life Indicator
I: Abrasive Cleaning Paper
Page 1/6

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Rapidyn and is the answer not in the manual?

Questions and answers

Related Manuals for Katadyn Rapidyn

Summary of Contents for Katadyn Rapidyn

  • Page 1 1 piece mounted on ceramic filter element C: Filter Nut D: Outlet Tap E: Tap Nut F: Tap Seal (2pcs) G: Bucket (2pcs) Only for Katadyn Rapidyn 10L Filter System H: End of Life Indicator I: Abrasive Cleaning Paper Quick Starter Guide Page 1/6...
  • Page 2 Assembling the Filter Kit Check if mouth piece seal (B) is mounted to the filter outlet (A). Push the filter outlet through the bottom of the upper bucket and the lid of the lower container. Secure filter by mounting the second mouth piece seal (B) and screwing on the filter nut firmly (C).
  • Page 3 Assembling the Filter Kit (continued) Place the entire system on a stable higher surface (such as a table) to allow high flow rate. Fill water in the upper bucket and wait. It takes approx. 1 hour to get 3-4 liters. Wait until the lower bucket is filled.
  • Page 4 Maintenance If the flow rate decreases and/or the filter beco- mes dirty the filter cartridge needs to be clea- ned with the included abrasive cleaning paper (I). Unscrew the filter nut (C) and dismount the mouth piece seal (B). Remove the filter ele- ment.
  • Page 5 Maintenance (continued) After cleaning the mount, install the filter according to step number three in the “Install new Filter Element” manual on page 5. Please note: Wash hands with soap before assembly. Install new Filter Element Unscrew the filter nut (C) and dismount the mouth piece seal (B).
  • Page 6 After that your Water Filter System is ready for use. Enjoy. Manufactured by: Katadyn Products Inc. / Pfäffikerstrasse 37 / 8310 Kemptthal / Switzerland +41 44 839 21 11 / customerservice@katadyn.ch / www.katadyngroup.com Distributed by: Katadyn Deutschland GmbH / Hesssenring 23 / 64546 Mörfelden-Walldorf / Germany +49 6105 45 67 89 / customerservice@katadyn.de...
