Page 1 FytoScope FS 130 Manual and User Guide Please read this manual before operating this product PSI, spol. s r. o., Drásov 470, 664 24 Drásov, Czech Republic FAX: +420 511 440 901, TEL: +420 511 440 011, www.psi.cz...
Page 2 © PSI (Photon Systems Instruments), spol. s r. o. (hereinafter PSI), 2021 This document and its parts can be copied or provided to a third party only with the express permission of PSI. The contents of this manual have been verified to correspond to the specifications of the device. However, deviations cannot be ruled out.
Page 3: Table Of Contents
© PSI (Photon Systems Instruments), spol. s r. o. TABLE OF CONTENTS Warnings and Safety Precautions ........................... 4 Technical Specification ..............................6 General Information ............................... 7 Components of FS 130 ..............................8 Device Description and Instalation ..........................9 Device Installation ..............................9 Description of the FytoScope Control Unit Front Panel ..................
Page 4: Warnings And Safety Precautions
© PSI (Photon Systems Instruments), spol. s r. o. 1 WARNINGS AND SAFETY PRECAUTIONS Read this manual carefully before operating the device. If you are not sure about anything in the manual, contact the manufacturer for clarification. By accepting the device, the customer agrees to follow the instructions in this guide.
Page 5 Do not perform any alterations to the electrical part of the devices or their components. WARNING: THE FYTOSCOPE FS 130 IS CONSIDERED CLASS 1M* LED PRODUCT. LED RADIATION MAY BE HARMFUL TO EYE, AVOID DIRECT AND STRONGLY REFLECTED EXPOSURE. IT IS REASONABLE TO USE PROTECTIVE GLASSES.
Page 6: Technical Specification
© PSI (Photon Systems Instruments), spol. s r. o. 2 TECHNICAL SPECIFICATION Temperature range: +15 °C to +55 °C (with maximum illumination) - standard +10 °C to +55 °C (with maximum illumination) - optional LED Light Illumination: LED panel 250 x 350 mm...
Page 7: General Information

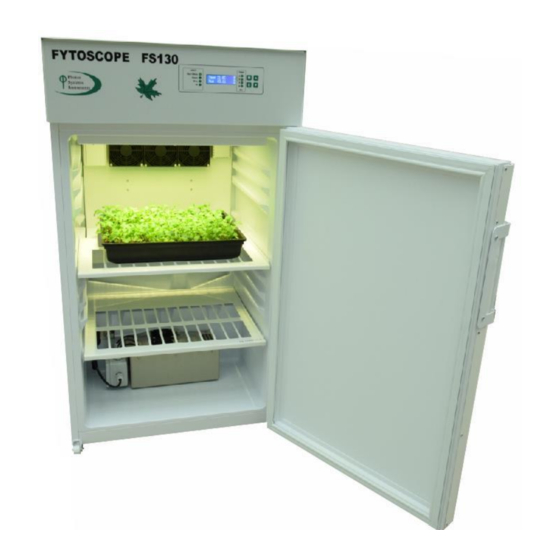

© PSI (Photon Systems Instruments), spol. s r. o. 3 GENERAL INFORMATION FytoScope Chamber FS 130 represents a remarkable combination of a LED-based growth chamber and measuring device designed for well-defined cultivation and monitoring of higher plants. It is equipped with a LED-based light panel that provides high-intensity illumination that is controllable in its power, spectral composition and temporal modulation.
Page 8: Components Of Fs 130
© PSI (Photon Systems Instruments), spol. s r. o. 4 COMPONENTS OF FS 130 Please, find below a list of standard FytoScope FS 130 components delivered to the customer. Check the contents of the package and compare it with enclosed standard package list.
Page 9: Device Description And Instalation
© PSI (Photon Systems Instruments), spol. s r. o. 5 DEVICE DESCRIPTION AND INSTALATION DEVICE INSTALLATION • Place the FytoScope on a flat, firm and dry surface! Let it stand up and wait at least 12 hours before plugging it •...
Page 10: Description Of The Fytoscope Control Unit Front Panel
Used to move up in the menu or to add value. [▼]: Used to move down in the menu or to subtract value. See Chapter FytoScope FS 130 Control on page 14 for more information about the FytoScope Control Panel operation.
Page 11: Description Of The Fytoscope Rear Panel And Connection To 230 Or 110 Vpower Supply
© PSI (Photon Systems Instruments), spol. s r. o. DESCRIPTION OF THE FYTOSCOPE REAR PANEL AND CONNECTION TO 230 OR 110 V POWER SUPPLY Fig. 3 Rear Panel. [6] ON/OFF power switch (mains). [7] ON/OFF power switch for an optional air pump.
Page 12: Description Of The Fytoscope Interior Space
FytoScope. The outlet has a fuse, which is situated on the rear panel of the device (see feature [11] in Fig. 3). The internal socket in the FS, AG... is intended only for use with the Shaker supplied by PSI. Using this socket for any other appliance is not recommended because it may cause damage to the FS, AG...
Page 13: Description Of The Fytoscope Shelving
© PSI (Photon Systems Instruments), spol. s r. o. DESCRIPTION OF THE FYTOSCOPE SHELVING For the illustration of inner space of the FytoScope see Fig. 5. Two shelves [17] and [18] are supplied for placement of samples or shaker. The shelf labelled “LOWER” (with wide rear edge) can be positioned in the lowest level only [17]. The shelf labelled “UPPER”...
Page 14: Fytoscope Control
The following pages show a graphical representation of the operation scheme for the FytoScope. This scheme is structured in five levels. Individual levels are marked with a different color for an easier orientation in the scheme. The FytoScope FS 130 front panel does not reflect this color differentiation. •...
Page 22: Examples Of Light Protocols Configured Via The Control Unit Front Panel
© PSI (Photon Systems Instruments), spol. s r. o. EXAMPLES OF LIGHT PROTOCOLS CONFIGURED VIA THE CONTROL UNIT FRONT PANEL...
Page 23: Circadian Cycle
© PSI (Photon Systems Instruments), spol. s r. o. Please note that after light protocol termination the lights will be adjusted according to the lights setting in the main menu. CIRCADIAN CYCLE The example of five-days long experiment using a diurnal Light/Dark phases is described below. Light phase (LP) takes 16 hours whereas Dark phase only 8 hours (DP;...
Page 24: Pulse Cycle
© PSI (Photon Systems Instruments), spol. s r. o. Protocols > Edit > Light 2 > Clone Config > Light 1 Protocols > Edit > Light 3 > Clone Config > Light 1 4. Simultaneous start of light protocol in all cultivation tubes.
Page 25 © PSI (Photon Systems Instruments), spol. s r. o. > Timing: DP units DP 2 [m] > Timing: repeats Repeats [1] x > RepForever > YES 3. Definition of PULSE light function of Light 1. Protocols > Edit > Light 1 > Function > PULSE >...
Page 26: Sine Circadian Cycle
© PSI (Photon Systems Instruments), spol. s r. o. > Timing: DP units DP 2 [m] > Timing: repeats Repeats [1] x > RepForever > YES 3. Definition of PULSE light function of Light 1. Protocols > Edit > Light 1 > Function > PULSE >...
Page 27 © PSI (Photon Systems Instruments), spol. s r. o. > Timing: LP units LP 12 [h] > Timing: DP value DP [12] h > Timing: DP units DP 12 [h] > Timing: repeats Repeats [1] x > RepForever > YES 3.
Page 28: Warranty Terms And Conditions
© PSI (Photon Systems Instruments), spol. s r. o. 8 WARRANTY TERMS AND CONDITIONS • This Limited Warranty applies only to the FytoScope FS 130 device. It is valid for one year from the date of shipment. • If at any time within this warranty period the instrument does not function as warranted, return it and the manufacturer will repair or replace it at no charge.
Page 29: Troubleshooting And Customer Support
© PSI (Photon Systems Instruments), spol. s r. o. 9 TROUBLESHOOTING AND CUSTOMER SUPPORT In case of troubles and for customer support, please, visit on our websites, write to support@psi.cz or contact your local distributor.
