LG LW1216ER Owner's Manual
Hide thumbs
Also See for LW1216ER:
- Owner's manual (52 pages) ,
- Owner's manual (48 pages) ,
- Owner's manual (31 pages)
Table of Contents
Advertisement
Quick Links

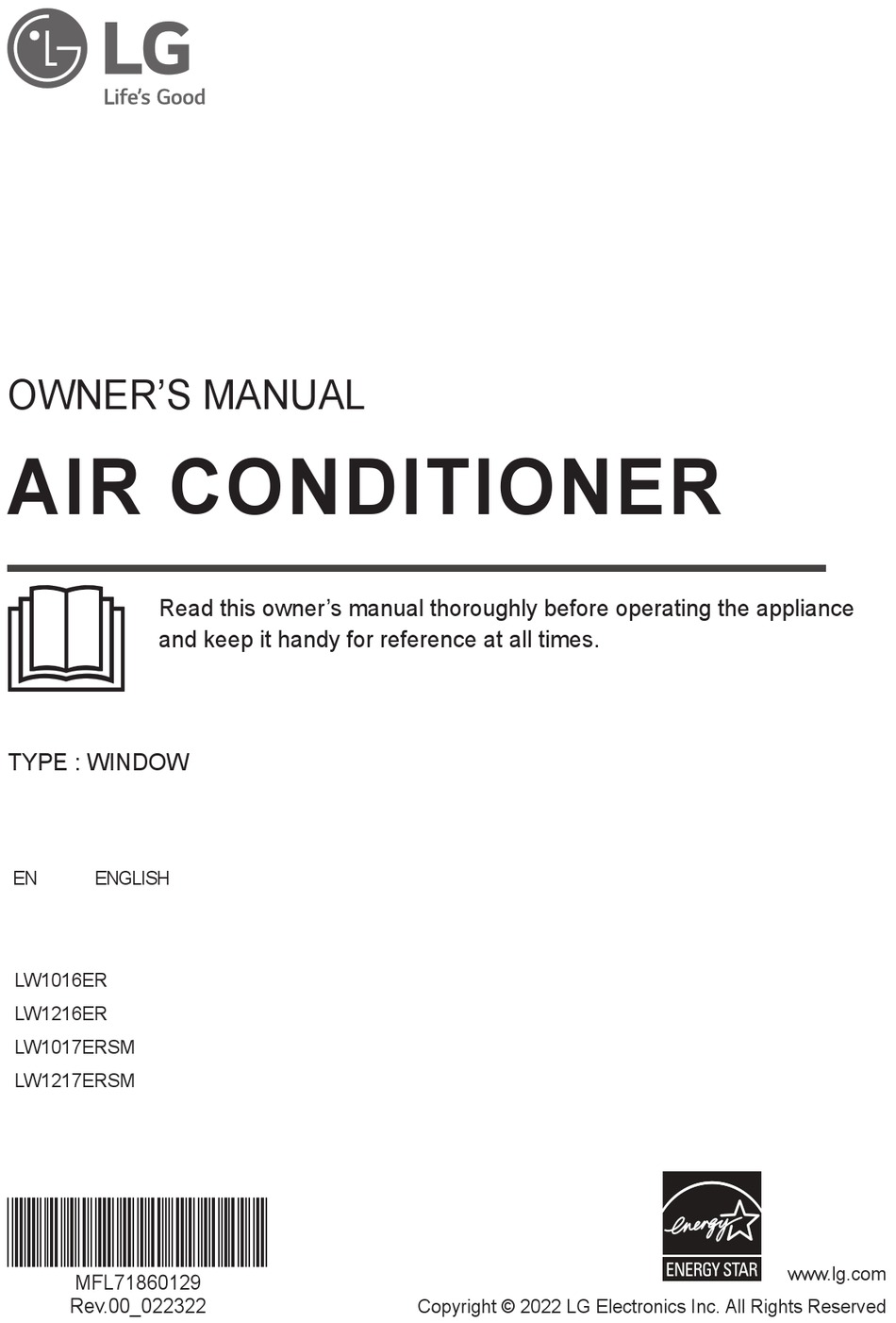

OWNER'S MANUAL
AIR CONDITIONER
Read this owner's manual thoroughly before operating the appliance
and keep it handy for reference at all times.
TYPE : WINDOW
EN
ENGLISH
LW1016ER
LW1216ER
LW1017ERSM
LW1217ERSM
*MFL71860129*
MFL71860129
Rev.00_022322
Copyright © 2022 LG Electronics Inc. All Rights Reserved
www.lg.com
Advertisement
Table of Contents
Related Manuals for LG LW1216ER
Summary of Contents for LG LW1216ER
- Page 1 AIR CONDITIONER Read this owner’s manual thoroughly before operating the appliance and keep it handy for reference at all times. TYPE : WINDOW ENGLISH LW1016ER LW1216ER LW1017ERSM LW1217ERSM *MFL71860129* www.lg.com MFL71860129 Rev.00_022322 Copyright © 2022 LG Electronics Inc. All Rights Reserved...
-
Page 2: Table Of Contents
OPERATION .................16 Control Panel and Remote Control ..............16 Wireless Remote Control ................17 Air Direction .....................18 Additional Features ..................18 SMART FUNCTIONS ..............19 LG ThinQ Application ..................19 Smart Diagnosis ....................20 MAINTENANCE ................22 Air Filter ......................22 TROUBLESHOOTING ..............23 Before Calling for Service ................23 Normal Sounds You May Hear ................23... -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS READ ALL INSTRUCTIONS BEFORE USE Your safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance. Always read and follow all safety messages. This is the safety alert symbol. This symbol alerts you to potential hazards that can kill or injure you and others. -
Page 4: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS WARNING To reduce the risk of explosion, fire, death, electric shock, scalding or injury to persons when using this product, follow basic precautions, including the following: INSTALLATION • Before use, the appliance must be properly installed as described in this manual. •... - Page 5 • If water enters the product, turn off the power at the main circuit, then unplug the product and call for service. • If the product has been submerged, contact the LG Electronics Customer Information Center for instructions before resuming use.
- Page 6 CAUTION To reduce the risk of minor or moderate injury to persons, malfunction, or damage to the product or property when using this product, follow basic precautions, including the following: INSTALLATION • Take care when installing the product that exhaust or condensation does not damage nearby property.
- Page 7 REFRIGERANT (FOR R32 ONLY) WARNING • Do not use means to accelerate the defrosting process or to clean, other than those recommended by the manufacturer. • The appliance shall be stored in a room without continuously operating ignition sources (for example: open flames an operating gas appliance or an operating electric heater).
-
Page 8: Product Overview
PRODUCT OVERVIEW Exterior Parts Interior Parts Control Panel Evaporator Remote Control Air Guide Air Filter Brace Vertical Air Deflector (Horizontal Louver) Compressor Horizontal Air Deflector (Vertical Louver) Condenser Front Grille Base Pan Air Outlet Power Cord Cabinet... -
Page 9: Installation
INSTALLATION Electrical Data WARNING Power cord may include a current interrupter • This appliance should be installed in device. TEST and RESET buttons are provided accordance with the National Electrical Code. on the plug case. The device should be tested on •... -
Page 10: Parts Included (Appearance May Vary)
Parts Included (Appearance May Vary) Heatproof foam (2) (Adhesive backed) Foam-PE (2) (Adhesive backed) Foam strip Right curtain panel Frame guide (2) Window locking bracket Left curtain panel Sill support (2) Type “A” Screws Type “A” Screws Type “B” Screws Type “B”... -
Page 11: How To Install The Unit
How to Install the Unit NOTE • All supporting parts should be secured to firm To prevent vibration and noise, make sure the wood, masonry, vinyl, fiberglass, or metal. unit is installed securely and firmly. • This product is a window air conditioner. As such, a standard single-hung or double-hung Install the unit out of direct sunlight. -
Page 12: Preparation Of The Cabinet
Preparation of the Cabinet Insert the hooks on the lower panel guides into the slots on the bottom of the cabinet. Make sure that the flanges on the lower panel Remove 4 screws which fasten the cabinet at guides will face toward the inside of the room. both sides and at the back. -
Page 13: Cabinet Installation
Cabinet Installation Use 2 type A screws to attach a sill support to the cabinet track holes on one side. Use the cabinet track holes that will place the sill Inside Sill Inside Sill support nearest to the outer edge of the sill. Center Hole Center Hole The longer side of the sill support should be... -
Page 14: Unit Installation
Mount the cabinet to the window sill using 3 CAUTION type B screws in the holes on the front angle. • The unit is heavy. Use an assistant to help lift the unit and set it in place. Lifting and maneuvering the unit by yourself could result Sash Track Sash Track... - Page 15 Connect the wire harness before assembling After the air conditioner is installed, measure the front grille. the curtain panel on each side and cut the adhesive-backed heatproof foam to fit each panel. The size of the panels may differ. Remove the backing from the heatproof foam and attach the foam to the curtain panels.
-
Page 16: Operation
OPERATION Control Panel and Remote Control Remote Control NOTE • The feature may be changed according to the type of model. Power Operation Mode Press the Mode button to cycle between 4 Press to turn the air conditioner ON or types of air conditioner operation: Energy OFF. -
Page 17: Wireless Remote Control
Wireless Remote Control Wi-Fi (Wi-Fi Model Only) Enables connection of the air conditioner to Inserting Batteries the home Wi-Fi. Push out the cover on the back of the remote NOTE control with your thumb. • Follow instructions on ThinQ application on how to connect to your unit. -
Page 18: Air Direction
Air Direction Additional Features Airflow can be adjusted by changing the direction Slinger Fan of the air conditioner’s louvers. This air conditioner is equipped with a slinger fan. Adjusting Horizontal Airflow (See drawing.) Direction The fan’s outer ring picks up the condensed water from the base pan if the water level gets high The horizontal airflow is adjusted by moving the enough. -
Page 19: Smart Functions
Internet service diagnose the problem. provider or refer to your wireless router manual. • LG ThinQ is not responsible for any Settings network connection problems or any faults, malfunctions, or errors caused by network Allows you to set various options on the appliance connection. -
Page 20: Smart Diagnosis
Installing the LG ThinQ Using LG ThinQ to Diagnose Application Issues Search for the LG ThinQ application from the If you experience a problem with your Wi-Fi Google Play Store or Apple App Store on a equipped appliance, it can transmit troubleshooting data to a smartphone using the LG ThinQ smartphone. - Page 21 FCC Notice FCC RF Radiation Exposure Statement This following notice cover the transmitter module contained in this product. This equipment complies with FCC radiation This equipment has been tested and found to exposure limits set forth for an uncontrolled comply with the limits for a Class B digital device, environment.
-
Page 22: Maintenance
MAINTENANCE Cleaning the Air Conditioner WARNING • Wipe the front grille and inlet grille with a cloth • Before cleaning or performing maintenance, dampened in a mild detergent solution. disconnect the power supply and wait until the • Wash the cabinet with mild soap or detergent fan stops. -
Page 23: Troubleshooting
TROUBLESHOOTING Before Calling for Service The appliance is equipped with an automatic error-monitoring system to detect and diagnose problems at an early stage. If the appliance does not function properly or does not function at all, check the following before you call for service. Normal Sounds You May Hear High Pitched Chatter Today’s high efficiency compressors may have a high pitched chatter during the cooling cycle. - Page 24 Problem Possible Causes & Corrective Action The air conditioner is unplugged. • Make sure the air conditioner plug is pushed completely into the outlet. The fuse is blown/circuit breaker is tripped. • Check the house fuse/circuit breaker box and replace the fuse or reset the breaker.
- Page 25 Remote control signal obstructed. prematurely. • Remove obstruction. Air conditioner is turned off. Can’t connect the LG • Turn the air conditioner on. ThinQ App. to the air Wireless router is turned off. conditioner. • Turn the router on.
- Page 26 Problem Possible Causes & Corrective Action The password for the Wi-Fi network was entered incorrectly. • Delete your home Wi-Fi network and begin the registration process again. Mobile data for your smartphone is turned on. • Turn off the Mobile data of your smartphone before registering the appliance.
-
Page 27: Warranty
If during in-home service repair cannot be completed, it may be necessary to remove, repair and return the product. If in-home service is unavailable, LG may elect, at our option, to provide for transportation of our choice to and from a LG authorized service center. - Page 28 HOW TO OBTAIN WARRANTY SERVICE & ADDITIONAL INFORMATION: Call 1-800-243-0000 or visit our website at www.lg.com. Mail to: LG Customer Information Center (ATTN: CIC)
- Page 29 Notice of Dispute. In the event you intend to commence an arbitration proceeding, you must first notify LG in writing at least 30 days in advance of initiating the arbitration by sending a letter to LG at LG Electronics, USA, Inc. Attn: Legal Department- Arbitration 111 Sylvan Avenue, Englewood Cliffs, NJ 07632.
- Page 30 Opt Out. You may opt out of this dispute resolution procedure. If you opt out, neither you nor LG can require the other to participate in an arbitration proceeding. To opt out, you must send notice to LG no later than 30 calendar days from the date of the first consumer purchaser’s purchase of the product by...
- Page 31 Memo...
- Page 32 LG Customer Information Center 1-800-243-0000 Register your product Online! LG Electronics Inc. www.lg.com 111 Sylvan Avenue, Englewood Cliffs, NJ 07632...
