Assistant AH-1707 - Wall And Desktop Clock Manual

GETTING STARTED

1. Remove the battery door by slightly pressing the knob downwards.
2. Insert one new AA size battery according to the polarity information marked on the battery compartment.
3. Replace the battery door.
4. When the battery is inserted, the normal segments of LCD will be shown.

Note:
If there is no display on the LCD after inserting the battery, try to replace with one new AA size battery or press [RESET] key by using a metal wire.

FUNCTION KEYS

[RESET] key: Press it to return all values to default values.

• In case of malfunction, the unit may be required to reset.

[MODE] key: Press it to switch between normal time and alarm time mode.

[SET] key: Press it to turn on/off the alarm and snooze.

• Press and hold it for 3 seconds to enter the time setting mode.
• In setting mode, press it to step the setting items.

[ADJUST] key: In normal time mode, press it to switch between Month/Date and Year display.
In setting mode, press it to change the setting values.

[°C/°F] key: Press it to switch between Celsius and Fahrenheit.

[SNOOZE] key: Press it to stop the current alarm when it is sounding.

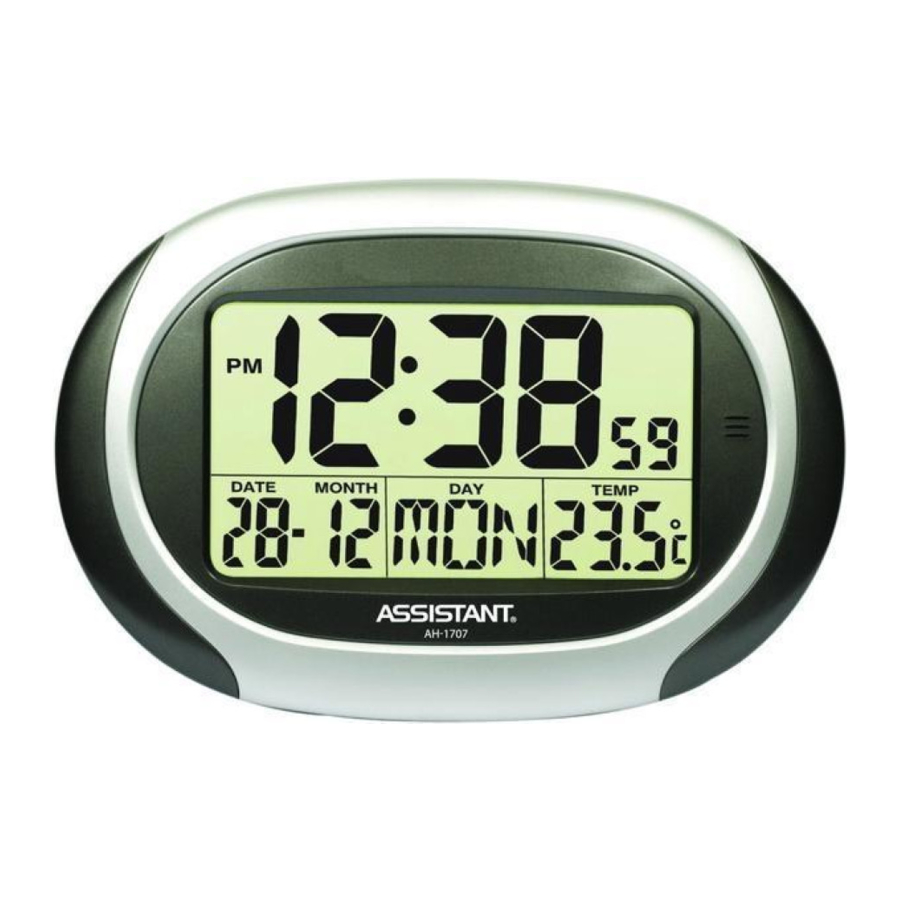

PRODUCT DESCRIPTIONS

1. LCD display
2. [RESET] key
3. [MODE] key
4. [SET] key
5. [ADJUST] key
6. [°C/°F] key
7. [SNOOZE] key
8. Wall-mounting holder
9. Table stand
10. Battery door

DISPLAY SYMBOLS

Normal Time Mode

1. Time
2. Month & Date
3. Day of the week
4. Temperature

Alarm Time Mode

1. Alarm time
2. Alarm icon
3. Snooze icon
4. Alarm mode

TIME AND CALENDAR SETTING

1. In normal time mode, press and hold [SET] key for 3 seconds until the HOUR digit flashes.
2. Press [ADJUST] key to change its value.
3. Repeat the above operations to set time and calendar in this order:
   Hour > Minute >Second > 12/24 Hr > Year > Month > Date.
4. Press [MODE] key to save and exit the setting mode, or let it exit automatically 30 seconds later without pressing any key.

ALARM TIME SETTING

1. In normal time mode, press [MODE] key once to enter the alarm time mode.
2. Press and hold [SET] key for 3 seconds until the HOUR digit flashes.

Note:
The alarm will be turned on automatically when you set the alarm time.

USING THE ALARM AND SNOOZE FUNCTION

1. Set the alarm time as described in the previous section.
2. Press [SET] key once to turn on the alarm so that the bell icon «». appears.
3. Press [SET] key twice to turn on the snooze so that the snooze icon "Zz" appears.
4. To deactivate the alarm and snooze, press [SET] key again until both icons disappear.

Note:

1. If only alarm function is activated, press [SNOOZE] key to stop the current alarm until the next day; while pressing [SET] key can turn off the alarm function.
2. If snooze function is activated, press [SNOOZE] key to stop the current alarm and enter the snooze mode; while pressing [SET] key not only can stop the current alarm but also can turn off the alarm and snooze function.
3. When the snooze function is activated, the 4-step crescendo alarm will sound 5 times in 5-minute interval. The alarm duration is 60 seconds.

USING THE WALL-MOUNTING AND TABLE STAND FUNCTION

The clock has both the desktop and wall-mounting structures. You can place it on the desktop by its table stand or hang it on the wall by its recessed hole.

BATTERY REPLACEMENT

When the LCD becomes dim, replace with one new AA size battery at once. Pay attention to the battery polarity.

Note:
Attention! Please dispose of the used unit or batteries in an ecologically safe manner.

Made in China
