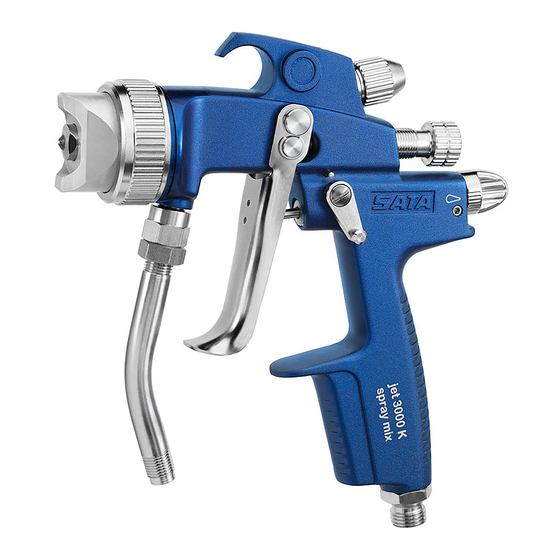

SATA SATAjet 3000 K spray mix Operating Instructions Manual
Hide thumbs
Also See for SATAjet 3000 K spray mix:
- Operating instructions manual (16 pages) ,
- Operating instructions manual (40 pages)
Related Manuals for SATA SATAjet 3000 K spray mix
Summary of Contents for SATA SATAjet 3000 K spray mix
- Page 1 SATAjet ® 3000 K spray mix Betriebsanleitung - Operating Instructions Betriebsanleitung - Operating Instructions Mode d‘emploi...
- Page 2 US 7.018.154...
- Page 3 Trade Associations, etc.). SATA, SATAjet, the SATA Logo and/or other SATA products referenced herein are either registered trademarks or trademarks of SATA GmbH & Co. KG in the U.S. and/or other countries. The names of companies and products mentioned herein may be the trademarks of their respective owners.
-
Page 4: Functional Description
• Strainer 60 msh, 100 msh und 200 msh 2. Functional Description The paint spray gun SATAjet 3000 K spray mix has been designed for the application of stains, glazes and paints as well as other liquid media in combination with airless pumps up to a spray viscosity which can be still displayed in the DIN 4 cup (the nozzle size is depending on the spray viscosity). - Page 5 For servicing/repair work of any kind, the system must be devoid of pressure, i.e. disconnected from the air supply. Failure to respect this safety warning may result in damage and injuries, even death at worst. SATA does not take any responsibility for possible results of such failure.
- Page 6 Operating Instructions SATAjet 3000 K spray mix Note: - Micrometer in vertical position (position III - parallel to the gun body) = maximum atomization and maximum internal spray gun pressure (identical with spray gun inlet pressure) - Position I or II (across gun body) = minimum atomization, minimum internal spray gun pressure (for spot repair, speckling etc.)
- Page 7 Use punched hexagon socket (SW12) of the universal wrench for the paint nozzle. Using components of other manufacturers may result in a reduction in quality and the SATA Warranty expires or it may be hazardous to your health. 7. Changing the self-adjusting seals a) Material side: The paint needle is sealed by a self-adjusting Teflon sealing.
-
Page 8: Cleaning And Maintenace
Insert new air distribution ring in its correct position and tighten paint nozzle again. Respect mounting instructions for the air distribution ring (see 6.1)! e) Slightly oil movable parts with SATA special grease (Art. No. 10009). Should the material connection 98608 in the spray gun body loosen when removing the material tube 98590, respectively, please proceed as follows: • Remove material connection 98590 completely... - Page 9 Operating Instructions SATAjet 3000 K spray mix 8.1 Repair instructions for air distribution ring Important Notes: When pulling off the air distribution ring make sure that the sealing edges inside the gun body are not damaged. Therefore please proceed with utmost care when removing the air distribution ring ! 1.
- Page 10 Operating Instructions SATAjet 3000 K spray mix 9. Possible failures in operation Trouble Cause Repair Paint spray gun leaks from Foreign substances between Remove and clean fluid fluid tip fluid tip and needle prevent needle and fluid nozzle or sealing use new nozzle set Paint emerges from fluid Self tensioning needle sealing Replace needle sealing...
- Page 11 18341 Pressure spring for paint needle 30833 Nozzle cleaning kit 74856 Kit of SATA sieves 200 msh, consisting of 4 sieves 20933, 2 strainer holder 77503 and 1 screw 26393 94961 Air micrometer, cpl. 97824 Pack of 3 air distribution rings...
- Page 12 Operating Instructions SATAjet 3000 K spray mix Nozzle identification: SATAjet 3000 K spray mix Paint nozzle A Technical data Sieve Inversion nozzle B Nozzle Art. No. Nozzle Art. No. ø mm ø Zoll Angle Width l/min at ø mm/ Art. No.
-
Page 13: Guarantee Conditions
Returned merchandise to SATA must be sent prepaid. All service charges, freight and handling charges are to be paid by the consumer. The charges made will be in accordance with the currently existing pricing. Suretyships may not prolong the warranty period. - Page 14 98699 Gewicht Weight with Poids avec SATAjet 3000 K spray mix 650 g...
- Page 15 SATA GmbH & Co. KG Domertalstr. 20 70806 Kornwestheim Tel. +49 71 54 811 - 0 Fax +49 71 54 811 - 196 www.sata.com...
