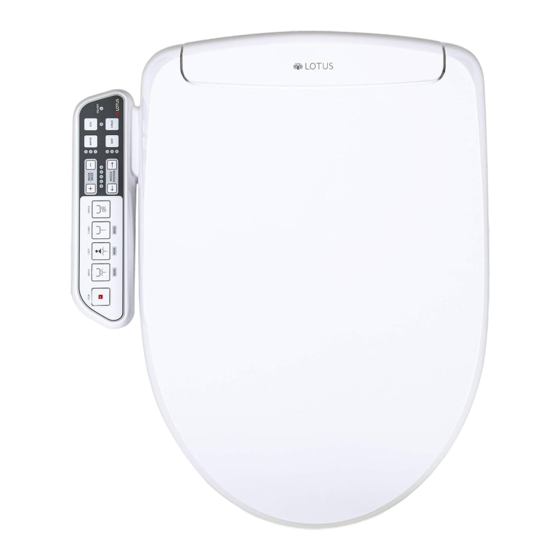

ATS-500/ATS-500R
User Manual
Warranty(24~25)
"Important safeguards/general cautions " are information that can protect the user from safety hazards and also prevent
losses. Please be sure to read the manual correctly for proper usage.
• Please read the manual carefully before installation and utilization.
• This product is made for the US and Canada.
• The function and design of the product may be changed for quality improvements.
Advertisement
Table of Contents
Related Manuals for Lotus ATS-500R
Summary of Contents for Lotus ATS-500R
- Page 1 ATS-500/ATS-500R User Manual Warranty(24~25) “Important safeguards/general cautions ” are information that can protect the user from safety hazards and also prevent losses. Please be sure to read the manual correctly for proper usage. • Please read the manual carefully before installation and utilization.
-
Page 2: Table Of Contents
Contents Preparation IMPORTANT SAFEGUARDS General cautions Product structure and designations (Product components) Control designations 0peration Installation and cautions & Initial operation Cleaning Separation of the unit from toilet bowl Basic operation Detailed operation Maintenance Draining water Winter usage Others Trouble shooting Specifications Warranty 24-25... -
Page 3: Important Safeguards
IMPORTANT SAFEGUARDS This Product must be on a separated circuit. No other appliance should share the circuit with this product. WARNING Sharing a circuit could cause the branch circuit fuse to blow or the circuit breaker to trip. Continuous usage under these conditions may •... -
Page 4: General Cautions
General Caution For safety purposes, unplug the power cord either when cleaning the product or detaching the unit from the toilet bowl. • Failure to do so can cause an electric shock. Warning Unplugging the power cord Do not use a damaged power cord or a loosely fitted electric outlet. Do not separate, disassemble, repair or remodel the unit, or allow foreign substances inside the unit. -
Page 5: Product Structure And Designations (Product Components)
Product structure and designations ATS-500 Main unit Control Panel Stop all operations Caution label Turbo Wash Wash Wash (Twice to oscillate) Lady Wash Lady (Twice to oscillate) Turbo (Twice to oscillate) Drain button Warm Air Dryer Warm air dryer Control Panel Adjust the oscillation Adjust the water pressure function and nozzle... - Page 6 Product structure and designations ATS-500R Main unit Remote control Stop all operations Wash Remote control STOP WASH DRYER STOP WASH DRYER STOP WASH DRYER STOP WASH DRYER STOP WASH DRYER STOP WASH DRYER STOP WASH DRYER STOP WASH DRYER Lady...
- Page 7 Do not use used set again. Water supply hose nut and water hose in a safe area in case you Water valve ATS-500R Only move or it needs to be reinstalled. ➒ ➓ Place 1.5V(AA) batteries properly and shut the cover.
-
Page 8: Separation Of The Unit From Toilet Bowl
Initial Operation Separation of unit from the toilet bowl Please follow the instructions below when moving or separating the unit from the toilet for cleaning purposes Turn the water valve to the left and see if there is any water leaking from the hose.(1~5) Disconnect the power plug Shut the water supply valve Drain button... - Page 9 Operation Operation (Basic) (Instructions to operate each function) Water pressure Caution • Press (high), (low) for the Water/Dryer (Water pressure can be adjusted 1~5 levels.) Please press the ‘off’ or ‘low’ button for seat temperature when the following persons use it. •...
- Page 10 (STOP + WASH) button for more than 3 seconds while unseated. • The drying functions can be adjusted up to 5 levels. * Press STOP + WASH button on the simple key for ATS-500R. • LED level (Active single ‘beep’ sound/ deactivate ‘be-beep’ sound)
-
Page 11: Maintenance
Shut the valve by turning it to the right. And nozzle stop during two minutes. *Press WASH button on the simple key for ATS-500R • If nozzle tip pulls forward after rotating clockwise nozzle tip, it is separated from nozzle. -
Page 12: Trouble Shooting
• Please be sure to check the following aspects before asking for help. Troubleshooting Factors to check Specification ATS-500 ATS-500R Power rating 120V / 60Hz / 670W • Check if the water tank is filled. The water does not spray... -
Page 13: Warranty
General Limited Warranty Covered The Manufac turer, Lotus H ygiene Systems I nc. will warrant to the original retail buyer only, which fails in normal use and within the applicable periods specified below, Dealer(Company) following the terms of this warranty. - Page 14 MEMO MEMO...
