Summary of Contents for TYAN TS75-B7132

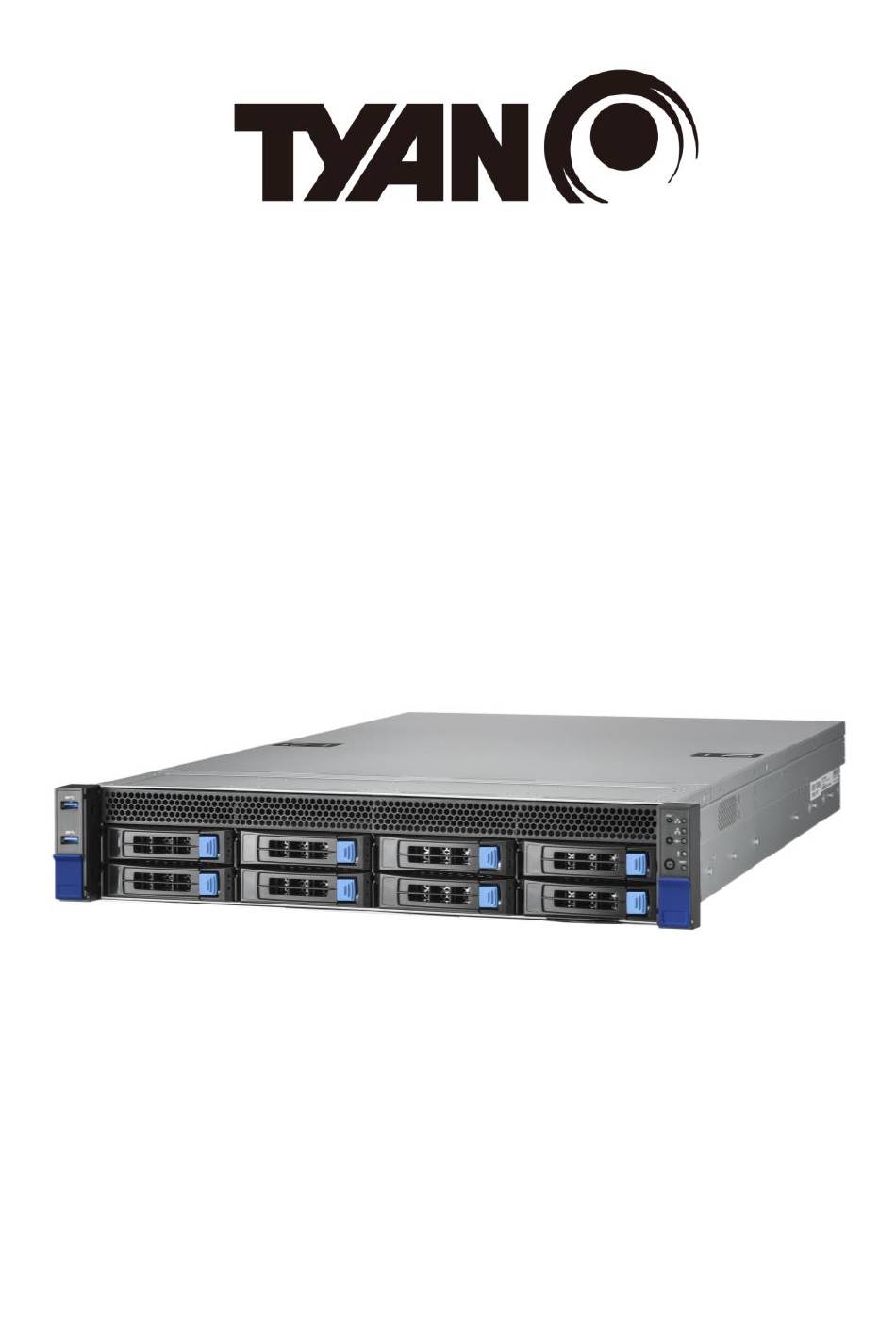

  • Page 1 TS75-B7132 Service Engineer’s Manual...
  • Page 2 TECHNOLOGY CORPORATION and has been reviewed for accuracy and reliability prior to printing. MITAC assumes no liability whatsoever, and disclaims any express ® or implied warranty, relating to sale and/or use of TYAN products including liability or warranties relating to fitness for a particular purpose or merchantability. MITAC retains the right to make changes to produce descriptions and/or specifications at any time, without notice.
  • Page 3 ● FCC Declaration Notice for the USA Compliance Information Statement (Declaration of Conformity Procedure) DoC FCC Part 15: This device complies with part 15 of the FCC Rules. This device complies with Part 15 of the FCC Rules. Operation is subject to the following conditions: ‧This device may not cause harmful interference.
  • Page 4 Warning This equipment is compliant with Class A of CISPR 32. In a residential environment this equipment may cause radio interference. CAUTION Lithium battery included with this board. Do not puncture, mutilate, or dispose of battery in fire. There will be danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by manufacturer.
  • Page 5 How this guide is organized This guide contains the following parts: Chapter 1: Overview This chapter provides an introduction to the TYAN TS75-B7132 barebones and standard parts list, describes the external components, gives an overview of the product from different angles.
  • Page 6 Safety and Compliance Information Before installing and using TYAN TS75-B7132, take note of the following precautions: ·Read all instructions carefully. ·Do not place the unit on an unstable surface, cart, or stand. ·Do not block the slots and opening on the unit, which are provided for ventilation.
  • Page 7 You must become familiar with the safety information in this guide before you install, operate, or service TYAN products. Symbols on Equipment Caution. This symbol indicates a potential hazard.
  • Page 8 · Do not attempt to move a fully loaded rack. Remove equipment from the rack before moving it. · Do not attempt to move a rack on an incline that is greater than 10 degrees from the horizontal. http://www.tyan.com...
  • Page 9 This will reduce the risk of personal injury, fire, or damage to the equipment. The total rack load should not exceed 80 percent of the branch circuit rating. Consult the electrical authority having jurisdiction over your facility wiring and installation requirements. http://www.tyan.com...
  • Page 10 TYAN, your authorized TYAN partner, or their agents. Equipment Modifications · Do not make mechanical modifications to the system. TYAN is not responsible for the regulatory compliance of TYAN equipment that has been modified.
  • Page 11 – Liquid has been spilled on the product or an object has fallen into the product. – The product has been exposed to rain or water. – The product has been dropped or damaged. – The product does not operate normally when you follow the operating instructions. http://www.tyan.com...

  • Page 12: Table Of Contents

    Table of Contents Chapter 1: Overview ................ 14 About the TYAN TS75-B7132 ..........14 Product Model ................ 14 Features.................. 15 Standard Parts List ..............20 1.4.1 Box Contents ..............20 1.4.2 Accessories ..............21 About the Product ..............22 1.5.1 System Front View ............
  • Page 13 Chapter 7: Diagnostics ..............219 Flash Utility ................219 AMIBIOS Post Code (Aptio) ..........220 Appendix I: Cable Connection Tables ......... 227 Appendix III: Fan and Temp Sensors ........... 228 Appendix IV: FRU Parts Table ............233 Appendix V: Technical Support ............ 235 http://www.tyan.com...

  • Page 14: Chapter 1: Overview

    4800/4400/4000 MHz memory. Leveraging advanced technology from Intel TS75-B7132 server system is capable of offering scalable 32 and 64-bit computing, high bandwidth memory design, providing a rich feature set and incredible performance, and lightning-fast PCIE bus implementation. The TS75-B7132 not only empowers your company in nowadays IT demand but also offers a smooth path for future application usage.

  • Page 15: Features

    SAS 12Gb/s /SATA 6Gb/s /NVMe External Drive Bay Support Notification The SAS/SATA HDD backplane is connected to onboard SATA connection by default. Please contact Tyan technical support if a discrete SAS HBA/RAID adapter is required. System Cooling (6) 6cm fans Configuration Type...
  • Page 16 8 Channels per CPU Memory voltage 1.1V PCIe (1) PCIe Gen.5 x4 slot / (4) PCIe Gen.5 x16 slot Pre-installed TYAN (1) M7132T75-L20-2F riser card for Riser Card (PCIe Gen.5) (1) FH/10.5"L/DW PCIe 5.0 x16 + (1) FH/HL PCIe 5.0 x4 slots /...
  • Page 17 SAS 12Gb/s /SATA 6Gb/s /NVMe Support External Drive Bay Notification The SAS/SATA HDD backplane is connected to onboard SATA connection by default. Please contact Tyan technical support if a discrete SAS HBA/RAID adapter is required. System Cooling (6) 6cm fans http://www.tyan.com...
  • Page 18 8 Channels per CPU Memory voltage 1.1V PCIe (1) PCIe Gen.5 x4 slot / (4) PCIe Gen.5 x16 slot Pre-installed TYAN Riser (1) M7132T75-L20-2F riser card for Card (PCIe Gen.5) (1) FH/10.5"L/DW PCIe 5.0 x16 + (1) FH/HL PCIe 5.0 x4 slots /...
  • Page 19 Non-operating Temp. - 40° C ~ 70° C (-40° F ~ 158° F) Environment In/Non-operating 90%, non-condensing at 35° C Humidity 90 Barebone (1) TS75-B7132 Barebone Package Contains Manual (1) Quick Installation Guide RoHS RoHS 6/6 Compliant NOTE: 1. The specifications are subject to change without prior notice.

  • Page 20: Standard Parts List

    Standard Parts List This section describes TS75-B7132 package contents and accessories. Open the box carefully and ensure that all components are present and undamaged. The product should arrive with packaged as illustrated below. 1.4.1 Box Contents If any items are missing or appear damaged, contact your retailer or browse to TYAN’s website for service:...

  • Page 21: Accessories

    (2) CPU Heatsink  (2) M.2 Board Latch  (2) GPU Power Cable  (2) GPU Bracket Kit  (1) TYAN Quick Installation Guide  (2) Power Wire Mount  (2) US power cord  (2) EU power cord ...

  • Page 22: About The Product

    Type-A USB3.2 Gen1 Port HDD#1 Reset Button HDD#2 ID Button HDD#3 Power Button HDD#4 LAN1 LED HDD#5 LAN2 LED HDD#6 ID LED HDD#7 Warning LED Type-A USB3.2 Gen1 Port HDD LED NOTE 1: M1717T65-USB is pre-installed. NOTE 2: M1718T65-FPB is pre-installed. http://www.tyan.com...
  • Page 23 Drive State Active LED (Green) Status LED (Red) Drive Present, No Active Solid on Drive Present with Active Blinking Don’t care Drive Failure Solid on Don’t care RAID Rebuild Blinking @4 Hz Don’t care Drive Locate Identifier Blinking @1 Hz http://www.tyan.com...

  • Page 24: System Rear View

    RJ45 LAN Port (LAN1) (10Gbs/w PSU0 Intel X710)(1Gbs/w Intel I210) RJ45 LAN Port (LAN2) (10Gbs/w PSU1 Intel X710)(1Gbs/w Intel I210) ID Button Dedicate to IPMI Port OCP NIC 3.0 Slot BIOS Debug VGA Port USB3.2 Gen1 Ports *LP card=Low profile card http://www.tyan.com...
  • Page 25 Right LED Link Green 10 Mbps Active Blinking Green Link Green Green 100 Mbps Active Blinking Green Green Link Green Amber 1000 Mbps(1Gps) Active Blinking Green Amber No Link NOTE: “Left” and “Right” are viewed from the rear panel. http://www.tyan.com...
  • Page 26 1Hz Blink Amber supply continues to operate; high temp, high power, high current, slow fan. Power supply FW updating 2Hz Blink GREEN All PSUs have to be AC-ON at the same time before you power on the Warning: system. http://www.tyan.com...

  • Page 27: System Top View

    1.5.3 System Top View http://www.tyan.com...
  • Page 28 (6) System fans PCIE#3 x16 Slot Memory Slot OCP 3.0 mezzanine slot CPU Socket PCIE#4 x16 Slot Riser Card Bracket Bracket(M7132T75-L20-2F PCIE#1 x16 Slot pre-installed) Riser Card Bracket (M7132T75- R16-1L pre-installed) NOTE: The system is pre-installed with S7132GM2NRE-2T system board http://www.tyan.com...

  • Page 29: Chassis Dimensions

    1.5.4 Chassis Dimensions http://www.tyan.com...

  • Page 30: Chapter 2: Setting Up

    Caution! To avoid damaging the motherboard and associated components, use torque force within the range kgf/cm (6.09 lb/in) on each mounting screw for motherboard installation. Do not apply power to the board if it has been damaged. http://www.tyan.com...

  • Page 31: Precautions

    Components and electronic circuit boards can be damaged by discharges of static electricity. Working on a system that is connected to a power supply can be extremely dangerous. Follow the guidelines below to avoid damage to TS75-B7132 or injury to yourself.

  • Page 32: Installing Motherboard Components

    CPUs, memory modules and add on cards. 2.1.1 Removing the Chassis Cover Follow these instructions to remove TS75-B7132 chassis cover. 1. Remove the two screws securing the top cover to the chassis. 2. Press firmly the locking latches. Slide to lift the rear top cover up.

  • Page 33: Installing The Cpu And Heatsink

    3. Always check with the manufacturer of the heat sink & processor to ensure that the thermal interface material is compatible with the processor and meets the manufacturer’s warranty requirements. 1. There are two kinds of CPU carrier in the accessory box, they are CPU XCC Carrier and MCC Carrier http://www.tyan.com...
  • Page 34 3. Align and install the processor on the carrier. Make sure the gold arrow is located in the correct direction. NOTE: When installing the processor, secure the front side (A)first, and following with the middle and rear sides(BC). http://www.tyan.com...
  • Page 35 Make sure also that the triangle edge of the carrier is aligned correctly with the triangle mark on the CPU socket. 6. Press down on the retention clips to fix the heatsink assembly to the CPU socket. http://www.tyan.com...
  • Page 36 7. To secure the heatsink assembly, use a T30 Security Torx to tighten the screws in a sequential order (1234). NOTE: When disassembling the heatsink, loosen the screws in reverse order (4321). Repeat the procedures described earlier to install the second processor and heatsink. http://www.tyan.com...

  • Page 37: Installing The Air Duct

    2.1.3 Installing the Air Duct Follow these instructions to install the air duct to the chassis. 1. Installed heatsink onto the CPU. 2. Installed air duct onto the heatsink. http://www.tyan.com...

  • Page 38: Installing The Memory

    2. Align the memory module with the slot. When inserted properly, the memory slot locking levers lock automatically onto the indentations at the ends of the module. Follow the recommended memory population table to install the other memory modules. http://www.tyan.com...
  • Page 39 Recommended Memory Population Table CPU1 CPU1 CPU1 CPU1 CPU1 CPU1 CPU1 CPU1 CPU0 CPU0 CPU0 CPU0 CPU0 CPU0 CPU0 CPU0 DIMM DIMM DIMM DIMM DIMM DIMM DIMM DIMM DIMM DIMM DIMM DIMM DIMM DIMM DIMM DIMM http://www.tyan.com...

  • Page 40: Installing Hard Drives

    2.1.5 Installing Hard Drives The TS75-B7132 supports twelve 3.5”/2.5” hot-swap HDD/SSDs. Installing 3.5” Hot-Swap Hard Drives Follow these instructions to install a 3.5” HDD. Warning!!! Always install the hard disk drive to the chassis after the chassis has been secured on the rack.
  • Page 41 3. Pull open the locking lever to install the 3.5” hard disk drive into the HDD tray and lock the tray lever to secure HDD. 4. Reinsert the HDD tray into the chassis. Push to secure the locking lever until it clicks into place. http://www.tyan.com...
  • Page 42 Always install the hard disk drive to the chassis after the chassis has been secured on the rack. Press the locking lever latch and pull the locking lever open. Slide the HDD tray out. Place the 2.5” HDD/SSD into the HDD tray and align the 2.5” HDD/SSD with its hole. http://www.tyan.com...
  • Page 43 Turn over the HDD tray and secure the HDD/SSD to the tray using 4 screws. Reinsert the HDD tray into the chassis. Push to secure the locking lever until it clicks into place. http://www.tyan.com...

  • Page 44: Installing The Pcie Card

    2.1.6 Installing the PCIE Card Follow these instructions to install the PCIE card. NO.2 or 3 bracket There are four riser card brackets in the chassis. Unscrew the riser card bracket NO.3. Unscrew the riser card bracket. http://www.tyan.com...
  • Page 45 Remove the riser card bracket from the chassis. Remove the No.3 riser card bracket from the chassis. 6. Unscrew to remove the dummy brackets. http://www.tyan.com...
  • Page 46 7. Insert the PCIE card into the riser card bracket and screw it firmly. 8. Reposition and screw the riser card bracket into the chassis. Screw the riser card bracket into the chassis. 10. Follow the same procedures to insert the card to the NO.2 riser card bracket if necessary. http://www.tyan.com...
  • Page 47 NO.1 or 4 bracket Unscrew the riser card bracket NO. 4. Remove the riser card brackets for both sides from the chassis. Follow the same procedures to remove the NO.1 riser card bracket from the chassis. http://www.tyan.com...
  • Page 48 Insert the PCIE card into the riser card bracket and screw it firmly. Reposition the riser card bracket to the chassis and secure the rotate screw firmly. Follow the same procedures to insert the card to the NO.1 riser card bracket if necessary. http://www.tyan.com...

  • Page 49: Installing Io Rail For Ocp Card

    1. Use a screwdriver to remove the dummy cover for the OCP card slot. 2. Press to right and forward to release the dummy cover for the OCP card slot. 3. Insert the OCP 3.0 card into the OCP slot. http://www.tyan.com...
  • Page 50 4. Secure the OCP 3.0 card to the chassis. 5. The OCP 3.0 card to the chassis has been completed. http://www.tyan.com...

  • Page 51: Installing The M.2 Latch

    2.1.8 Installing the M.2 Latch Follow these instructions to install the M.2 Latch. 1. Measure the length of the M.2 card and insert the latch into the appropriate hole. 2. Insert the M.2 Latch into the appropriate hole. http://www.tyan.com...
  • Page 52 3. Insert the M.2 card into the slot. Pull the latch to lock the M.2 card. http://www.tyan.com...

  • Page 53: Rack Mounting

    19" rack. NOTE: Before mounting the TYAN TS75-B7132 chassis in a rack, ensure that all internal components have been installed and that the unit has been fully tested. However, to make the installation easier, we suggest that you remove all HDD trays before you insert the chassis into the rack.
  • Page 54 2. Push (a) and slide middle rail back. Install the Inner rail onto the chassis Align the inner sliding rail on the side of the server, and push towards the arrow to secure the hooks. To install one screw onto chassis base each side. http://www.tyan.com...
  • Page 55 Detach inner rail from standoff Loosen screw both sides of the server. Pull the latch upward and remove the keyhole from standoff and slide inner rail forward to remove inner rail. http://www.tyan.com...
  • Page 56 Fix the Outer rail/bracket assembly to the frame Please according to the bracket type, and refer to the install/detach instruction. Secure the outer rails to the rack on each side. 2. Please repeat installation steps for the other side. http://www.tyan.com...
  • Page 57 Release the outer rails from the rack on each side. 2. Please repeat the detach steps for the other side. Rack Mounting the Server Pull the middle rail fully extended in lock position, ensure ball bearing retainer is located at the front of the middle rail. http://www.tyan.com...
  • Page 58 Horizontally insert the chassis into middle-outer rails. When hit a stop, please pull/push the blue release tab on the inner rails. Tighten chassis with shipping screws. http://www.tyan.com...

  • Page 59: Removing The Server From Rack

    2.2.2 Removing the Server from Rack Press the tabs on the front panel to pull out the chassis. 2. Pull the disconnect tab forward to remove chassis at the full extension position. http://www.tyan.com...
  • Page 60 3. Push tab to slide the middle rail back. http://www.tyan.com...

  • Page 61: Chapter 3: Replacing Pre-Installed Components

    This chapter explains how to replace the pre-installed components, including the Motherboard, M1717T65-FPB Front Panel Board, M1718T65-USB Board, M1317T83-BP12E-8 HDD Backplane, M7132T75-L20-2F M7132T75-L16-1F M7132T75 R16-1L M7132T75-R16-1F Riser cards, System fan and Power supply unit etc. Disassembly Flowchart The following flowchart outlines the disassembly procedure. http://www.tyan.com...

  • Page 62: Removing The Cover

    Replacing Motherboard Components Follow these instructions to replace motherboard components, including the motherboard. 3.4.1 Replacing the Riser Card Follow Chapter 2.1.5 to uninstalling the riser cards of the TS75-B7132. And follow these instructions to replace the M7132T75-L20-2F M7132T75-L16-1F M7132T75 R16-1L M7132T75-R16-1F Riser cards.
  • Page 63 Unscrew the M7132T75-L20-2F riser card to replace with a new one. Unscrew the M7132T75-R16-1L riser card to replace with a new one. Unscrew the M7132T75-R16-1F riser card to replace with a new one. Follow the steps described earlier in reverse to reinstall the riser card bracket. http://www.tyan.com...

  • Page 64: Pcie Riser Cards Specification

    3.4.2 PCIE Riser Cards Specification M7132T75-L20-2F M7132T75-L20-2F Riser Card  Support (2) PCIE Gen5 slots Features PCIE x16 slot x1 PCIE x8 slot x1 M7132T75-L16-1F M8252T75-R16-1F Riser Card  Support (1) PCIE Gen5 slots Features PCIE x16 slot x1 http://www.tyan.com...
  • Page 65 M7132T75-R16-1L M7132T75-R16-1L Riser Card  Support (1) PCIE Gen5 slots Features PCIE x16 slot x1 M7132T75-R16-1F M7132T75-R16-1F Riser Card  Support (1) PCIE Gen5 slots Features PCIE x16 slot x1 http://www.tyan.com...

  • Page 66: Replacing The Front Panel Board

    1 Unscrew to release the Front Panel Board cover. 2 Remove the Front Panel Board cover. 3 Disconnect the FP cable and then unscrew the front panel board for replacement. 4 Follow the steps described earlier in reverse to reinstall the Front Panel Board. http://www.tyan.com...

  • Page 67: Front Panel Board Specifications

     IO: 2x15-pin Front Panel Header (J4)  3 Buttons: Reset Button (J3), ID Button (J5), Specifications Power Button with LED (J6)  6 LEDs: LAN1 LED, LAN2 LED, ID LED (LED3), Fault LED (LED6), HDD LED, Power LED http://www.tyan.com...

  • Page 68: Fpb Led Definitions

    System event Healthy FAULT_LED(LED6) alert Amber Solid on HDD fail Green(default)or HDD Present& HDD_LED Blue Solid on Standby Green(default)or HDD active Blue Blinking Reset Button Reset Button ID Button ID Button Power Button Green Solid on PS-ON Power Button w/LED http://www.tyan.com...

  • Page 69: Replacing The Usb Board

    2 Remove the USB front cover. Disconnect the USB cable and then unscrew the Front USB Board to replace with a new one. Follow the steps described earlier in reverse to reinstall the the Front USB Board and Front USB Bezel. http://www.tyan.com...

  • Page 70: Usb Board Specifications

    3.6.1 USB Board Specifications M1717T65-USB USB Board 48mmx19mm,T=1.6mm Form Factor  USB 3.0 Connector (J1, J2) Specifications  20-pin Header Input Connector (J3) http://www.tyan.com...

  • Page 71: Replacing The System Fan

    Replacing the System Fan Follow these instructions to replace the fan. Take out the fan from the chassis. Replace a new fan to the chassis. Reinstall a new fan to the chassis. http://www.tyan.com...

  • Page 72: Replacing The Hdd Backplane Board

    Disconnect all cables connected to the M1317T83-BP12E-8-1 HDD Backplane. Unscrew the HDD BP Board. Release the HDD Backplane from the hook. Follow the procedures described earlier to reinstall the HDD backplane board bracket into the chassis. http://www.tyan.com...

  • Page 73: Hdd Backplane Board Features

    8 layers (2) 4*2 pin Power Connector (4) SlimSAS X8 Connector Input (2) SlimSAS X4 Connector Input Integrated I/O (8) SATA HDD or (8) NVMe HDD or (4) SATA HDD + (4) NVME HDD Output (5) 6-pin FAN Connector http://www.tyan.com...

  • Page 74: Connector Definition

    NVME 0_1 SLIMSASX8 Connector NVME 2_3 SLIMSASX8 Connector NVME 4_5 SLIMSASX8 Connector NVME 6_7 SLIMSASX8 Connector SATA0_3 SLIMSASX4 Connector SATA4_7 SLIMSASX4 Connector SAS0_3 SLIMSASX4 Connector SAS4_7 SLIMSASX4 Connector SLIMSAS1 SLIMSASX8 Connector SLIMSAS2 SLIMSASX8 Connector J1/J7 Power Connector J8/J9/J10/J11/J5/J4 FAN Connector http://www.tyan.com...

  • Page 75: Replacing The Power Supply

    Follow these instructions to replace the power supply module in your system. Press the latch to pull the power supply out. After replacing a new power supply, press and hold the latch to push the power supply back into the chassis. http://www.tyan.com...

  • Page 76: Disconnecting All Motherboard Cables

    3.10 Disconnecting All Motherboard Cables Disconnect slim SAS cables connected to the motherboard. Disconnect SATA SGPIO cable and power cables connected to the motherboard. http://www.tyan.com...

  • Page 77: Removing The Motherboard

    After removing all of the aforementioned cables, follow the instructions below to remove the motherboard from the chassis. Remove the air duct, processor and heatsink if installed. Release three screws securing the bar from the chassis. Use a hex screwdriver and Phillips screwdriver to loosen screws. http://www.tyan.com...
  • Page 78 Unscrew the 20 screws with the Screwdriver. Carefully lift the motherboard from the chassis. http://www.tyan.com...

  • Page 79: Chapter 4: Installing Gpu Cards

    The TN75-B7132 has 4 PCIe/GPU Card Brackets in the chassis. In this chapter we will introduce you how to install a GPU card. NOTE: Please visit our Web site (http://www.tyan.com) for the latest GPU card support list. Change the “Auto Fan Control” BIOS setting from [Automatic] to [Full Speed] when installing the Nvidia GeForce / Quardro GPU and any VGA card.
  • Page 80 Remove the dummy bracket from the riser. Insert the tesla T4 GPU card and secure the tesla T4 GPU card to the riser. Reinstall the bracket to the chassis. http://www.tyan.com...
  • Page 81 Unscrew the riser card bracket. Insert the tesla T4 GPU card and secure the tesla T4 GPU card to the riser. http://www.tyan.com...
  • Page 82 Reinstall the bracket to the chassis. Secure GPU card onto the left and right riser card and secure the three screws and one thumb screw on both sides to the bracket. http://www.tyan.com...

  • Page 83: Chapter 5: Motherboard Information

    Caution! To avoid damaging the motherboard and associated components, do not use torque force greater than 7kgf/cm (6.09 lb/in) on each mounting screw for motherboard installation. Do not apply power to the board if it has been damaged. http://www.tyan.com...

  • Page 84: Board Image

    Board Image S7132 This picture is representative of the latest board revision available at the time of publishing. The board you receive may not look exactly like the above picture. http://www.tyan.com...

  • Page 85: Block Diagram

    Block Diagram S7132 Block Diagram http://www.tyan.com...

  • Page 86: Motherboard Mechanical Drawing

    Motherboard Mechanical Drawing http://www.tyan.com...

  • Page 87: Board Parts, Jumpers And Connectors

    The board you receive may not look exactly like the above diagram. The DIMM slot numbers shown above can be used as a reference when reviewing the DIMM population guidelines shown later in the manual. For the latest board revision, please visit our web site at http://www.tyan.com. http://www.tyan.com...
  • Page 88 PCIE Slots PCIE#1 x16(J1) CPU0 P2:0~15 PCIE#3 x16(J3) CPU1 P2:0~15 PCIE#2 x20 (J46) CPU0: PE1 0~15 and PCIE#4 x16(J2) CPU1 P0 :0~15 PE0 8~11 LEDs CPLD HeartBeat LED (D33) SYSTEM PWROK LED (D82) PLTRST LED (D41) BMC HeartBeat LED (D1_BMC) http://www.tyan.com...
  • Page 89 +12V Tachometer (Speed) Control SYS_FAN_1/SYS_FAN_2/ SYS_FAN_3/ SYS_FAN_4/ SYS_FAN_5/ SYS_FAN_6: 6-Pin FAN Connector Signal Signal P12V FAN_TACH FAN_PWM P12V USB3.0: Front USB3.0/2.0 Header Signal Signal USB3_VCC_FPB USB3_N0_RX_FPB USB3_P0_RX_FPB USB3_N0_TX_C_FPB USB3_P0_TX_C_FPB USB2_N6_FPB_R USB2_P6_FPB_R USB3_FRONT_N USB2_P4_FPB_R USB2_N4_FPB_R USB3_P1_TX_C_FPB USB3_N1_TX_C_FPB USB3_P1_RX_FPB USB3_N1_RX_FPB USB3_VCC_FPB http://www.tyan.com...
  • Page 90 FP_SMB_CLK IDLED_SW# FP_INTRUSION_N SYS_Air_Inlet LAN1_LED_P FP_NMI_BTN_N LAN1_LED_N J28: Vertical (Type_A) USB3.2 Gen1 Connector Signal Signal USB_TYPE_PW USB2_03_TYPEA_DN USB2_03_TYPEA_DP USB3_N2_RX_REAR USB3_P2_RX_REAR USB3_N2_TX_C_REAR USB3_P2_TX_C_REAR J38: ESPI Port 80 Header Signal Signal P3V3 ESPI_CS0_BMC_N LAD0_IO0 LAD0_IO1 ESPI_RST_BMC_N LAD0_IO2 LAD0_IO3 CLK_24M_66M_LPC0_ESPI IRQ_DBG_ESPI_ALER T1_N http://www.tyan.com...
  • Page 91 (CN1/CN2): M.2 Connector PCIE ONLY Signal Signal VCC3 VCC3 VCC3_AUX M2_LED_N VCC3 VCC3 VCC3 VCC3 PCH_PE1_M2_1_RX_N P12V_IN P12V_IN PCH_PE1_M2_1_RX_P P12V_IN P12V_IN PCH_PE1_M2_1_TX_N PCH_PE1_M2_1_TX_P M2_SMB_CLK_R PCH_PE0_M2_0_RX_N M2_SMB_DAT_R PCH_PE0_M2_0_RX_P PCH_PE0_M2_0_TX_N M2_PERST_N_R PCH_PE0_M2_0_TX_P M2_2_PEWAKE_N CLK_100M_M2_DN CLK_100M_M2_DP PE_M.2_DETECT_N VCC3 VCC3 VCC3 http://www.tyan.com...
  • Page 92 SATA1_RXN_C SATA0_RXN_C SATA3_RXP_C SATA2_RXP_C SATA3_RXN_C SATA2_RXN_C SGPIO_DO_0R SGPIO_DI_0R SAS0_CTYPE SATA1_TXP_C SATA0_TXP_C SATA1_TXN_C SATA0_TXN_C SATA3_TXP_C SATA2_TXP_C SATA3_TXN_C SATA2_TXN_C NC_PCH_SATA_0-7_A10 SGPIO_SATA_CLK SGPIO_SATA_LOAD SATA5_RXP_C SATA4_RXP_C SATA5_RXN_C SATA4_RXN_C SATA7_RXP_C SATA6_RXP_C SATA7_RXN_C SAA6_RXN_C SGPIO_DO_1R SGPIO_DI_1R SAS1_CTYPE SATA5_TXP_C SATA4_TXP_C SATA5_TXN_C SATA4_TXN_C SATA7_TXP_C SATA6_TXP_C SATA7_TXN_C SATA6_TXN_C http://www.tyan.com...
  • Page 93 P5V_SATADOM1_A P5V_SATADOM1_R J27: SATA DOM1 Connector Signal Signal SATA6G_TX_C_DP<9> SATA6G_TX_C_DN<9> SATA6G_RX_C_DN<9> SATA6G_RX_C_DP<9> P5V_SATADOM2_A P5V_SATADOM2_R J9/J10/J17: HDD BP Smbus Header Signal Signal VCC3_AUX HP0_SCK HP0_SDA CPU01_SMBALERT_N_C : Intrusion Header J1_FPGA Signal PCH_INTRUDER_N J3_FPGA: CPLD JTAG Connector (reserved) Signal Signal VDD_33_DUAL http://www.tyan.com...
  • Page 94 J5_PCH: BIOS Core Execution Tree Jumper Pin1 Pin2 Pin3 PD_BIOS_ADV_ FM_BIOS_ADV_ PU_BIOS_ADV_ FUNCT FUNCTIONS FUNCT (Default) 1-2 Closed: Normal 2-3 Closed: BIOS CORE EXECUTION TREE J6_PCH: Clear CMOS Jumper Signal Signal TP_RST_RTCRST_N RTCRST_L PD_RST_RTCRST_N (Default) Pin1-2 closed: Normal Mode Pin2-3 closed: Clear CMOS http://www.tyan.com...
  • Page 95 VGA2_5V HD_VGA_R HD_VGA_G HD_VGA_B HD_VGA_DAT HD_VGA_HS HD_VGA_CLK HD_VGA_VS FAN_HD1: Front Fan Connector (Reserved for Barebone) Signal Signal TACH1 TACH6 TACH2 TACH7 TACH3 TACH8 TACH4 TACH9 TACH5 TACH10 PWM3 PWM2 TACH11 TACH12 PWM4 TACH13 TACH15 TACH14 TACH16 PWM5 PWM7 PWM0 http://www.tyan.com...

  • Page 96: Led Definitions

    LED Definitions http://www.tyan.com...
  • Page 97 State Description POWER OFF Green POWER ON Signal LED_SYS_PWROK LED_SYS_PWROK_D SYSTEM PWROK 3. D82 State Description SYSTEM POWER OFF Green SYSTEM POWER OK Signal LED_BMC_HB_LED_D_N BMC_HB_LED_L 4. D1_BMC BMC Heartbeat LED State Description BMC not ready Green BMC READY http://www.tyan.com...

  • Page 98: Thermal Interface Material

    CPU lid (applying too much will actually reduce the cooling). NOTE: Always check with the manufacturer of the heat sink & processor to ensure that the thermal interface material is compatible with the processor and meets the manufacturer’s warranty requirements. http://www.tyan.com...

  • Page 99: Tips On Installing Motherboard In Chassis

    Be especially careful to look for extra stand-offs. If there are any stand-offs present that are not aligned with a mounting hole on the motherboard, it will likely short components on the back of the motherboard when installed. This will cause malfunction and/or damage to your motherboard. http://www.tyan.com...
  • Page 100 Some chassis include plastic studs instead of metal. Although the plastic studs are usable, MITAC recommends using metal studs with screws that will fasten the motherboard more securely in place. Below is a chart detailing what the most common motherboard studs look like and how they should be installed. http://www.tyan.com...

  • Page 101: Installing The Memory

    Installing the Memory Before installing memory, ensure that the memory you have is compatible with the motherboard and processor. Check the TYAN Web site at http://www.tyan.com details of the type of memory recommended for your motherboard. DIMM Location NOTE: 1. √ indicates a populated DIMM slot.
  • Page 102 Memory Population Table CPU0_ CPU0_ CPU0_ CPU0_ CPU0_ CPU0_ CPU0_ CPU0_ CPU0_ CPU0_ CPU0_ CPU0_ CPU0_ CPU0_ CPU0_ CPU0_ DIMM_ DIMM_ DIMM_ DIMM_ DIMM_ DIMM_ DIMM_ DIMM_ DIMM_ DIMM_ DIMM_ DIMM_ DIMM_ DIMM_ DIMM_ DIMM_ http://www.tyan.com...

  • Page 103: Installing Add-In Cards

    Doing so allows air to circulate within the chassis more easily, thus improving cooling for all installed devices. NOTE: You must always unplug the power connector from the motherboard before performing system hardware changes to avoid damaging the board or expansion device. http://www.tyan.com...

  • Page 104: 5.10 Installing The Power Supply

    In the rare circumstance that you have experienced difficulty, you can find help by asking your vendor for assistance. If they are not available for assistance, please find setup information and documentation online at our website or by calling your vendor’s support line. http://www.tyan.com...

  • Page 105: Chapter 6: Bios Setup

    Select the previous value/setting of the field <+> Select the next value/setting of the field <F8> Load Fail Safe default configuration values of the menu <F3> Load the Optimal default configuration values of the menu <F4> Save and exit <Enter> Execute command or select submenu http://www.tyan.com...
  • Page 106 BIOS menus are continually changing due to continual BIOS updates over the product lifespan of the motherboard. The BIOS menus provided are current as of the date when this manual was written. Please visit TYAN’s website at http://www.tyan.com for information on BIOS updates available for this specific motherboard.

  • Page 107: Main Menu

    Bios Version It displays Bios version. Build Date and Time It displays the date and time to build. Memory Information This displays the total memory size. System Date Set the Date. Use Tab to switch between Date elements. Default Ranges: http://www.tyan.com...
  • Page 108 Year: 2005-2099 Months: 1-12 Days: dependent on month System Time Set the Time. Use Tab to switch between Time elements. http://www.tyan.com...

  • Page 109: Advanced Menu

    S5 RTC Wake Settings Enable system to wake from S5 using RTC alarm. Serial Port Console Redirection Serial Port Console Redirection. PCIe Device Configuration PCIe Device Configuration USB Configuration USB Configuration Parameters. Onboard Device Configuration Onboard Device and Function Configuration. http://www.tyan.com...
  • Page 110 Configure IPV6 network parameters. (MAC: XXXXXXXXXXXX) Intel® I210 Gigabit Network Connection VLAN Configuration (MAC: XXXXXXXXXXXX) VLAN Configuration (MAC: XXXXXXXXXXXX) MAC: XXXXXXXXXXXX --- IPV4 Network Configuration Configure network parameters. (MAC: XXXXXXXXXXXX) MAC: XXXXXXXXXXXX --- IPV6 Network Configuration Configure IPV6 network parameters. (MAC: XXXXXXXXXXXX) http://www.tyan.com...
  • Page 111 Configure IPV6 network parameters. (MAC: XXXXXXXXXXXX) 6.3.1 Network Stack Configuration NOTE: The BIOS will automatically read the onboard LAN controller. Network Stack Enable/Disable UEFI Network Stack. Disabled / Enabled NOTE: The following items are available when Network Stack is set to [Enabled]. http://www.tyan.com...
  • Page 112 Wait time in seconds to press ESC key to abort the PXE boot. Use either+/- or numeric keys to set the value. Media detect count Number of times presence of media will be checked. Use either+/- or numeric keys to set the value. http://www.tyan.com...
  • Page 113 Select 0-23. For example enter 3 for 3am and 15 for 3pm. Wake up minute Select 0-59 for Minute. Wake up second Select 0-59 for Second. When Wake system from S5 is set to [Dynamic Time] Wake up Minute increase http://www.tyan.com...
  • Page 114 Serial Port for Out-of-Band Management/ Windows Emergency Management Services（EMS） Console Redirection Enable or Disable Console Redirection Settings The settings specify how the host computer (which the user is using) will exchange data. Both computers should have the same or compatible settings. Disabled / Enabled http://www.tyan.com...
  • Page 115 0 if the num of 1’s in the data bits is even. Odd: parity bit is 0 if the num of 1’s in the data bits is odd. Mark: parity bit is always 1. Space: parity bit is always 0. Mark and Space parity do not allow for error detection. None / Even / Odd / Mark / Space http://www.tyan.com...
  • Page 116 With this mode enabled only text will be sent. This is to capture Terminal data. Disabled / Enabled Resolution 100x31 Enable or disable extended terminal resolution. Disabled / Enabled Putty KeyPad Select FunctionKey and KeyPad on Putty. VT100 / LINUX / XTERMR6 / SCO / ESCN / VT400 http://www.tyan.com...
  • Page 117 When BootLoader is selected, then Legacy Console Redirection is disabled before booting to legacy OS. When Always Enable is selected, then Legacy Console Redirection is enabled for legacy OS. Default setting for this option is set to Always Enable. Always Enable / BootLoader http://www.tyan.com...
  • Page 118 VT-UTF8 / VT100 / VT100+ / ANSI Bits per Second Select serial port transmission speed. The speed must be matched on the other side. Long or noisy lines may require lower speeds. 115200 / 9600 / 19200 / 57600 http://www.tyan.com...
  • Page 119 ‘start’ signal can be sent to restart the flow. Hardware flow control uses two wires to send start/stop signal. None / Hardware RTS/CTS / Software Xon/Xoff Data Bits EMS / Parity EMS / Stop Bits EMS Read only. 6.3.4 PCIe Device Configuration http://www.tyan.com...
  • Page 120 Enable or Disable Option ROM execution for selected Slot. Enabled / Disabled PCIE#2 Option ROM Enable or Disable Option ROM execution for selected Slot. Enabled / Disabled PCIE#3 Option ROM Enable or Disable Option ROM execution for selected Slot. Enabled / Disabled http://www.tyan.com...
  • Page 121 Enable or Disable Option ROM execution for selected Slot. Enabled / Disabled 6.3.5 USB Configuration Legacy USB Support Enables Legacy USB support. AUTO option disables legacy support if no USB devices are connected. DISABLE option will keep USB devices available only for EFI applications. Disabled / Enabled http://www.tyan.com...
  • Page 122 Hub descriptor. Auto / Manual NOTE: Device power up delay in seconds will appear Device power-up delay is set to [Manual]. Device power-up delay in seconds Delay range is 1…40 seconds, in one second increments http://www.tyan.com...
  • Page 123 Primary Display Select active Video type. Onboard / External NMI Funtion Enable or Disable NMI function Disabled / Enabled Chassis Intrusion Detection Enabled: When a chassis open event is detected, the BIOS will display the event. Disabled / Enabled http://www.tyan.com...
  • Page 124 Primary Display Select active Video type. Onboard / External NMI Funtion Enable or Disable NMI function Disabled / Enabled Chassis Intrusion Detection Enabled: When a chassis open event is detected, the BIOS will display the event. Disabled / Enabled http://www.tyan.com...
  • Page 125 6.3.7 Super IO Configuration Serial Port 1 Configuration Set Parameters of Serial Port 1 (COMA). http://www.tyan.com...
  • Page 126 6.3.7.1 Serial Port 1 Configuration Serial Port Enable or disable Serial Port (COM). Enabled / Disabled Change Settings Select an optimal setting for Super IO Device. Auto / IO=3F8h; IRQ=4; / IO=2F8h; IRQ=4, / IO=3F8h; IRQ=4, / IO=2E8h, IRQ=4, http://www.tyan.com...
  • Page 127 Nvidia GeForce / Quardro GPU and any VGA card. PWM Minimal Duty Cycle PWM Minimal Duty Cycle (%). NOTE: This item is available when Fan Speed Control is set to [Manual]. PMBus support PMBus Support. Enabled / Disabled Number of PSU 1 / 2 http://www.tyan.com...
  • Page 128 5.3.8.1 Sensor Data Register Monitoring NOTE: SDR cannot be modified. Read only. http://www.tyan.com...
  • Page 129 http://www.tyan.com...
  • Page 130 http://www.tyan.com...
  • Page 131 http://www.tyan.com...
  • Page 132 Enables or Disables 64bit capable Devices to be Decoded in Above 4G Address Space (Only if System Supports 64 bit PCI Decoding). Enabled / Disabled SR-IOV Support If system has SR-IOV capable PCIe Devices, this option Enables or Disables Single Root IO Virtualization Support. Enabled / Disabled http://www.tyan.com...
  • Page 133 PCI Express Settings Maximum Payload Set Maximum Payload of PCI Express Device or allow System BIOS to select the value. Auto / 128 Bytes / 256 Bytes / 512 Bytes / 1024 Bytes / 2048 Bytes / 4096 Bytes http://www.tyan.com...
  • Page 134 6.3.9 NVMe Configuration This page shows the Device Name you installed. Press Enter to read the device information. If no NVME device is installed, it shows no NVME device is found. Read only. http://www.tyan.com...
  • Page 135 6.3.10 Trusted Computing Security Device Support Enable or disable BIOS support for security device. O.S. will not show Security device. O.S. will not show Security Device. TCG EFI protocol and INT1A interface will not be available. Enabled / Disabled http://www.tyan.com...
  • Page 136 Controls the execution of UEFI and legacy PXE OpROM UEFI / legacy Video Controls the execution of UEFI and legacy Video OpROM UEFI / legacy Other PCI devices Determines OpRom execution policy for devices other than Network, Storage, or Video UEFI / legacy http://www.tyan.com...
  • Page 137 Disabled / Enabled NOTE: When Redfish Host Interface Settings set to [Enabled], the following items will appear. BMC Redfish Version BIOS Redfish Version IP Address Enter IP address. IP Mask Address Enter IP Mask address. IP Port Enter IP Port. http://www.tyan.com...
  • Page 138 6.3.13 Tls Auth Configuration Submenu Server CA Configuration Press <Enter> to configure Server CA. Client Cert Configuration Press <Enter> to configure Client Cert. http://www.tyan.com...
  • Page 139 6.3.13.1 Server CA Configuration Enroll Cert Press <Enter> to enroll cert. Delete Cert Press <Enter> to delete cert. http://www.tyan.com...
  • Page 140 6.3.13.1.1 Enroll Cert Enroll Cert Using File Enroll Cert Using File. Cert GUID Input digit character in 11111111-2222-3333-4444-1234567890ab format. Commit Changes and Exit Commit Changes and Exit. Discard Changes and Exit Discard Changes and Exit. http://www.tyan.com...
  • Page 141 6.3.13.1.2 Delete Cert FE9C6606-8B49-44A3-8B6B-DEA3A0E032 GUID for CERT. Disabled / Enabled http://www.tyan.com...
  • Page 142 6.3.14 iSCSI Configuration Host iSCSI Configuration Host iSCSI Configuration http://www.tyan.com...
  • Page 143 Add an Attempt. Delete Attempts Delete one or more attempts. Change Attempt Order Change the order of Attempts using +/- keys. Use arrow keys to select the attempt then press +/- to move the attempt up/down in the attempt order list. http://www.tyan.com...
  • Page 144 6.3.14.1.1 Add an Attempt NOTE: Only LAN1 supports iSCSI function. MAC xx:xx:xx:xx:xx:xx (Intel® I210 Gigabit Network Connection) PFA: Bus 2 / Dev 0 / Func 0. http://www.tyan.com...
  • Page 145 Initiator IP address is system assigned in IP6 mode. In Autoconfigure mode, iSCSI driver will attempt to connect iSCSI target via IPv4 stack, if failed then attempt IPv6 stack. IPv4 / IPv6 / Autoconfigure Connection Retry Count The minimum value is 0 and the maximum is 16. 0 means no retry. http://www.tyan.com...
  • Page 146 Hexadecimal representation of the LU number. Examples are: 4752-3A4F-6b7e-3F99, 6734-9-156f-127, 4186-9. Authentication Type Authentication method: CHAP, Kerberos, or None. CHAP / None Save Changes Must reboot system manually for changes to take place. Back to Previous Page Back to Previous Page. http://www.tyan.com...
  • Page 147 IPv4 / IPv6 / Autoconfigure Connection Retry Count The minimum value is 0 and the maximum is 16. 0 means no retry. Connection Establishing Timeout The timeout value in milliseconds. The minimum value is 100 milliseconds and the maximum is 20 seconds. http://www.tyan.com...
  • Page 148 Get target info via DHCP Get target info via DHCP Authentication Type Authentication method: CHAP, Kerberos, or None. CHAP / None Save Changes Must reboot system manually for changes to take place. Back to Previous Page Back to Previous Page. http://www.tyan.com...
  • Page 149 Disabled / Enabled Attempt 2 MAC xx:xx:xx:xx:xx:xx, PFA: Bus 2 / Dev 0 / Func 0, iSCSI mode: Disabled, IP version: IPv4. Disabled / Enabled Commit Changes and Exit Commit Changes and Exit. Discard Changes and Exit Discard Changes and Exit. http://www.tyan.com...
  • Page 150 Change the order of Attempts using +/- keys. Use arrow keys to select the attempt then press +/- to move the attempt up/down in the attempt order list. Attempt 1 Commit Changes and Exit Commit Changes and Exit. Discard Changes and Exit Discard Changes and Exit. http://www.tyan.com...
  • Page 151 6.3.15 Intel® I210 Gigabit Network Connection Firmware Image Properties View device firmware version information. NIC Configuration Click to configure the network device port. Blink LEDs Blink LEDs for a duration up to 15 seconds http://www.tyan.com...
  • Page 152 6.3.15.1 Firmware Image Properties http://www.tyan.com...
  • Page 153 Enables power on of the system via LAN. Note that configuring Wake on LAN in the operating system does not change the value of this setting, but does override the behavior of Wake on LAN in OS controlled power states. Disabled / Enabled http://www.tyan.com...
  • Page 154 6.3.16 VLAN Configuration (MAC: A0423F50417F) Enter Configuration Press ENTER to enter configuration menu for VLAN configuration. http://www.tyan.com...
  • Page 155 6.3.16.1 Enter Configuration VLAN ID VLAN ID of new VLAN or existing VLAN, valid value is 0~4094 Priority 802.1Q Priority, valid value is 0~7 Add VLAN Create a new VLAN or update existing VLAN Remove VLAN Remove selected VLANs http://www.tyan.com...
  • Page 156 6.3.17 MAC: A0423F50417F -IPv6 Network Menu Enter Configuration Menu Press ENTER to enter configuration menu for VLAN configuration. http://www.tyan.com...
  • Page 157 Duplicate Address Detection on a tentative address. A value of zero indicates that Duplicate Address Detection is not performed. Policy automatic or manual automatic / manual Save Changes and Exit Save Changes for interface ID, DAD transmit count, policy, and data in advanced configuration. http://www.tyan.com...
  • Page 158 Enter IP address in dotted-decimal notation. Example: 162.168.10.12 Local NetMask Enter Netmask in dotted-decimal notation. Example:255.255.255.0 Local Gateway Enter Gateway in dotted-decimal notation. Example:192.168.10.1 Local DNS Servers Enter DNS Servers in dotted-decimal notation. Example:192.168.10.8 192.168.10.9 Save Changes and Exit Save Changes and Exit http://www.tyan.com...
  • Page 159 6.3.19 Intel® Ethernet Network Adapter E810-C-Q2 for OCP 3.0 Firmware Image Properties View device firmware version information. NIC Configuration Click to configure the network device port. Blink LEDs Blink LEDs for a duration up to 15 seconds http://www.tyan.com...
  • Page 160 6.3.19.1 Firmware Image Properties http://www.tyan.com...
  • Page 161 Enables power on of the system via LAN. Note that configuring Wake on LAN in the operating system does not change the value of this setting, but does override the behavior of Wake on LAN in OS controlled power states. Disabled / Enabled http://www.tyan.com...
  • Page 162 6.3.20 VLAN Configuration (MAC: B49691B23040) Enter Configuration Press ENTER to enter configuration menu for VLAN configuration. http://www.tyan.com...
  • Page 163 6.3.20.1 Enter Configuration VLAN ID VLAN ID of new VLAN or existing VLAN, valid value is 0~4094 Priority 802.1Q Priority, valid value is 0~7 Add VLAN Create a new VLAN or update existing VLAN Remove VLAN Remove selected VLANs http://www.tyan.com...
  • Page 164 6.3.21 MAC: B49691B23040-IPv6 Network Menu Enter Configuration Menu Press ENTER to enter configuration menu for VLAN configuration. http://www.tyan.com...
  • Page 165 Duplicate Address Detection on a tentative address. A value of zero indicates that Duplicate Address Detection is not performed. Policy automatic or manual automatic / manual Save Changes and Exit Save Changes for interface ID, DAD transmit count, policy, and data in advanced configuration. http://www.tyan.com...
  • Page 166 Enter IP address in dotted-decimal notation. Example: 162.168.10.12 Local NetMask Enter Netmask in dotted-decimal notation. Example:255.255.255.0 Local Gateway Enter Gateway in dotted-decimal notation. Example:192.168.10.1 Local DNS Servers Enter DNS Servers in dotted-decimal notation. Example:192.168.10.8 192.168.10.9 Save Changes and Exit Save Changes and Exit http://www.tyan.com...
  • Page 167 Displays and provides option to change the Uncore Settings Memory Configuration Displays and provides option to change the Memory Settings. IIO Configuration Displays and provides option to change the IIO Settings. Advanced Power Management Configuration Displays and provides option to change the Power Management Settings. http://www.tyan.com...
  • Page 168 Hardware Prefether =MLC Streamer Prefetcher (MSR 1A4h Bit[0]) Disabled / Enabled Adjacent Cache Prefetch =MLC Streamer Prefetcher (MSR 1A4h Bit[0]) Disabled Enabled Extended APIC Enable/Disable extended APIC support Note: This will Enabled VT-d automatically if x2APIC is Enabled Disabled Enabled http://www.tyan.com...
  • Page 169 AES-NI Enabled/Disabled AES-NI support Disabled Enabled 6.4.2 Common RefCode Configuration Numa Enable or Disable Non uniform Memory Access (NUMA). Disabled / Enabled http://www.tyan.com...
  • Page 170 6.4.3 Uncore Configuration Uncore General Configuration Displays and provides option to change the Uncore General Settings. http://www.tyan.com...
  • Page 171 Disable --- Reset it, Auto --- Auto decides based on Si Compatibility. Disable / Enable / Auto Link L1 Enable Enable --- Set the c_l1_en, Disable --- Reset it, Auto --- Auto decides based on Si Compatibility. Disabled / Enable / Auto http://www.tyan.com...
  • Page 172 Selects the allocation size used to assign mmioh resources. Total mmioh space can be up to 32x granularity. Per stack mmioh resource assignments are multiples of the granularity where 1 unit per stack is the default allocation. 1G / 4G / 16G / 64G / 256G / 1024G http://www.tyan.com...
  • Page 173 6.4.3.1.1 Uncore Status Read only http://www.tyan.com...
  • Page 174 (limited by processor support). Do not select Reserved. Auto / 4000 / 4400 / 4800 Memory Topology Displays memory topology with DIMM population information Memory RAS Configuration Displays and provides option to change the Memory RAS Settings http://www.tyan.com...
  • Page 175 6.4.4.1 Memory Topology Configuration http://www.tyan.com...
  • Page 176 Disabled / Full Mirror Mode / Partial Mirror Mode Mirror TAD0 Enable Mirror on entire memory for TAD0. Enabled / Disabled Correctable Error Threshold Correctable Error Threshold (0x01 – 0x7fff) used for sparing, tagging, and leaky bucket. Patrol Scrub Enable/Disable Patrol Scrub. http://www.tyan.com...
  • Page 177 Press <Enter> to bring up the Intel® VT for Directed I/O (VT-d) Configuration menu. PCIe Hot Plug Enable/Disable PCIe Hot Plug globally. Disabled / Enabled PCIe ASPM Support (Global) This option can disable ASPM support in all PCIe root ports. Disabled / Per-port http://www.tyan.com...
  • Page 178 Selects PCIe port Bifurcation for selected slot(s). Port Format:xDxCxBxA The port can further be x2x2 Auto / x4x4x4x4 / x4x4x_x8 / x_x8x4x4 / x_x8x_x8 / x_x_x_x16 IOU2 (IIO PCIe Port 3) Selects PCIe port Bifurcation for selected slot(s). Port Format:xDxCxBxA http://www.tyan.com...
  • Page 179 Selects PCIe port Bifurcation for MCIO (J52) Port4E/4G Selects PCIe port Bifurcation for MCIO (J53) Port5A Selects PCIe port Bifurcation for MCIO (CN10) Port5C/5E Selects PCIe port Bifurcation for MCIO (J60) Port5G Selects PCIe port Bifurcation for MCIO (CN11) http://www.tyan.com...
  • Page 180 Choose Link Speed for this PCIe port. Auto / Gen1 (2.5 GT/s) / Gen2 (5 GT/s) / Gen3 (8 GT/s) / Gen4 (16 GT/s) Gen5(32GT/s) Override Max Link Width Override the max link width that was set by bifurcation. http://www.tyan.com...
  • Page 181 PCI-E ASPM Support This option enables/disables the ASPM (L1) support for the downstream devices. Auto / Disabled MCTP Enable/Disable MCTP No / Yes 6.4.5.2 Socket 1 Configuration IOU0 (IIO PCIe Port 1) Selects PCIe port Bifurcation for selected slot(s). Port Format:xDxCxBxA http://www.tyan.com...
  • Page 182 Selects PCIe port Bifurcation for MCIO (CN6) Port 4C/4E Selects PCIe port Bifurcation for MCIO (J58) Port4G Selects PCIe port Bifurcation for MCIO (CN7) Port5A/5C Selects PCIe port Bifurcation for MCIO (J61) Port5E/5G Selects PCIe port Bifurcation for MCIO (J62) http://www.tyan.com...
  • Page 183 This option specifies if the link is considered Hot Plug capable. Disabled / Enabled Link Speed Choose Link Speed for this PCIe port. Auto / Gen1 (2.5 GT/s) / Gen2 (5 GT/s) / Gen3 (8 GT/s) / Gen4 (16 GT/s) Gen5(32GT/s) http://www.tyan.com...
  • Page 184 No / Yes 6.4.5.3 Intel® VT for Directed I/O (VT-d) ® Intel VT for Directed I/O (VT-d) Enable/Disable Intel Virtualization Technology for Directed I/O (VT-d) by reporting the I/O device assignment to VMM through DMAR ACPI Tables. Disabled / Enabled http://www.tyan.com...
  • Page 185 Read Completions whose Relaxed Ordering Attribute is clear. Disabled / Enabled Upstream Forwarding Enable When set, the component forwards upstream any Request or Completion TLPs it receives that were redirected upstream by a component lower in the hierarchy. Disabled / Enabled http://www.tyan.com...
  • Page 186 Package C State Control Package C State setting CPU Advanced PM Tuning Setting Energy Per Bias, Pwr_Ctl,PP0 Current SWLTD, SAPM etc Package Current Config Program PRI_PLANE_CURT_CFG_CTRL_MSR0x601 Sub Menu SOCKET RAPL Config SOCKET RAPL Configuration Sub Menu – TURBO_POWER_LIMIT CSR &MSR http://www.tyan.com...
  • Page 187 Energy Efficient Turbo Disable, MSR 0x1FC [19]. Disabled / Enabled Turbo Mode Enable/Disable processor Turbo Mode (requires EMTTM enabled too). Disabled / Enabled CPU Flex Ratio Override Enabled/Disabled CPU Flex Ratio Programming Disabled / Enabled CPU Core Flex Ratio http://www.tyan.com...
  • Page 188 Disable: Hardware chooses a P-state based on OS Request (Legacy P-States). Native Mode: Hardware chooses a P-state based on OS guidance. Out of Band Mode: Hardware autonomously chooses a P-state (no OS guidance). Disabled / Native Mode / Out of Band Mode / Native Mode with No Legacy Support http://www.tyan.com...
  • Page 189 Enable/Disable CPU C6 (ACPI C3) report to OS. Disabled / Enabled / Auto Enhanced Halt State (C1E) Core C1E auto promotion Control. Take effect after reboot. Disabled / Enabled OS ACPI Cx Report CC3/CC6 to OS ACPI C2 or ACPI C3 ACPI C2 / ACPI C3 http://www.tyan.com...
  • Page 190 6.4.6.4 Package C State Control Package C State Package C State limit C0/C1 state / C2 state / C6 (non Retention) state / C6(Retention) state / No Limit /Auto http://www.tyan.com...
  • Page 191 CPU Advanced PM Turning Power Performance Tuning Optioins decides who Controls EPB. In OS mode: 1A32_ENERGY_PERF_BIAS is used In BIOS mode: ENERGY_PERF_BIAS_CONFIG is used In PECI mode: PCS53 is used OS Controls EPB / BIOS Controls EPB / PECI Controls EPB http://www.tyan.com...
  • Page 192 6.4.6.5 Package Current Configuraion Current Limit Override Disable – Default, do nothing; Enable, override Current limitation in 1/8 A increments. Disabled / Enabled http://www.tyan.com...
  • Page 193 PL2 value in seconds.The value may 0.001 / 0.0012 / 0.0015 / 0.0017 / 0.002 / 0.0024/ 0.003 / 0.0034 / 0.004 / 0.005 / 0.006 / 0.007 / 0.008 / 0.01 / 0.012 / 0.014 / 0.016 / 0.02 / 0.023 http://www.tyan.com...
  • Page 194 Chipset Configuraion PCH-IO Configuration PCH Parameters Server ME Configuration Configure Server ME Technology Parameters http://www.tyan.com...
  • Page 195 6.5.1 PCH-IO Configuraion Restore AC Power Loss Specify what state to go to when power is re-applied after a power failure(G3 state). Power On / Power Off / Last State http://www.tyan.com...
  • Page 196 6.5.1.1 PCI Express Configuration PCI Express Root Port 1~16 PCI Express Root Port 1~16 Settings. http://www.tyan.com...
  • Page 197 L1 Substates PCI Express L1 Substates settings. Disabled / L1.1 / L1.2 / L1.1 & L1.2 PCIe Speed Configure PCIe Speed. Auto / Gen1 / Gen2 / Gen3 Max Payload Size PCIE Max Payload Size Selection. 128bytes / 256bytes http://www.tyan.com...
  • Page 198 6.5.1.2 SATA And RST Configuration Controller 1 SATA And RST Configuration SATA Controller 1 Device Options Settings Controller 2 SATA And RST Configuration SATA Controller 2 Device Options Settings http://www.tyan.com...
  • Page 199 Identify the SATA port is connected to Solid State Drive or Hard Disk Drive. AHCI / RAID SATA1 Port 0/1/2/3/4/5/6/7 Enable or Disable SATA Port. Disabled / Enabled Hot Plug Designates this port as Hot Pluggable. Disabled / Enabled http://www.tyan.com...
  • Page 200 SATA Device Type Identify the SATA port is connected to Solid State Drive or Hard disk Drive. Hard Disk Drive / Solid State Drive 6.5.1.2.1 Controller 2 SATA And RST Configuration SATA Controller Enable or Disable sSATA Controller. Disabled / Enabled http://www.tyan.com...
  • Page 201 Otherwise all drives spin up at boot. Disabled / Enabled SATA Device Type Identify the SATA port is connected to Solid State Drive or Hard disk Drive. Hard Disk Drive / Solid State Drive http://www.tyan.com...
  • Page 202 6.5.2 Server ME Configuration http://www.tyan.com...

  • Page 203: Server Management

    OS Watchdog Timer If enabled, starts a BIOS timer which can only be shut off by Management Software after the OS loads. Helps determine that the OS successfully loaded or follows the OS Boot Watchdog Timer policy. Enabled / Disabled http://www.tyan.com...
  • Page 204 Do Nothing / Reset / Power Down / Power Cycle BMC Logo Enabled / Disabled System Event Log Press<Enter> to change the SEL event log configuration. BMC network configuration Configure BMC network parameters. BMC User Settings Press <Enter> to Add, Delete and Set Privilege level for users. http://www.tyan.com...
  • Page 205 Choose options for reactions to a full SEL. Do Nothing / Erase Immediately Log EFI Status Codes Disable the logging of EFI Status Codes or log only error code or only progress code or both. Both / Disabled / Error Code / Progress Code http://www.tyan.com...
  • Page 206 Enable/Disable BMC Share NIC. Enabled / Disabled Configuration Address Source Select the configure LAN channel parameters statically or dynamically (by BIOS or BMC). Unspecified option will not modify any BMC network parameters during BIOS phase. Unspecified / Static / DynamicBmcDhcp / DynamicBmcNonDhcp http://www.tyan.com...
  • Page 207 Management Port 2 IPV6 Support Enable or Disable LAN2 IPV6 Support. Enabled / Disabled 6.6.2 BMC User Configuration Add User Press<Enter> to Add a User Delete User Press<Enter> to Delete a User Change User Settings Press<Enter> to Change a User http://www.tyan.com...
  • Page 208 6.6.2.1 BMC Add User Configuration http://www.tyan.com...
  • Page 209 6.6.2.2 BMC Delete User Configuration http://www.tyan.com...
  • Page 210 6.6.2.3 BMC Change User Configuration http://www.tyan.com...

  • Page 211: Security

    Set user password in the Create New Password window. After you key in the password, the Confirm New Password window will pop out to ask for confirmation. Secure Frozen Mode Disable means Hard Drive on Non-frozen mode. Enable means Hard Drive on Frozen mode. Enable / Disable Secure Boot Secure Boot Configuration. http://www.tyan.com...
  • Page 212 Force System to User Mode. Install factory default Secure Boot key databases. Press ‘Yes’ to proceed ‘No’ to cancel. Reset to Setup Mode Delete all Secure Boot key database from NVRAM. Deleting all variables will reset the System to Setup Mode. Press ‘Yes’ to proceed ‘No’ to cancel. http://www.tyan.com...

  • Page 213: Boot

    Enables expert users to modify Secure Boot Policy variables without full authentication. Boot Bootup NumLock State Select the keyboard NumLock state. Off / On Quiet Boot Enable or disable Quiet Boot option. Disabled / Enabled Endless Boot Enable or disable Endless Boot. Disabled / Enabled http://www.tyan.com...
  • Page 214 Boot Option #8 Sets the system boot order. Device Name / Device Name / Disabled Add Boot Option Add a new EFI boot option to the boot order Delete Boot Option Remove an EFI boot option from the boot order http://www.tyan.com...
  • Page 215 6.8.1 Add New Boot Option Configuration Add boot option Create new boot option Path for boot option Enter the path to the boot option in the format Create Creates the newly formed boot option http://www.tyan.com...
  • Page 216 6.8.2 Delete Boot Option Configuration Delete Boot Option Remove an EFI boot option from the boot order Select one to Delete / Device Name http://www.tyan.com...

  • Page 217: Save & Exit

    Reset system setup without saving any changes. Save Changes Save changes done so far to any of the setup options. Discard Changes Discard changes done so far to any of the setup options. Restore Defaults Restore/Load Default values for all the setup options. http://www.tyan.com...
  • Page 218 Save as User Defaults Save the changes done so far as User Defaults. Restore User Defaults Restore the User Defaults to all the setup options. http://www.tyan.com...

  • Page 219: Chapter 7: Diagnostics

    BIOS flash failure, you must contact your dealer for a replacement BIOS. There are no exceptions. TYAN does not have a policy for replacing BIOS chips directly with end users. In no event will TYAN be held responsible for damages done by the end user.

  • Page 220: Amibios Post Code (Aptio)

    South Bridge initialization before microcode loading 0x05 OEM initialization before microcode loading 0x06 Microcode loading 0x07 AP initialization after microcode loading 0x08 North Bridge initialization after microcode loading 0x09 South Bridge initialization after microcode loading 0x0A OEM initialization after microcode loading 0x0B Cache initialization http://www.tyan.com...
  • Page 221 Memory initialization. Configuring memory 0x2F Memory initialization (other) 0x30 Reserved for ASL (see ASL Status Codes section below) 0x31 Memory Installed 0x32 CPU post-memory initialization is started. 0x33 CPU post-memory initialization. Cache initialization CPU post-memory initialization. Application Processor(s) (AP) 0x34 initialization http://www.tyan.com...
  • Page 222 S3 Resume Progress Codes 0xE0 S3 Resume is started (S3 Resume PPI is called by the DXE IPL). 0xE1 S3 Boot Script execution 0xE2 Video repost 0xE3 OS S3 wake vector call 0xE4 – 0xE7 Reserved for future AMI progress codes http://www.tyan.com...
  • Page 223 DXEIPL was not found. DXE Core Firmware Volume was not found. Recovery failed S3 Resume failed Reset PPI is not available. DXE Phase Status Code Description 0x60 DXE Core is started. 0x61 NVRAM initialization 0x62 Installation of the South Bridge Runtime Services http://www.tyan.com...
  • Page 224 PCI Bus Hot Plug Controller initialization 0x94 PCI Bus Enumeration 0x95 PCI BUS Request Resources 0x96 PCI Bus Assign Resources 0x97 Console output devices connect 0x98 Console Input devices connect 0x99 Super IO initialization 0x9A USB initialization is started. http://www.tyan.com...
  • Page 225 0xC0 – 0xCF OEM BDS initialization codes DXE Error Codes 0xD0 CPU initialization error 0xD1 North Bridge initialization error 0xD2 South Bridge initialization error 0xD3 Some of the Architectural Protocols are not available 0xD4 PCI resource allocation error. Out of Resources http://www.tyan.com...
  • Page 226 System is waking up from the S3 sleep state. 0x40 System is waking up from the S4 sleep state. System has transitioned into ACPI mode. Interrupt controller is in 0xAC APIC mode. System has transitioned into ACPI mode. Interrupt controller is in 0xAA APIC mode. http://www.tyan.com...

  • Page 227: Appendix I: Cable Connection Tables

    Connect to S7132GM2NRE-2T/MB M1717T65-USB  FRONT USB3.0/2.0 Front Panel Control Cable Front Panel Connect to S7132GM2NRE-2T/MB M1718T65-FPB  FRONT PANEL Power Cables HDD BP M1317T83-BP12E-8-1 Connect to S7132GM2NRE-2T/MB  PWR1  PWR2 SWITCH CABLE Chassis Connect to S7132GM2NRE-2T-B/MB  Chassis http://www.tyan.com...

  • Page 228: Appendix Iii: Fan And Temp Sensors

    CPU0_FAN/CPU1_FAN, which detects the fan speed (rpm) Temp Sensor: OCP_Air_Inlet(U16), SYS_Air_Outlet(RT3) , and MB_Air_Inlet(RT2) etc. They detect the system temperature around. NOTE: The system temperature is measured in a scale defined by Intel, not in Fahrenheit or Celsius. http://www.tyan.com...
  • Page 229 BIOS Temp Sensor Name Explanation: NOTE: SDR cannot be modified. Read only. http://www.tyan.com...
  • Page 230 http://www.tyan.com...
  • Page 231 http://www.tyan.com...
  • Page 232 Max Temperature of U.2 NVMe_SSD_1 U.2_NVMe_SSD_4 Max Temperature of U.2 NVMe_SSD_1 U.2_NVMe_SSD_5 Max Temperature of U.2 NVMe_SSD_1 U.2_NVMe_SSD_6 Max Temperature of U.2 NVMe_SSD_1 U.2_NVMe_SSD_7 Max Temperature of U.2 NVMe_SSD_1 OCP_Air_Inlet Temperature of the OCP_Air_Inlet Area SYS_Air_Outlet Temperature of the SYS_Air_Outlet Area http://www.tyan.com...

  • Page 233: Appendix Iv: Fru Parts Table

    Appendix IV: FRU Parts Table TS75-B7132 FRU Parts Model Item Part Number Picture Description Number TF-POWER SUPPLY;SBU,1600 Power Supply FRU-PS-0410 471100000518 W,CHICONY,R18-1K6P1WA,R1K6AS02 P,(01),1U CRPS MODULE,REV:01 FRU-TF-FAN MODULE;SBU, FAN module FRU-TS-9230 5412T6150010 FRU-TS-9230, FAN 60*60*38mm,6 PIN (HEADER 1*6),TS75-B8252 HF-HEATSINK;Passive,SBU,Intel Eaglestream,1U<H≤ Heatsink &...
  • Page 234 TF-CABLE ASSY;CONTROL INTERNAL,28 AWG,900 mm,NVME FRU-CS-2440 422T63900005 SIGNALCABLE,1*7P,P1.25/1*7P,P1.25, TS65-B7126 TF-CABLE ASSY;SAS INTERNAL, SBU,30 AWG,700 mm,MINI-SAS HD FRU-CS-0510 422T53400005 CABLE, SHORT MINI-SAS HD 36P/ SHORT MINI-SAS HD 36P,TN71-BP012 TF-CABLE ASSY;SBU,POWER FRU-CS-0530 422T42300003 CABLE,2*4P(M),P4.2/2*4P(M),P4.2, L=600MM,TN70-B7016-X2 TF-CABLE ASSY;SBU,POWER FRU-CS-2380 422797000005 CABLE,2*4P(M),P4.2/2*4P(M),P4.2,L=4 00MM,TN70-B7016-X2 http://www.tyan.com...

  • Page 235: Appendix V: Technical Support

    MITAC serves multiple market segments with the industry’s most competitive services to support them. https://www.tyan.com/SupportCenter Please feel free to contact us directly for this service at tech-support@tyan.com Help Resources: 1. See the TYAN’s website for FAQ’s, bulletins, driver updates, and other information: http://www.tyan.com...
  • Page 236 Return Merchandise Authorization (RMA) number. The RMA number should be prominently displayed on the outside of the shipping carton and the package should be mailed prepaid. TYAN will pay to have the board shipped back to you. ® TS75-B7132 Service Engineer’s Manual V1.0...

Table of Contents
