79576

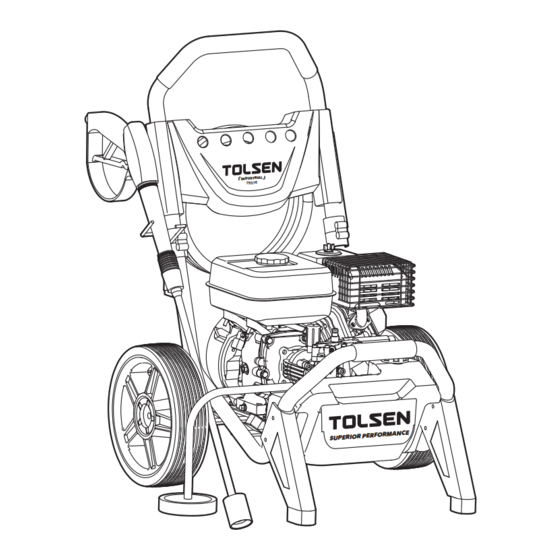

PETROL PRESSURE WASHER
INSTRUCTION MANUAL
SAVE THIS MANUAL !
You will need this manual for safety instructions, operating procedures and warranty.
Put it and the original sales receipt in a safe dry place for future reference.
7.0Hp
5250W

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FORCE XPRESS 79576 and is the answer not in the manual?

Questions and answers

Related Manuals for TOLSEN TOOLS FORCE XPRESS 79576

Summary of Contents for TOLSEN TOOLS FORCE XPRESS 79576

  • Page 1 79576 PETROL PRESSURE WASHER INSTRUCTION MANUAL 7.0Hp 5250W SAVE THIS MANUAL ! You will need this manual for safety instructions, operating procedures and warranty. Put it and the original sales receipt in a safe dry place for future reference.

  • Page 2: Intended Use

    INTRODUCTION Congratulations on the purchase of your new DANGER! appliance . You have chosen a high-quality product . Risk of injury! When using at petrol filling stations or The operating instructions are a part of this product . other danger areas, comply with all corresponding They contain important information about safety, safety regulations .
  • Page 3 Features 1. High-pressure hose 33. Water suction hose 2. Quick connector 34. Oil inlet/dipstick 3. Hose holder 35. Automatic oil switch-off 4. Nozzles (red, yellow, green, white, black) 36. On/Off switch 5. Air filter 37. Water outlet 6. Filler cap 38.

  • Page 4: Package Contents

    Package contents Technical data 1 engine unit Engine 2 x wheels, Ø 300 mm x 80 mm Type 1 cylinder 4-stroke air-cooled, pull starter 1 x high-pressure hose 8 m, max . pressure 25 MPa Displacement (250 Bar), max . 60°C, flexible Nominal output kW (HP) 5.25/7...
  • Page 5 Explanation of the symbols on the appliance! Attention! Hot surfaces! Risk of burns! Warning! Read the operating instructions before use! Warning! The machine is not suitable for connection to drinking-water supply . Warning! Poisonous CO (carbon monoxide) vapours! Do not use the appliance in confined spaces! Sound power level LWA data in dB .

  • Page 6: Safety Instructions For High-Pressure Cleaners

    SAFETY INSTRUCTIONS FOR HIGH-PRESSURE CLEANERS Important! Ready the safety instructions Hazard levels DANGER! carefully before using the appliance for the first Indicates an imminently dangerous situation which time and adhere to it at all times . Store these will result in serious bodily injury or death. safety instructions carefully for later use or to WARNING! pass on to the next owner .
  • Page 7 DANGER! DANGER! Inspect the appliance and the working equip- Only cleaning agents that have been approved by ment before use for operational safety and for the appliance manufacturer may be used . This proper condition . Do not use the appliance if a appliance was designed to be used with the connecting pipe or important parts of the appliance cleaning products that were supplied or delivered...
  • Page 8 CAUTION! If a sound pressure level over 80 dB(A) is specified WARNING! in the appliance operating instructions (technical High-pressure hoses, fittings and couplings are specifications), wear hearing protec- tion . important for machine safety . Use only the Wear suitable protective clothing and safety high-pressure hoses, fittings and couplings glasses to protect yourself from water splashes and recommended by the manufacturer .

  • Page 9: Maintenance

    DANGER! Transport The operator must use the appliance properly . DANGER! They must take local conditions into account and When transporting the machine, make sure that pay attention to others, especially children, when the engine is switched off and the appliance is working with the appliance .

  • Page 10: High-Temperature Water And Petrol Engine Appliances

    High-temperature water and petrol springs, controller rods or other parts that could engine appliances increase the engine speed . Risk of burns! Do not touch the hot exhaust DANGER! silencer, cylinder or cooling fins . Use only the fuel specified in the operating Keep your hands and feet away from all moving or instructions .

  • Page 11: Before Use

    BEFORE USE NOTE washer 53 onto the axle 42 and secure it in place Exercise caution when unpacking, transporting with the R-clip 44 . and storing due to the high weight of the machine . Repeat the process on the opposite side . These activities should be carried out by two people .

  • Page 12: Operation

    OPERATION Checking the oil level of the engine CAUTION! Do not overfill the oil . A too high oil level can cause Check the oil level before each use . engine damage . The maximum fill level for the tank Do not use the appliance if there is no oil visible on is 0 .6 litres .

  • Page 13: Drawing Water Out Of A Container

    Water connection Pull the trigger 20 on the hand spray gun 18 several times . See technical specifications for the connection data . Allow the appliance to run until the water comes Connect the supply hose (minimum length 7 .5 m, out of the jet pipe 16 without any air bubbles .

  • Page 14: Filling Oil/Petrol

    Starting the engine WARNING! Switch off the appliance before making any CAUTION! adjustments or carrying out maintenance work . Before first use, add engine oil (15W40, approx . 0 DANGER! RISK OF EXPLOSION! DO NOT SPRAY .6 l) and fuel (regular unleaded petrol) . FLAMMABLE LIQUIDS! Check the fuel and oil levels;...

  • Page 15: Changing The Nozzle

    Changing the nozzle Spray the cleaning agent sparingly and leave to work for 1–5 minutes but do not let it dry . DANGER! – Removing dirt: Before changing the nozzle, switch off the appliance Rinse off the dissolved dirt using a high-pressure jet . and pull the trigger 20 to depressurise the appliance A er using with a cleaning agent Remove the nozzle 4 .

  • Page 16: Frost Protection

    TRANSPORT CAUTION! RISK OF INJURY AND DAMAGE! Take the weight of the appliance into account during transport . Wind up the high-pressure hose 1 and place it in the hose holder 3 . Place the jet pipe 16 into the lower spray gun holder 13 . Hang the hand spray gun 18 in the upper spray gun holder 19 .

  • Page 17: Cleaning And Maintenance

    CLEANING AND MAINTENANCE NOTE Screw the oil drain screw 15 back in . The maintenance schedule below lists only Pour new oil slowly into the opening on the oil maintenance work on the high-pressure pump . In inlet 34 . Fill the oil slowly so that air bubbles can escape .

  • Page 18: Preparation For Transport

    Oil change Preparation for transport The engine oil should be changed with the engine at Empty the fuel tank 7 into a suitable container operating temperature . using a petrol suction pump . If still operational, leave the engine running until Use only engine oil (15W40) .

  • Page 19: Troubleshooting

    TROUBLESHOOTING DANGER! RISK OF INJURY DUE TO ACCIDENTAL STARTING OF THE APPLIANCE . Before working on the appliance, turn the On/Off switch 36 to "OFF" and pull off the spark plug connector 26 . RISK OF BURNS! Do not touch the hot exhaust silencer, cylinder or cooling fins Engine will not start Fault Cause...
  • Page 20 Part name Part name Anti-vibration feet Engine assy M6x40 screw Pump assy Detergent tank Frame assy Soap tank cap Water hose holder Anti-vibration feet Handle Pressure hose holder Water hose Spray gun holder(i) Spray gun Spray gun holder(ii) Solid wheel M6 gasket Axles M6x35 screw...
  • Page 22 PARTS LIST(ENGINE PARTS)
  • Page 23 (ENGINE PARTS)
  • Page 24 PARTS LIST(ENGINE PARTS) Part name Part name Oil seal Pressure adjusting screw Compound box Pressure adjusing spring O type ring Gasket Oil Plug Valve pocket Bearing II O type ring Swash plate Sealing gasket Bearing I O type ring Clip ring Spil valve core Split chuck O type ring...
  • Page 25 (ENGINE PARTS)
  • Page 28 SUZHOU TOLSEN TOOLS CO.,LTD. www.tolsentools.com TOLSEN is a trademark or registered trademark of TOLSEN TOOLS. All rights reserved. MADE IN CHINA...
